Speed Signal Circuit (Multi-Display-Combination Meter Assy)

SPEED SIGNAL CIRCUIT (MULTI-DISPLAY - COMBINATION METER ASSY)

CIRCUIT DESCRIPTION

The multi-display performs the switch operation control by receiving the vehicle speed signal from the combination meter.

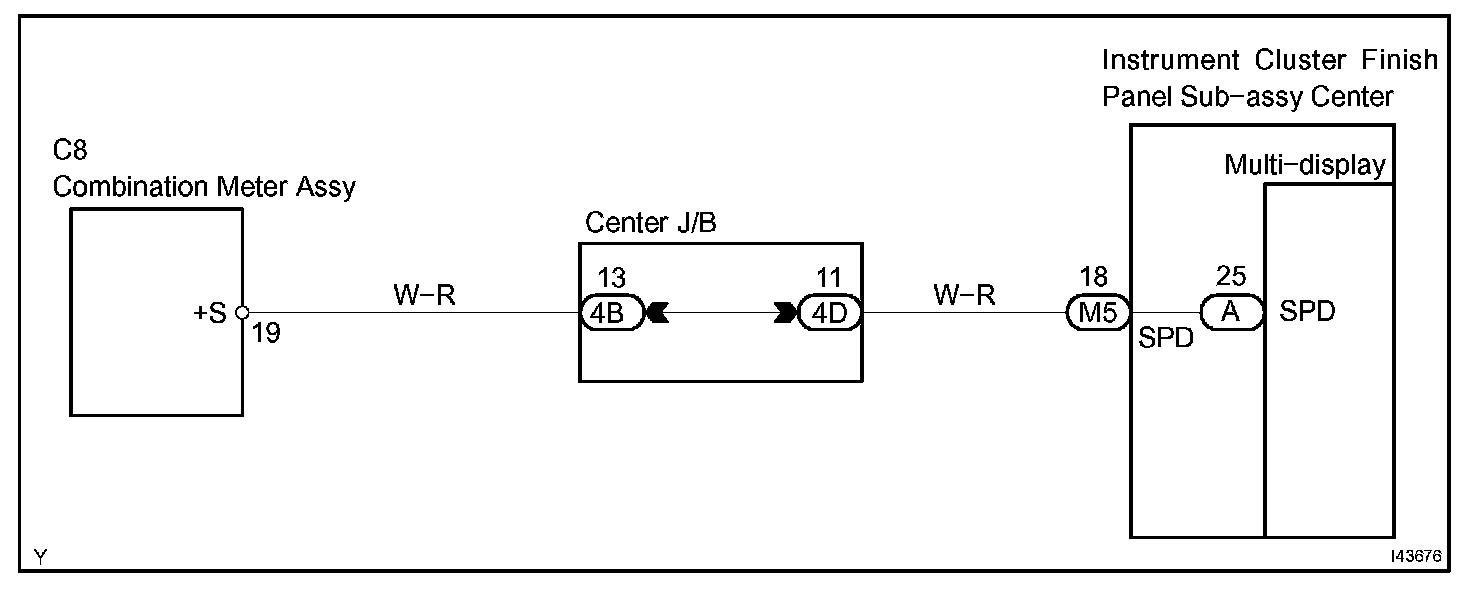

Wiring Diagram:






Step 1-2:




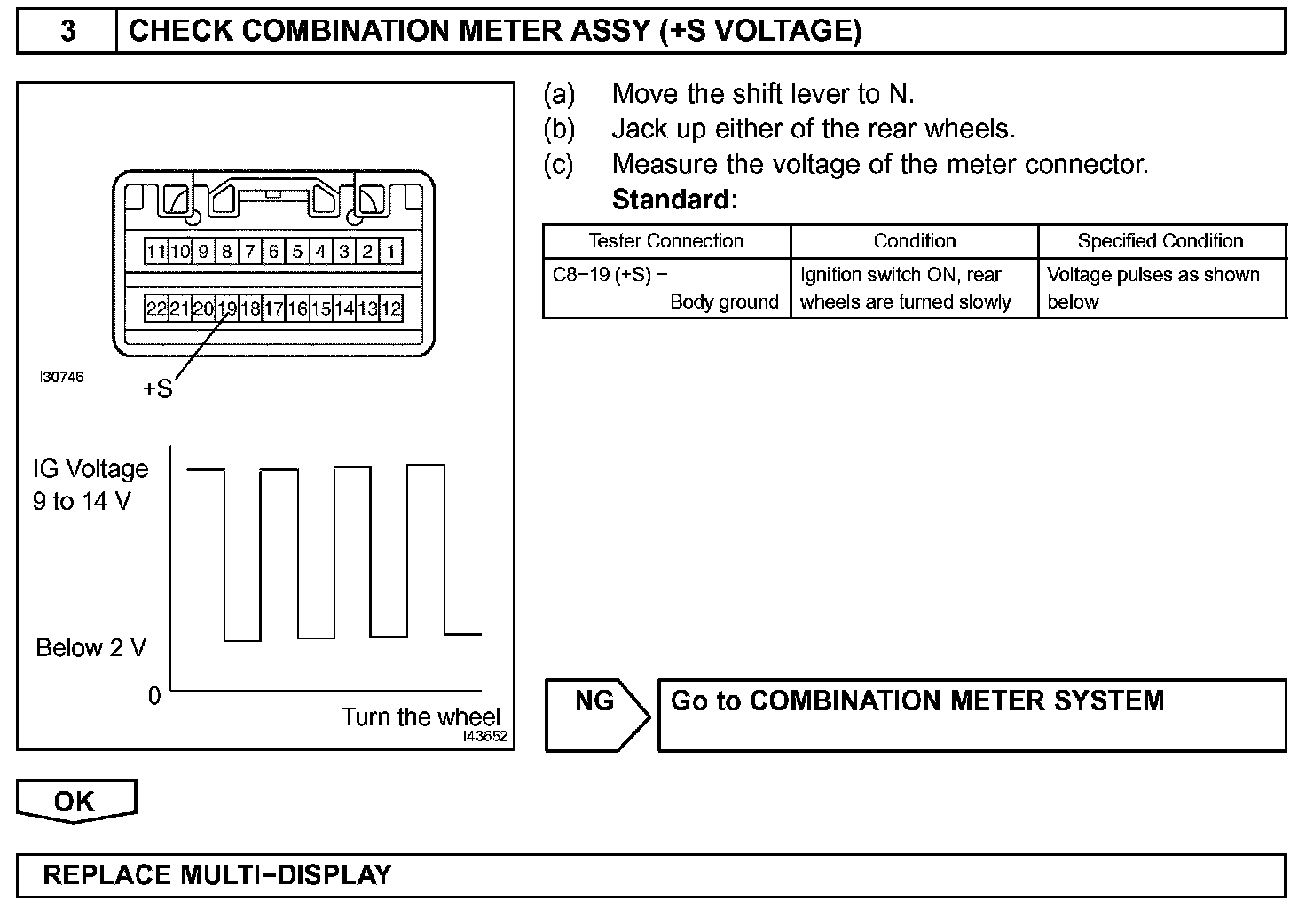

Step 3:




INSPECTION PROCEDURE
