Power Source Circuit (Multi-Display)

POWER SOURCE CIRCUIT (MULTI-DISPLAY)

CIRCUIT DESCRIPTION

This circuit provides power to the multi-display.

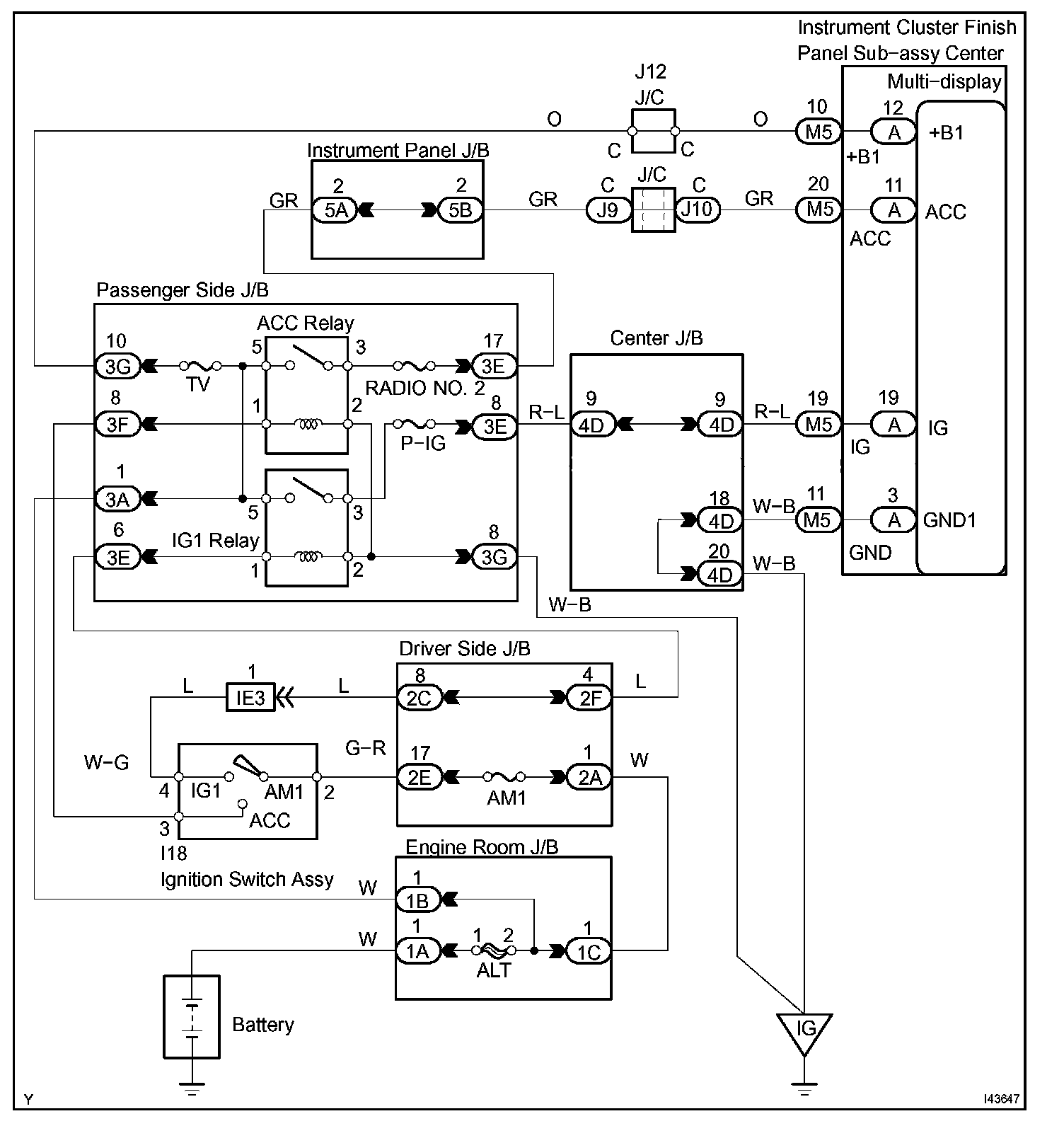

Wiring Diagram:

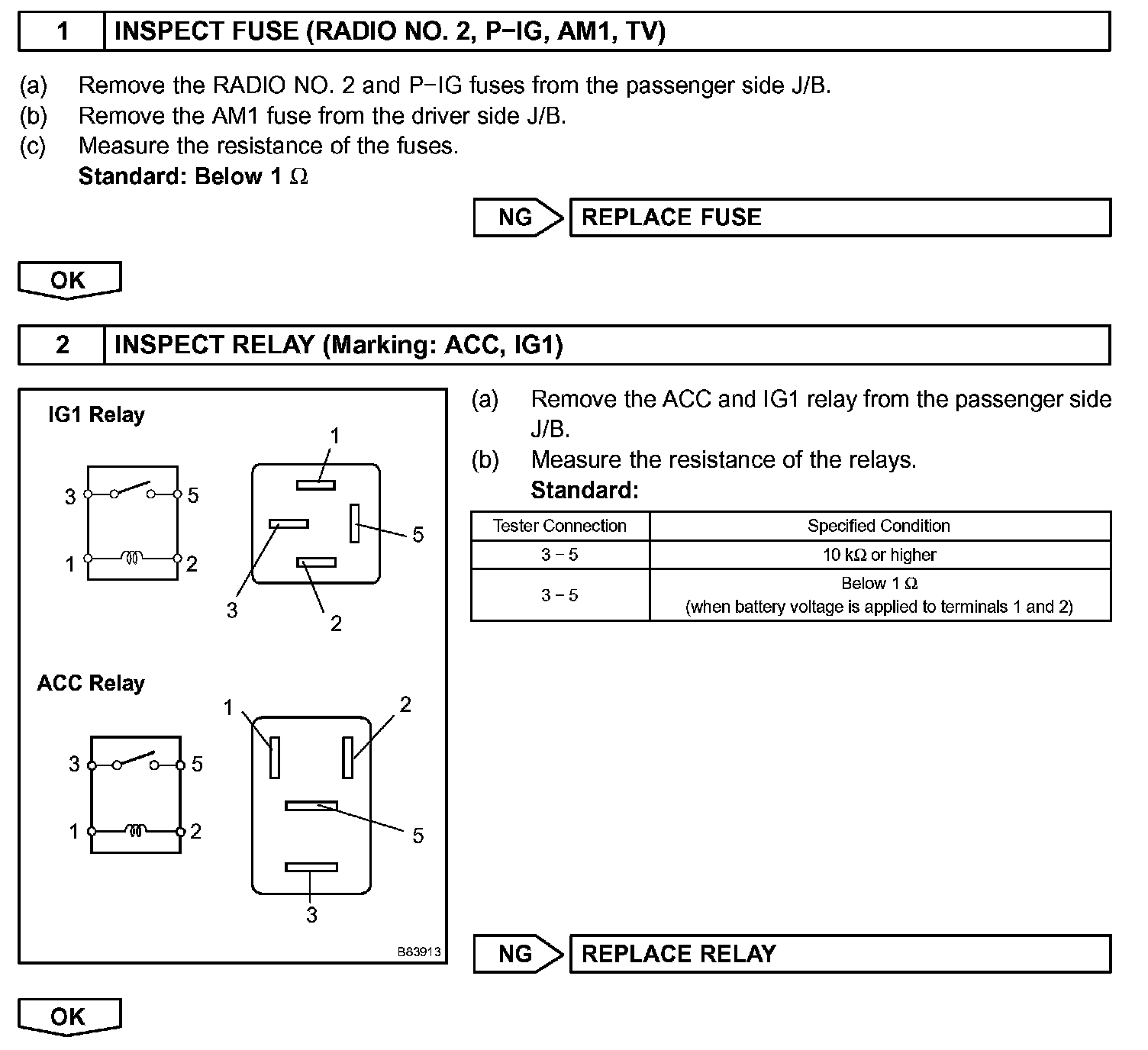

Step 1-2:

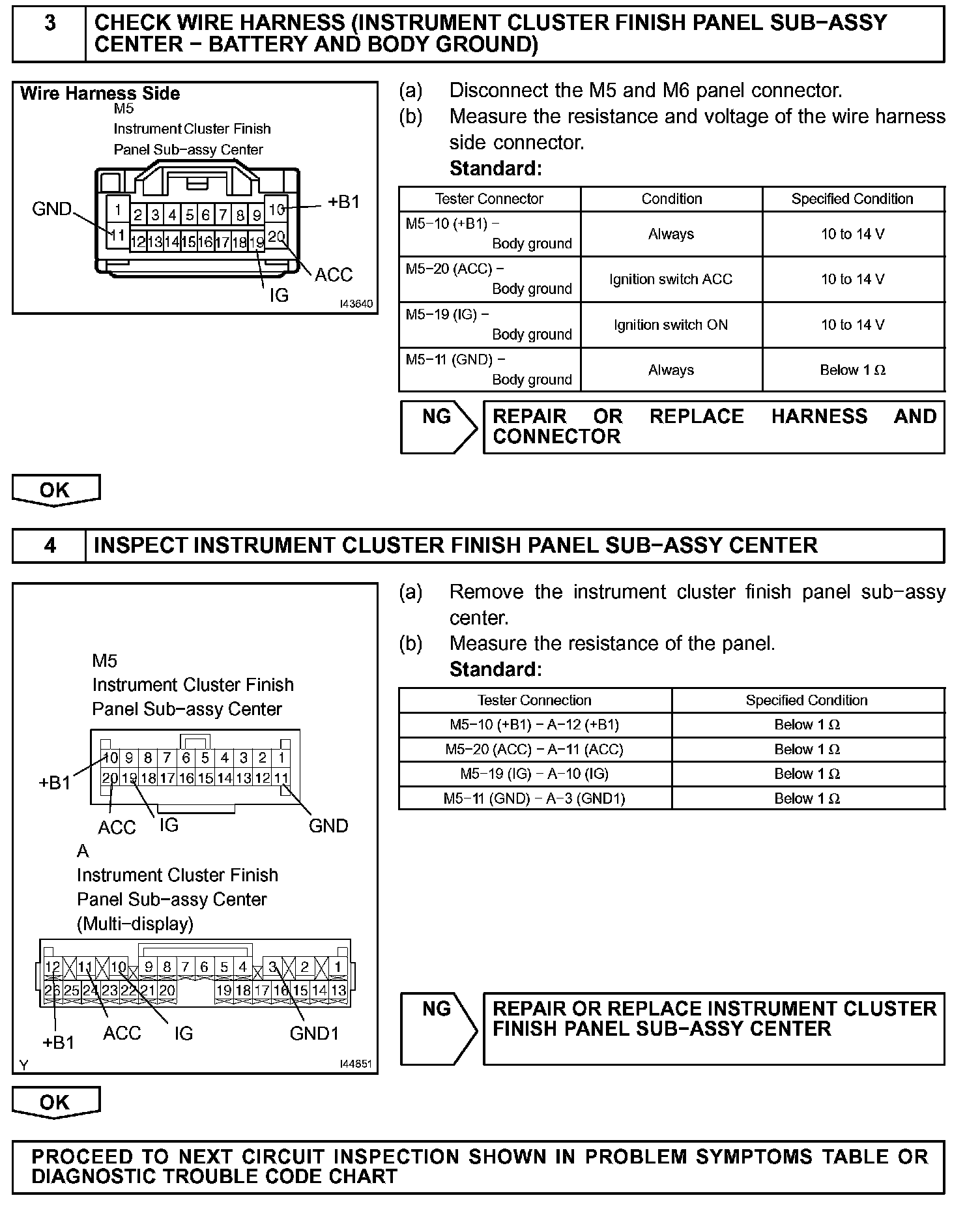

Step 3-4:




INSPECTION PROCEDURE
