Microphone Circuit (Multi-Display-Navigation ECU)

MICROPHONE CIRCUIT (MULTI-DISPLAY - NAVIGATION ECU)

CIRCUIT DESCRIPTION

This circuit sends a microphone signal from the multi-display to the navigation ECU.

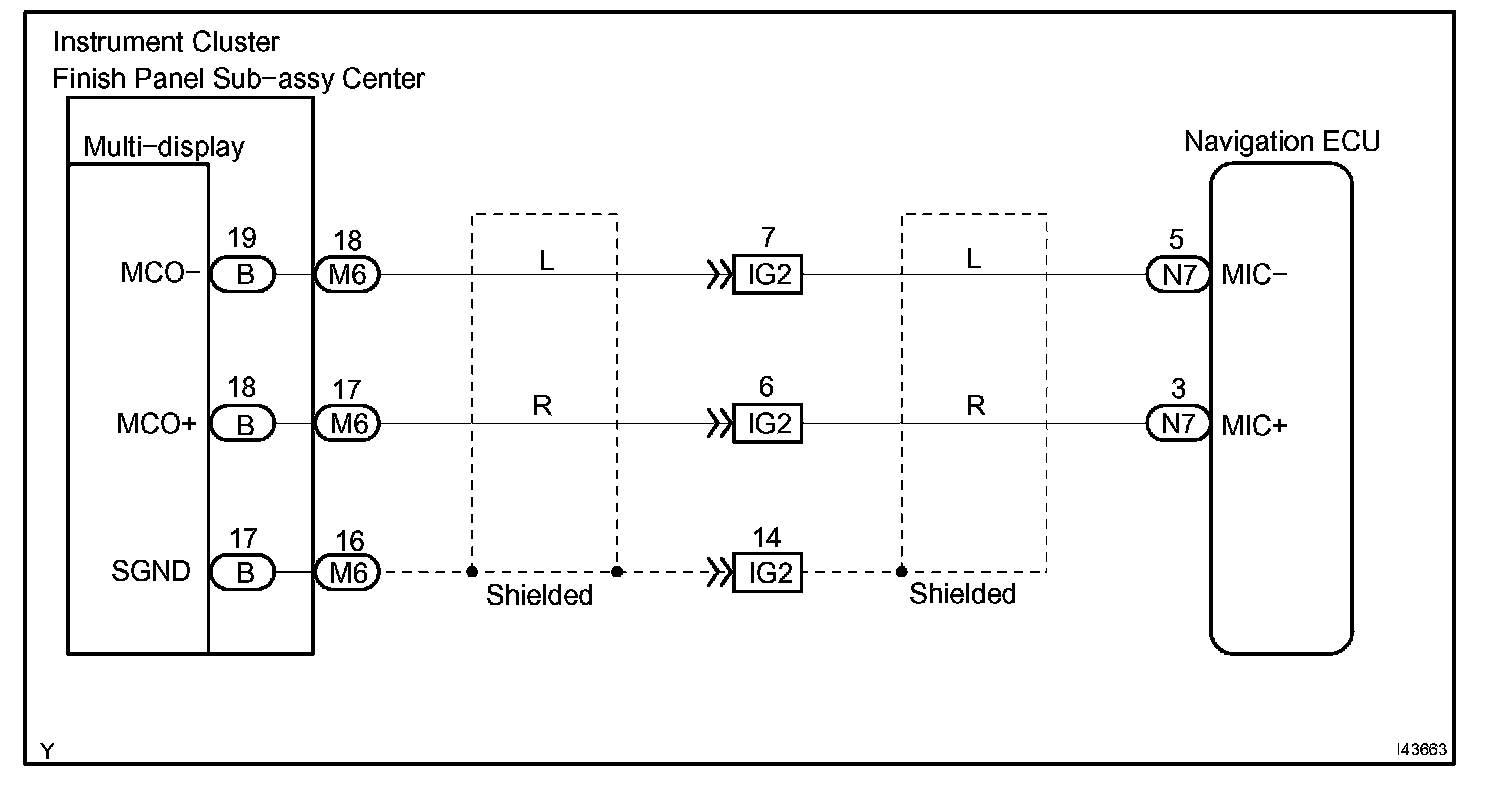

Wiring Diagram:

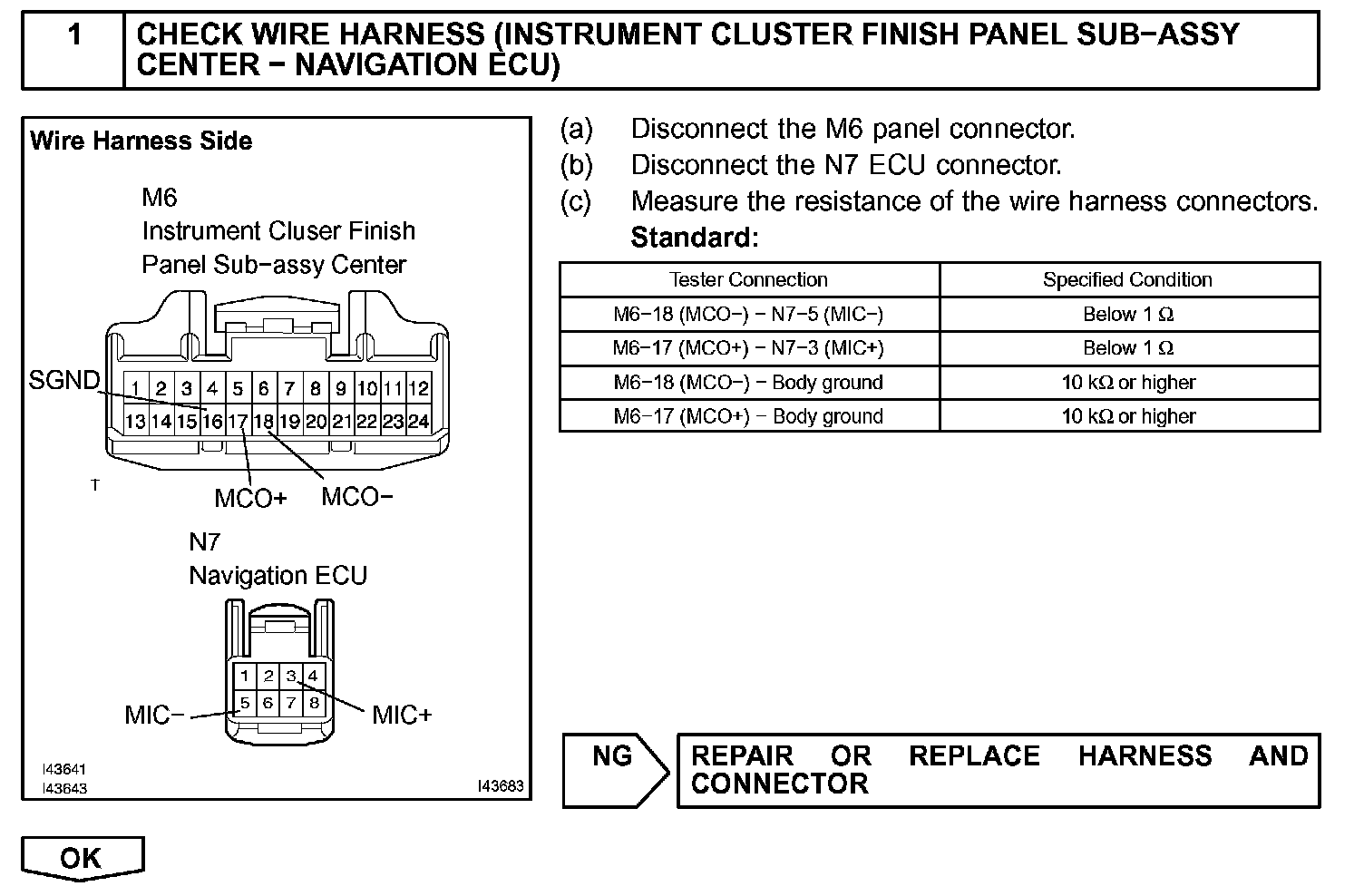

Step 1:

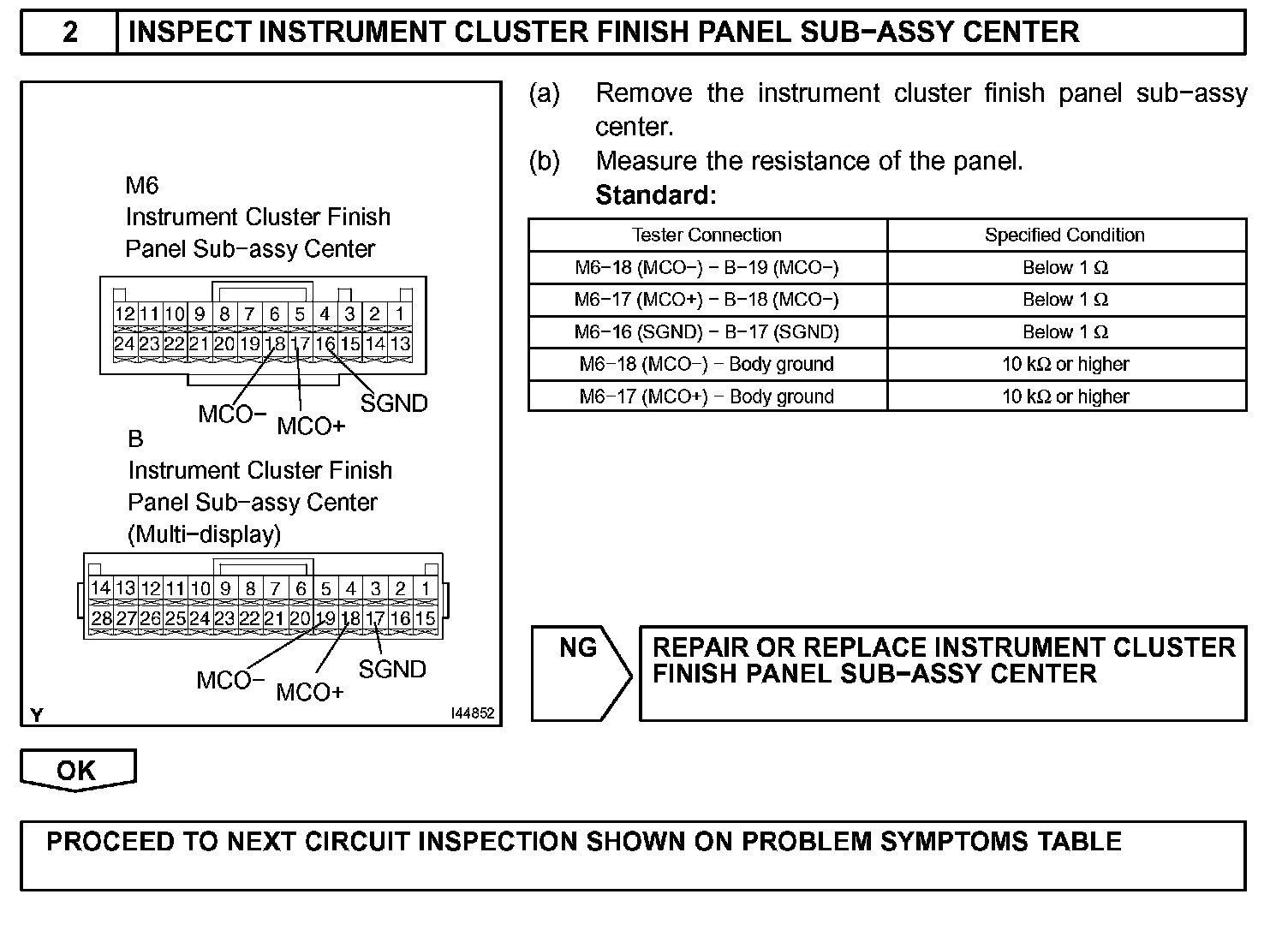

Step 2:




INSPECTION PROCEDURE
