Navigation Check Mode (Microphone Check)

NAVIGATION CHECK MODE (MICROPHONE CHECK)

HINT:
- This mode checks the microphone.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

HOW TO PERFORM MICROPHONE CHECK
a. Start the diagnostic mode

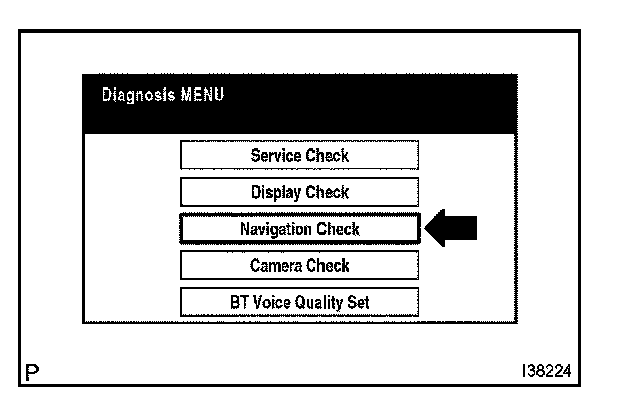

b. Select "Navigation Check" from "Diagnosis MENU".

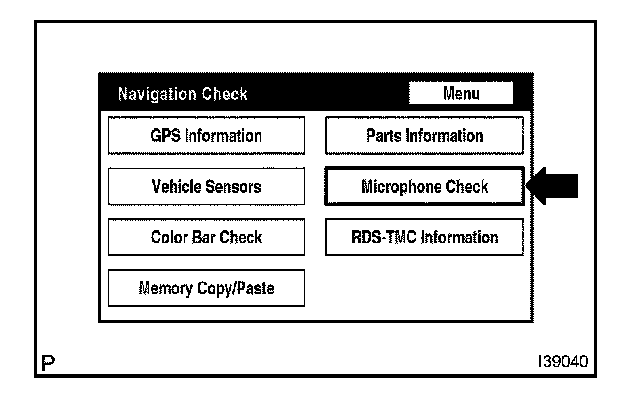

c. Select "Microphone Check" from "Navigation Check".

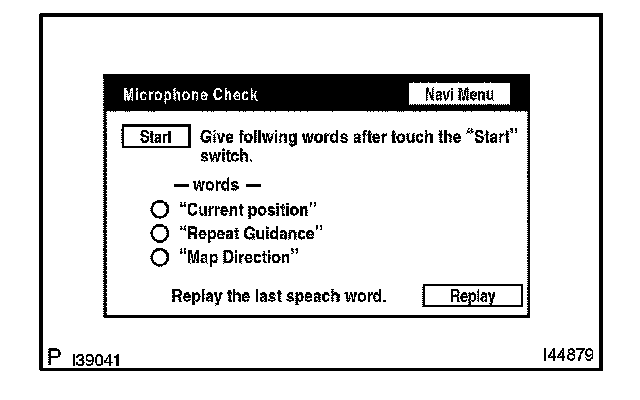

d. Perform the microphone check by following the directions on the "Microphone Check" screen.
