Display Check Mode (Vehicle Signal Check)

DISPLAY CHECK MODE (VEHICLE SIGNAL CHECK)

HINT:
- This mode checks the input of vehicle signals to the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options.

HOW TO PERFORM VEHICLE SIGNAL CHECK
a. Enter diagnostic mode.




b. Select "Display Check" from the "Diagnosis MENU" screen.




c. Select "Vehicle Signal Check" from the "Display Check" screen.

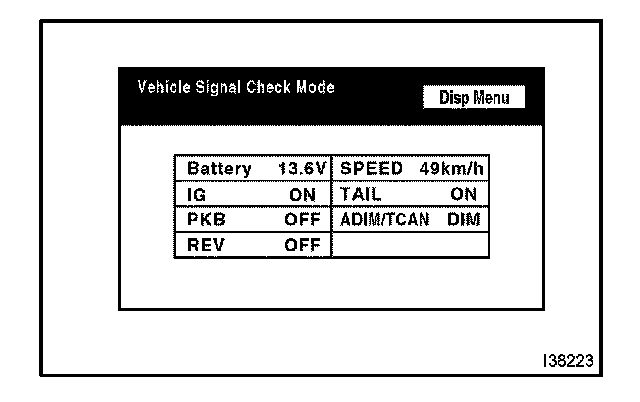

d. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

HINT:
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
