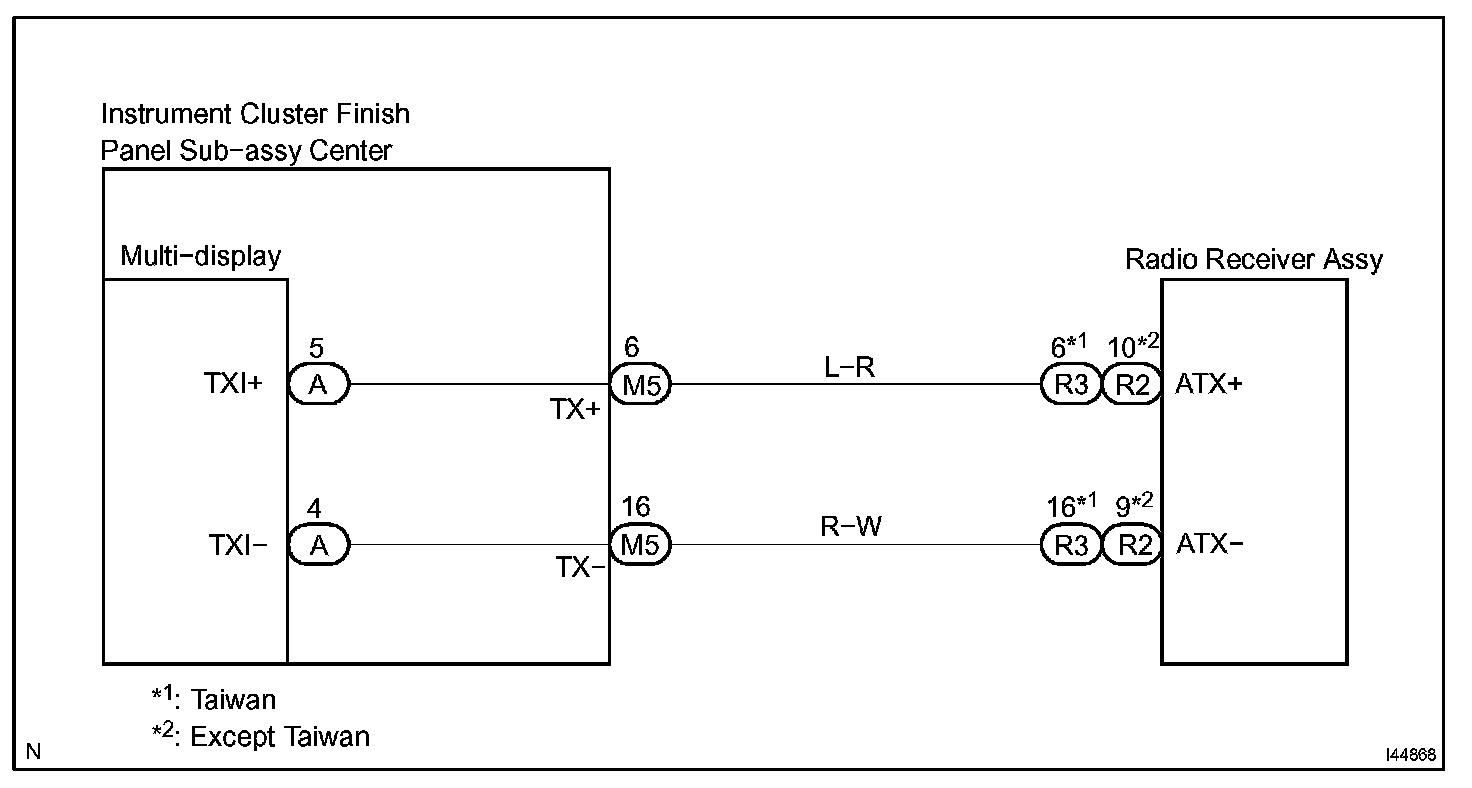

AVC-LAN Circuit (Radio Receiver Assy-Multi Display)

AVC-LAN CIRCUIT (RADIO RECEIVER ASSY - MULTI-DISPLAY)

CIRCUIT DESCRIPTION

The navigation system uses the AVC-LAN to control communication between all of its units. Each unit is connected to the AVC-LAN and communicates by sending and receiving switch signals.

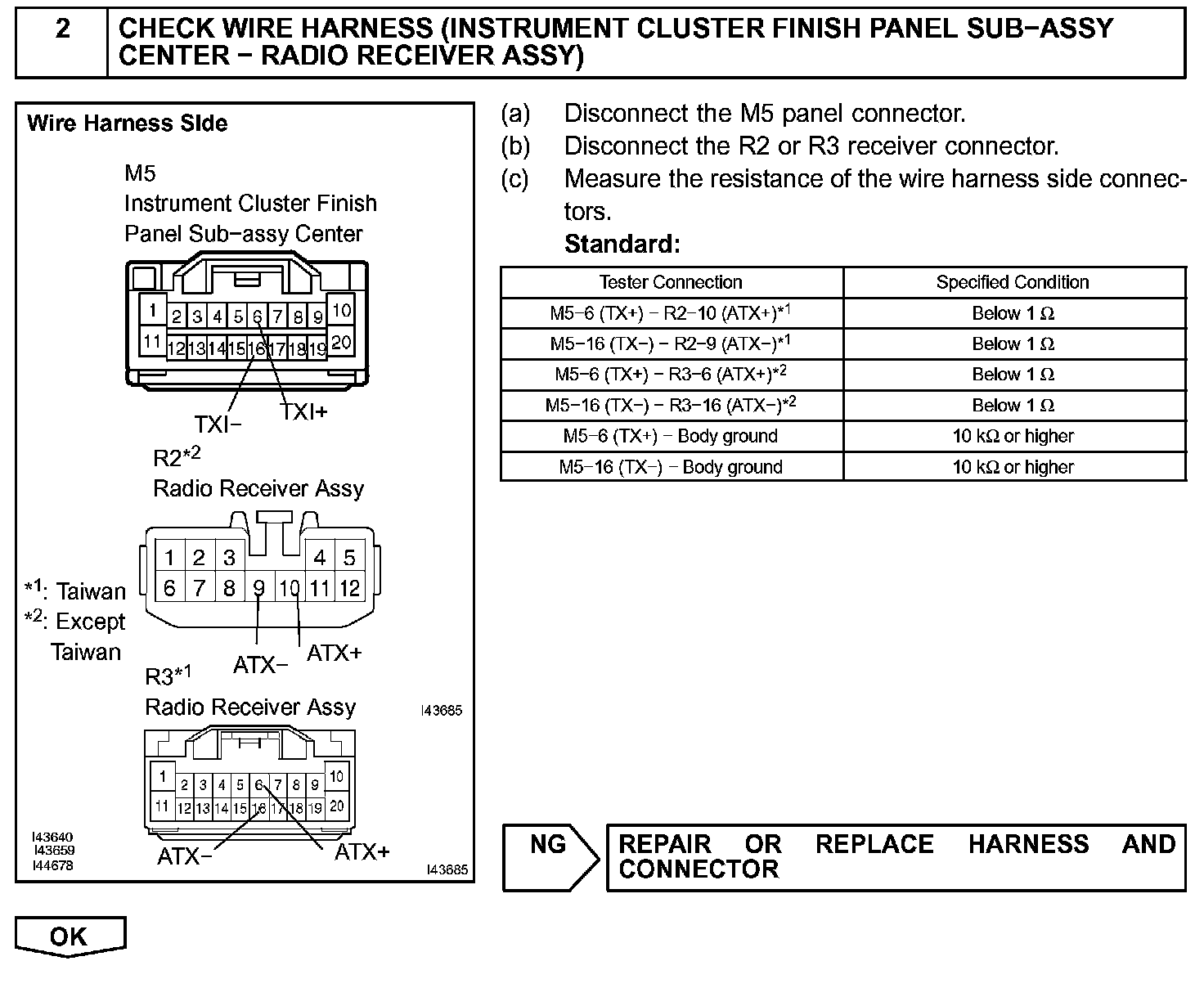

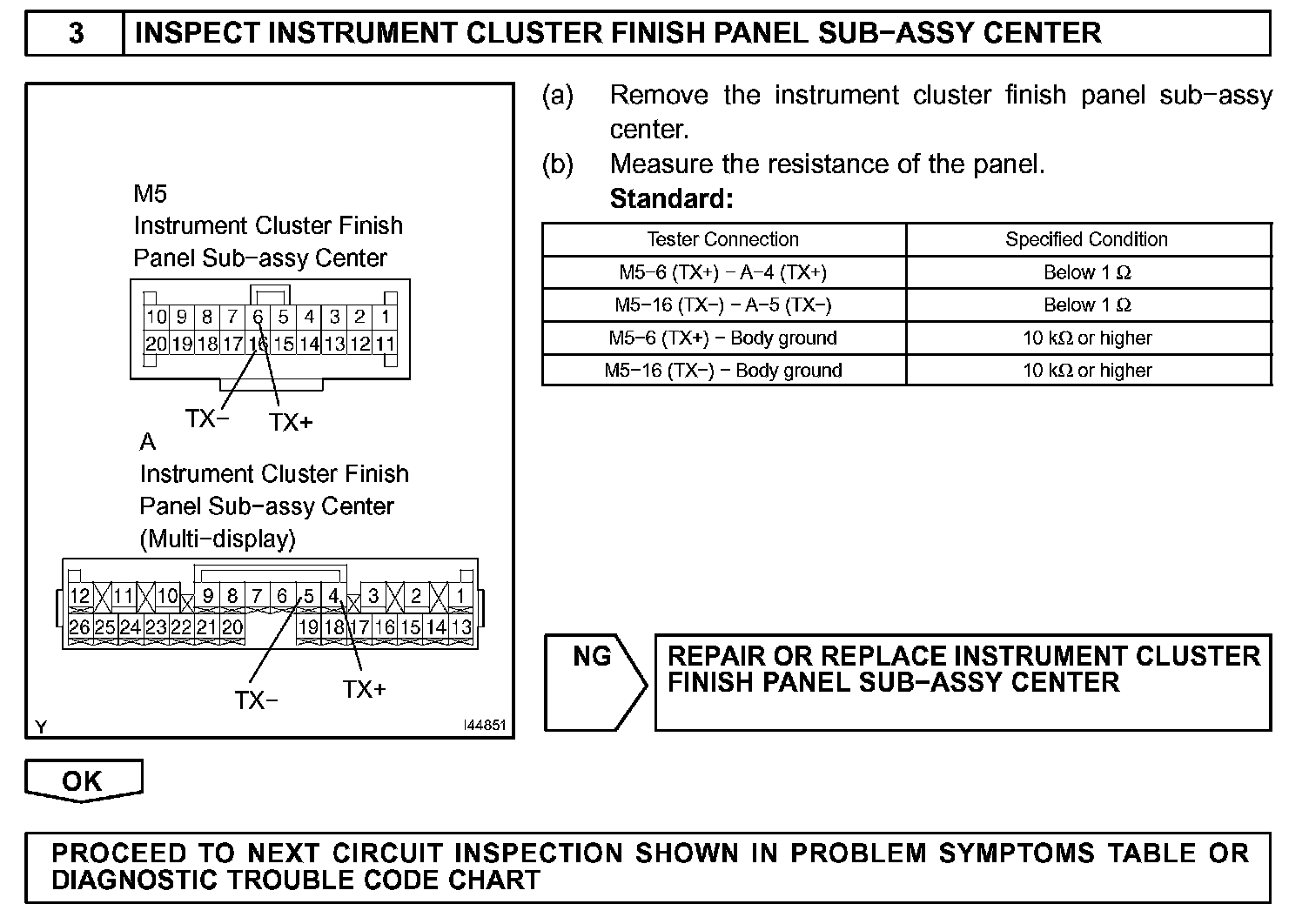

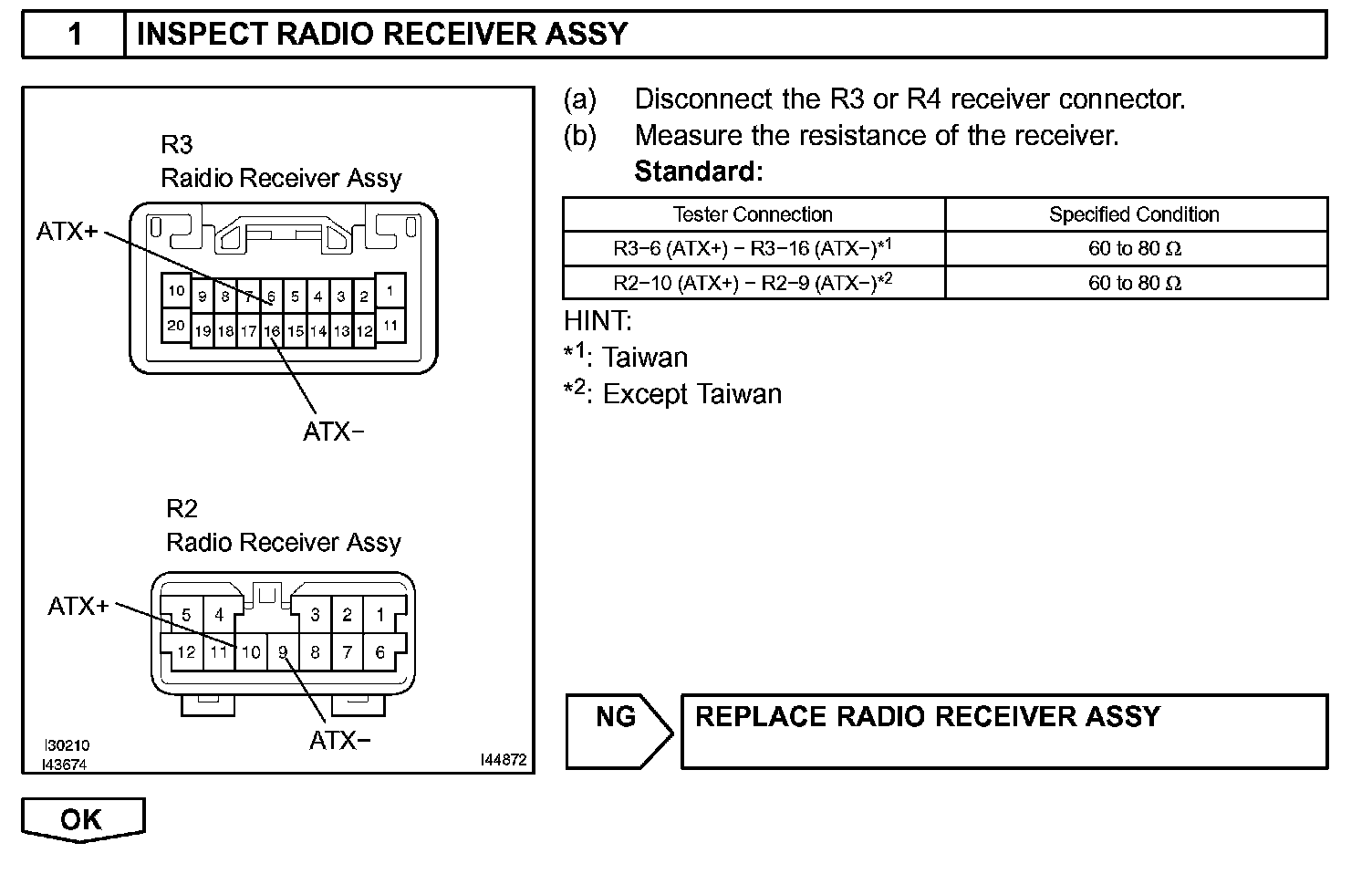

When the AVC-LAN has a +B short or a GND short, communication is cut and the navigation system will not function normally.
