Theft Warning ECU Power Source Circuit

THEFT WARNING ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the theft warning ECU.

Wiring Diagram:

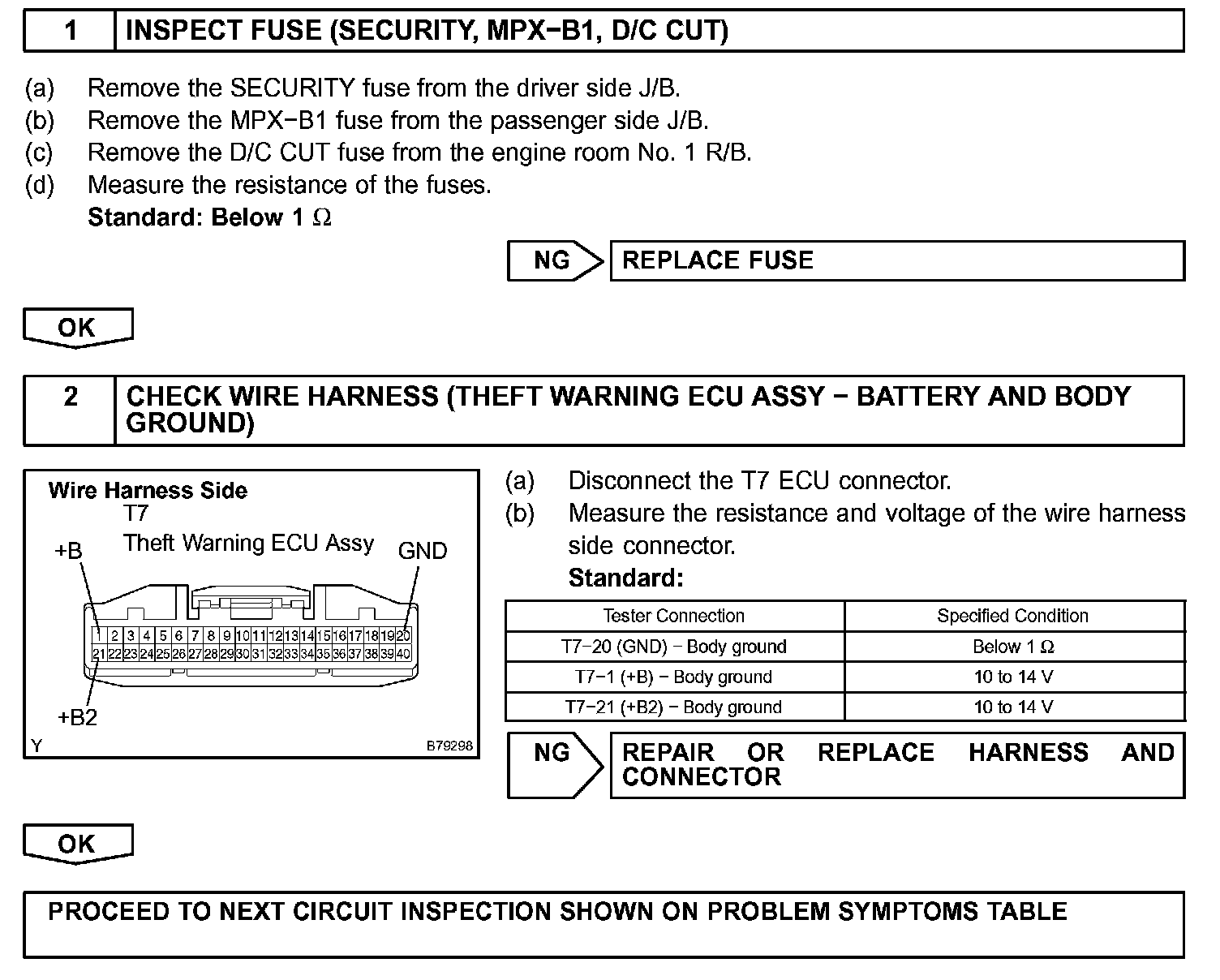

Step 1-2:




INSPECTION PROCEDURE
