P0748

DTC P0748 PRESSURE CONTROL SOLENOID "A" ELECTRICAL (SHIFT SOLENOID VALVE SL1)

CIRCUIT DESCRIPTION

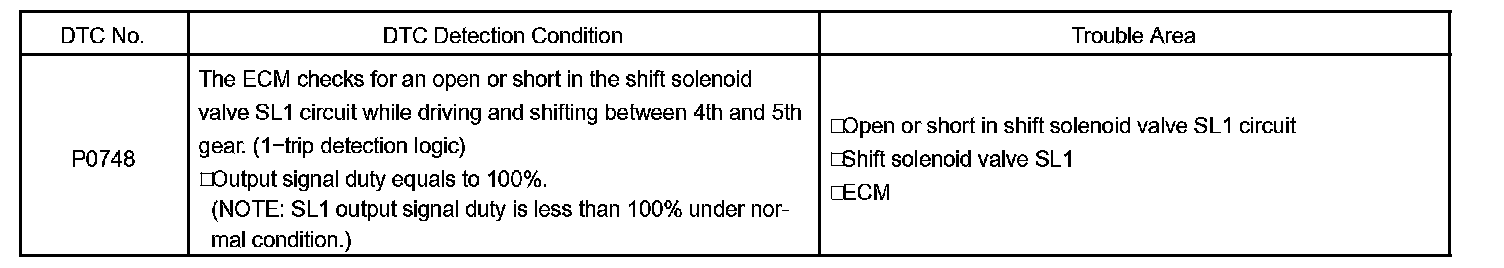

DTC Detection Condition:

Shifting from 1st to 6th is performed in combination with "ON" and "OFF" operation of the shift solenoid valves SL1, SL2, S1, S2, S3, S4 and SR which is controlled by the ECM. If an open or short circuit occurs in either of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the vehicle to be operated smoothly.

MONITOR DESCRIPTION

Monitor Strategy:

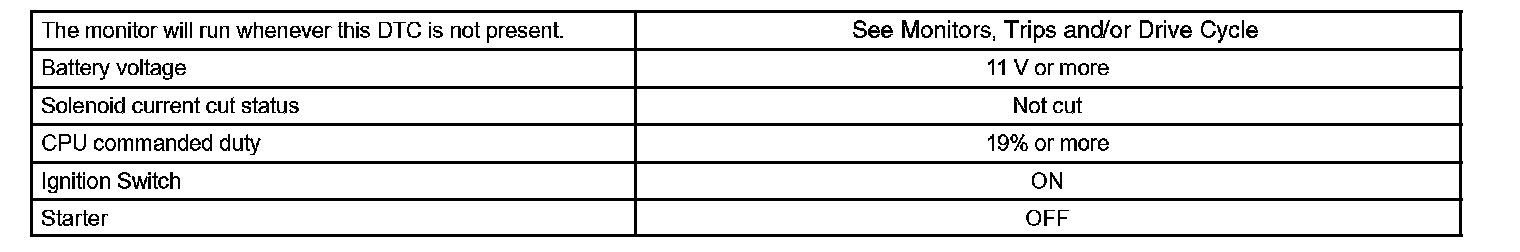

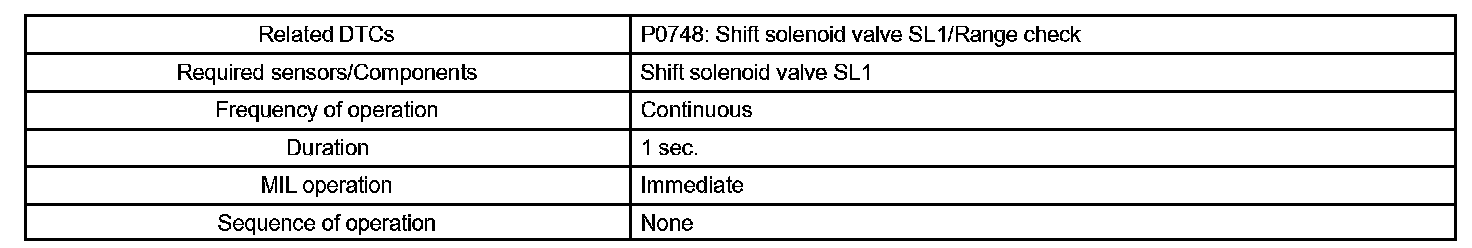

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

This DTC indicates an open or short in the shift solenoid valve SL1 circuit. The ECM commands gearshift by turning the shift solenoid valves "ON/OFF". When there is an open or short circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and stores the DTC. And the ECM performs the fail-safe function and turns the other shift solenoid valves in good condition "ON/OFF". (In case of an open or short circuit, the ECM stops sending current to the circuit.) While driving and shifting between 4th and 5th gears, if the ECM detects an open or short in the shift solenoid valve SL1 circuit, the ECM determines there is a malfunction.

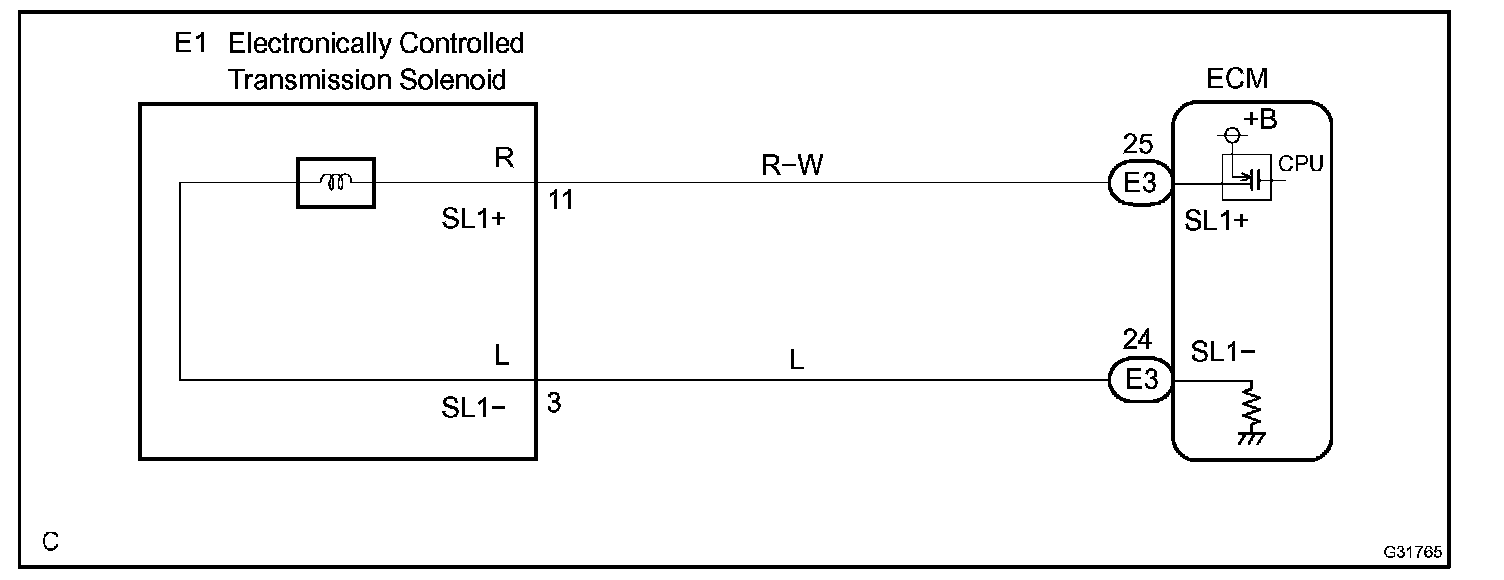

Wiring Diagram:

Step 1:

Step 2-3:

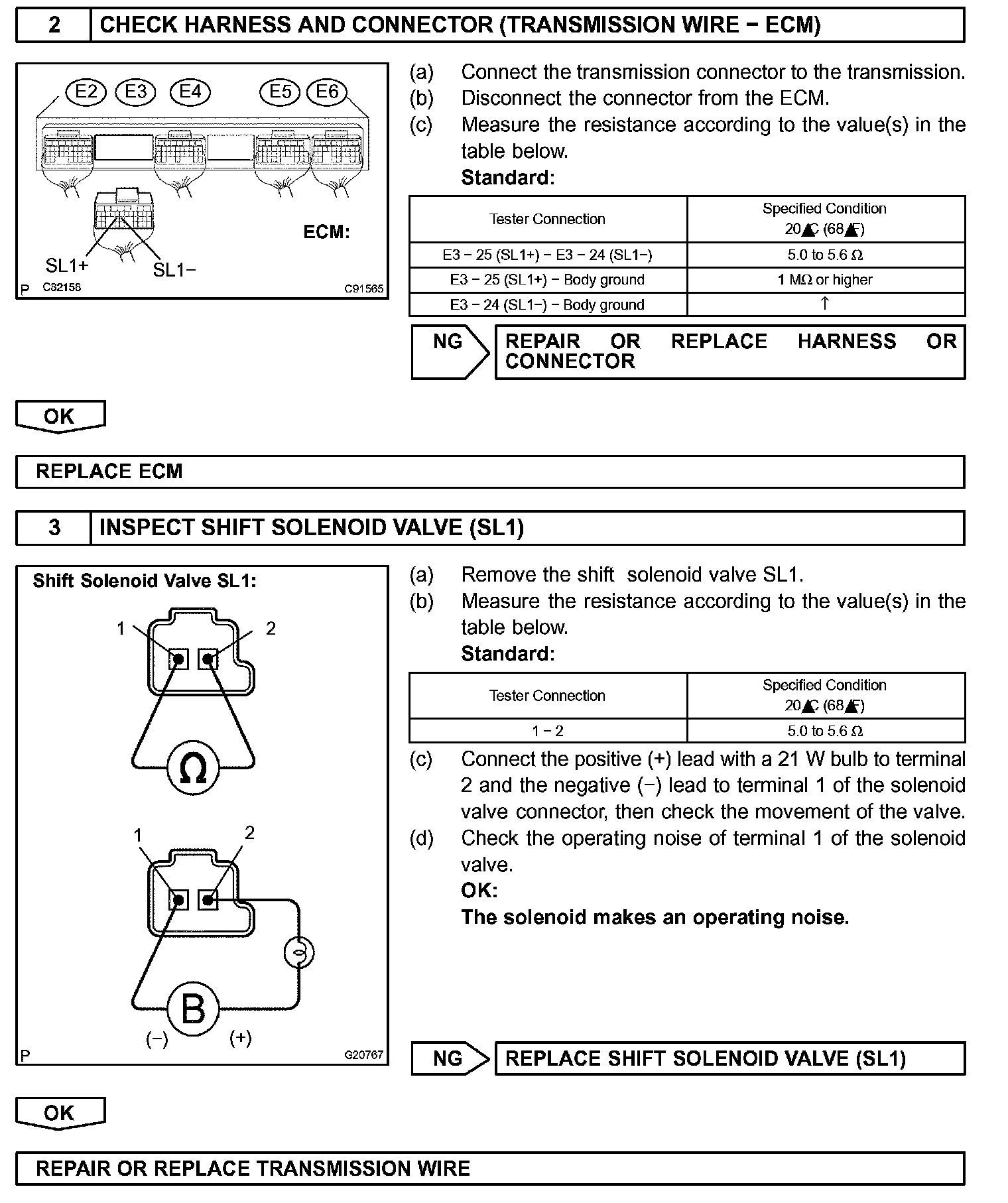

INSPECTION PROCEDURE

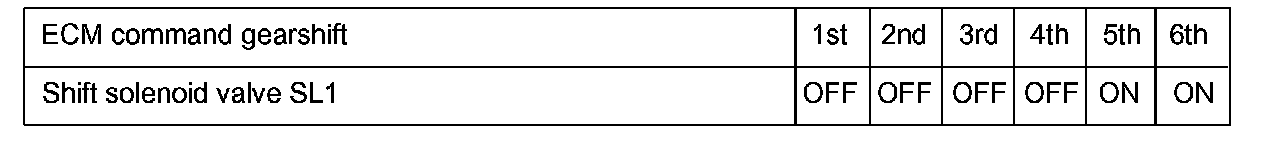

HINT: The shift solenoid valve SL1 is turned on/off normally when the shift lever is in the D position:
