P0560

DTC P0560 SYSTEM VOLTAGE

MONITOR DESCRIPTION

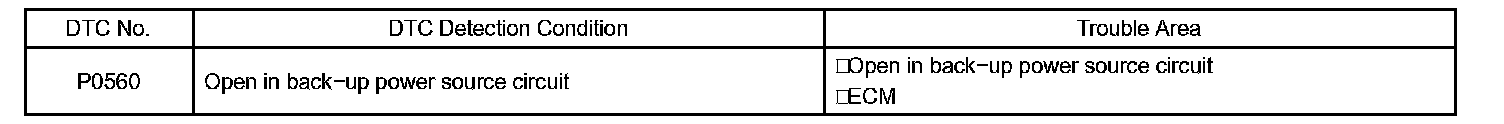

DTC Detection Condition:

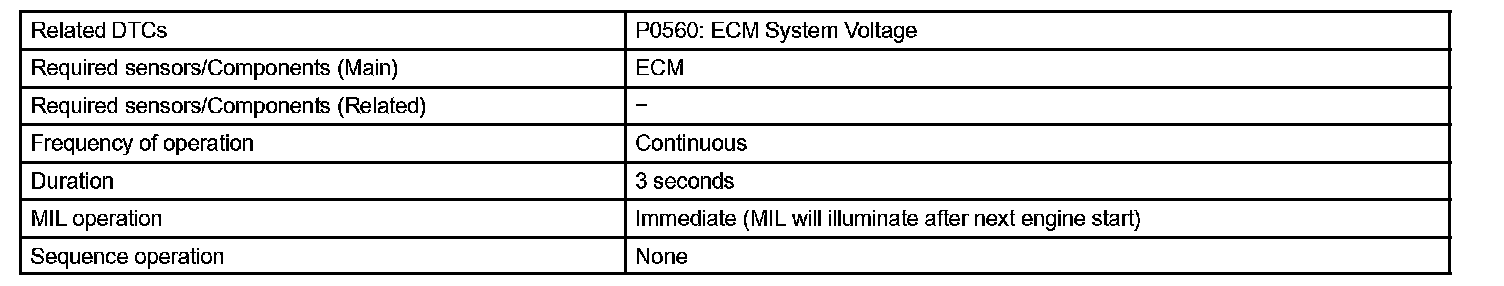

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

The battery supplies electricity to the ECM even when the ignition switch is OFF. This electricity allows the ECM to store data such as DTC history, freeze frame data, fuel trim values, and other data. If the battery voltage falls below a minimum level, these memory are cleared and the ECM will conclude that there is a fault in the power supply circuit. At the next engine start, the ECM will illuminate the MIL and set a DTC.

HINT: If DTC P0560 is present, the ECM will not store other DTCs.

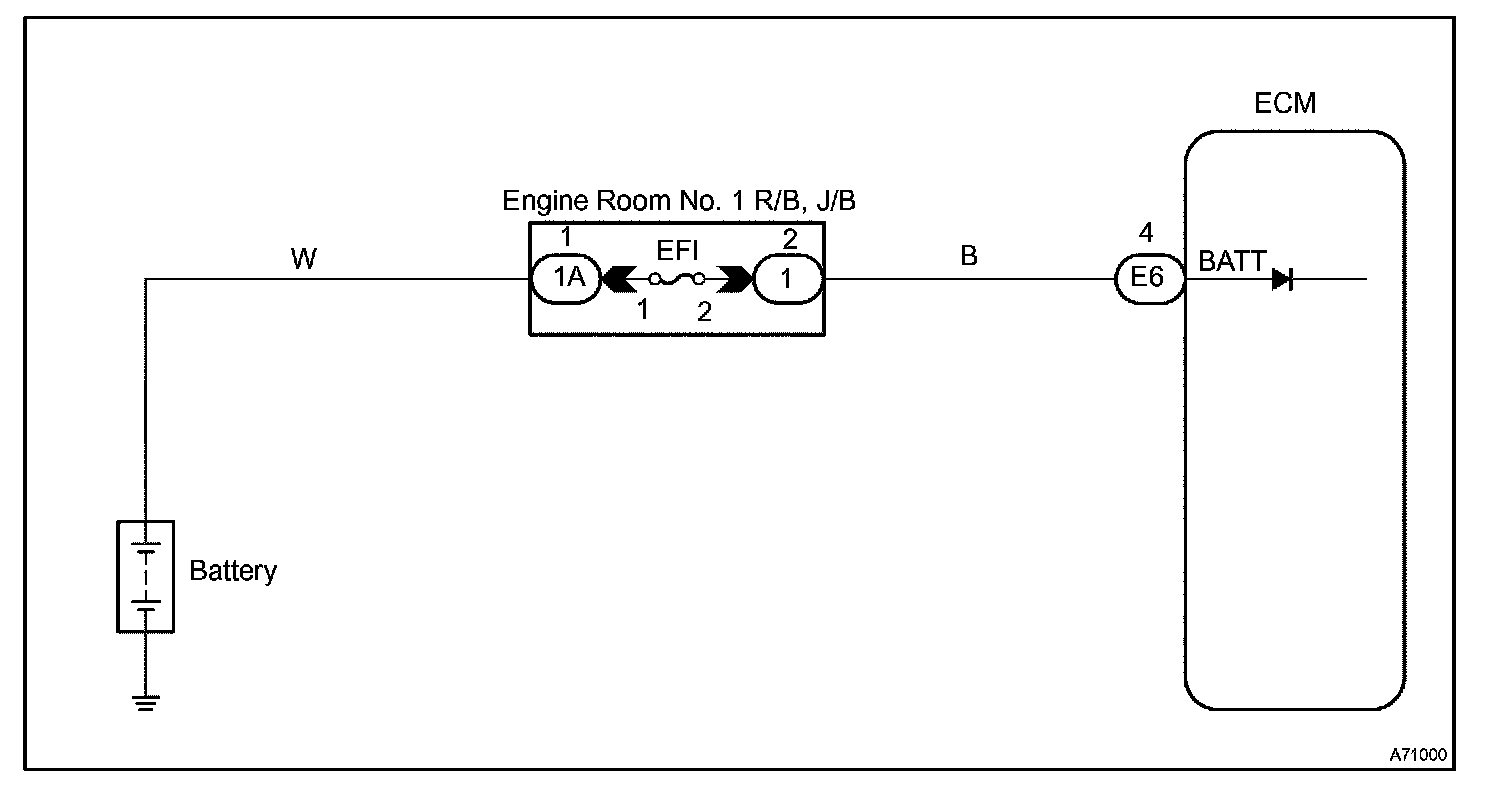

Wiring Diagram:

Step 1-2:

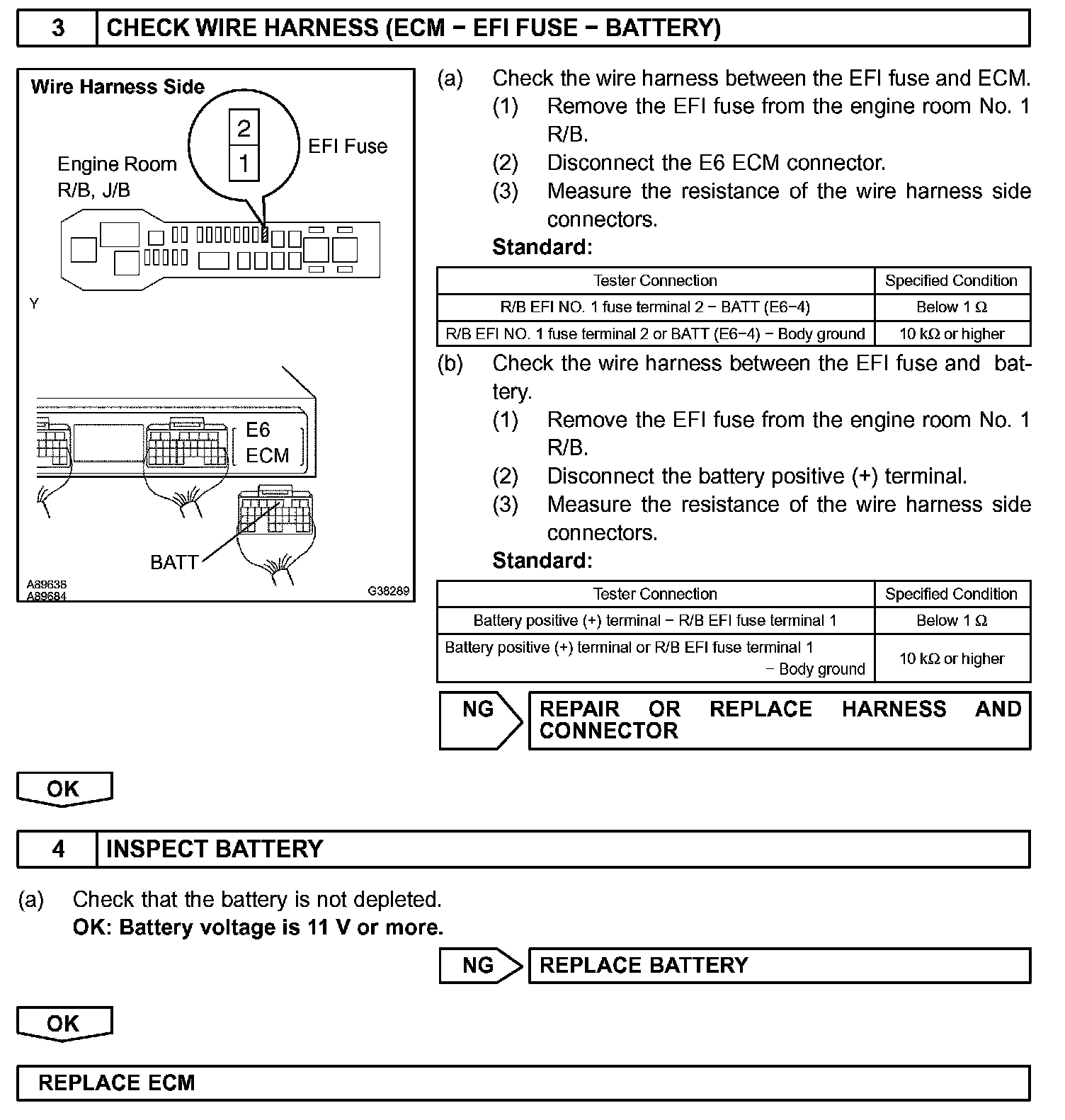

Step 3-4:

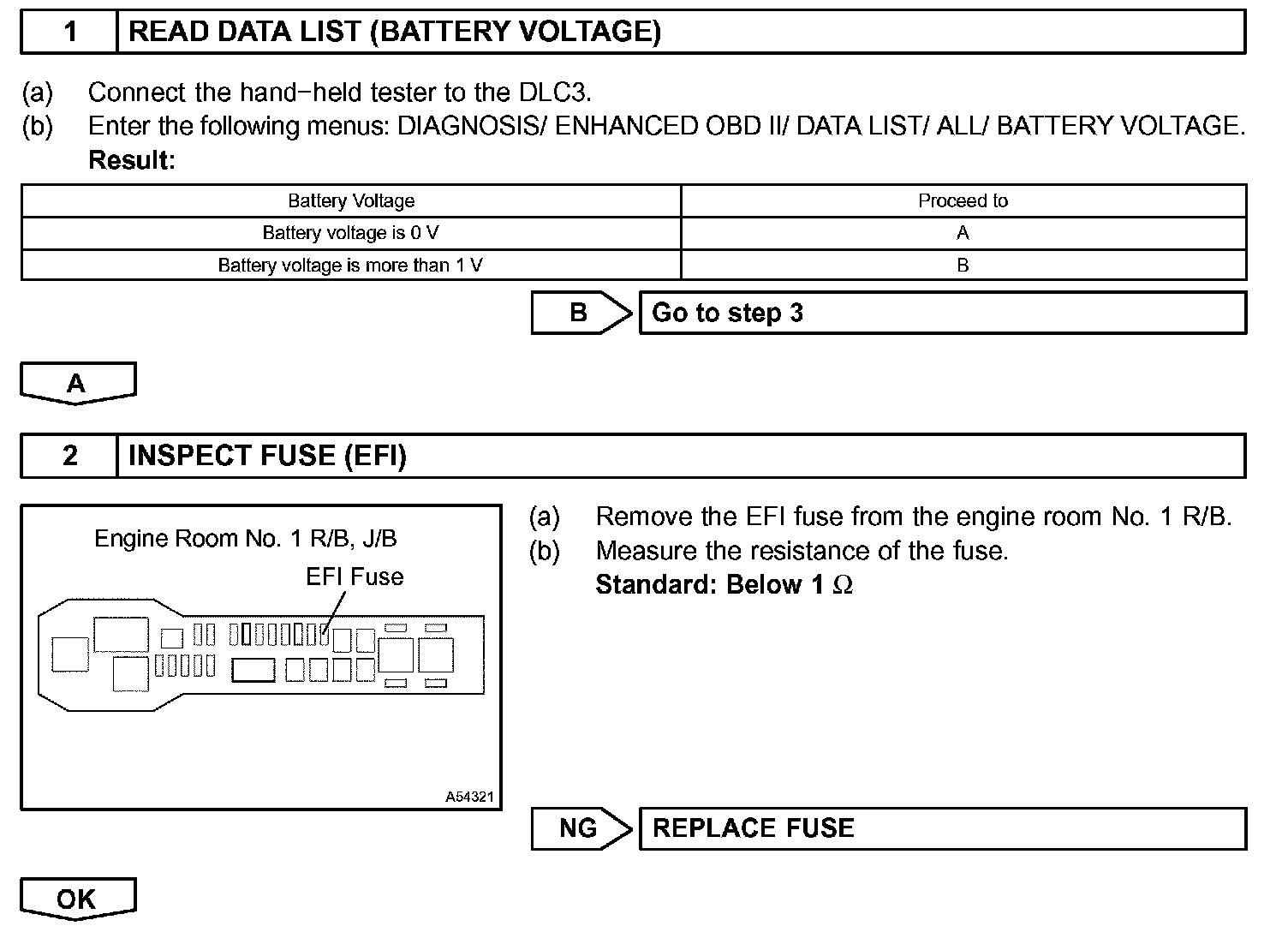

INSPECTION PROCEDURE
