Malfunction In Deceleration Sensor

DTC C1232/32 MALFUNCTION IN DECELERATION SENSOR
DTC C1243/43 MALFUNCTION IN DECELERATION SENSOR
DTC C1244/44 DECELERATION SENSOR CIRCUIT
DTC C1245/45 MALFUNCTION IN DECELERATION SENSOR

CIRCUIT DESCRIPTION

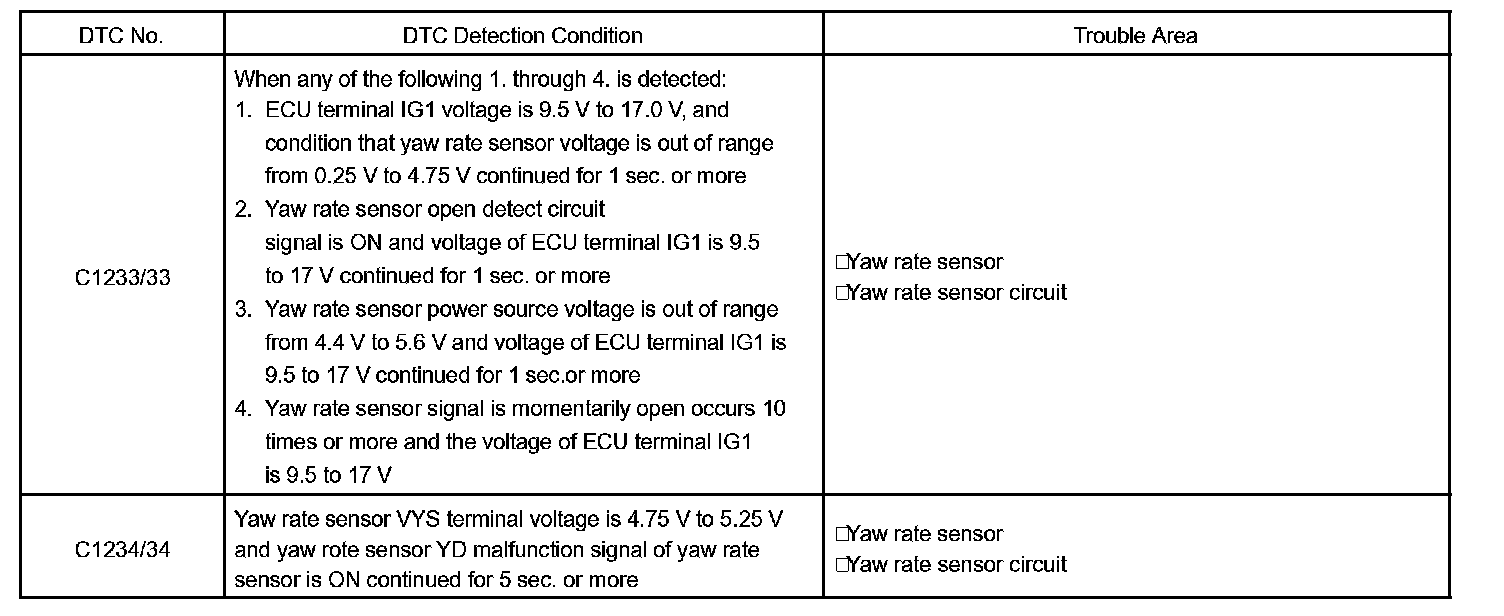

DTC Detection Condition:

This sensor detects deceleration on the vehicle. The sensor signal is used in ABS & BA & TRAC & VSC control. If the sensor functions abnormally, the ABS warning light turns on.

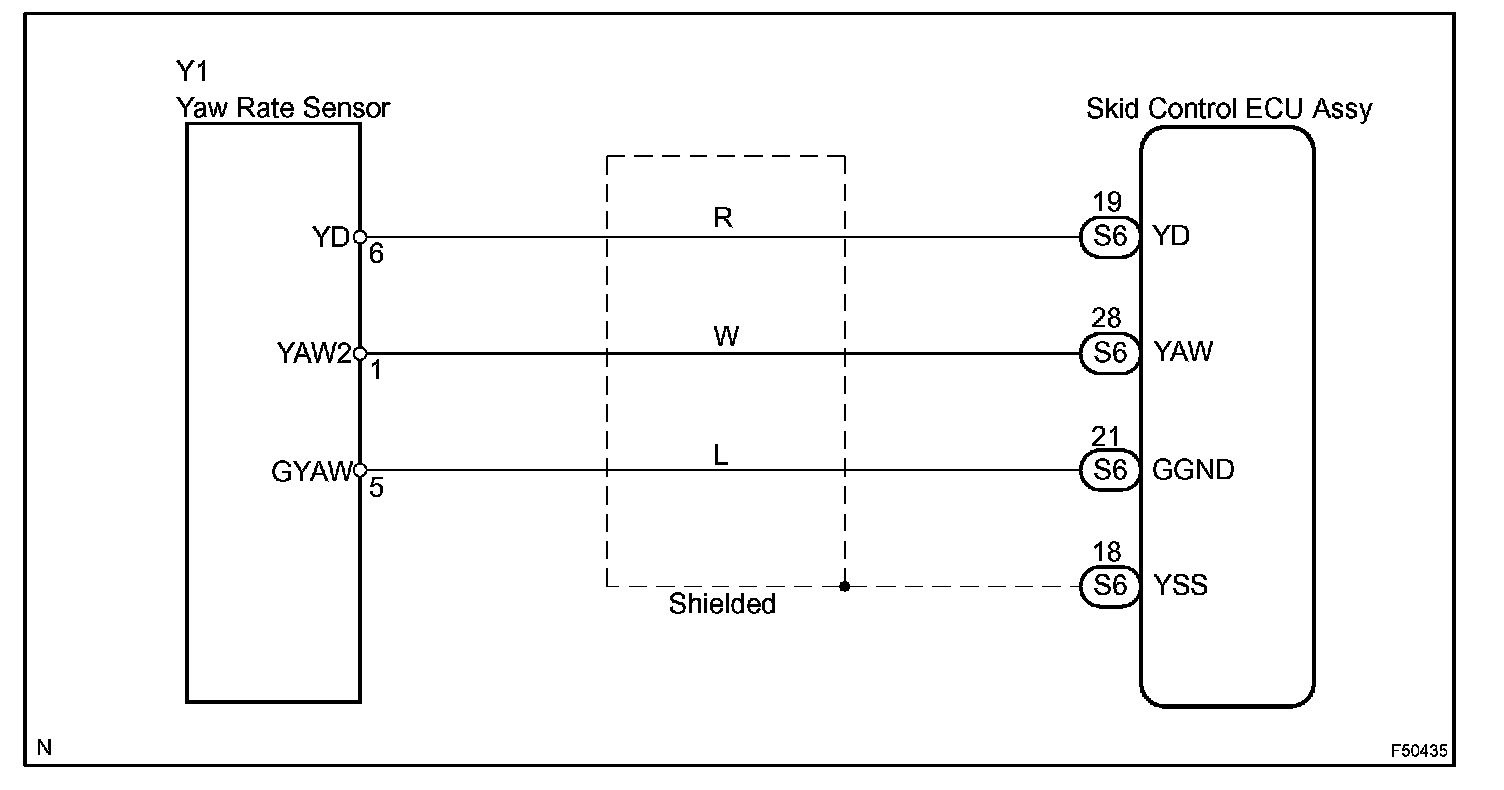

Wiring Diagram:

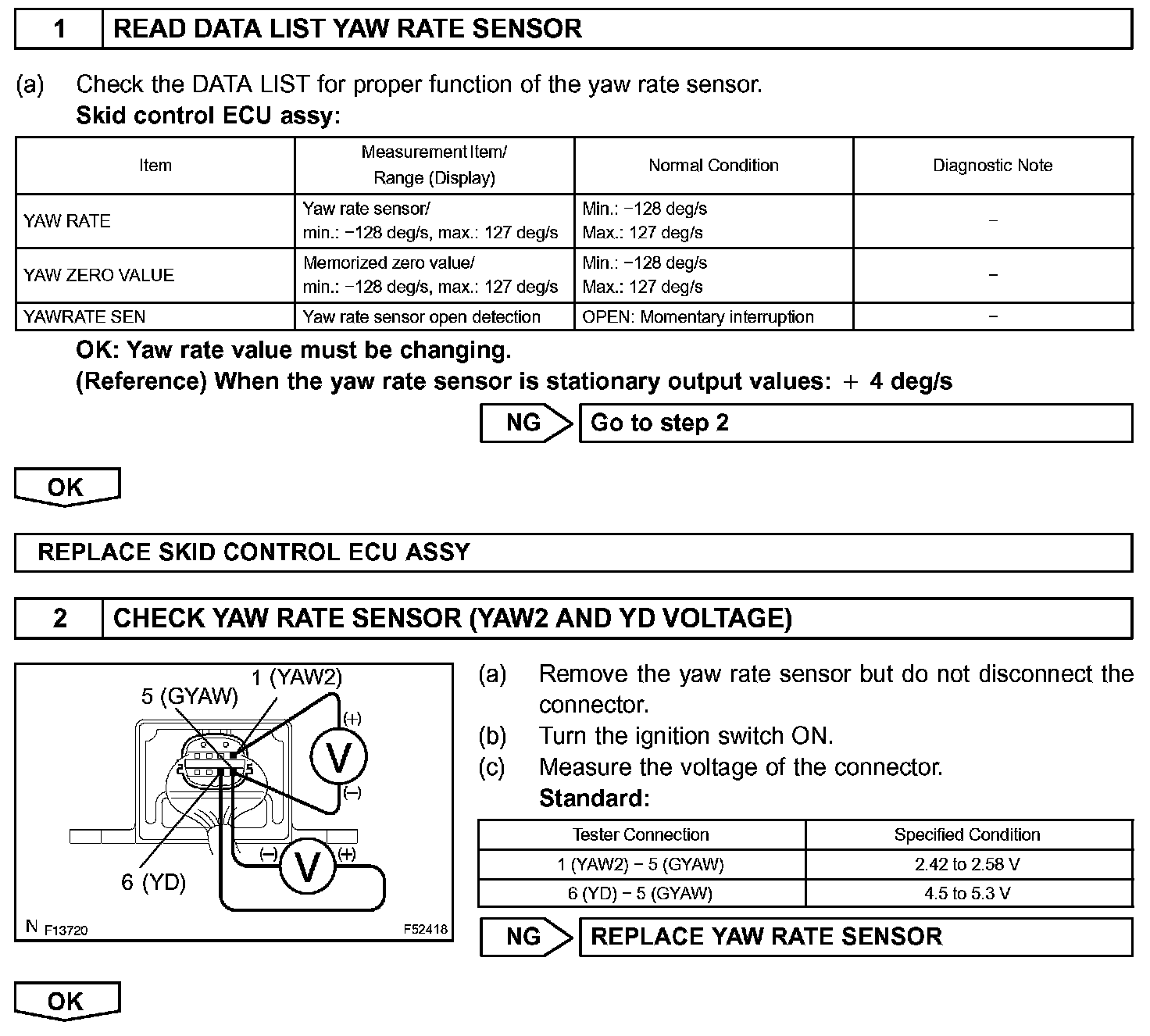

Step 1-2:

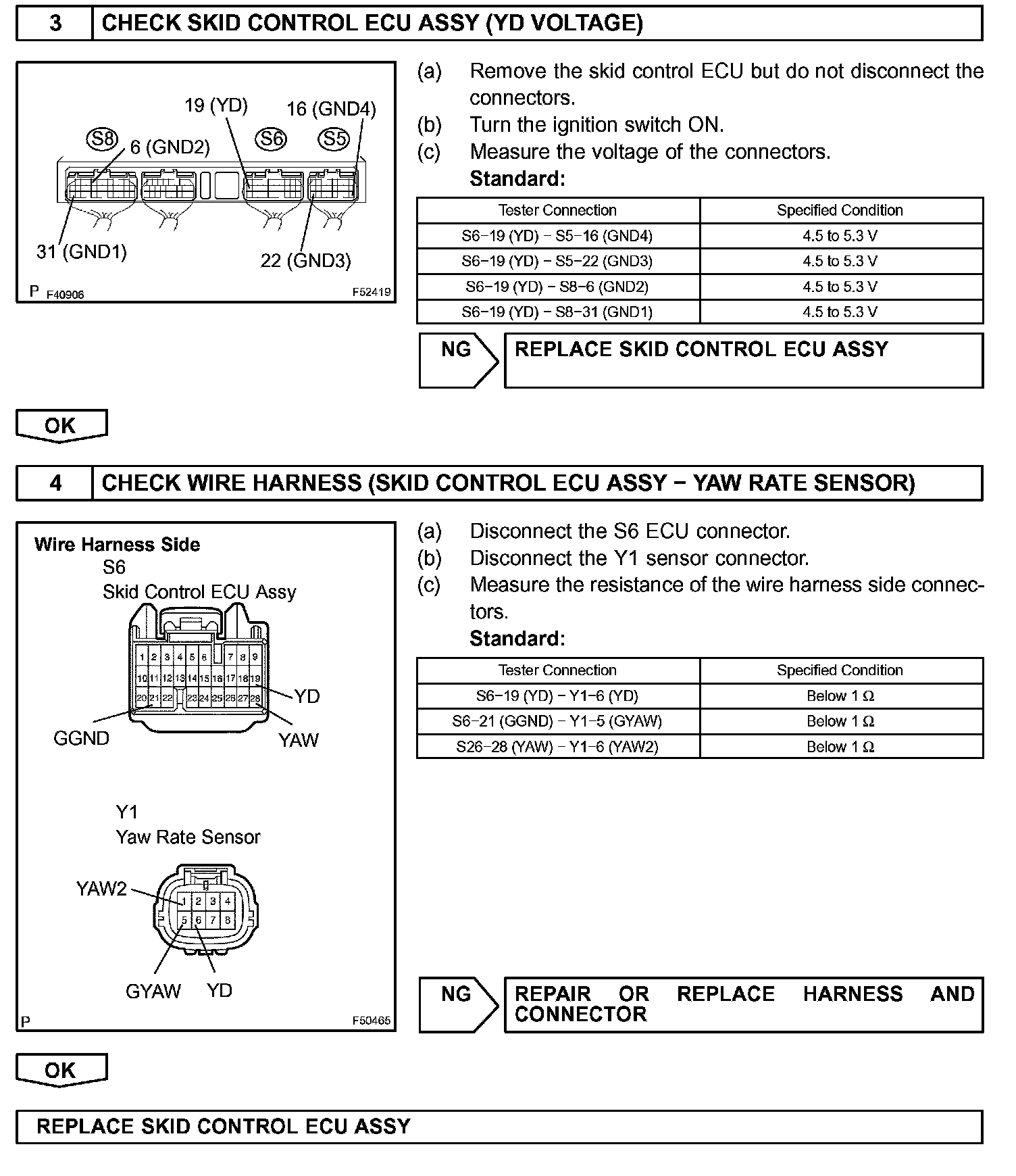

Step 3-4:

INSPECTION PROCEDURE
