Restraint Systems

DIAGNOSTIC TROUBLE CODE CHART

DTCS FOR SUPPLEMENTAL RESTRAINT SYSTEM

Detection Item:

B0113/42-B1100/31:

B1135/24-Normal:

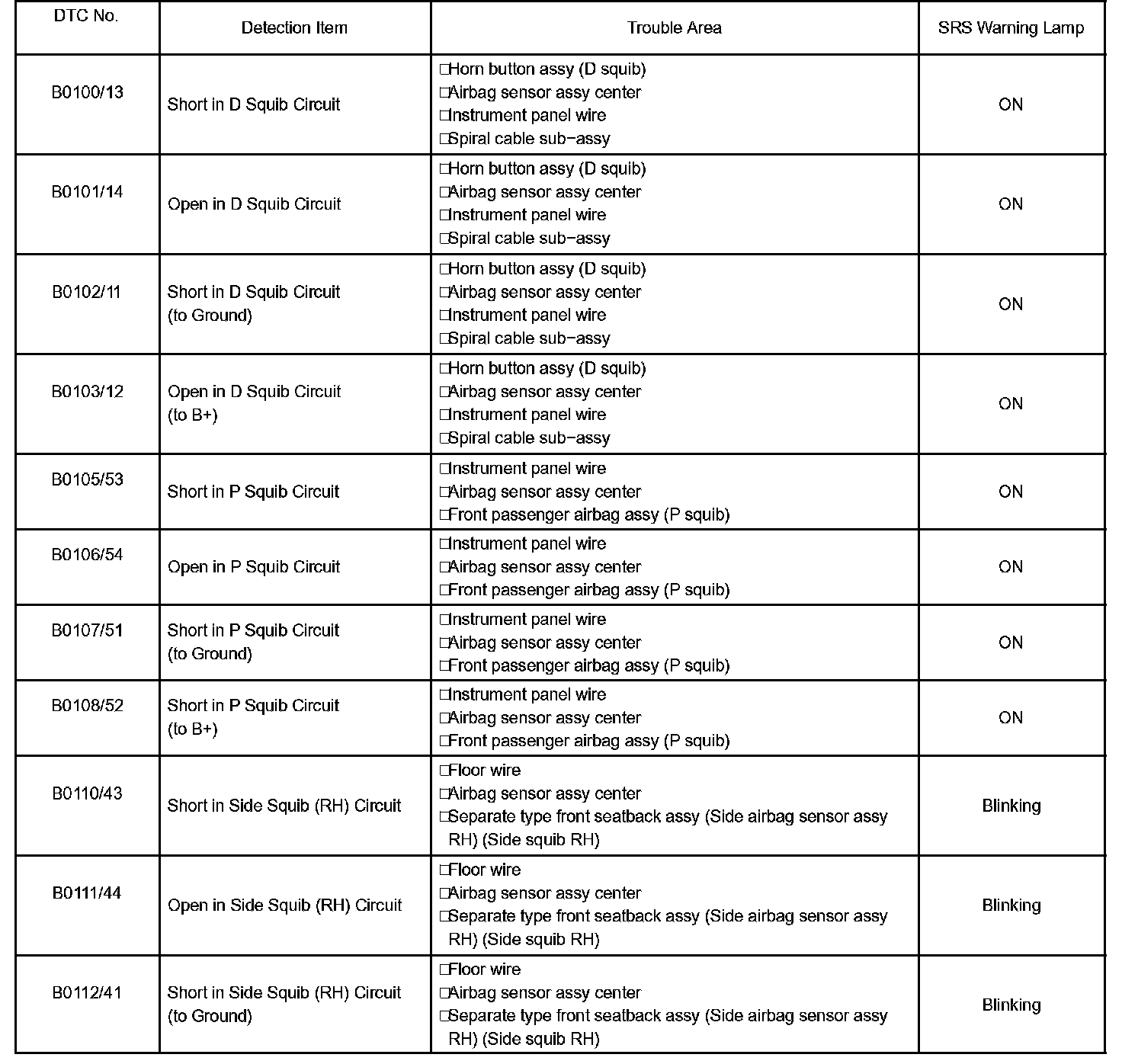

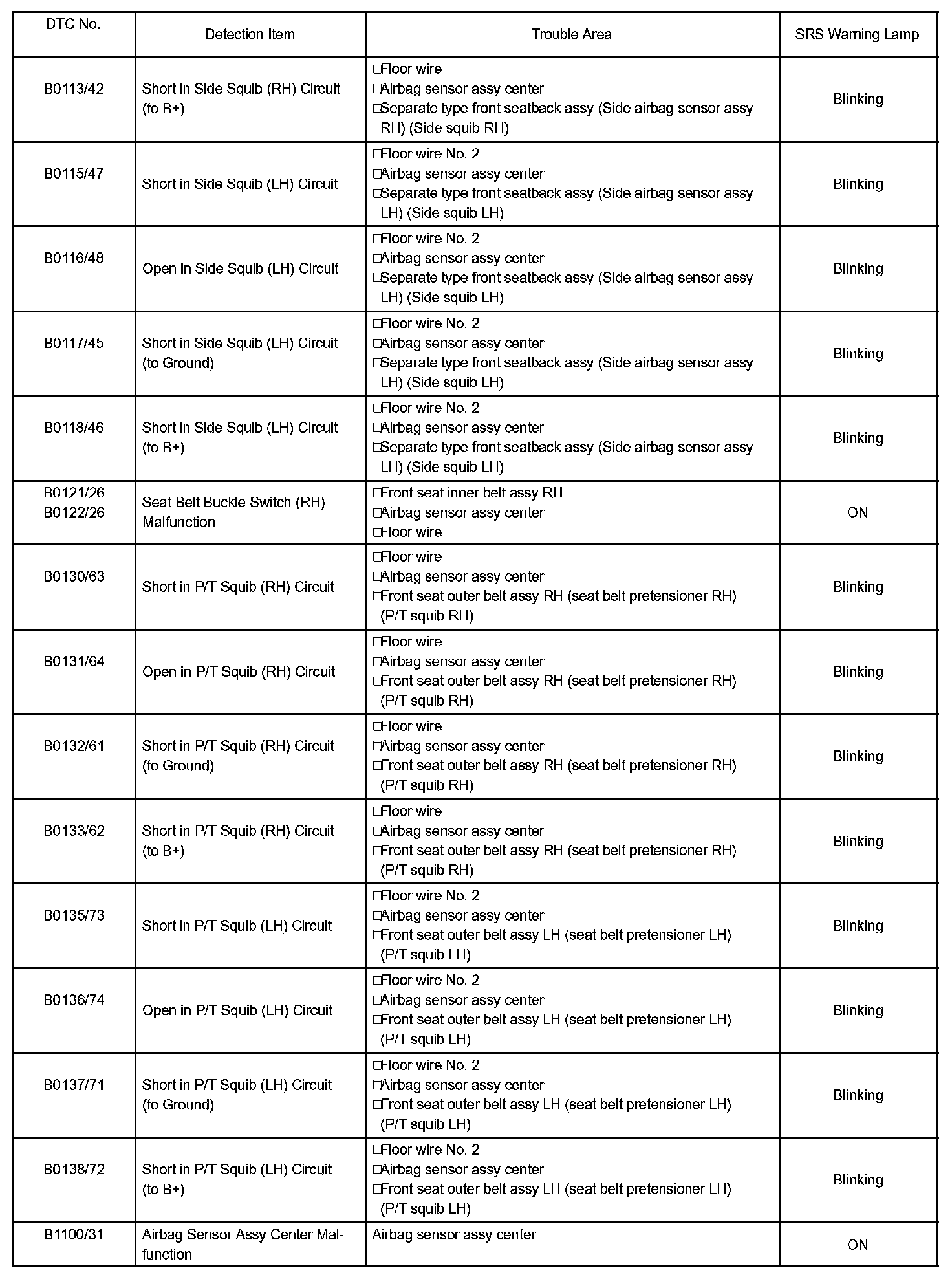

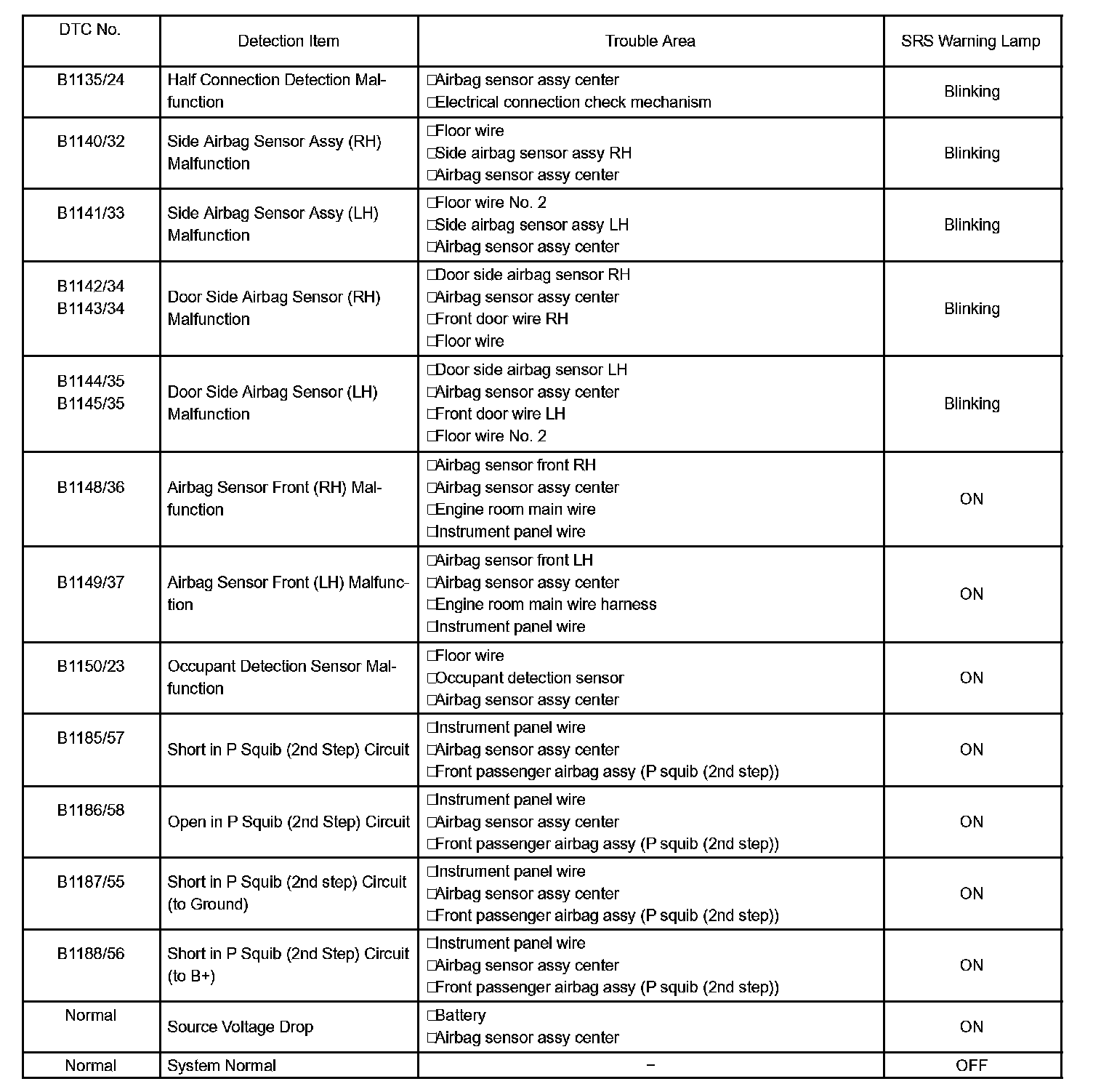

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table and refer to the appropriate image.

HINT:
- When the SRS warning lamp remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in the memory by the airbag sensor center. If the power source voltage returns to normal, the SRS warning lamp will automatically turn off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If a code is not listed on the display chart, the airbag sensor center may have failed.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, other trouble codes may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
