Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART

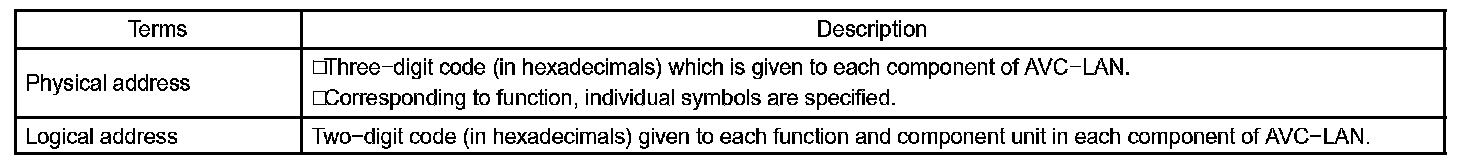

HINT: Titles for each unit below are stated in the following order: part name (physical address)[name indicated by DTC].

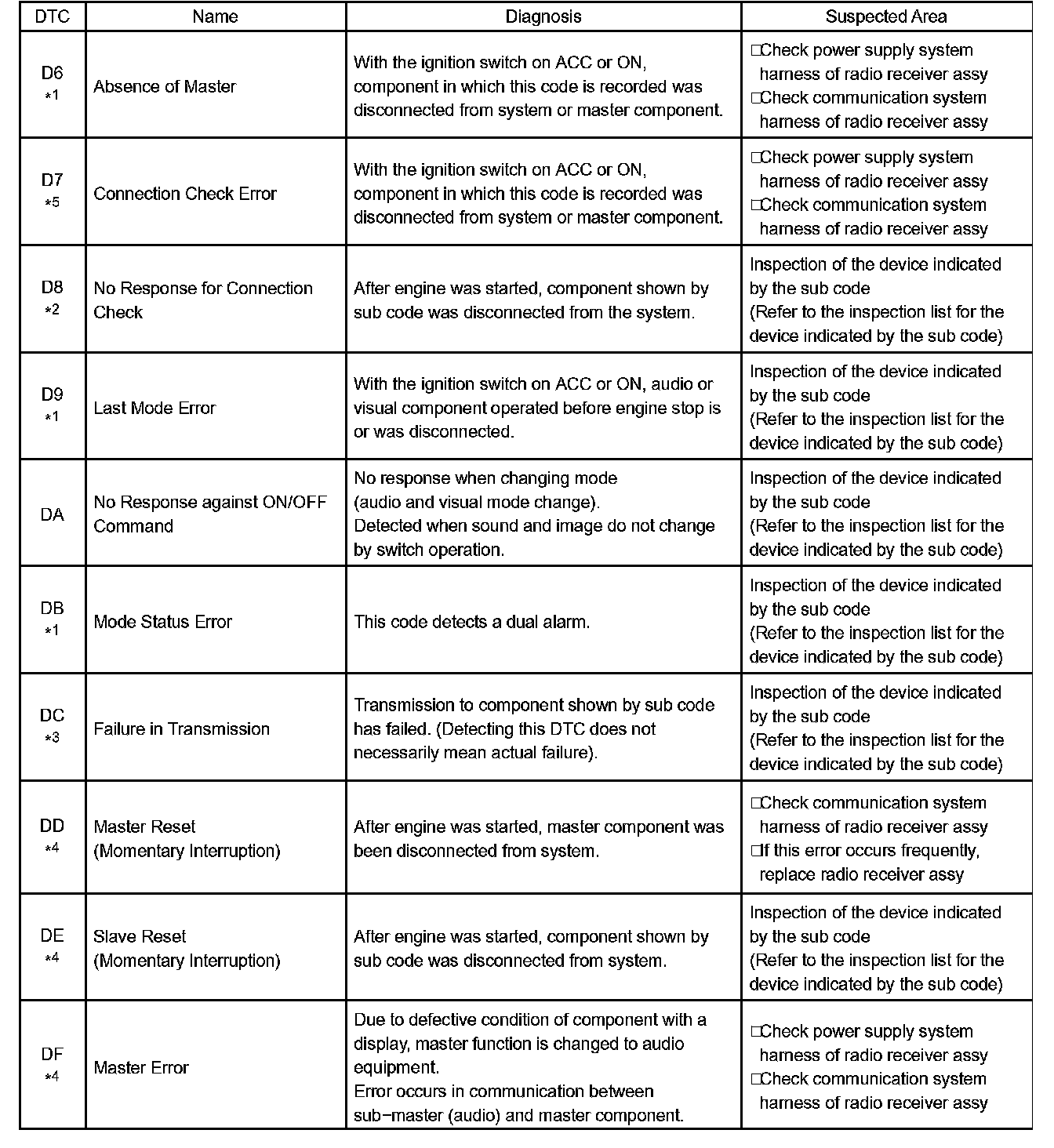

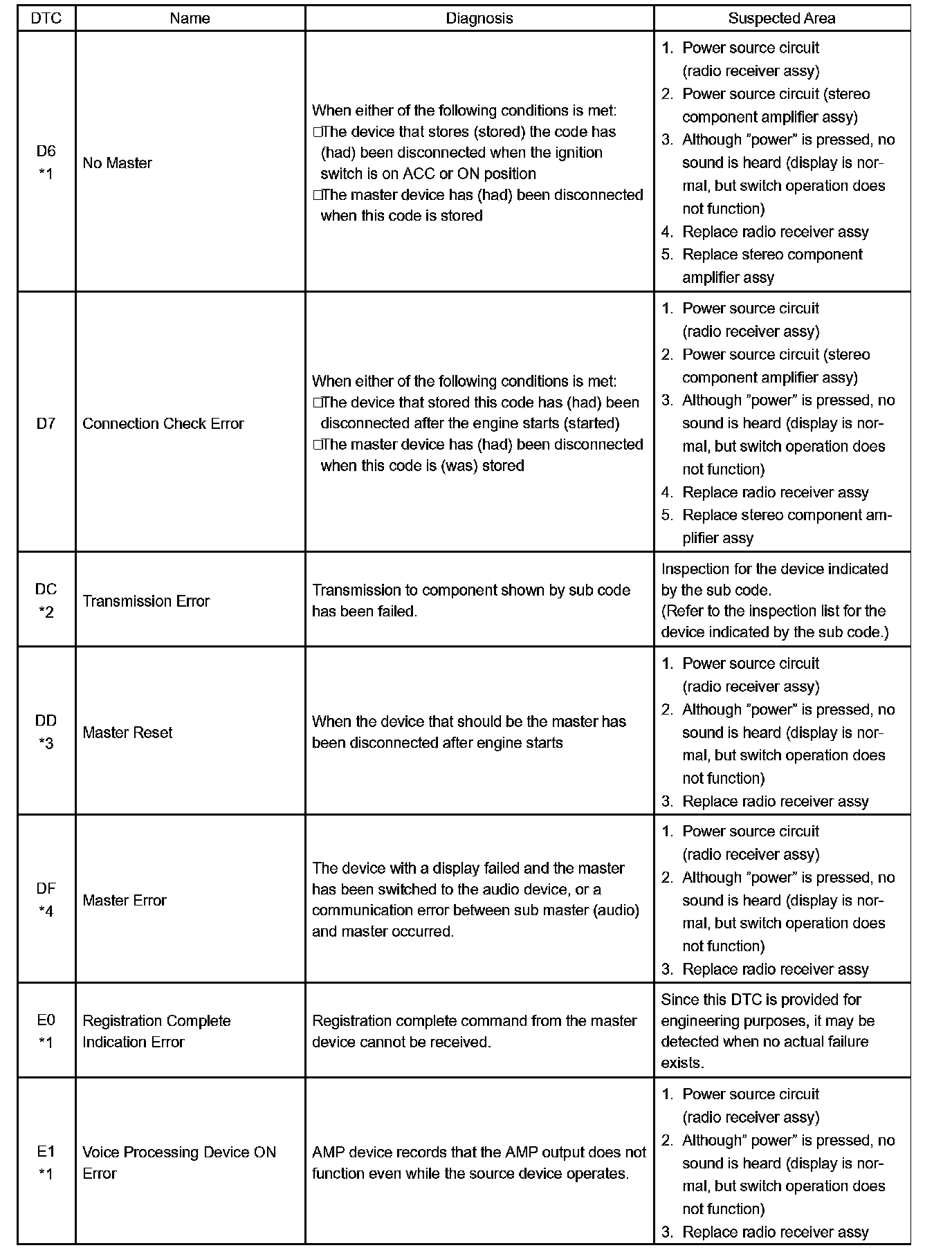

D6-DF:

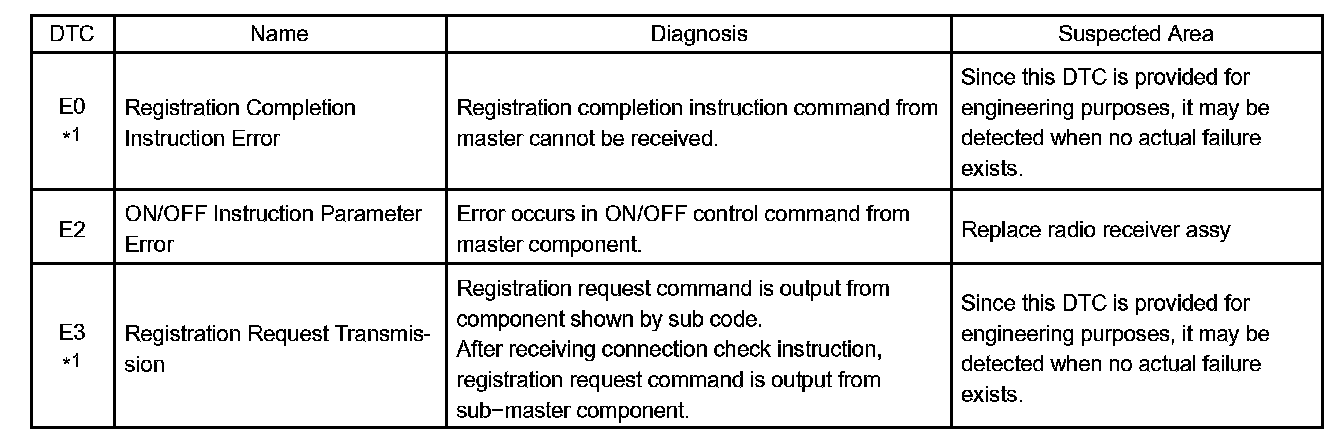

E0-E3:

1. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]
a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

HINT:
- *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
- *2: If the power connector is disconnected after the engine starts, this code is recorded after 180 seconds.
- *3: This code may be stored when the ignition key is turned 1 minute after engine starts.
- *4: This code may be stored if the ignition key is turned again after the engine starts.
- *5: If the master component power supply connector is pulled out with the ignition switch on ACC or ON, this code is stored after 210 seconds.

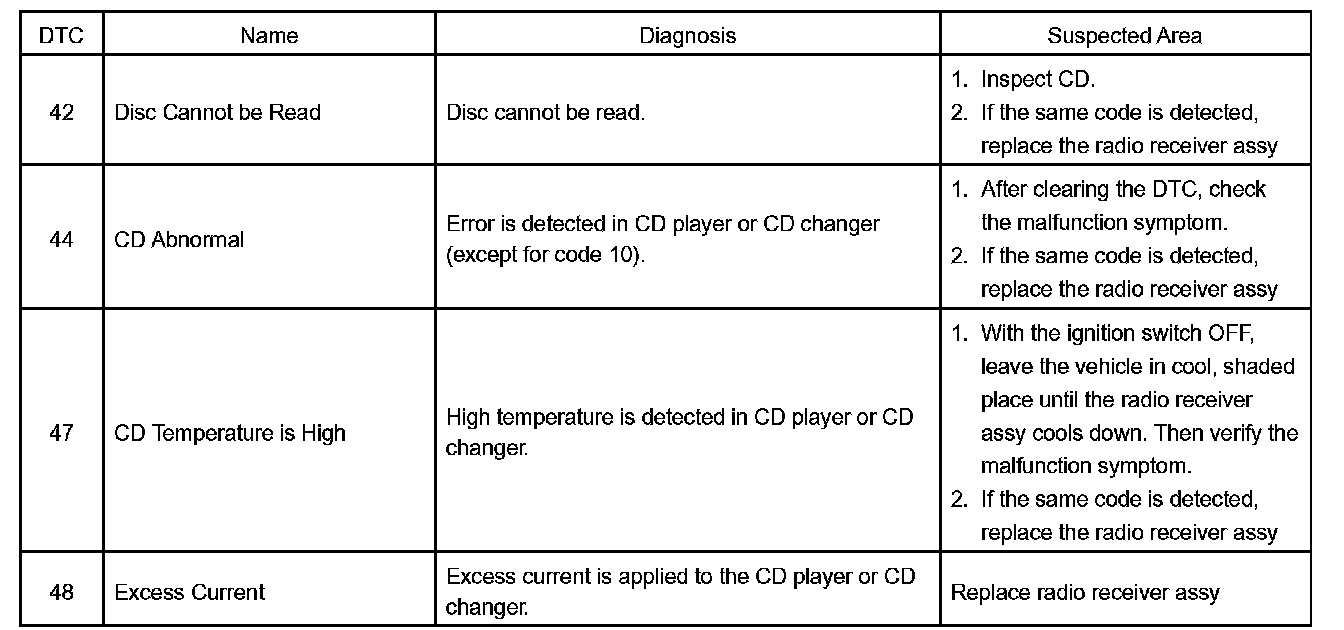

42-48:

b. Logical address: 62 (CD): 63 (CD changer)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

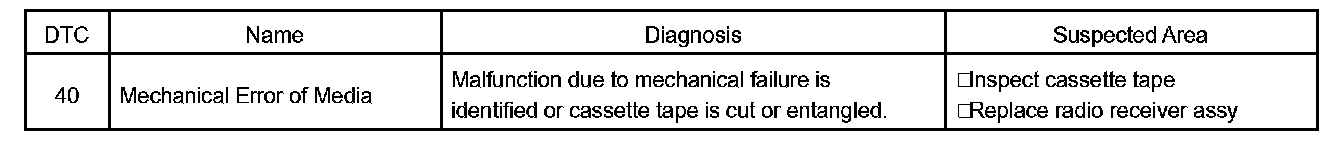

40:

c. Logical address: 61 (Cassette)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

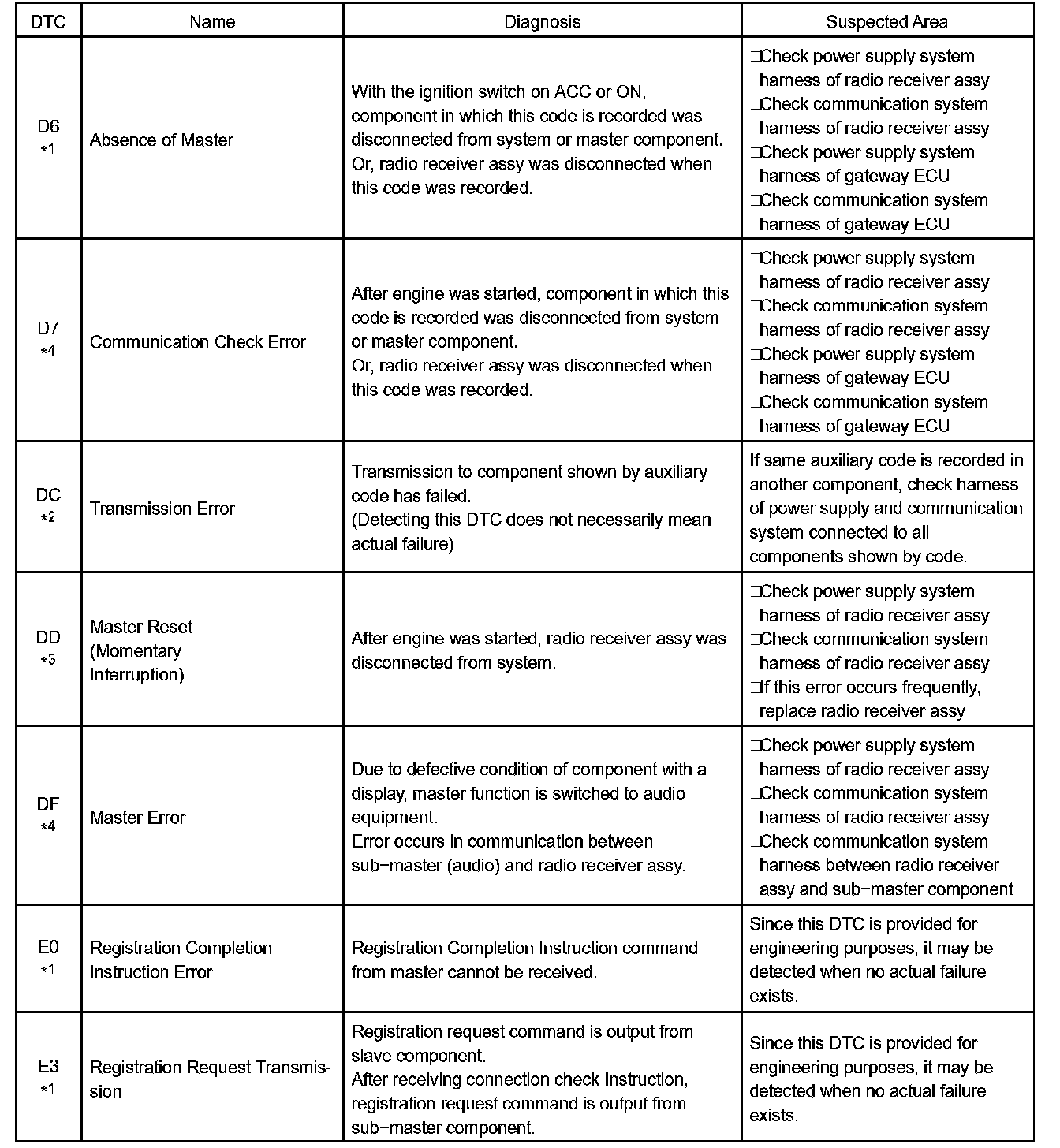

D6-E3:

2. GATEWAY ECU (Physical address: 1C6) [G/W]
a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

HINT:
- *1: This code may be stored depending on battery condition or engine start voltage even if no failure is detected.
- *2: This code may be stored if the ignition key is turned again 1 minute after engine starts.
- *3: This code may be stored if the ignition key is turned again after the engine starts.
- *4: If the master component power supply connector is pulled out with the ignition switch on ACC or ON, this code is stored after 210 seconds.

D6-E1:

3. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]

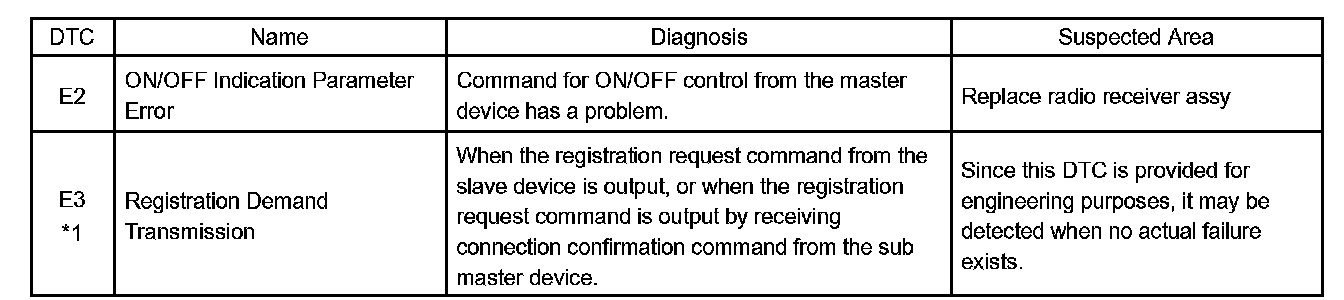

E2-E3:

a. Logical address: 01 (Communication control)

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

HINT:
- *1: This code may be stored depending on battery condition or engine start voltage even if no failure is detected.
- *2: This code may be stored if the ignition key is turned again 1 minute after engine starts.
- *3: This code may be stored if the ignition key is turned again after the engine starts.
- *4: If the master component power supply connector is pulled out with the ignition switch on ACC or ON, this code is stored after 210 seconds.

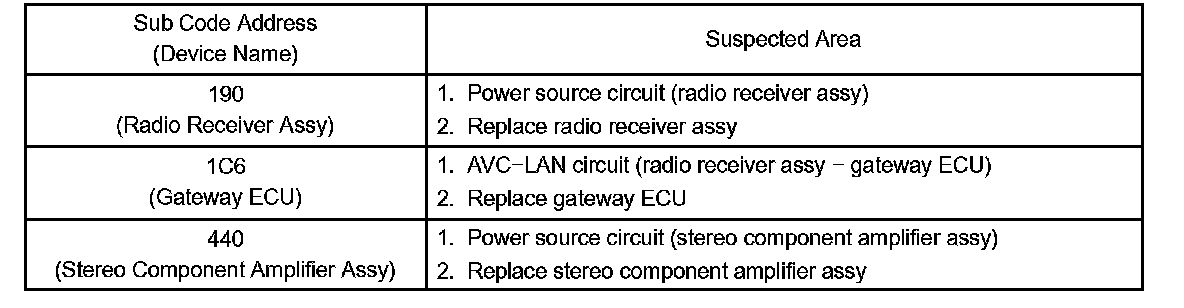

4. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE

HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
