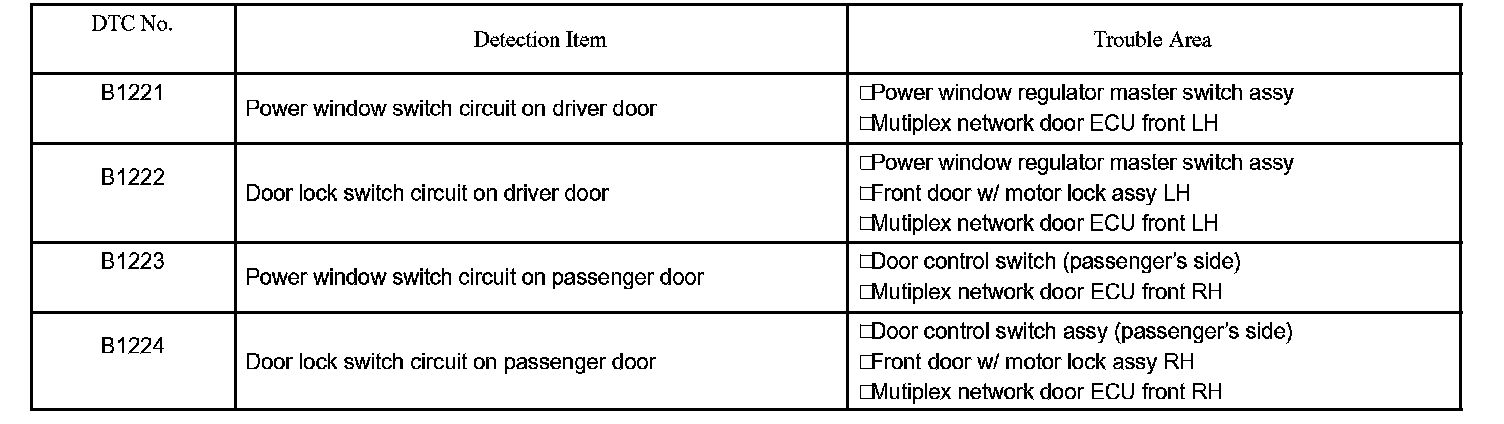

DIAGNOSTIC TROUBLE CODE CHART
B1221-B1224:
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table. (Proceed to the image given for that circuit.)
