Navigation System
DIAGNOSTIC TROUBLE CODE CHART

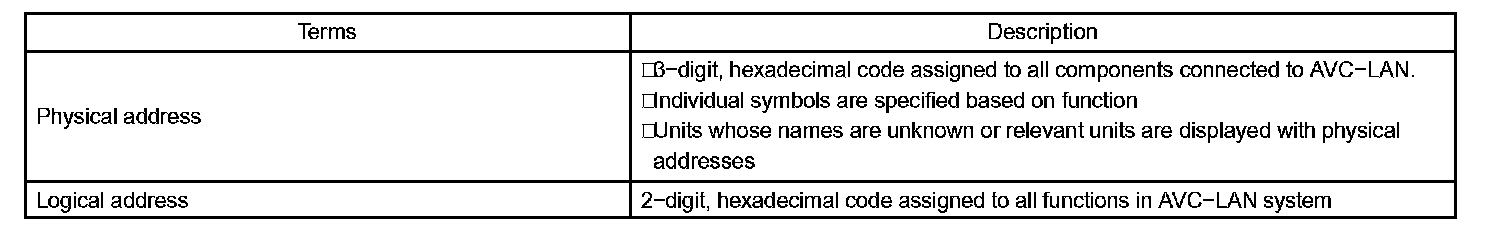

HINT: Titles for each unit below are stated in the following order: part name (physical address) [name indicated by DTC].

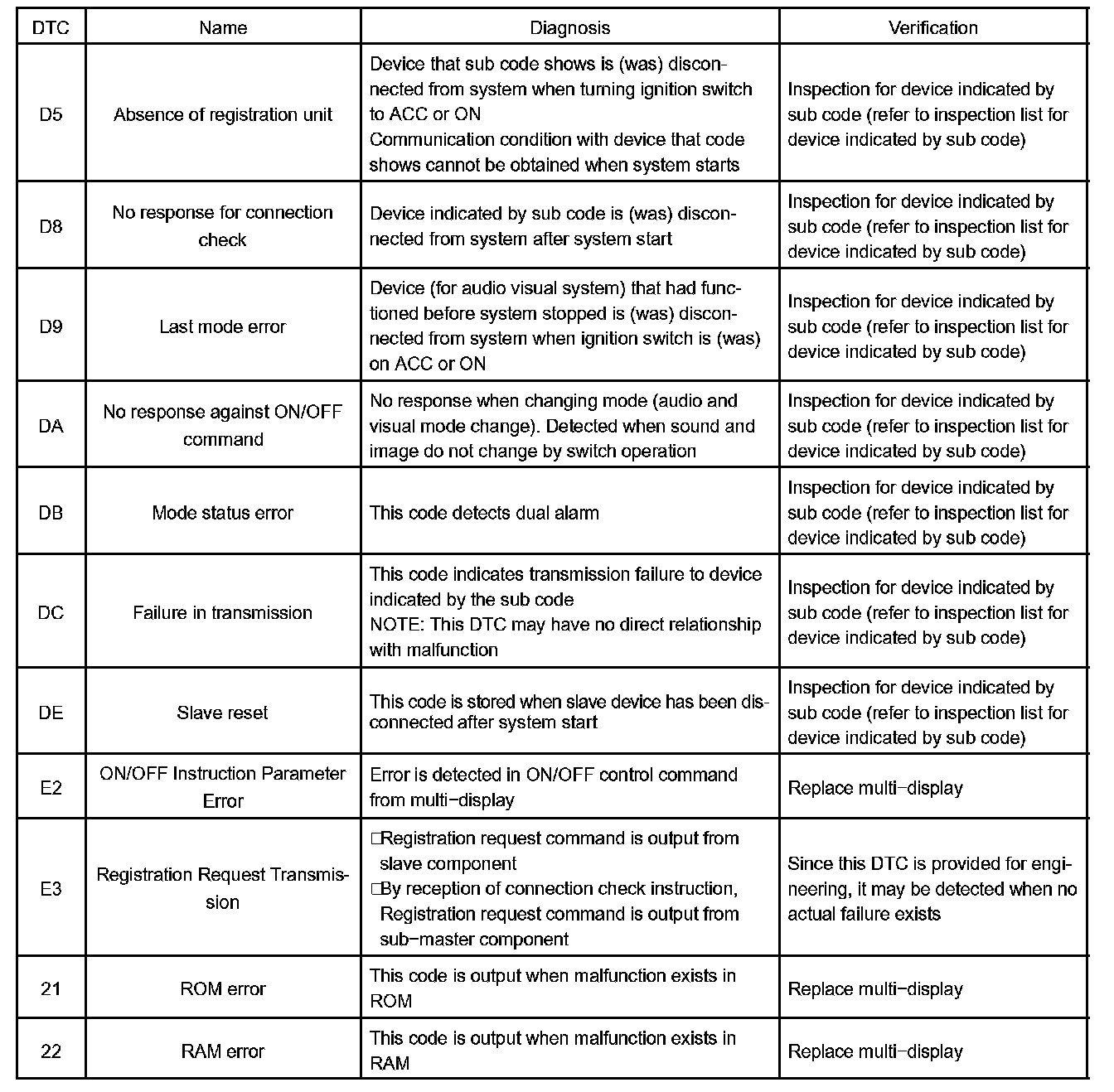

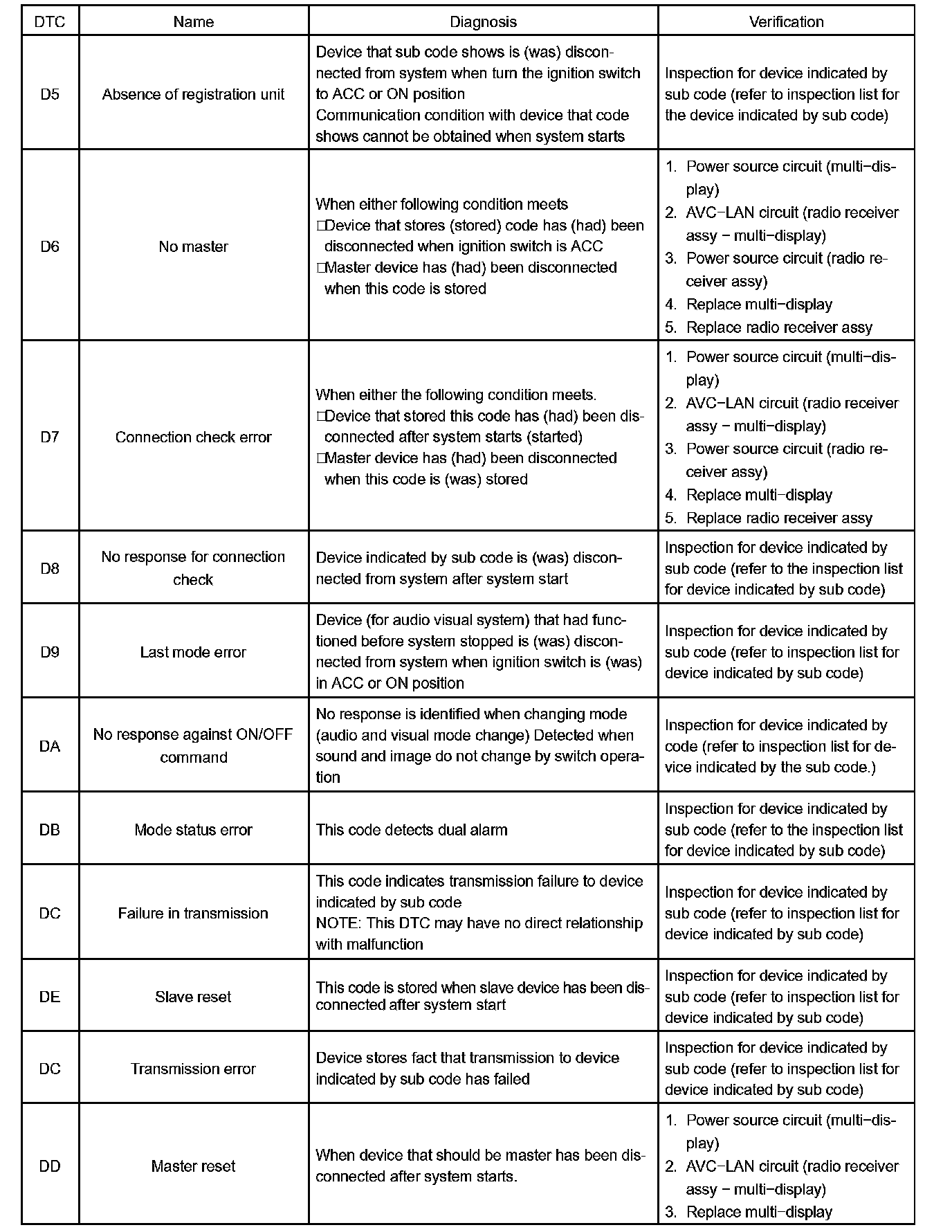

D5-22:
1. MULTI-DISPLAY (physical address: 110) [EMV]
a. Logical address: 01 (Communication control)

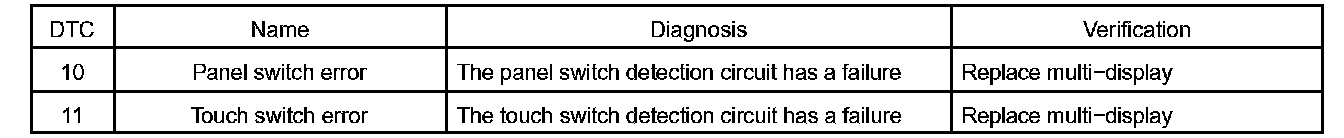

10-11:
b. Logical address: 21 (SW)

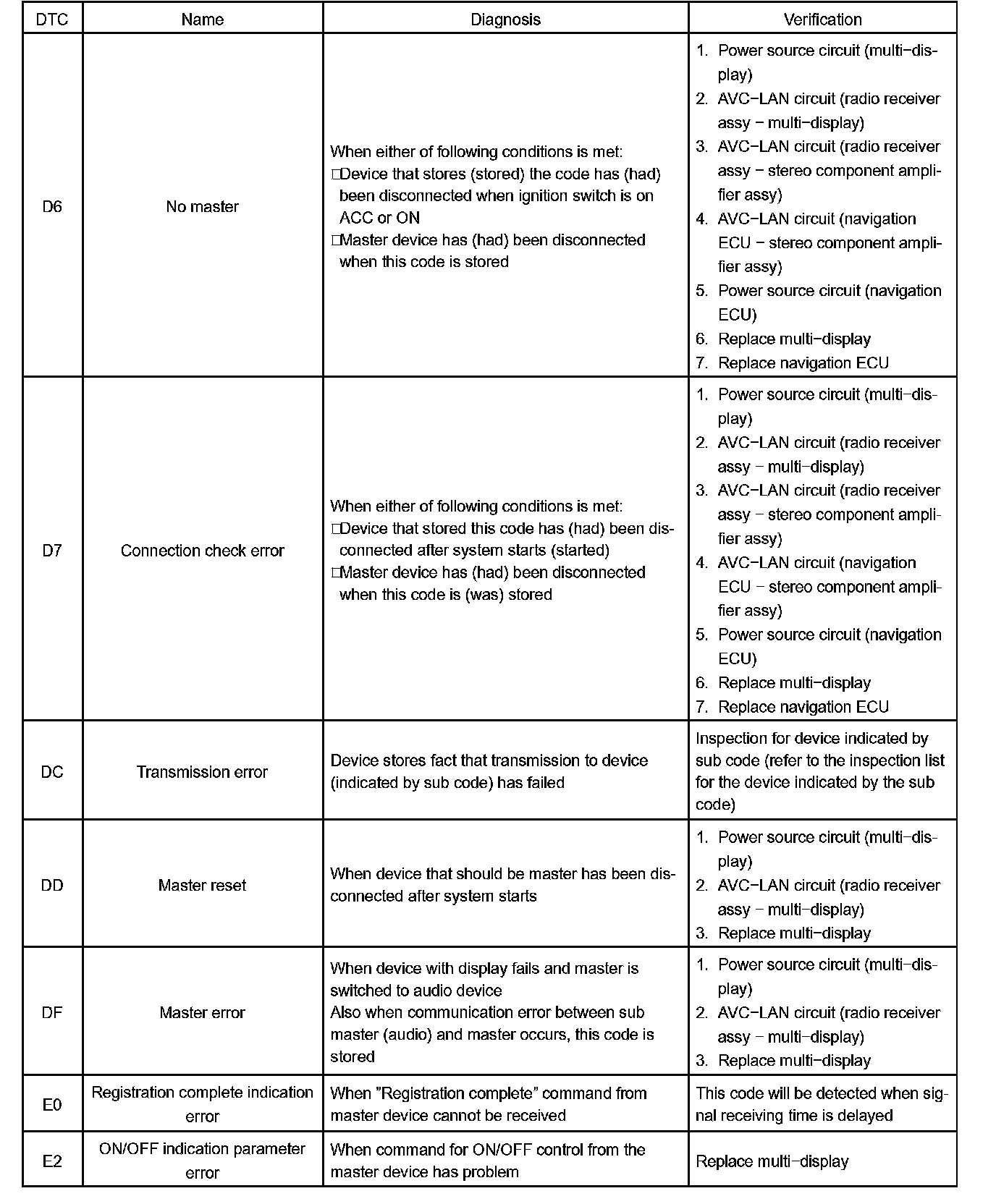

D6-E2:
2. NAVIGATION ECU (Physical address: 178) [NAVI]

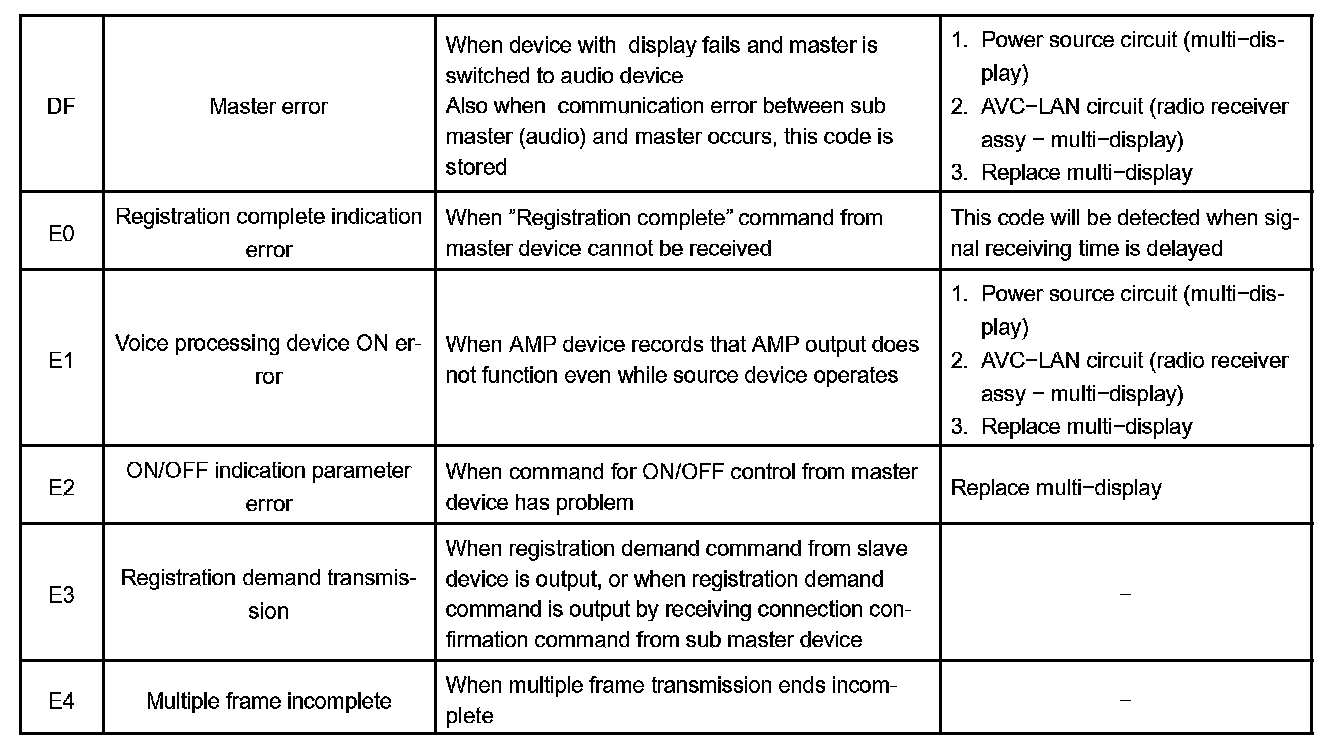

E3-E4:
a. Logical address: 01 (Communication control)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

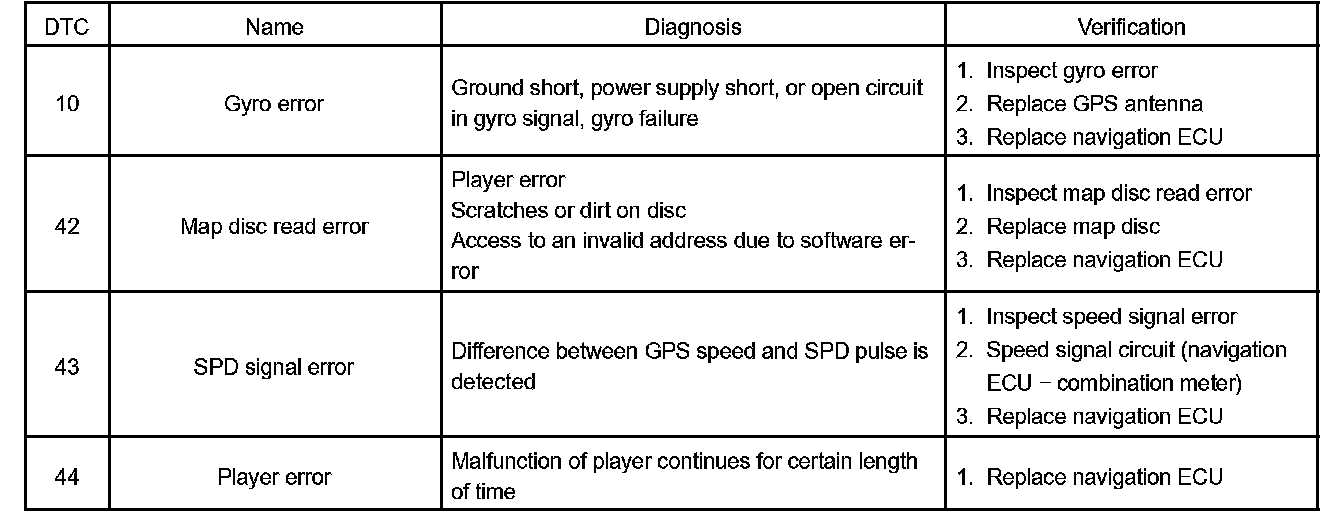

10-44:
b. Logical address: 58 (Navigation)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

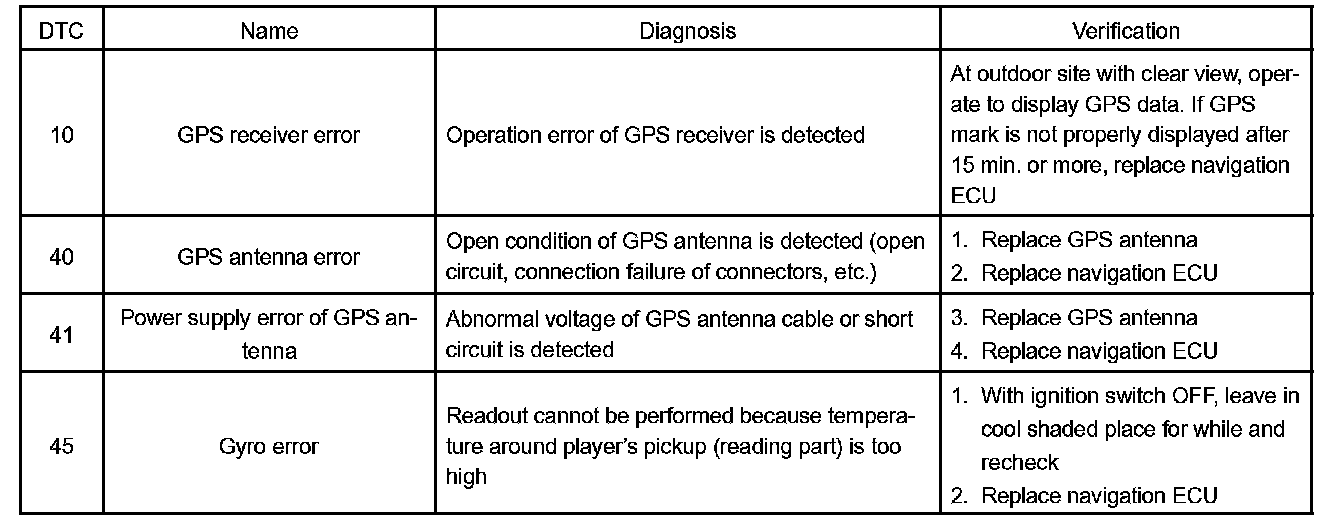

10-45:
c. Logical address: 80 (GPS)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
D5-DD:
3. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]
DF-E3:
a. Logical address: 01 (Communication control)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

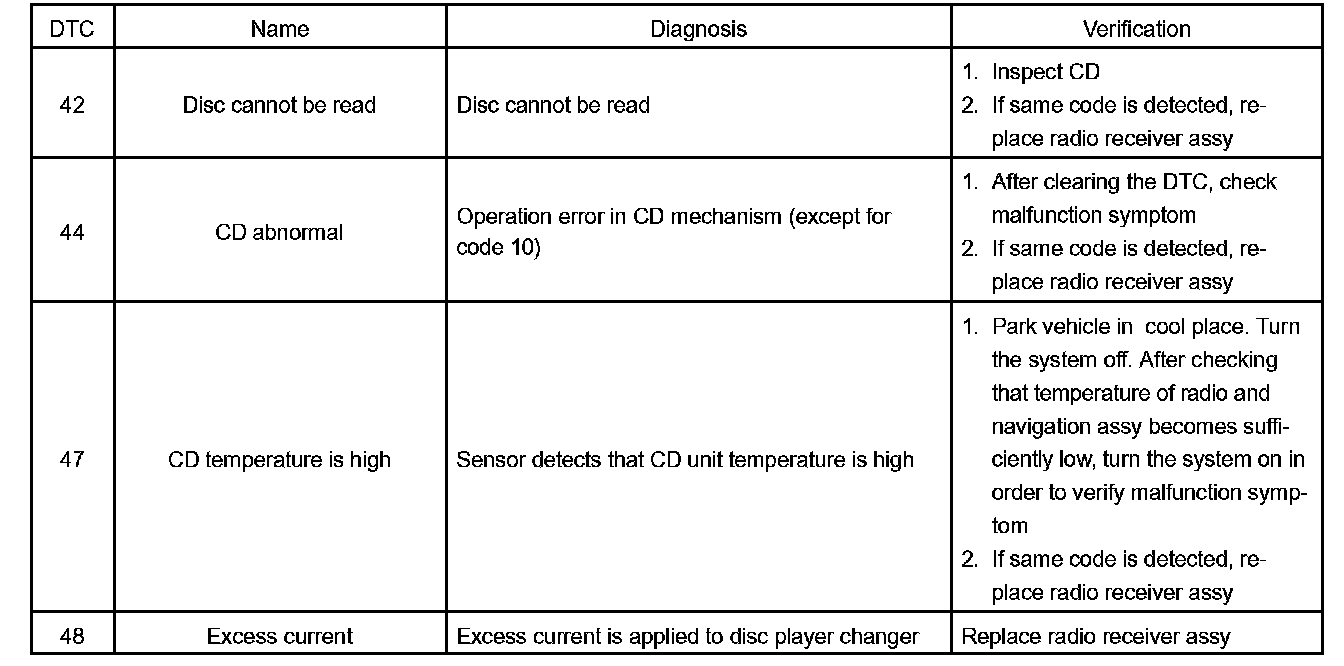

42-48:
b. Logical address: 62 (CD): 63 (CD changer)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

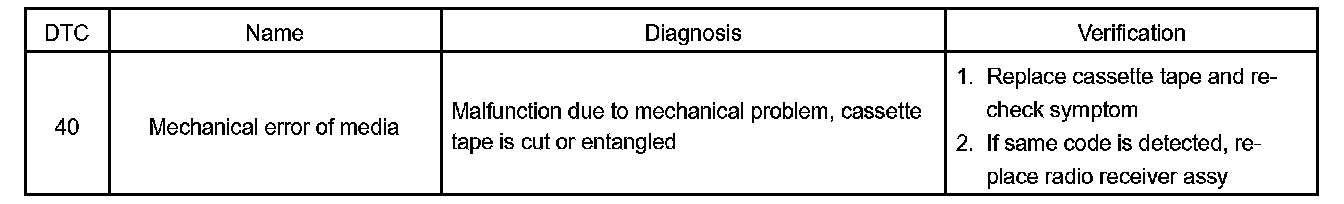

40:
c. Logical address: 61 (Cassette)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

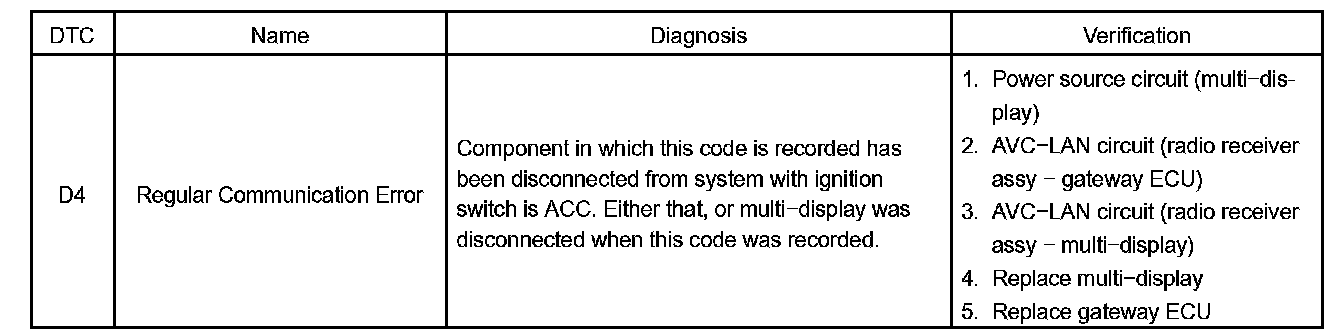

D4:
4. GATEWAY ECU (Physical address: 1C6) [G/W]
a. Logical address: 01 (Communication control)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
D6-DD:
5. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]

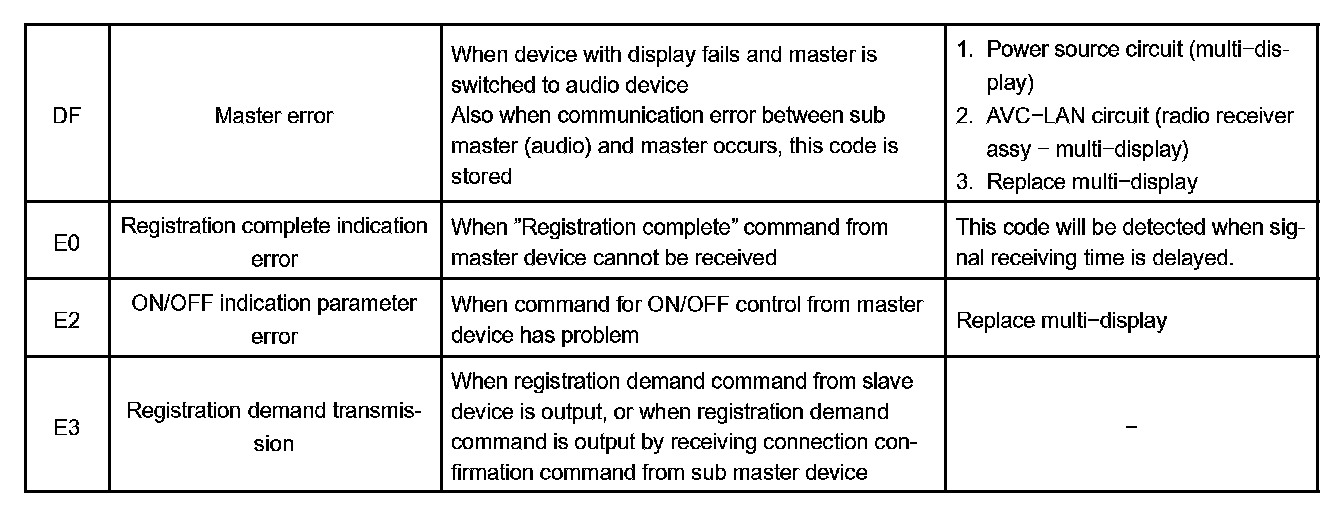

DF-E4:
a. Logical address: 01 (Communication control)
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.

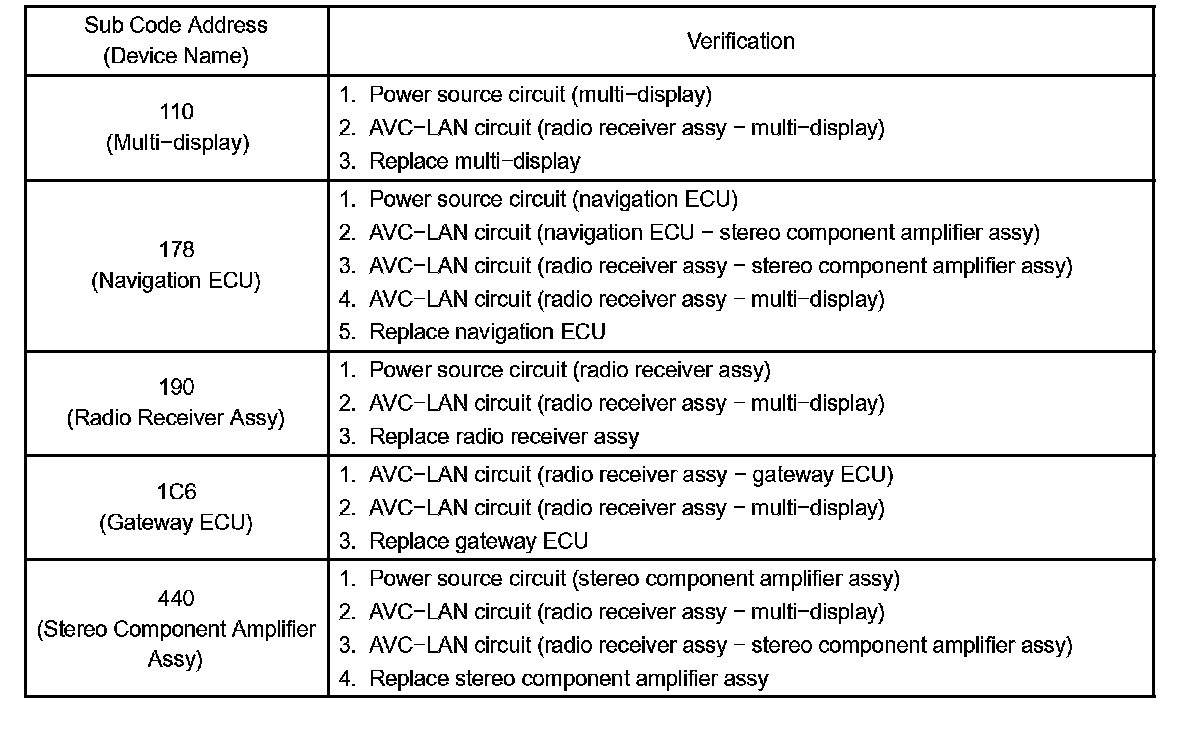

6. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE
HINT: Methods used to verify the cause of the problem are listed in order of probability in the verification column.
