Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

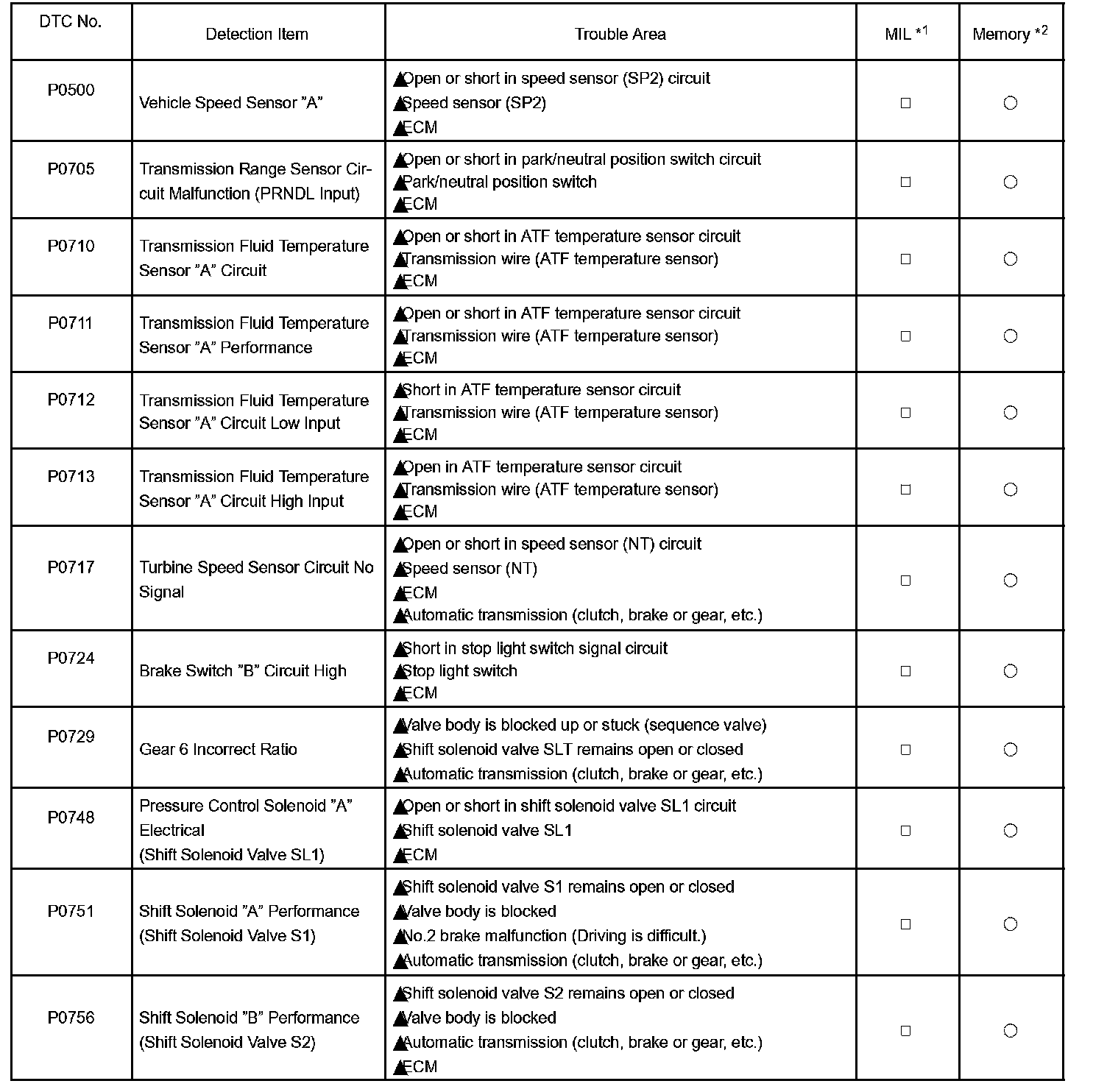

P0500-P0756:

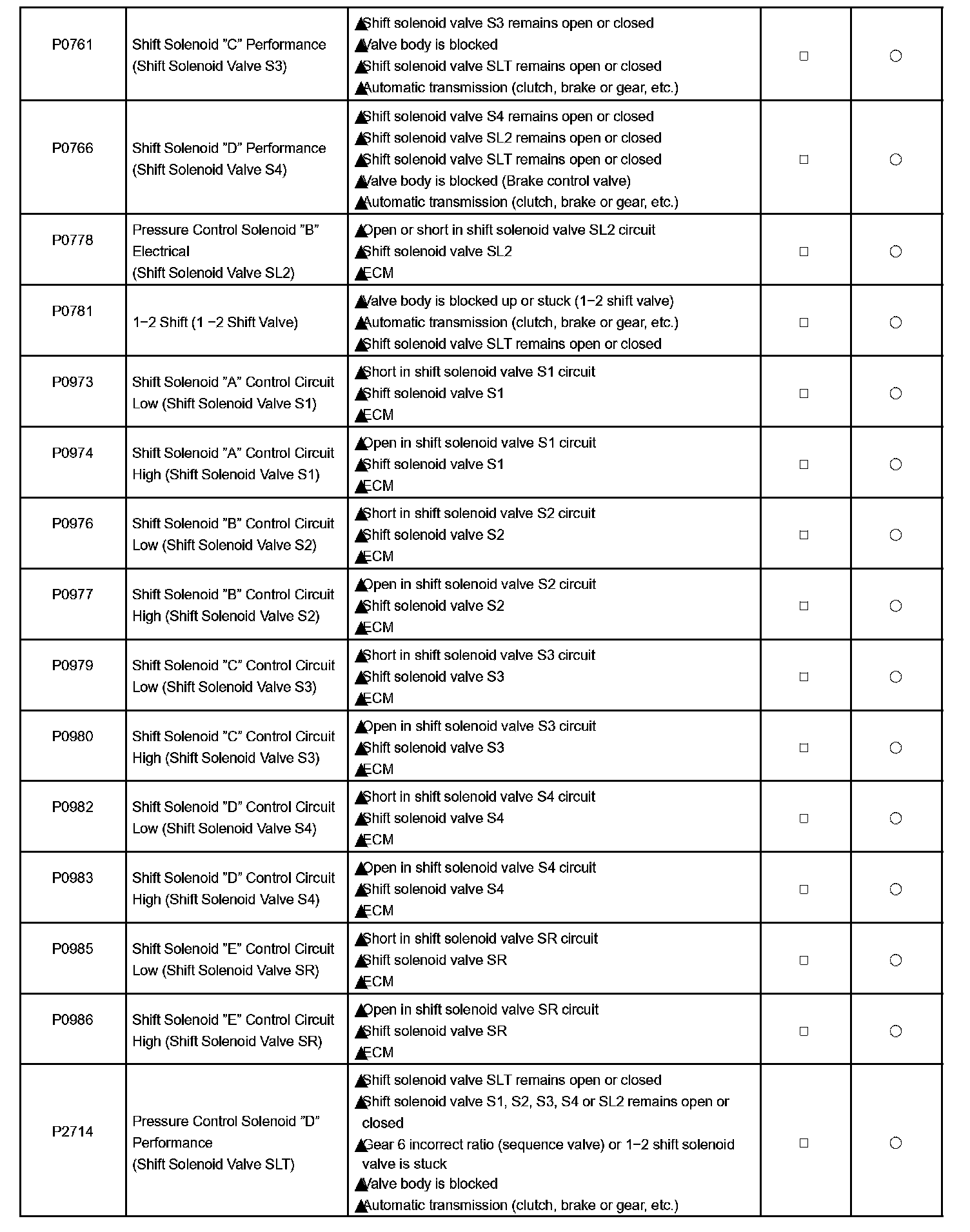

P0761-P2714:

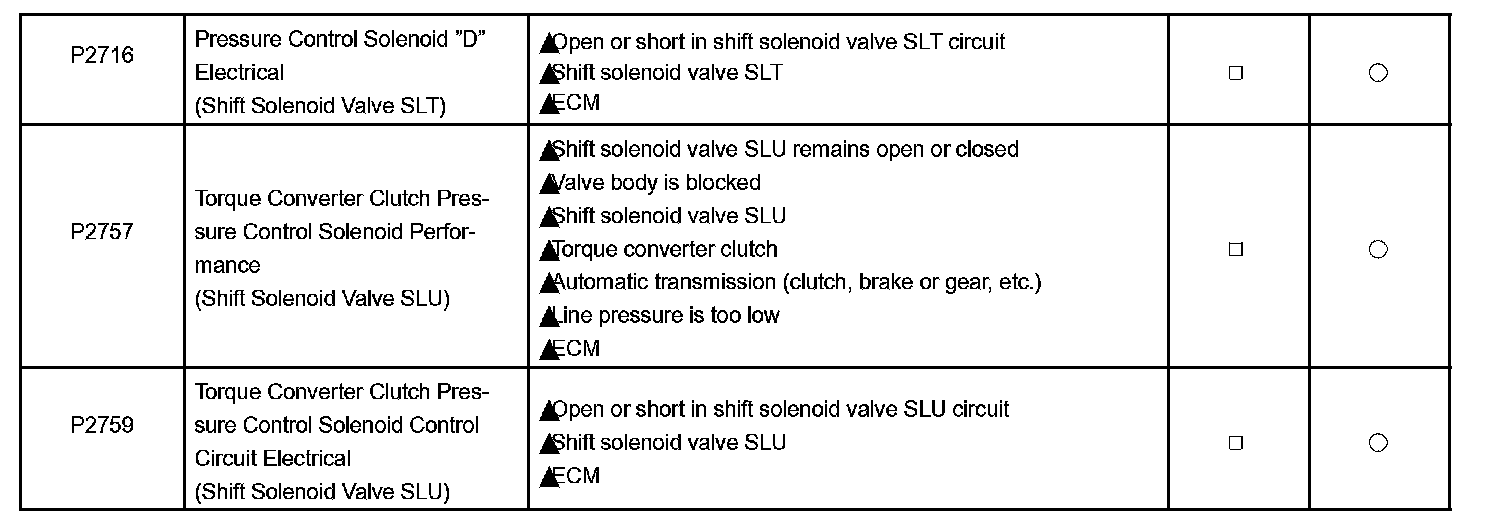

P2716-P2759:

If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the image given.

HINT:
*1 : ... MIL (Malfunction Indicator Lamp) light up

*2 : mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.

This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
