Air Conditioning System

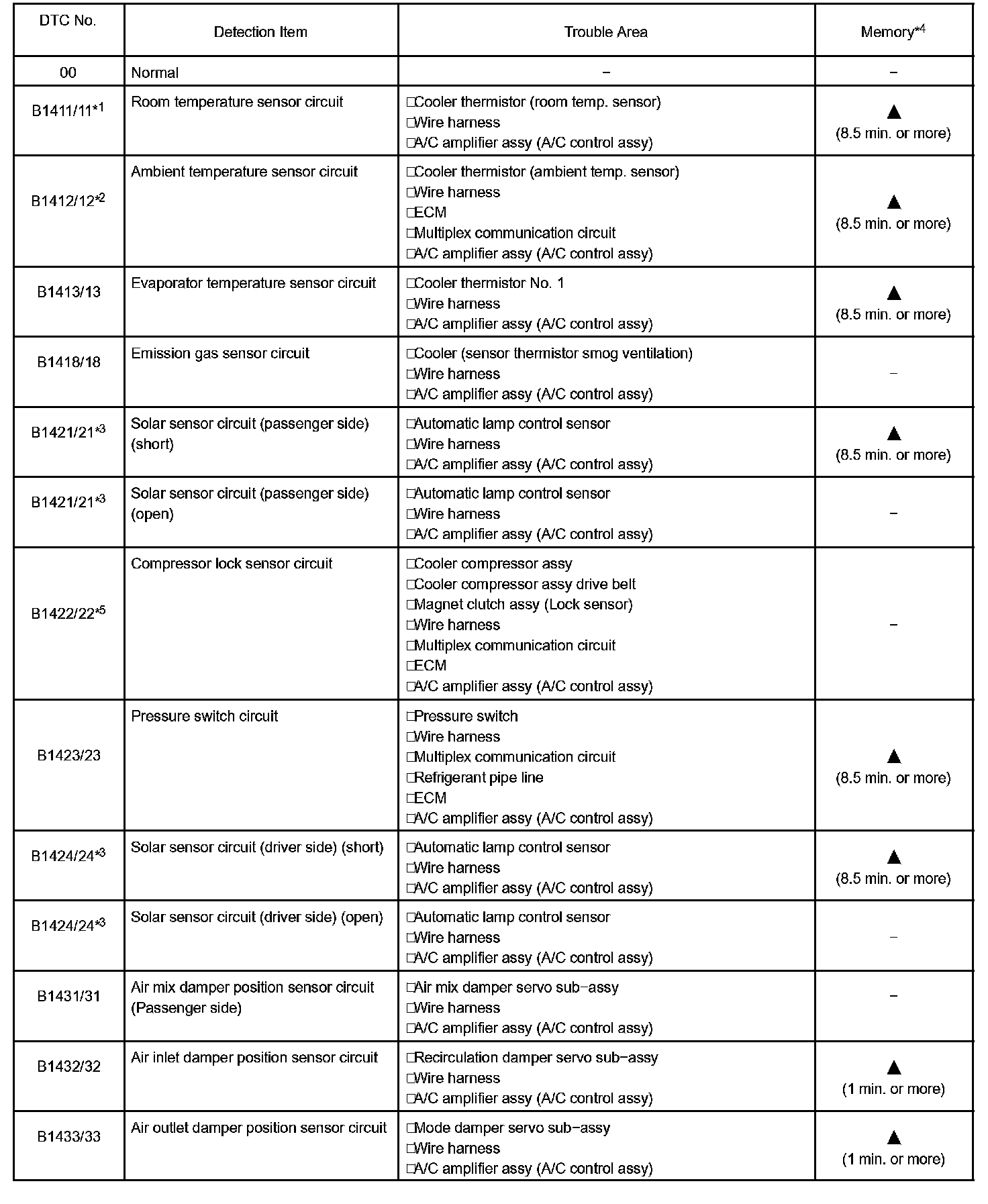

DIAGNOSTIC TROUBLE CODE CHART

00 - D1433/33:

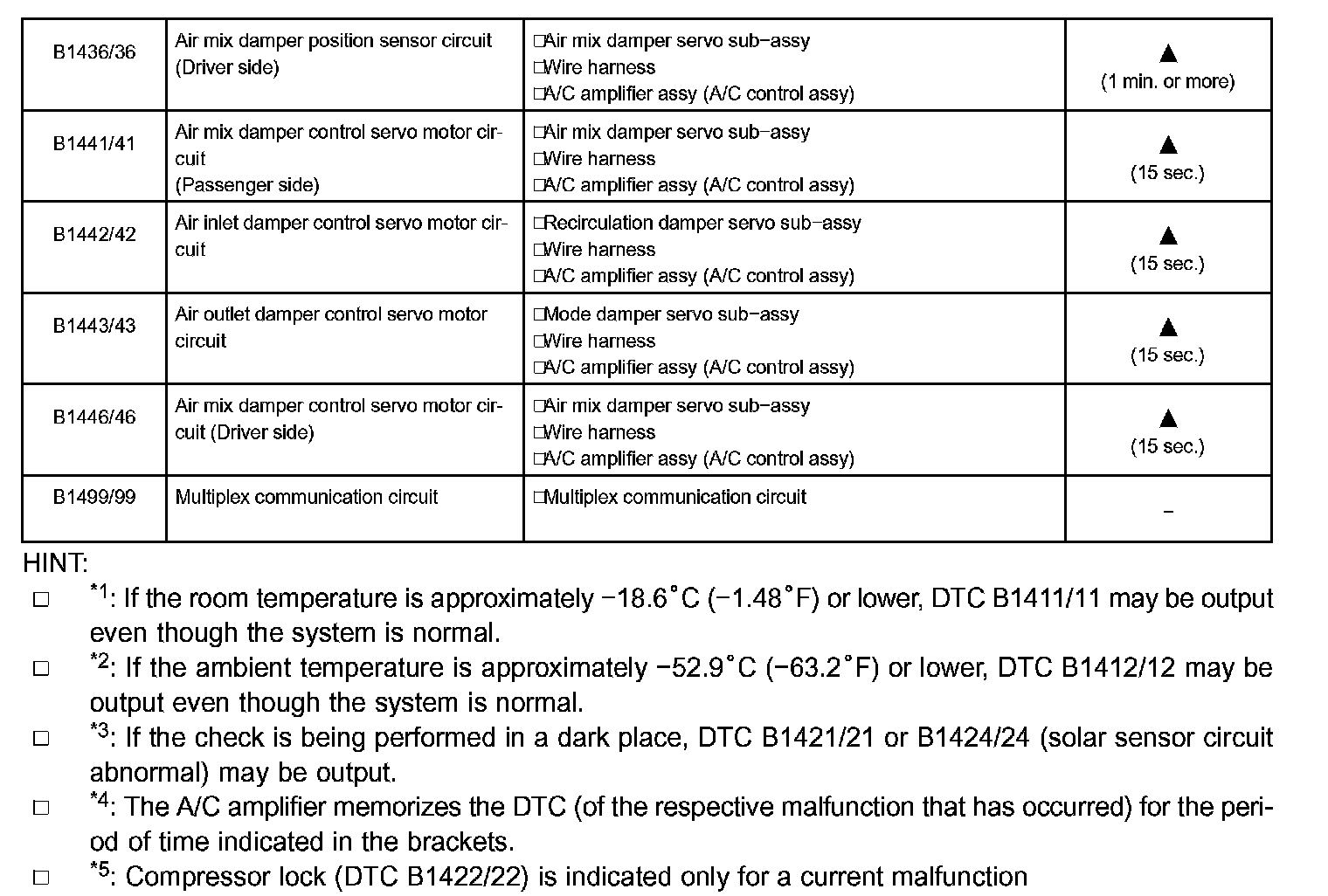

D1436/36 - B1499/99:

If a malfunction code is displayed during the DTC check (sensor check), check the circuit listed for the code in the table. Proceed to the image given for that circuit.

1. With the ignition switch ON, enter the DTC check mode.
2. Press the R/F switch to enter the actuator check mode, and set the operation to Step No. 3.
3. Press the AUTO switch to return to the DTC check mode.
4. The DTC is displayed after approximately 3 seconds.
