C2143

DTC C2143/43 TRANSMITTER ID3 ERROR

CIRCUIT DESCRIPTION

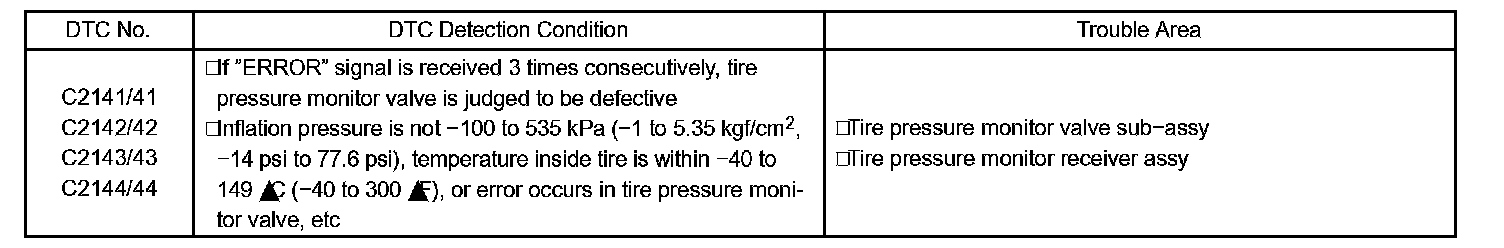

DTC Detection Condition:

HINT: Because the pressure monitor valve cannot be identified by a DTC, it is necessary to identify it through other methods.

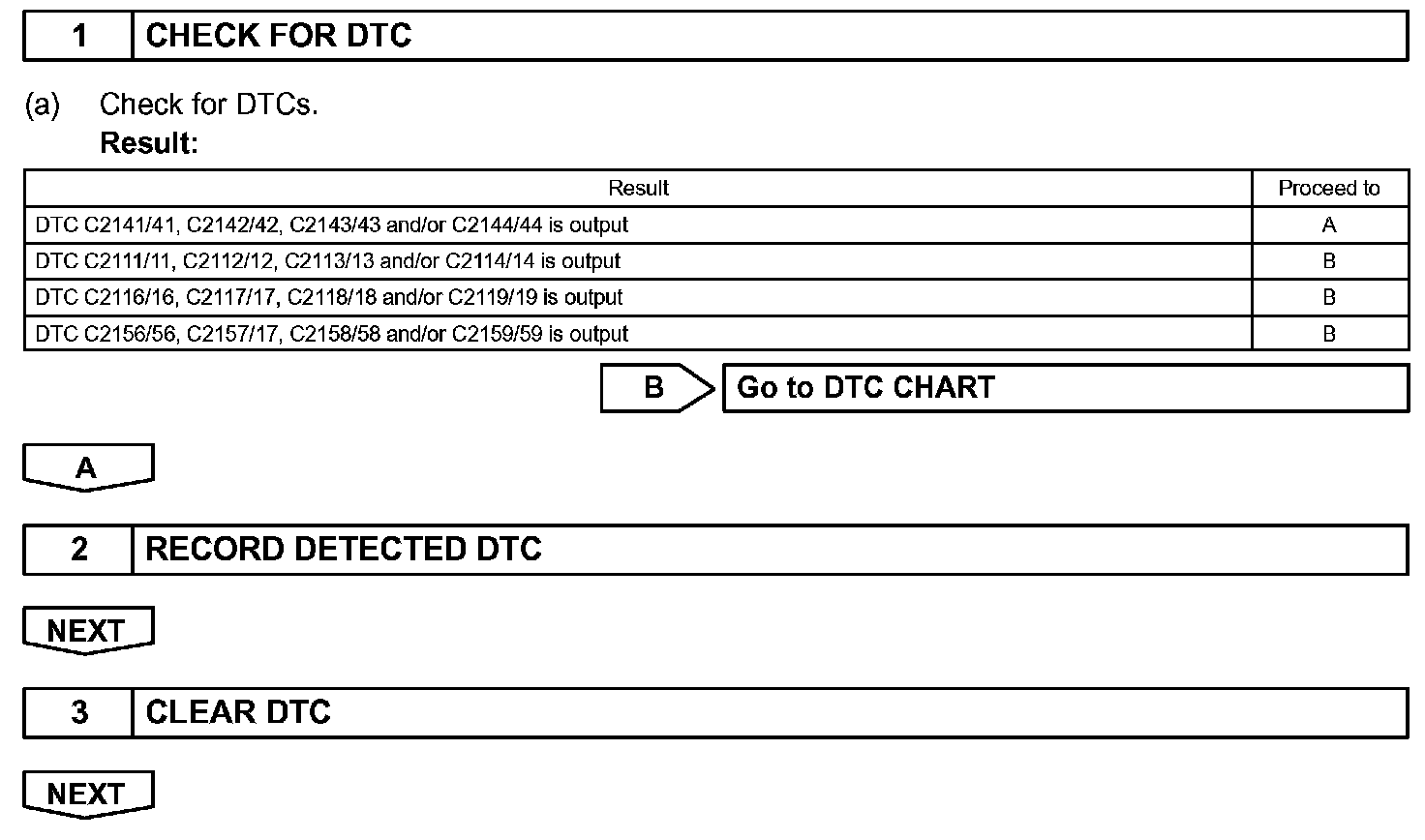

Step 1-3:

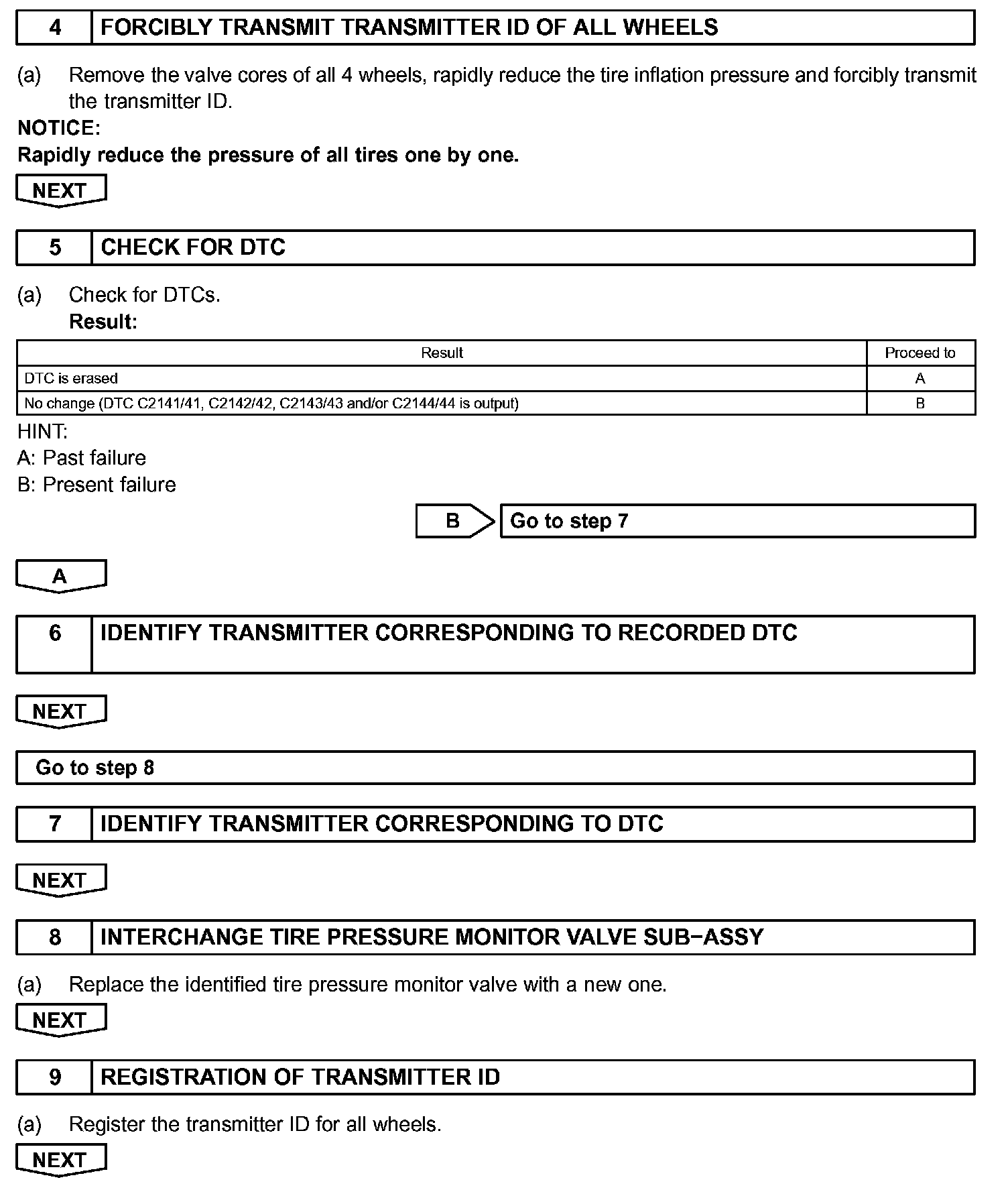

Step 4-9:

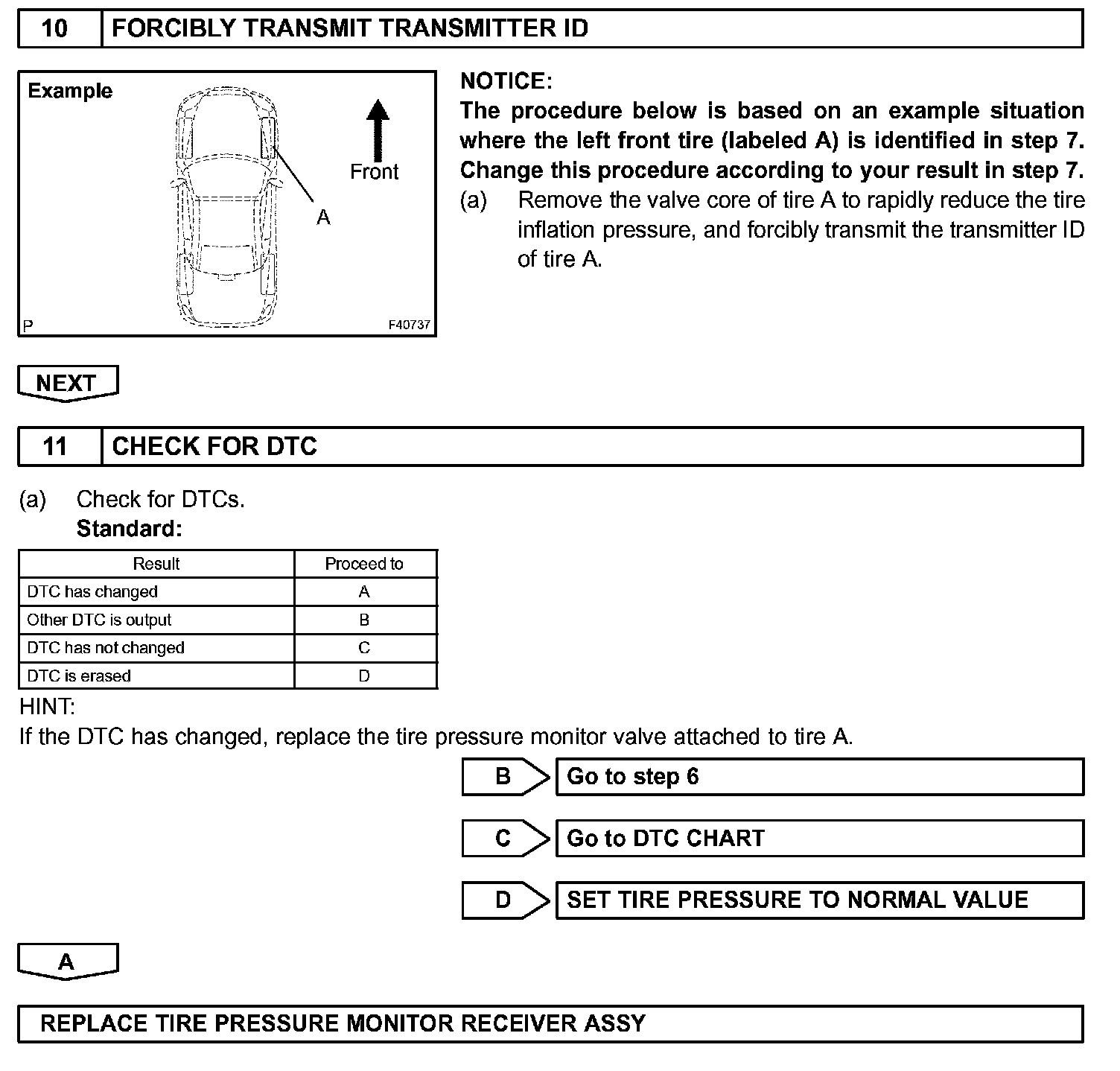

Step 10-11:

INSPECTION PROCEDURE

HINT: Correct the tire inflation pressure and inspect it while a DTC is being output.
