C1256

DTC C1256/56 ACCUMULATOR LOW PRESSURE

CIRCUIT DESCRIPTION

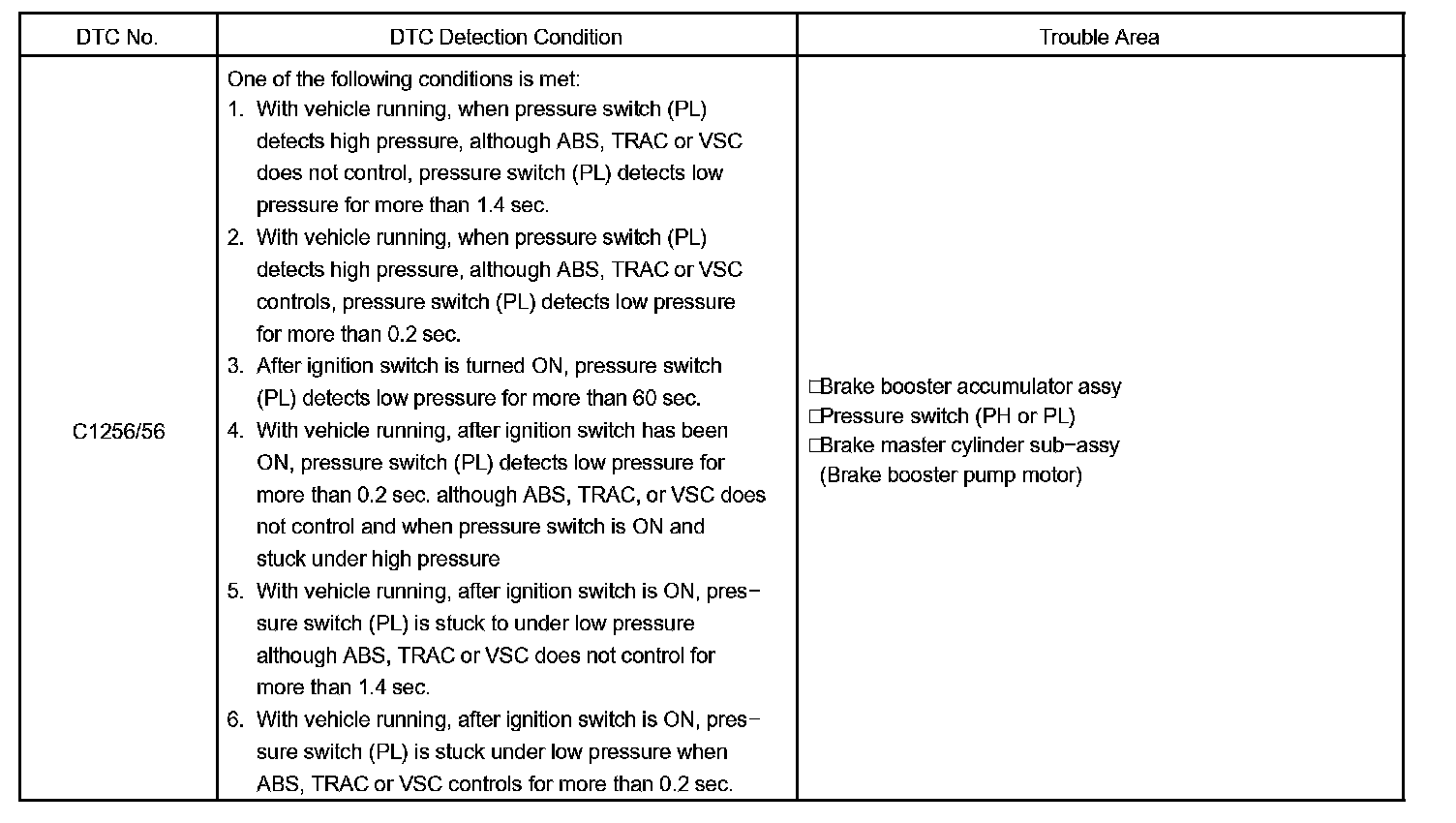

DTC Detection Condition:

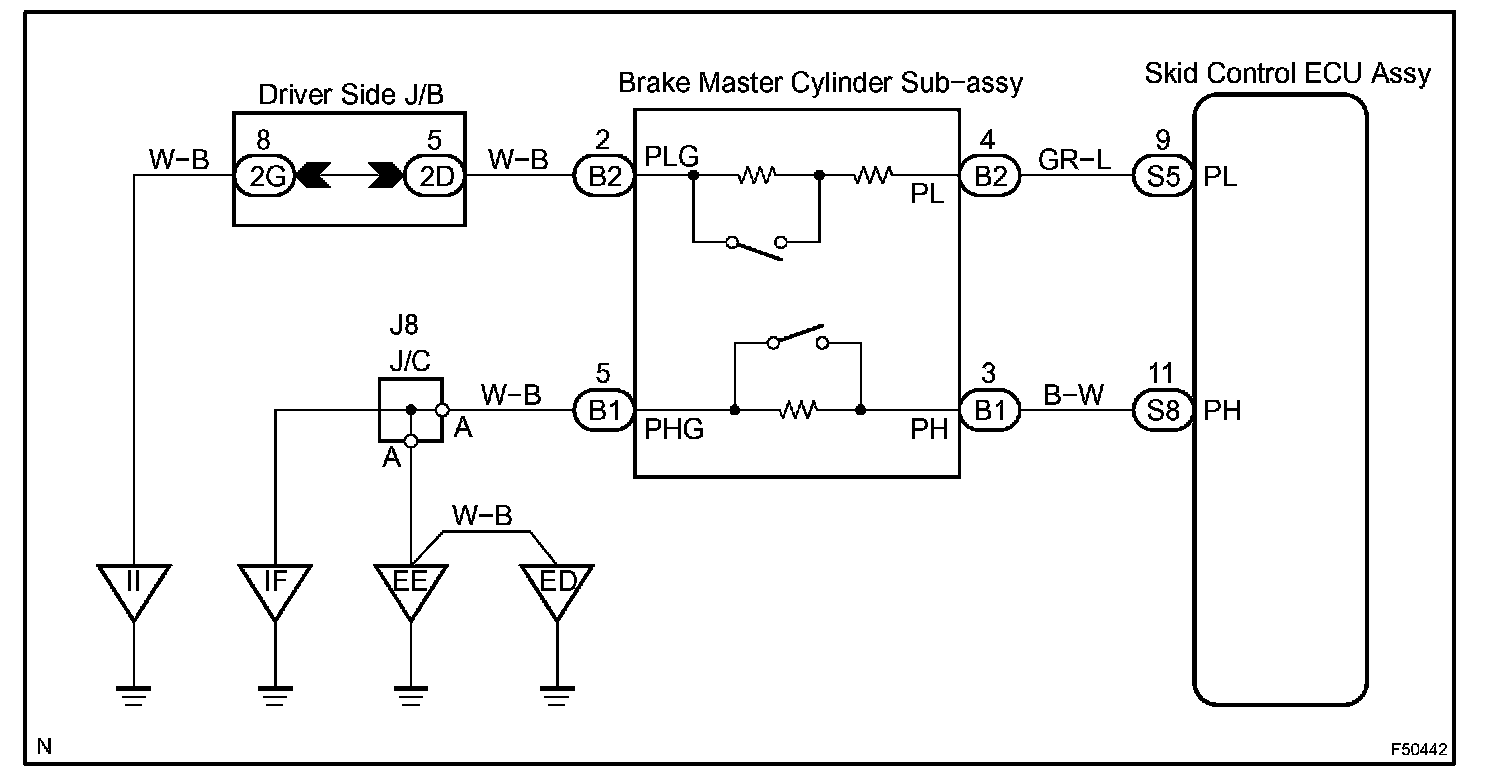

Wiring Diagram:

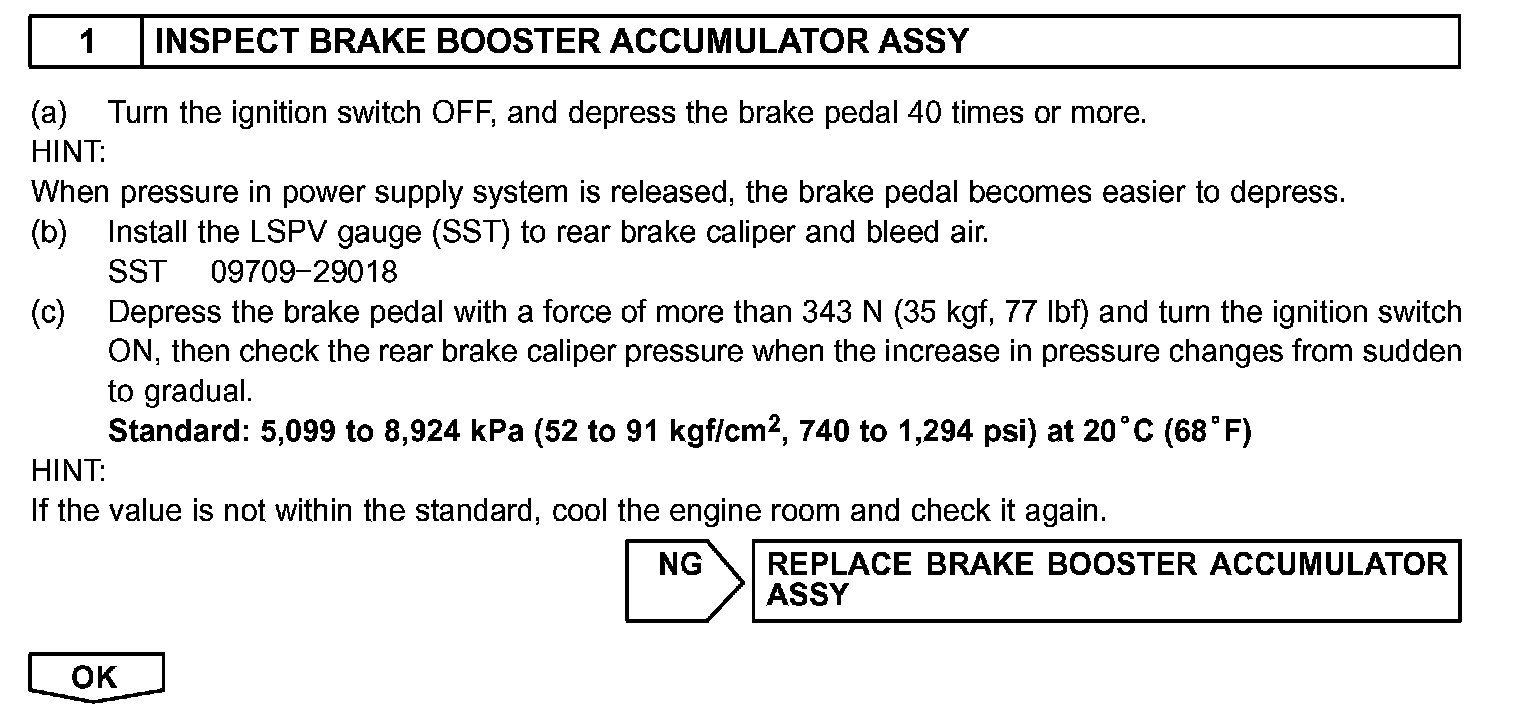

Step 1:

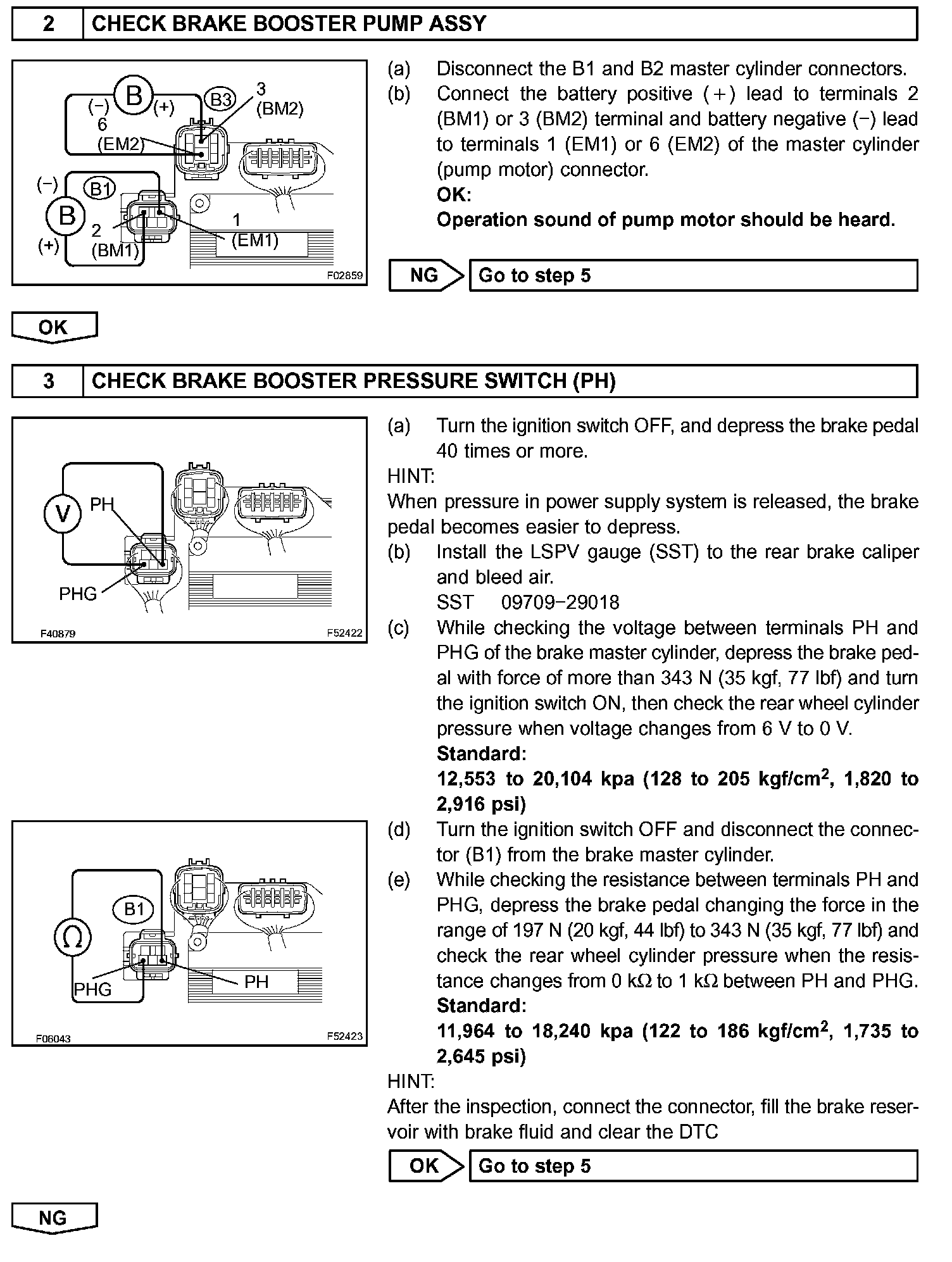

Step 2-3:

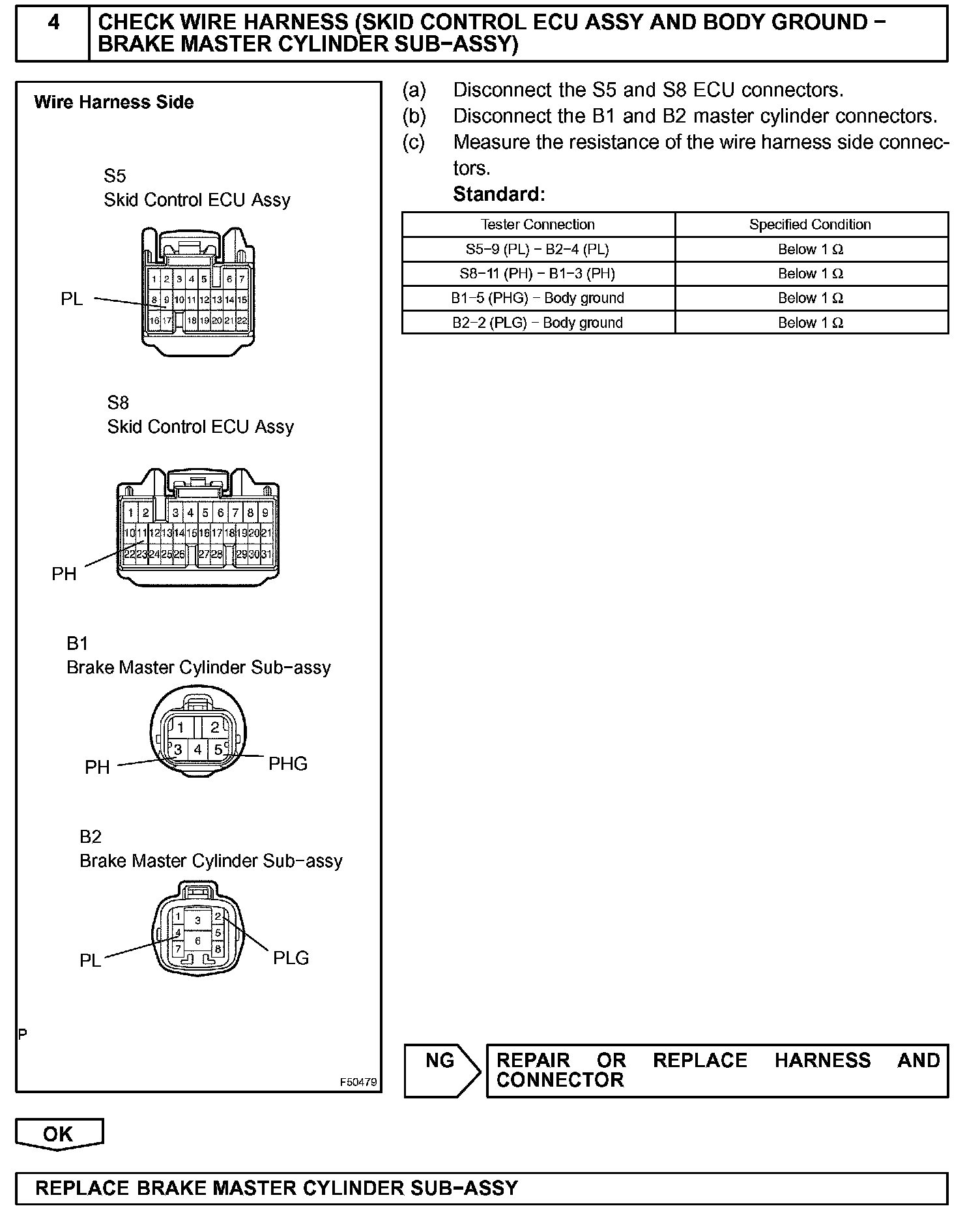

Step 4:

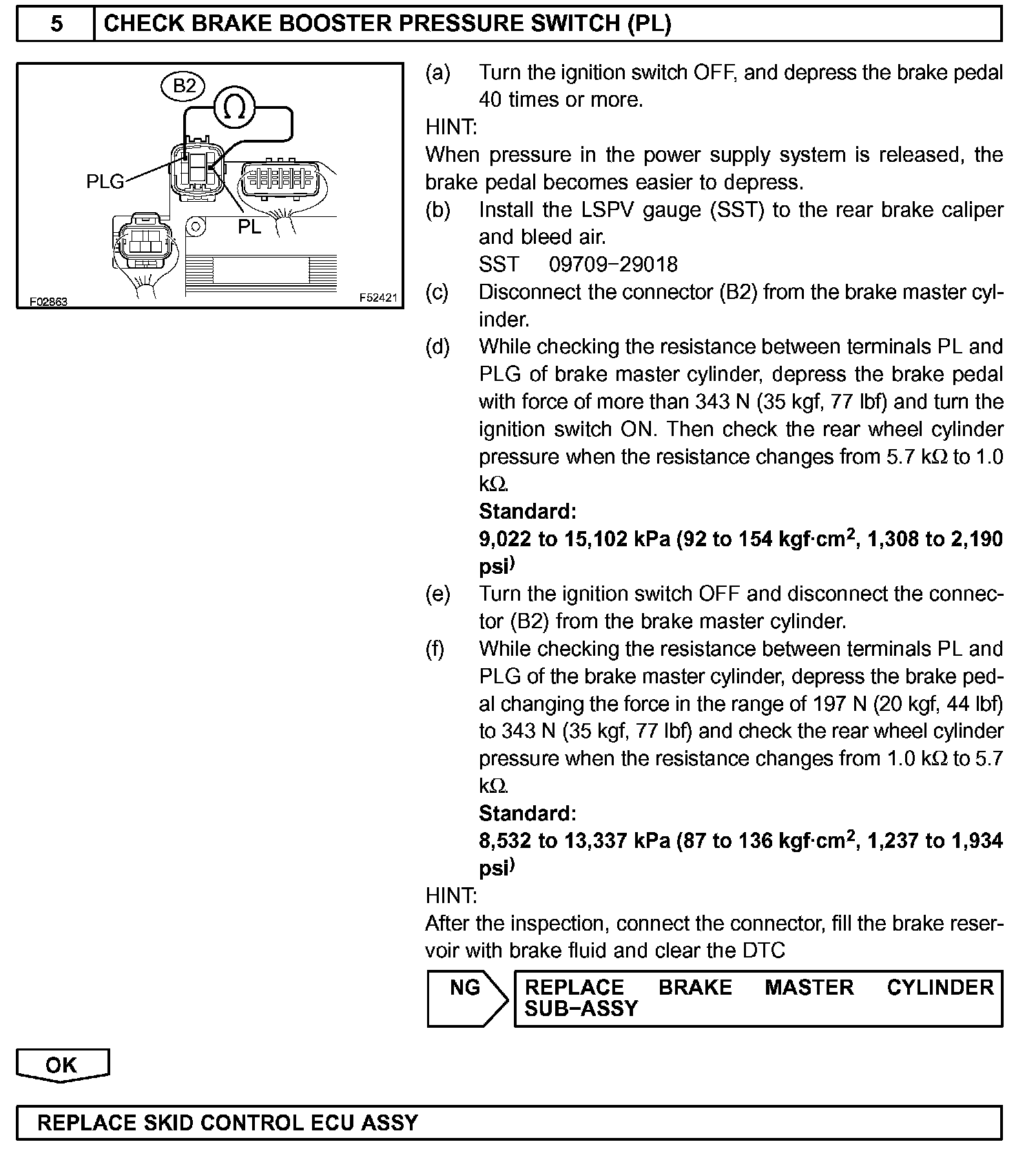

Step 5:

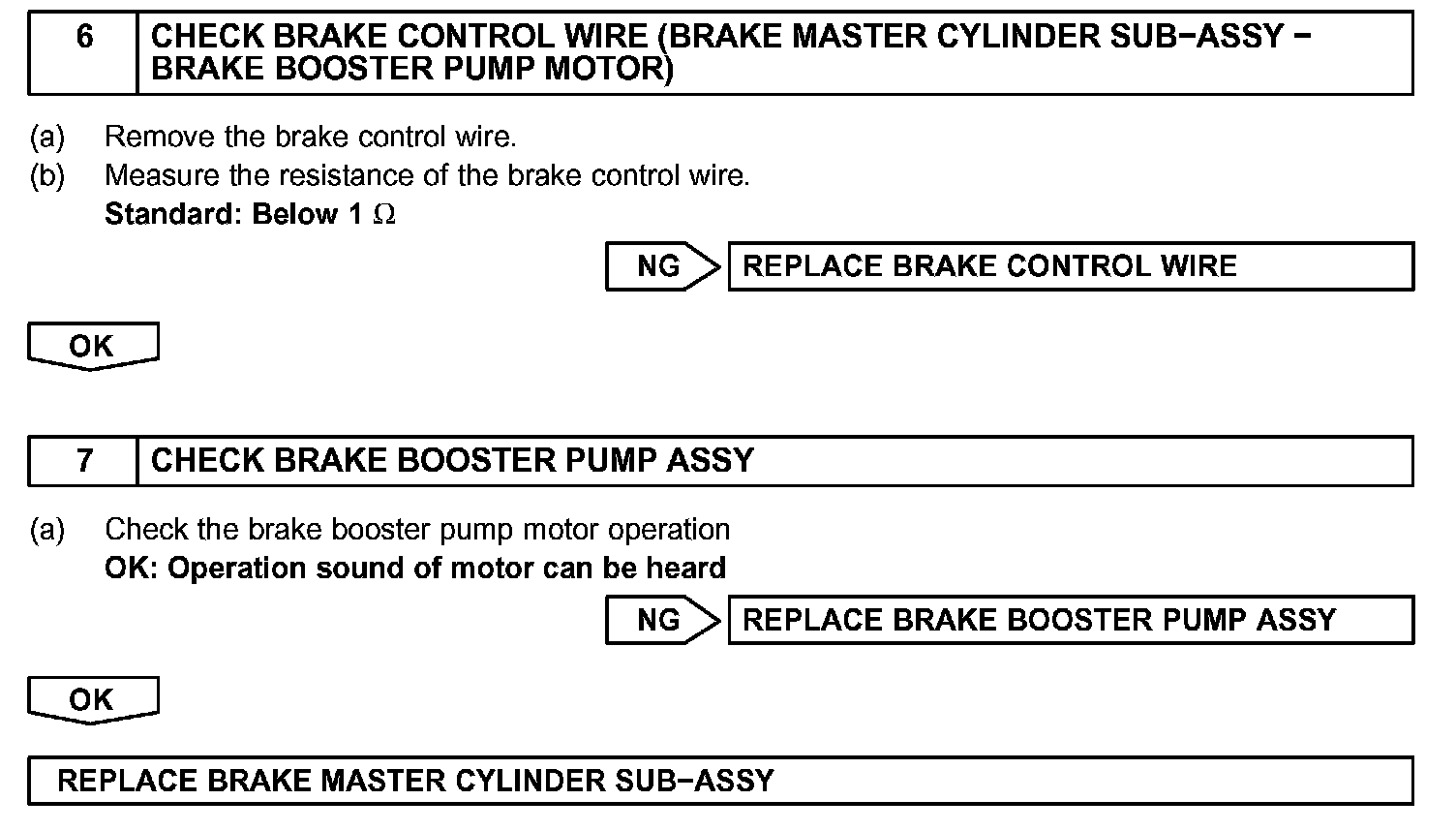

Step 6-7:




INSPECTION PROCEDURE
