DTC C1254/54 PRESSURE SWITCH CIRCUIT
CIRCUIT DESCRIPTION

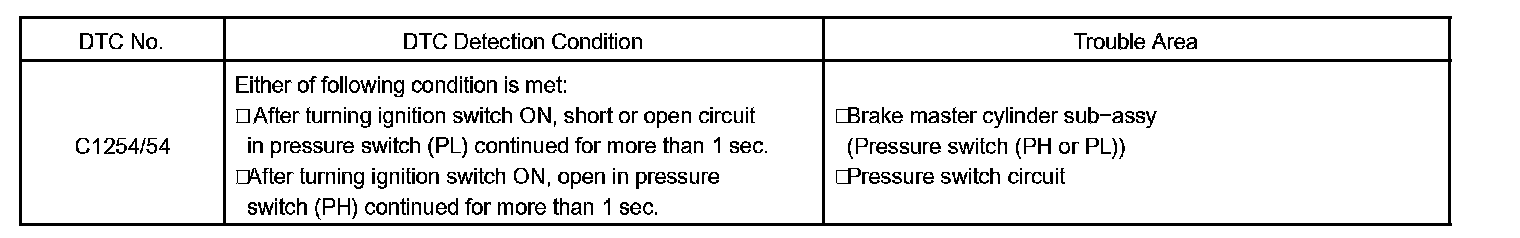

DTC Detection Condition:

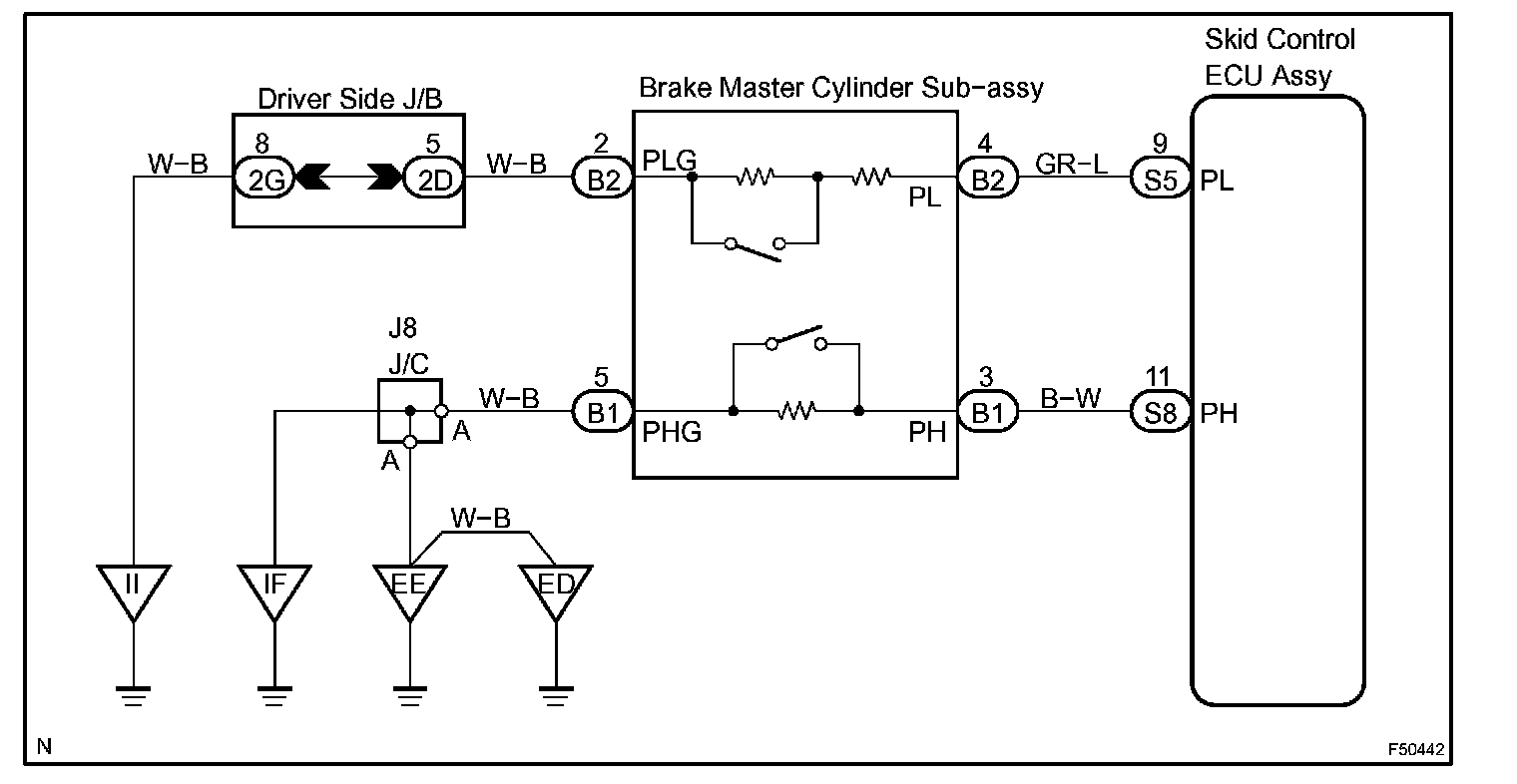

Wiring Diagram:

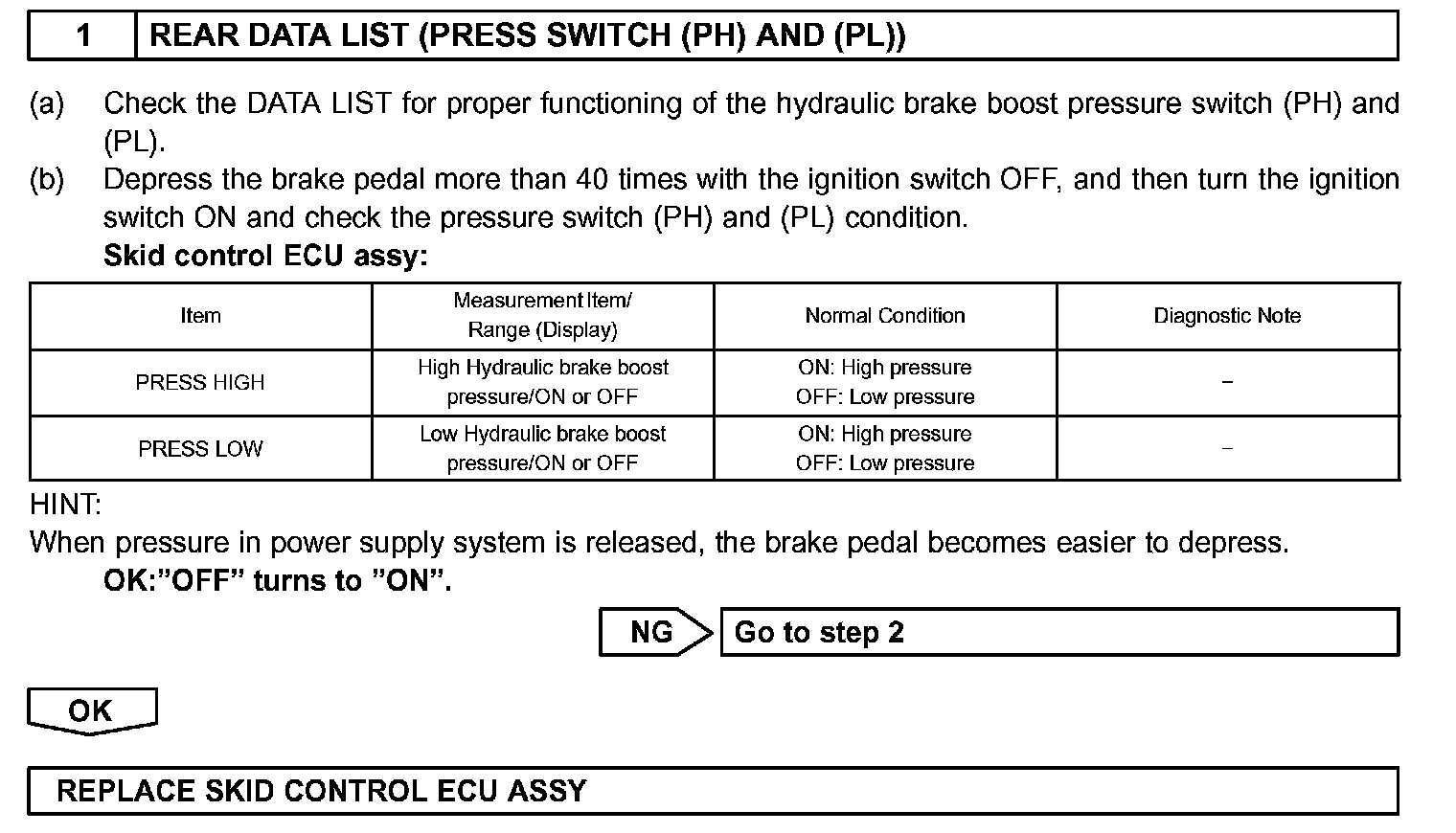

Step 1:

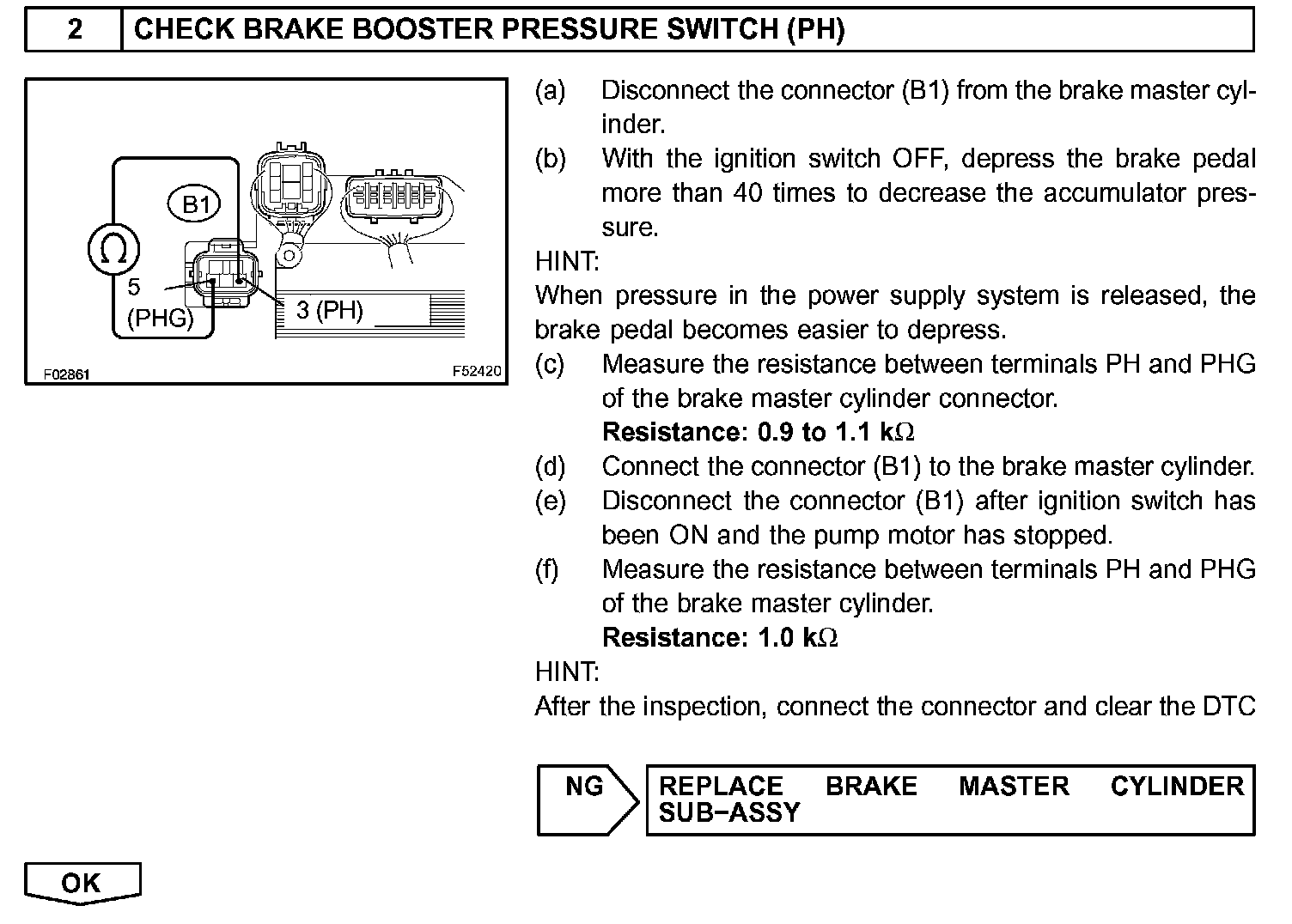

Step 2:

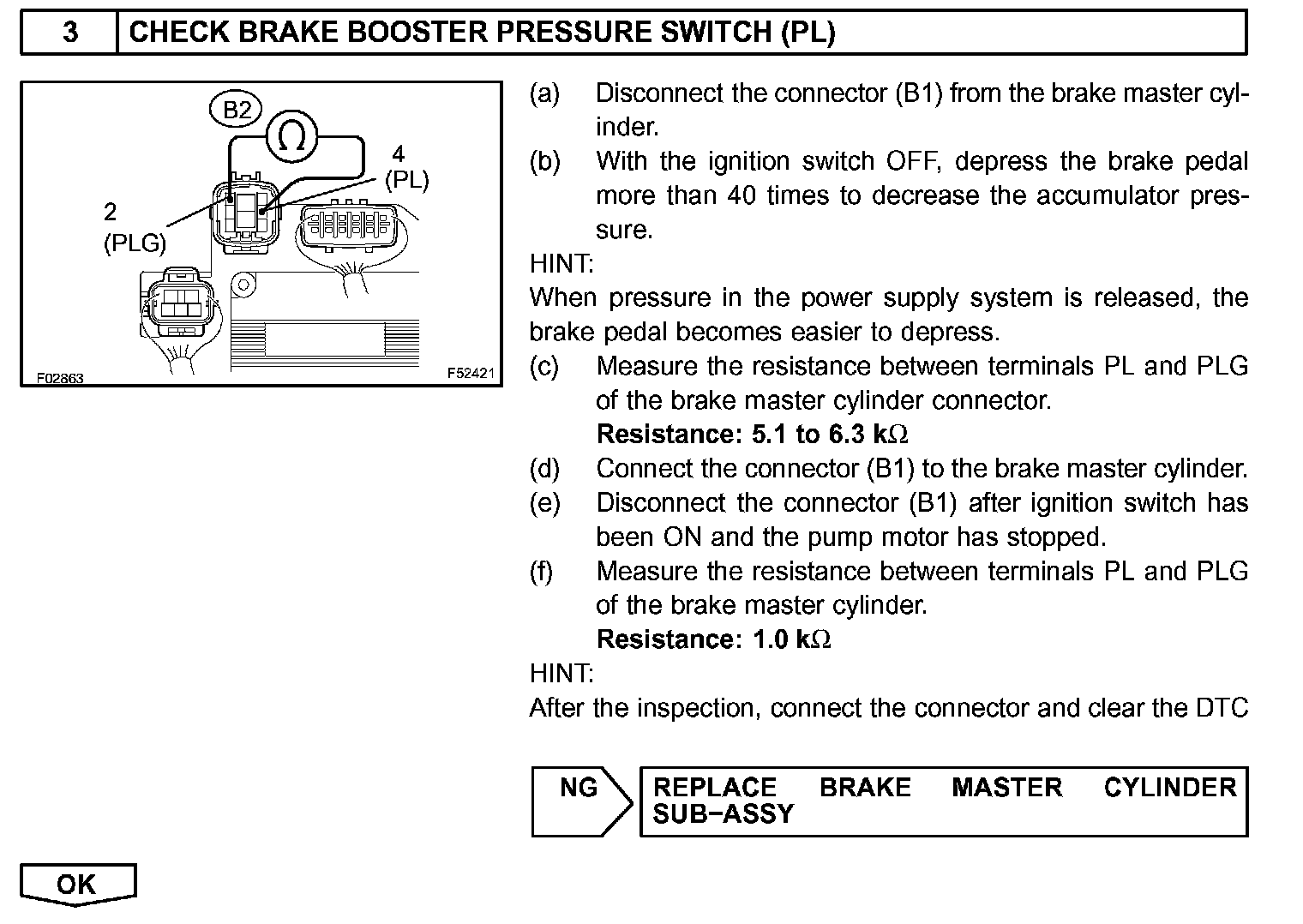

Step 3:

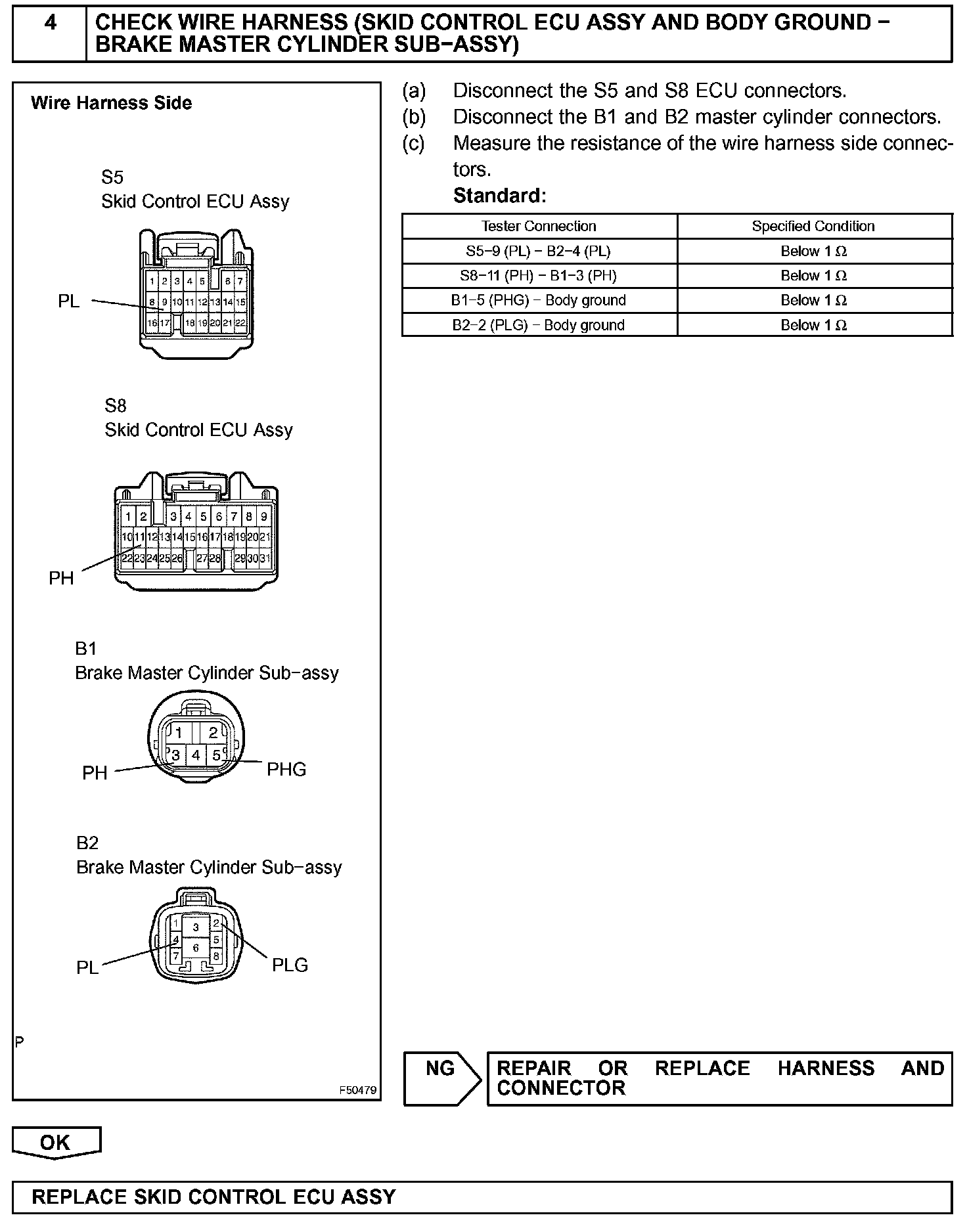

Step 4:
INSPECTION PROCEDURE
