C1246

DTC C1246/46 MASTER CYLINDER PRESSURE SENSOR CIRCUIT


CIRCUIT DESCRIPTION

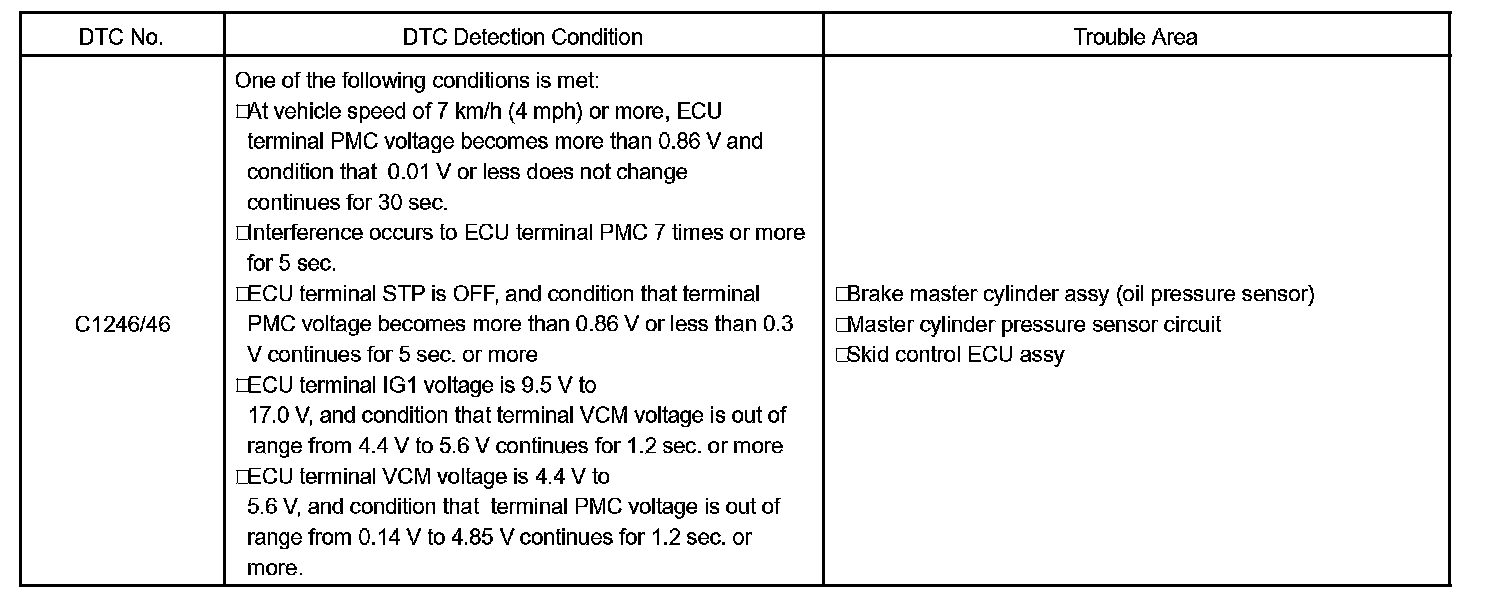

DTC Detection Condition:

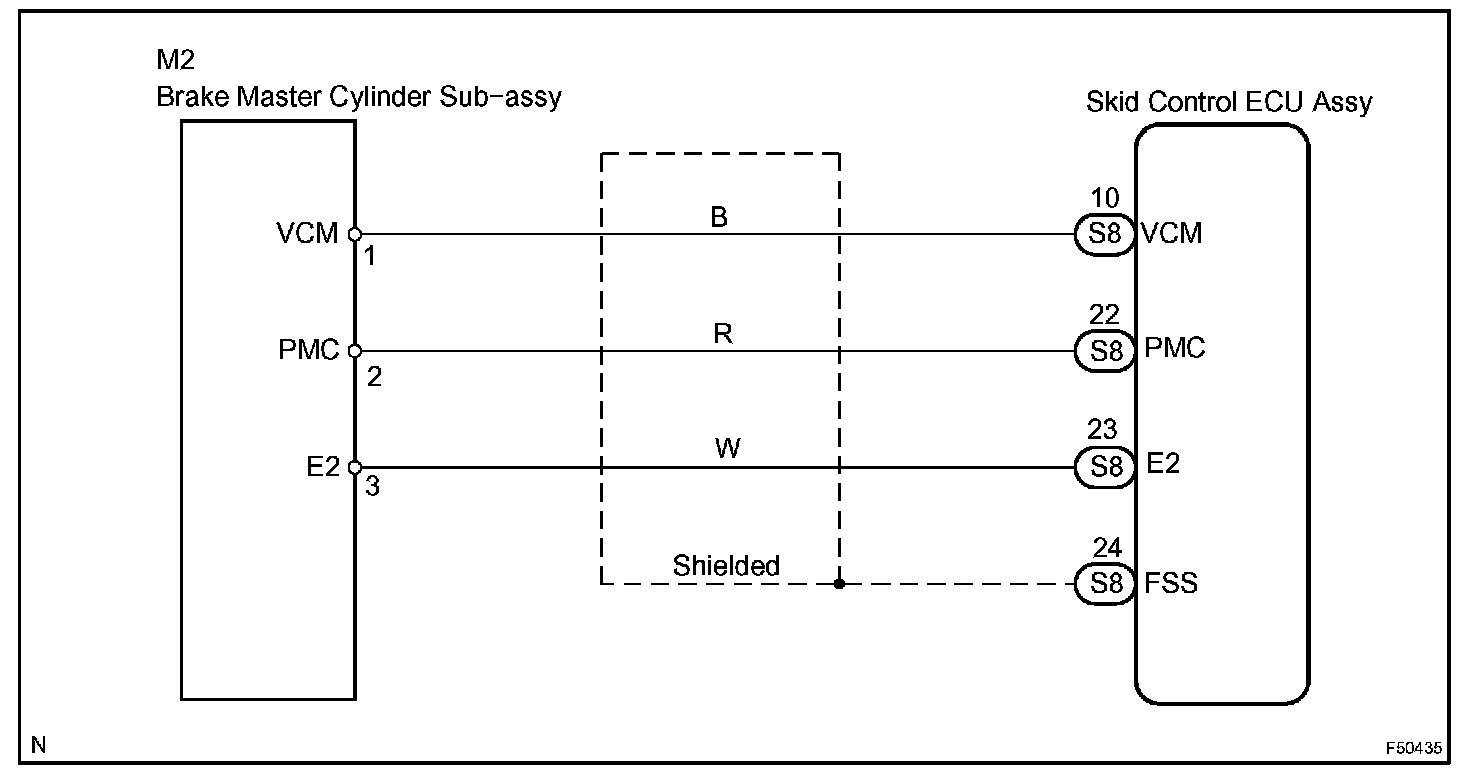

Wiring Diagram:

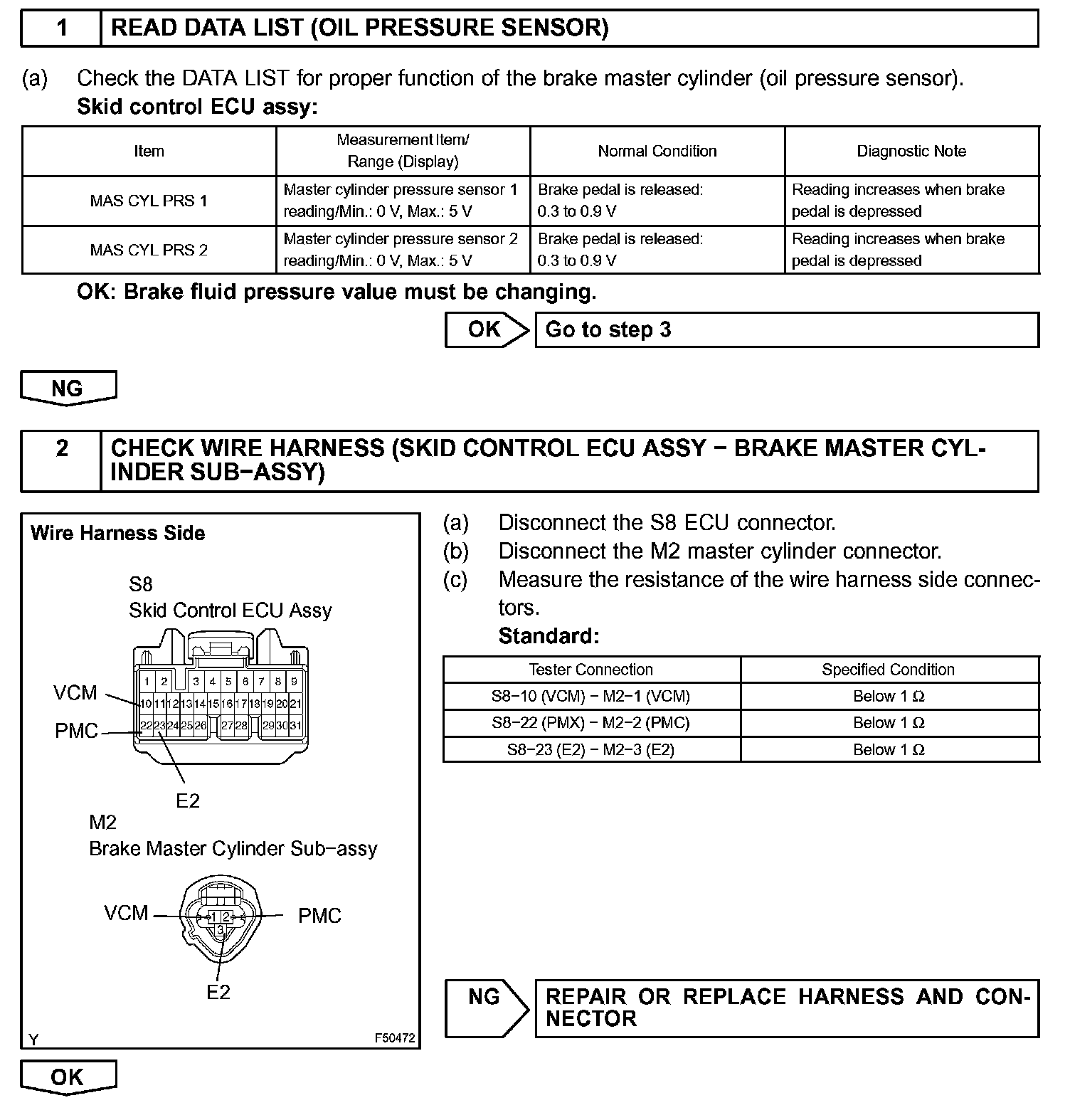

Step 1-2:

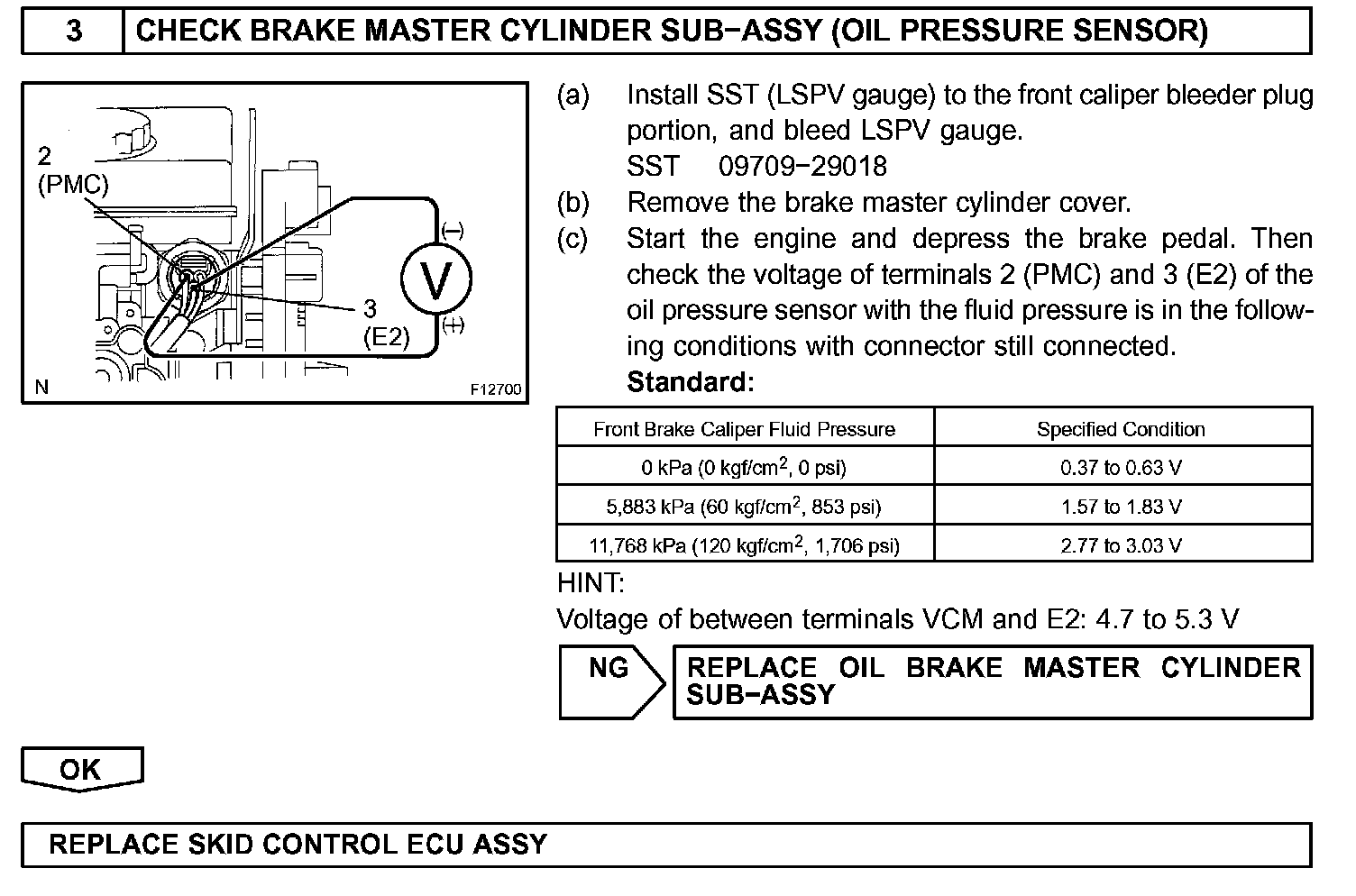

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
