C1210
C1210
DTC C1210/36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE
CIRCUIT DESCRIPTION

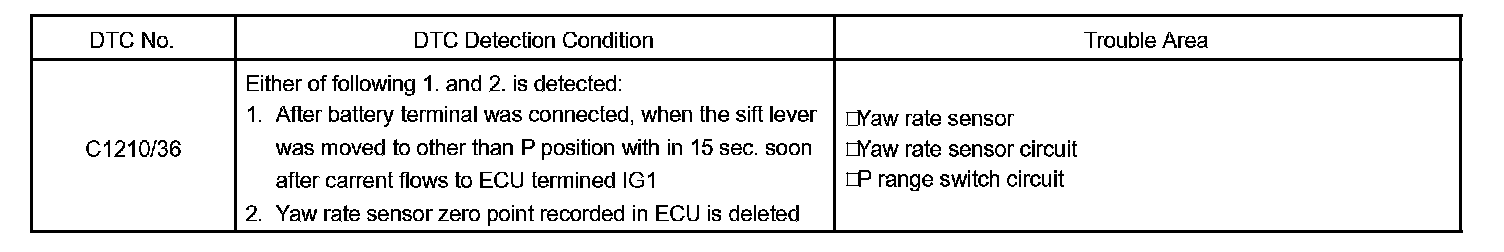

DTC Detection Condition:

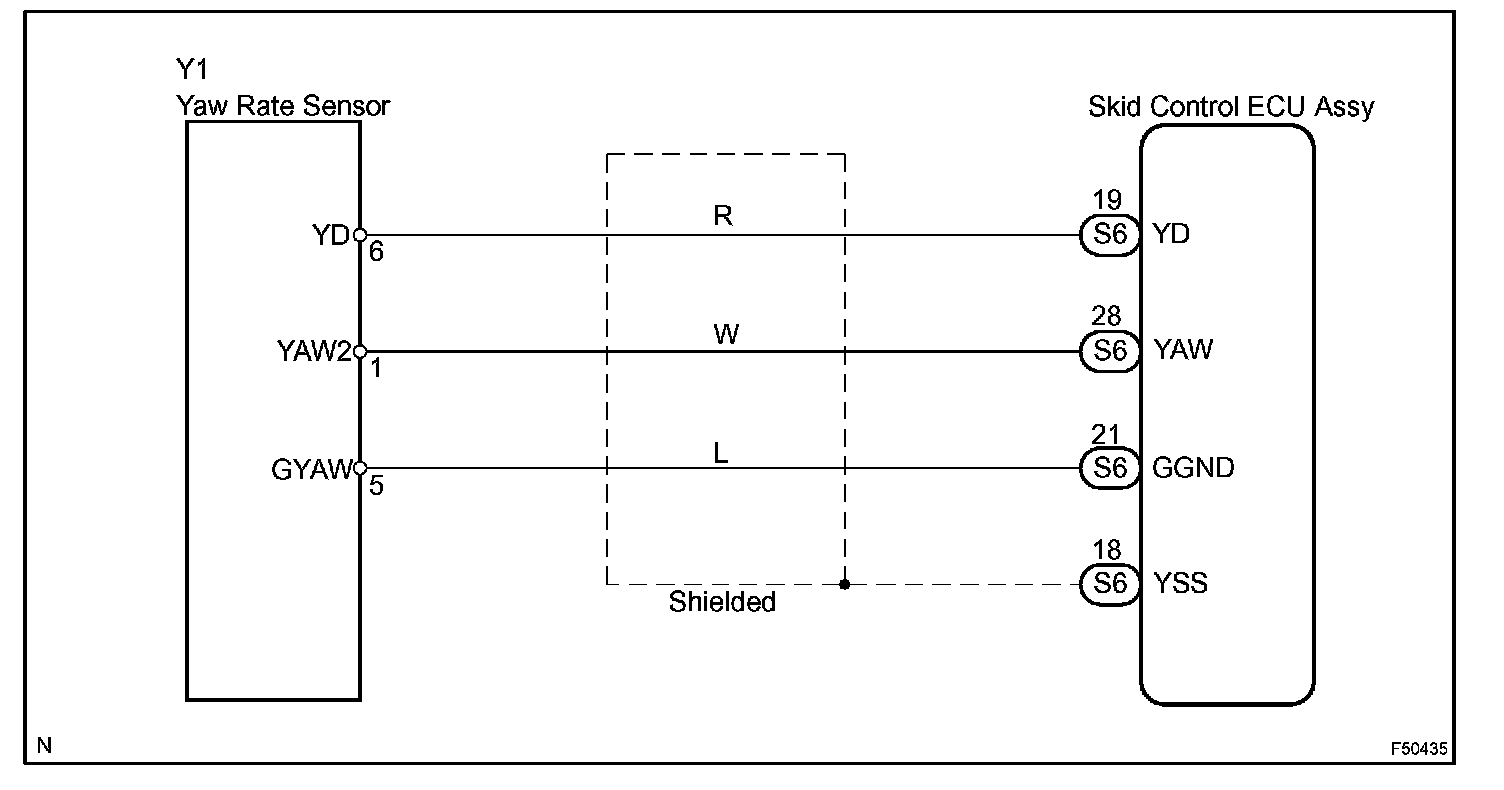

Wiring Diagram:

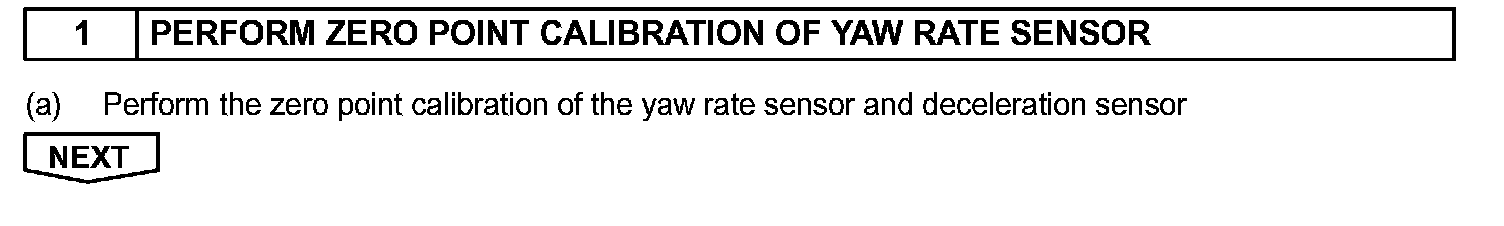

Step 1:

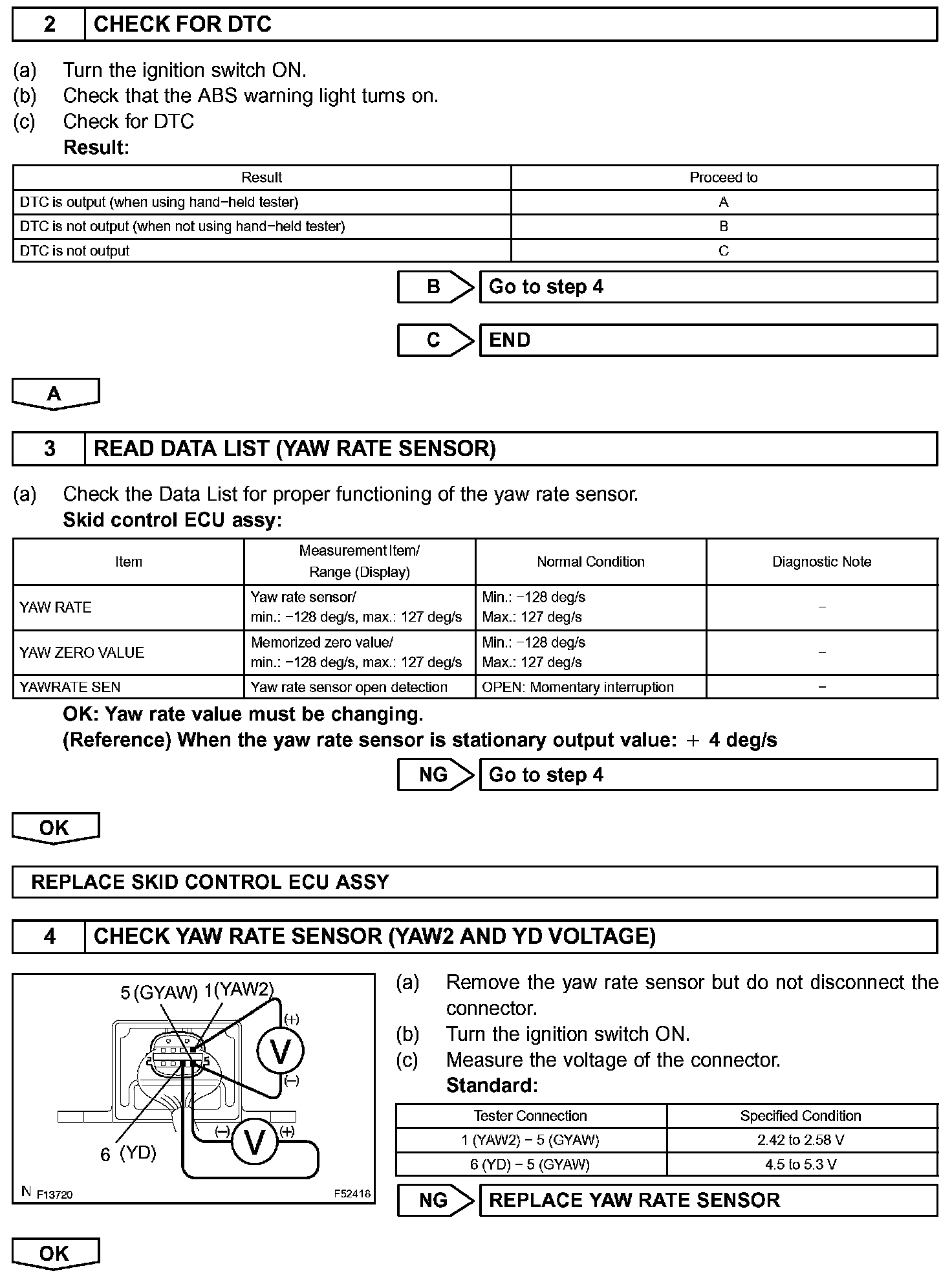

Step 2-4:

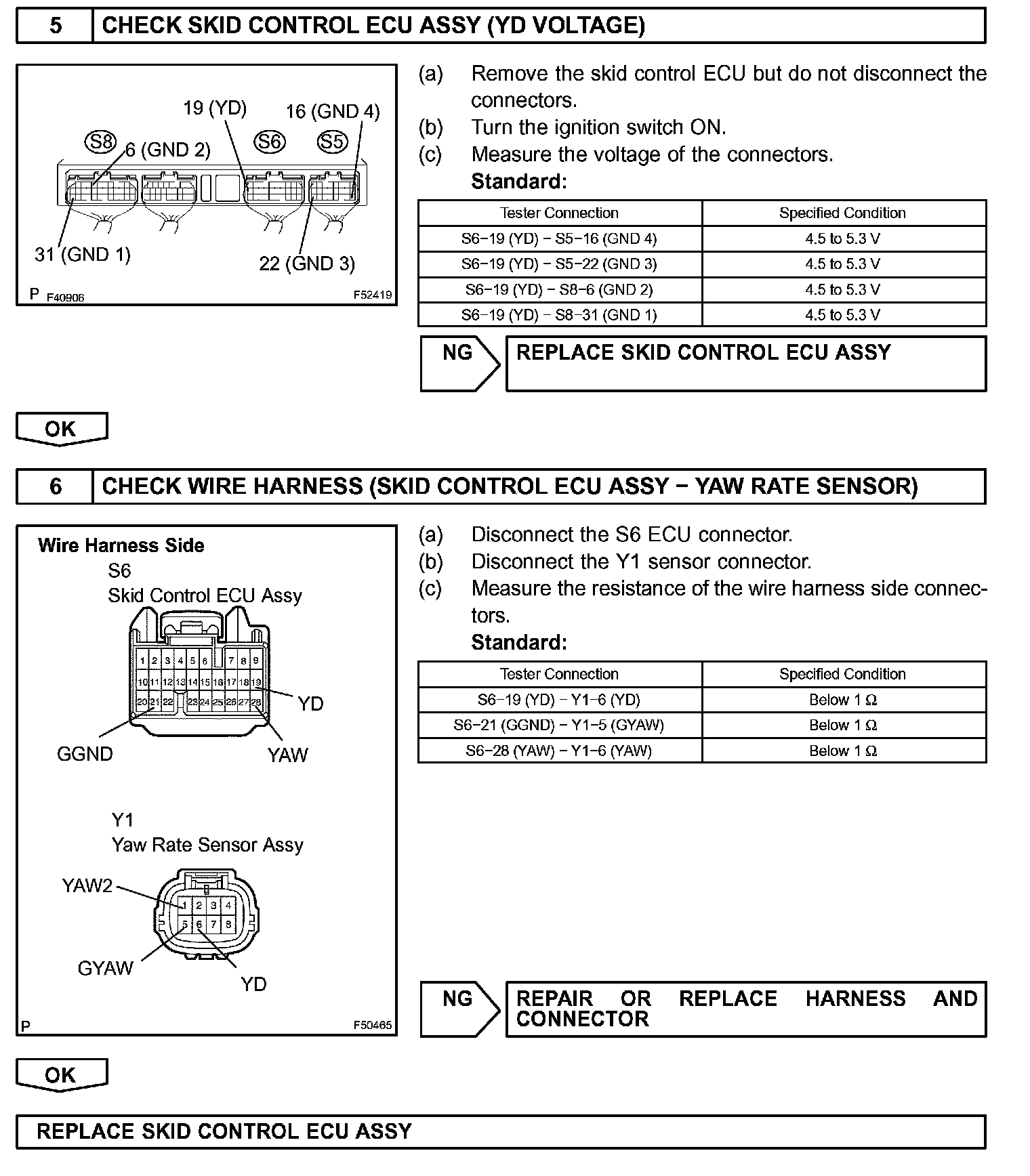

Step 5-6:
INSPECTION PROCEDURE
