B2796

DTC B2796 NO COMMUNICATION IN IMMOBILISER SYSTEM
DTC B2798 COMMUNICATION MALFUNCTION NO. 2

CIRCUIT DESCRIPTION

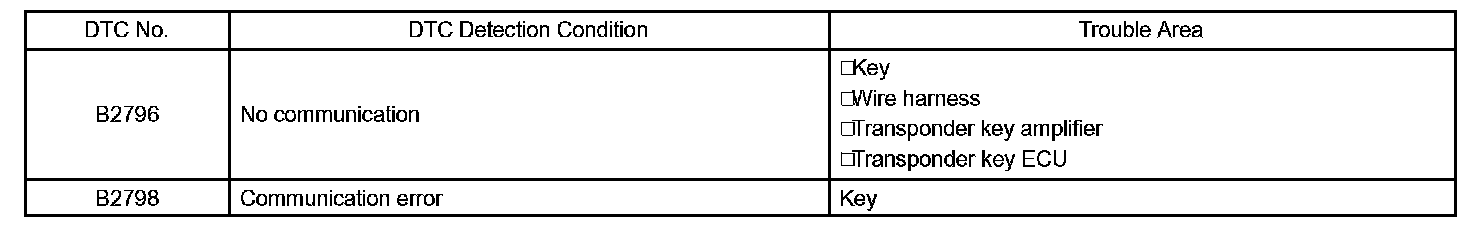

DTC Detection Condition:

When a key is inserted into the ignition key cylinder but no communication occurs between the key and transponder key ECU, DTC B2796 is output.
When a key is inserted into the ignition key cylinder but a communication error occurs between the key and transponder key ECU, DTC B2798 is output.

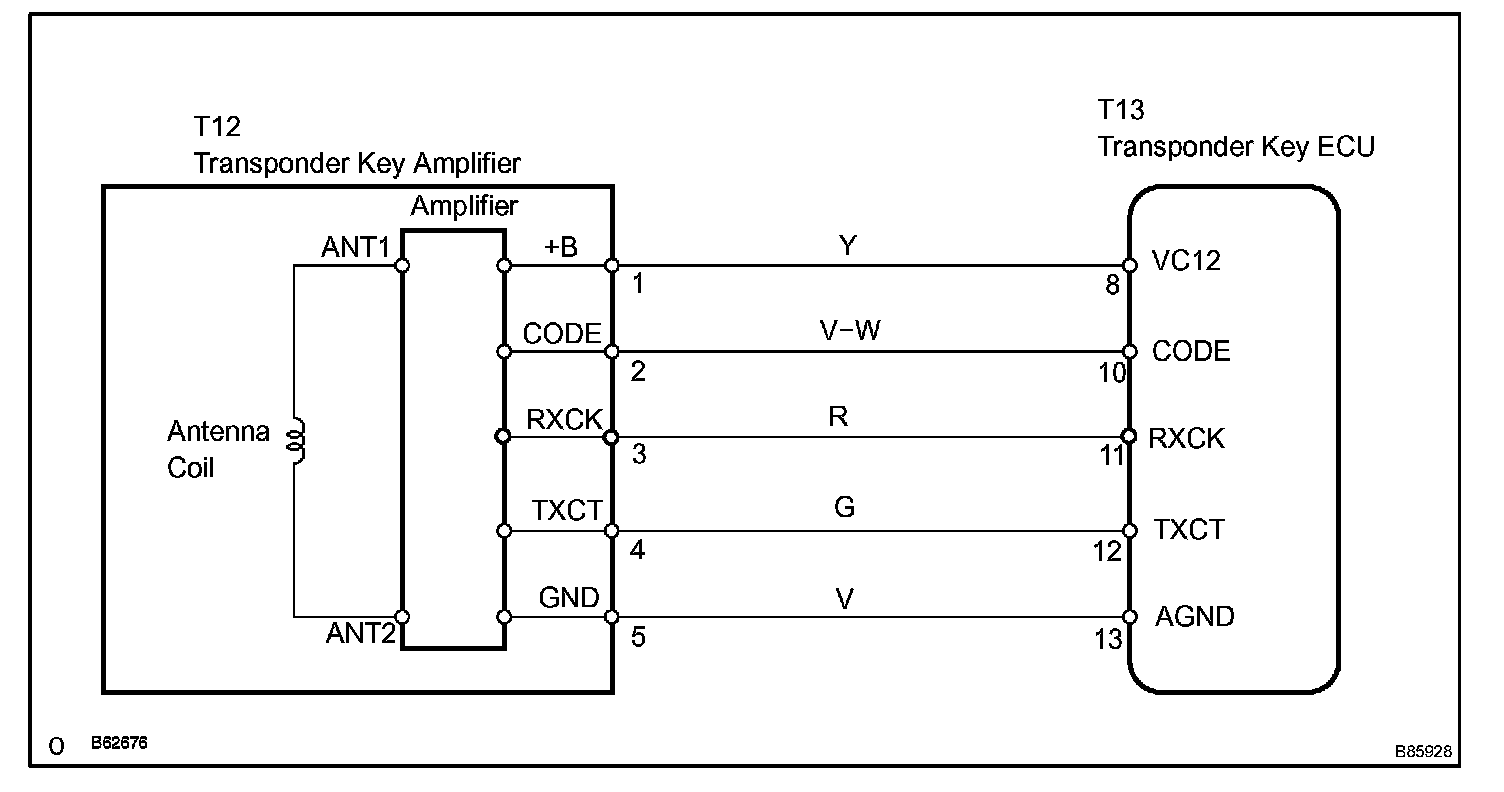

Wiring Diagram:

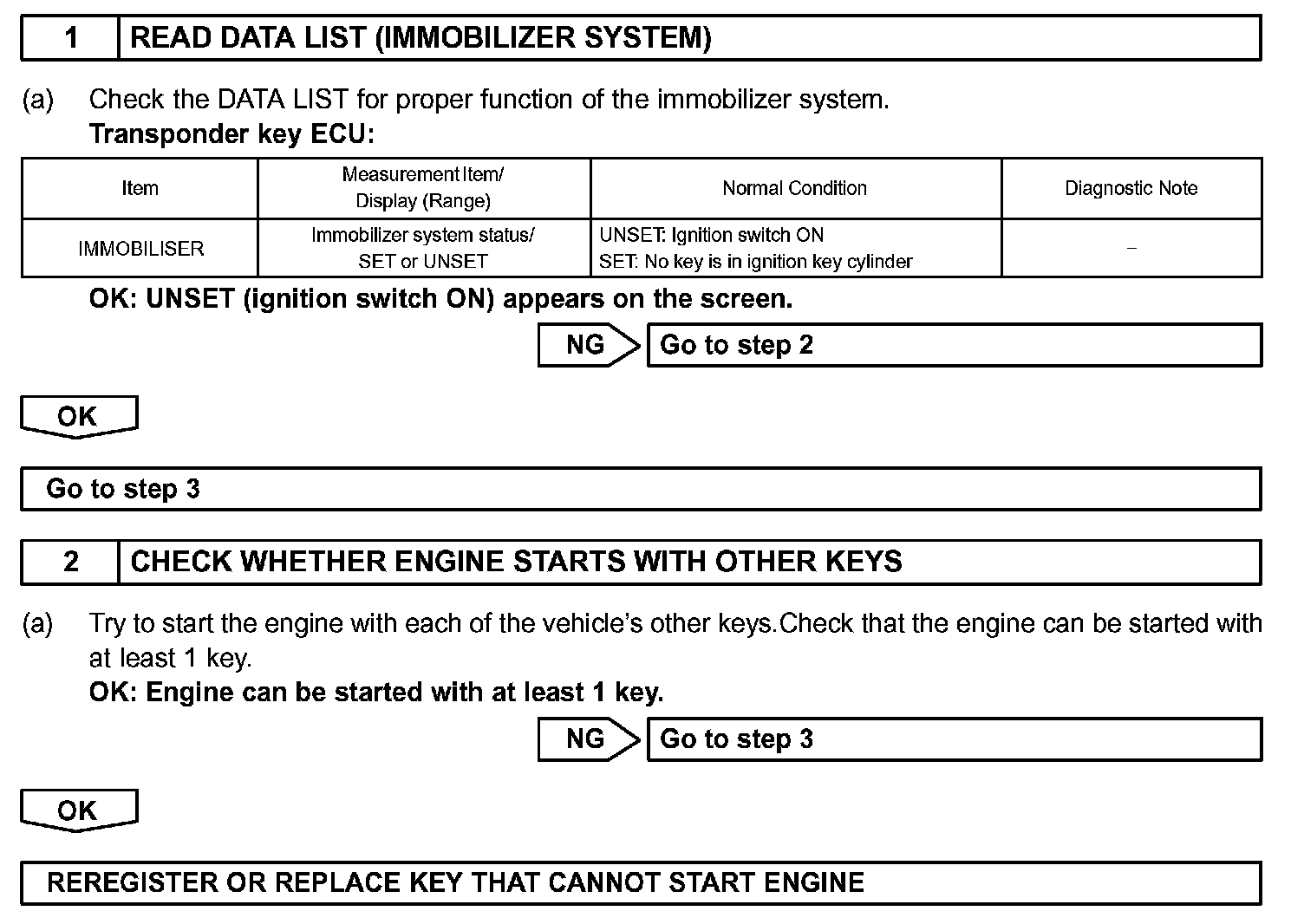

Step 1-2:

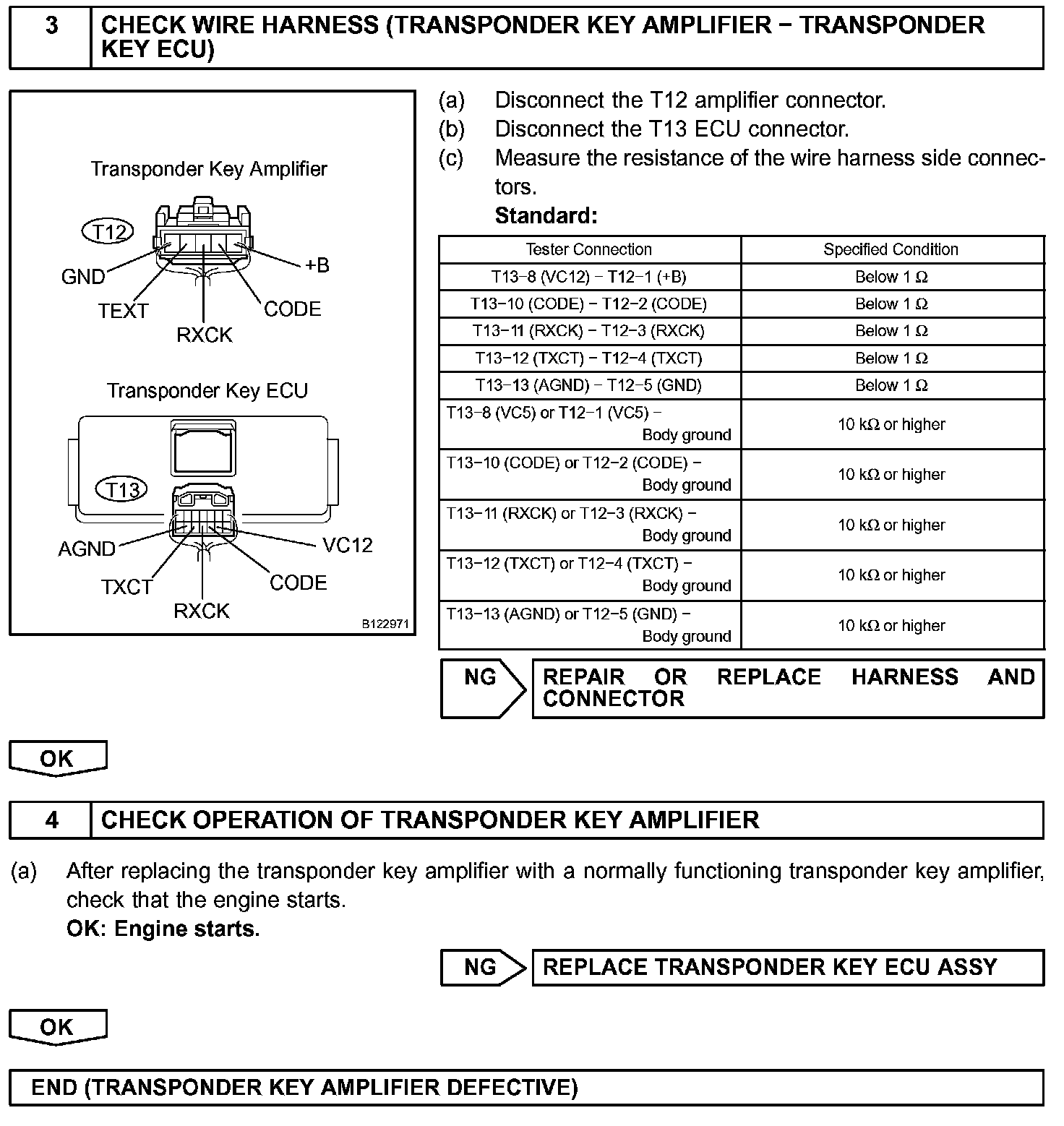

Step 3-4:

INSPECTION PROCEDURE
