B2555

DTC B2555 A/C ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

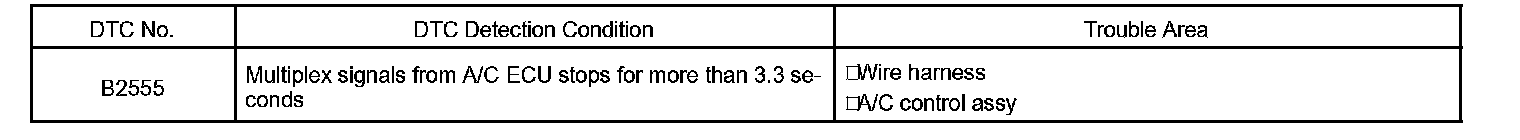

DTC Detection Condition:

Receiving the multiplex signals (ambient temperature).
Changing the fixed control number according to the above information.

Wiring Diagram:

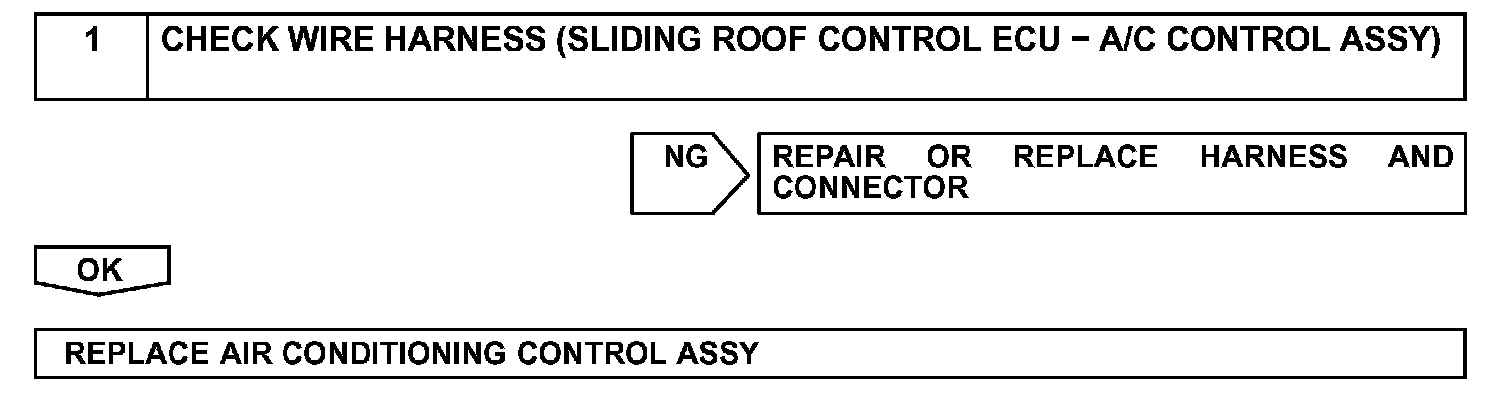

Step 1:

INSPECTION PROCEDURE
