B2548

DTC B2548 DRIVER SIDE J/B ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detection Condition:

Receiving the multiplex signals (information on the luggage door opener main switch).
That the luggage opener main switch is on is one of the conditions to permit the retractable hardtop operation. If the operation switch is pressed without satisfying the above condition, the indicator will start blinking.

Wiring Diagram:

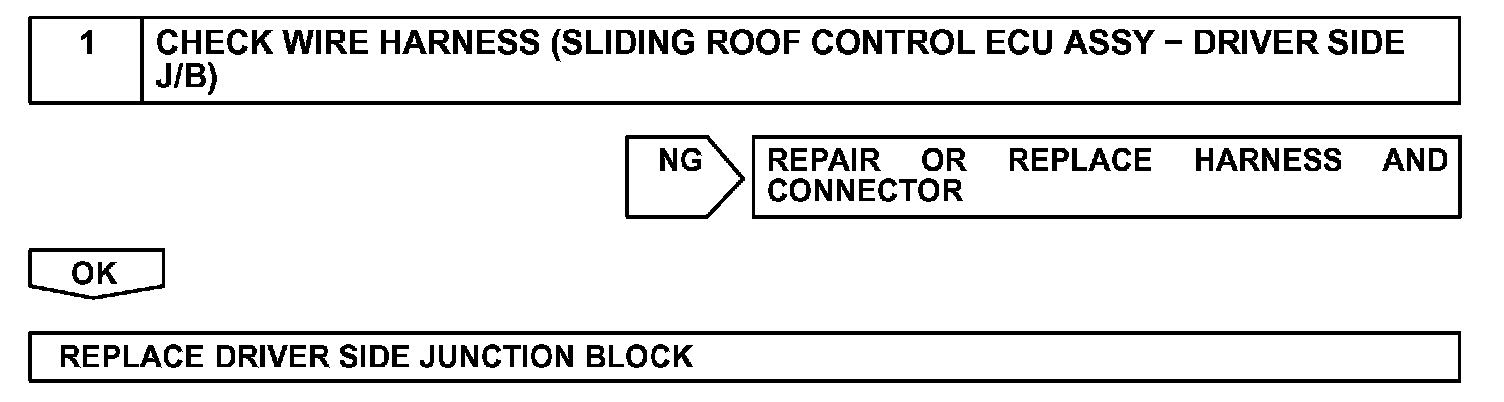

Step 1:

INSPECTION PROCEDURE
