B2540

DTC B2540 ABNORMAL DIFFERENCE BETWEEN RH AND LH ROOF DRIVE MOTOR PULSE

CIRCUIT DESCRIPTION

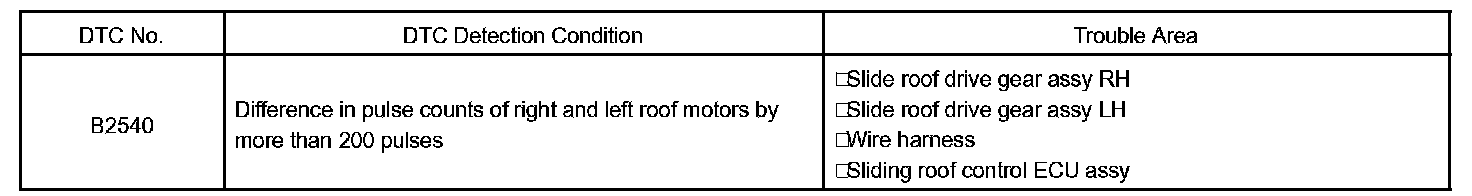

DTC Detection Condition:

Pulse signal is created by the rotation of the roof drive motor. The signal is used to control the luggage roof operation.

Wiring Diagram:

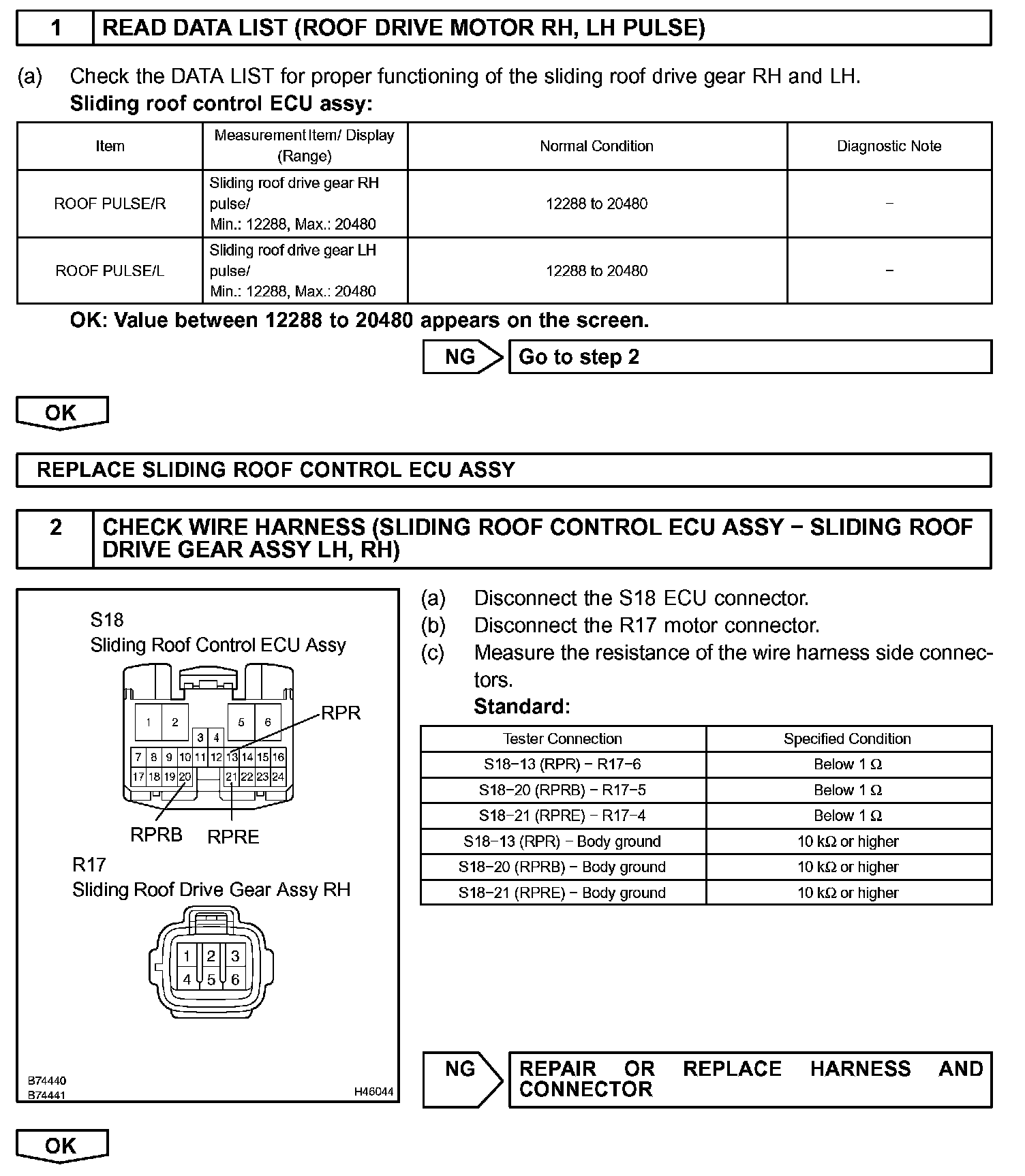

Step 1-2:

Step 3:

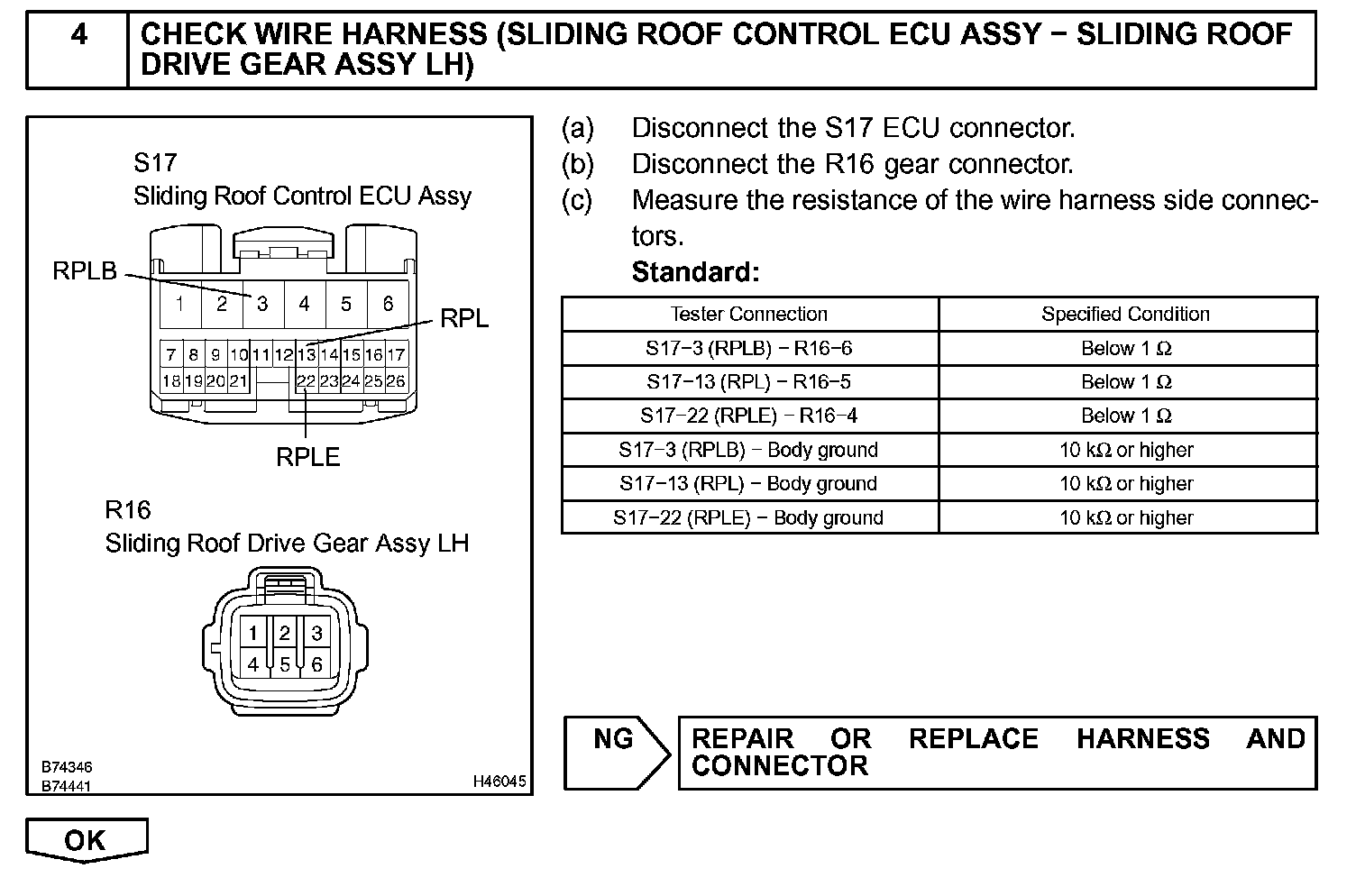

Step 4:

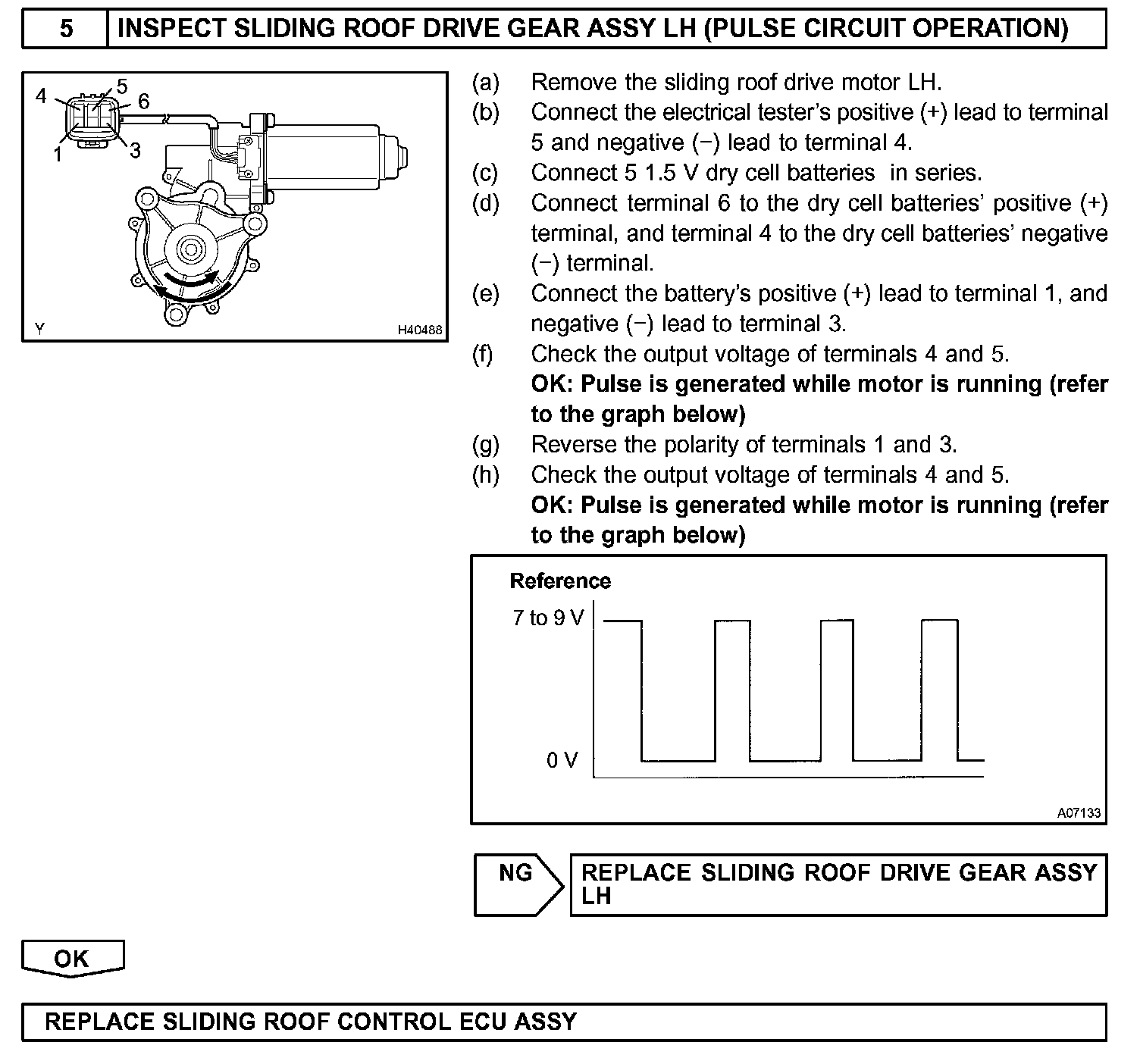

Step 5:

INSPECTION PROCEDURE
