B2536

DTC B2536 LUGGAGE COURTESY SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

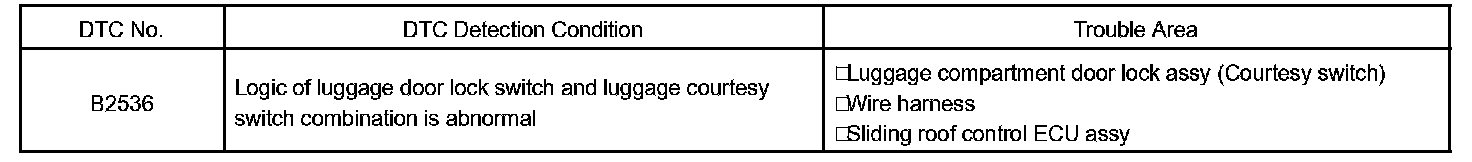

DTC Detection Condition:

The luggage courtesy switch is located at the luggage rear lock portion. The luggage courtesy switch detects if the luggage door is fully closed.
Turned ON when the luggage rear lock switch is ON is the condition that permits the sliding roof to operate. The luggage courtesy switch in turned ON when the luggage rear lock switch is turned ON.
Turning the luggage courtesy switch ON permits the luggage door to start opening. Therefore, pressing the operating switch with the luggage rear lock switch not turned ON causes the indicator to blink.

Wiring Diagram:

Step 1-2:

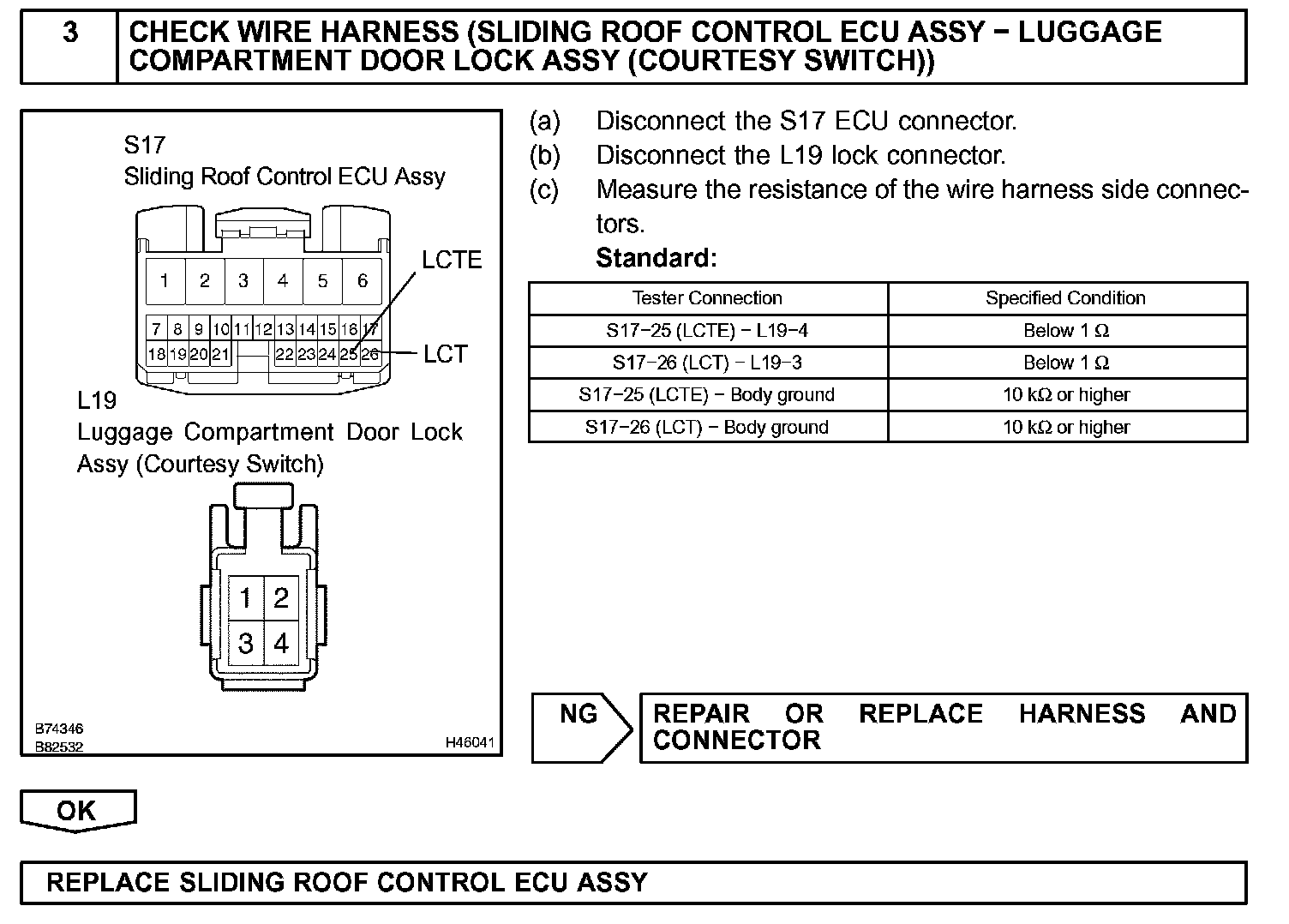

Step 3:

INSPECTION PROCEDURE
