B2534

DTC B2534 PACKAGE TRAY SWITCH NO. 1 OR NO. 2 MALFUNCTION

CIRCUIT DESCRIPTION

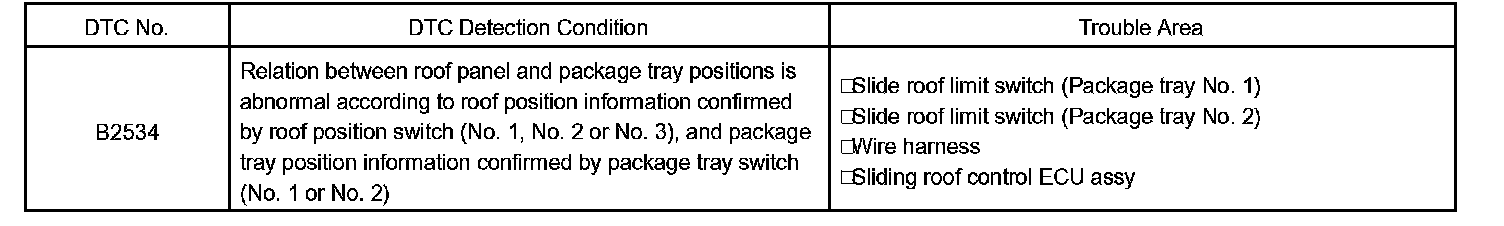

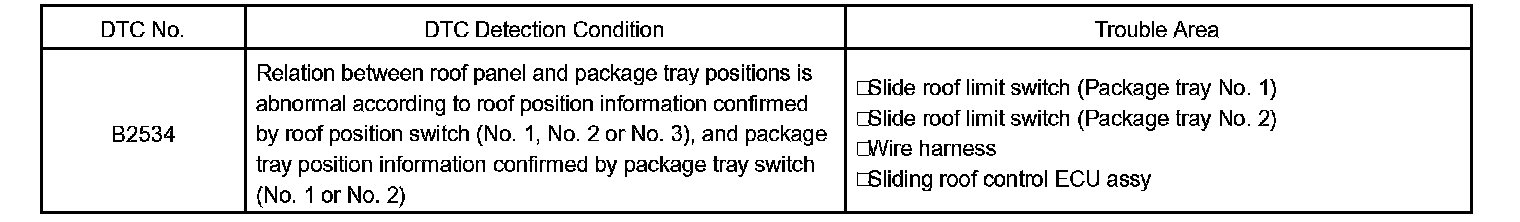

DTC Detection Condition:

This circuit indicates package tray switch No. 1 or No. 2 depending on the position of the package tray.

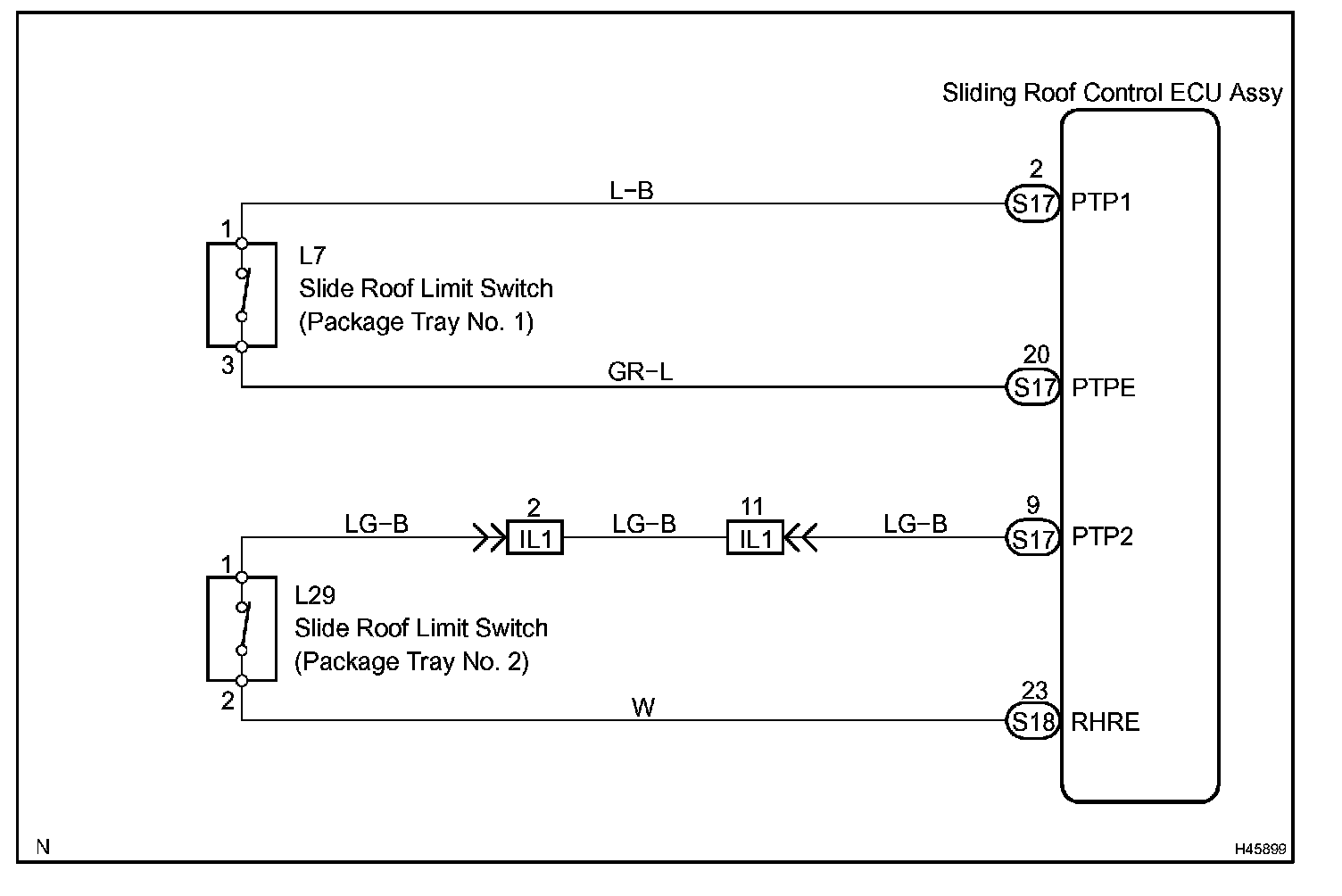

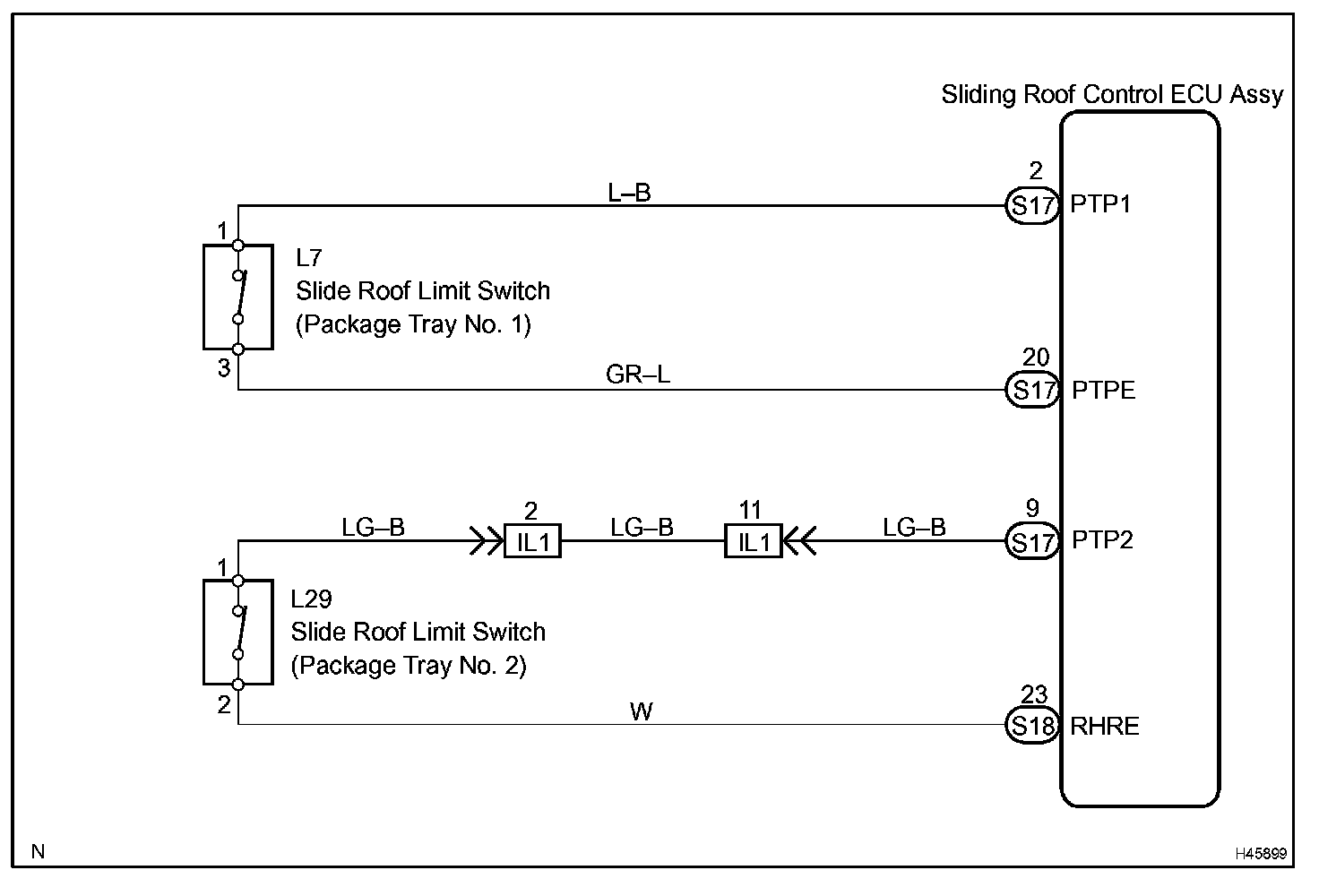

Wiring Diagram:

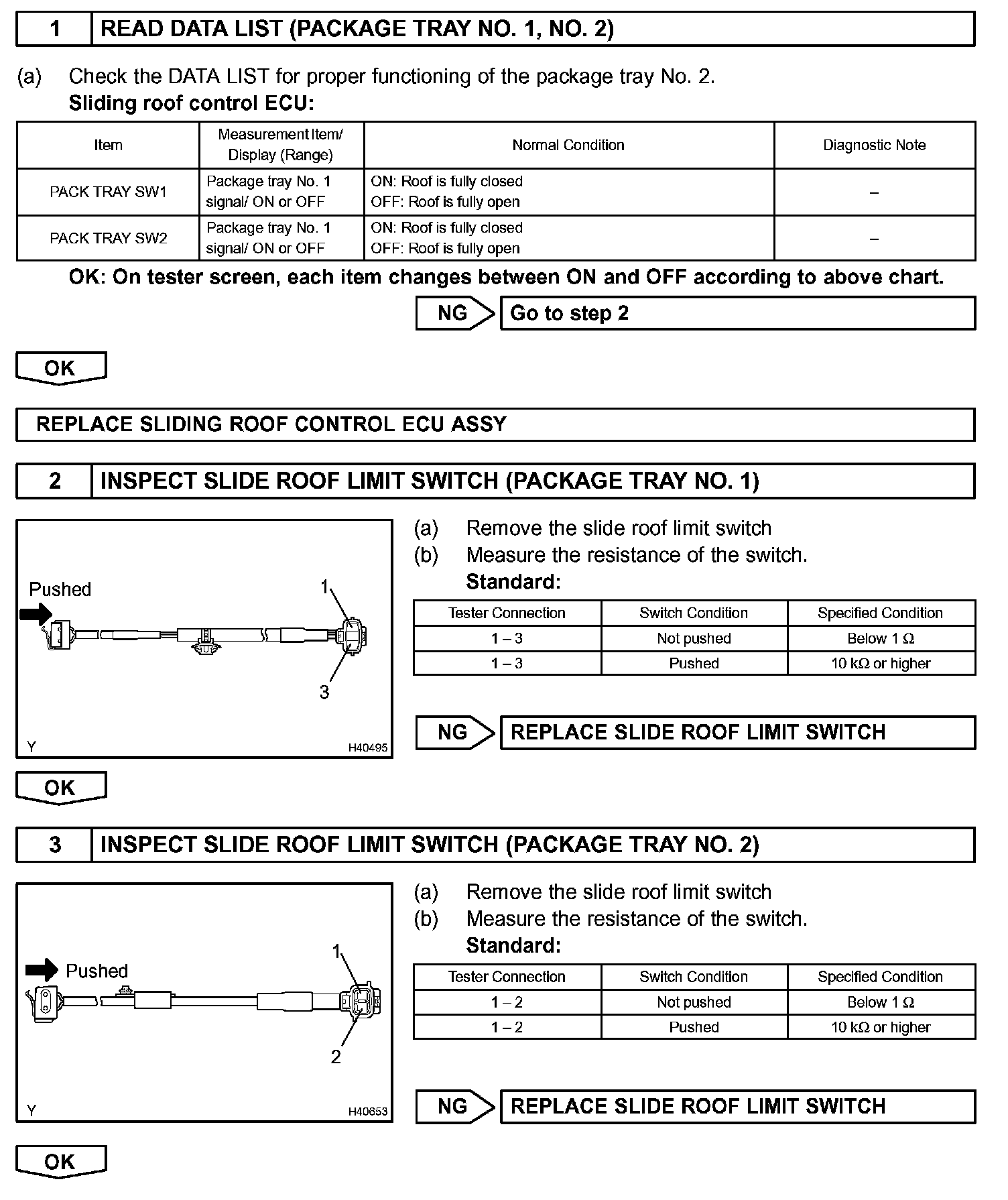

Step 1-3:

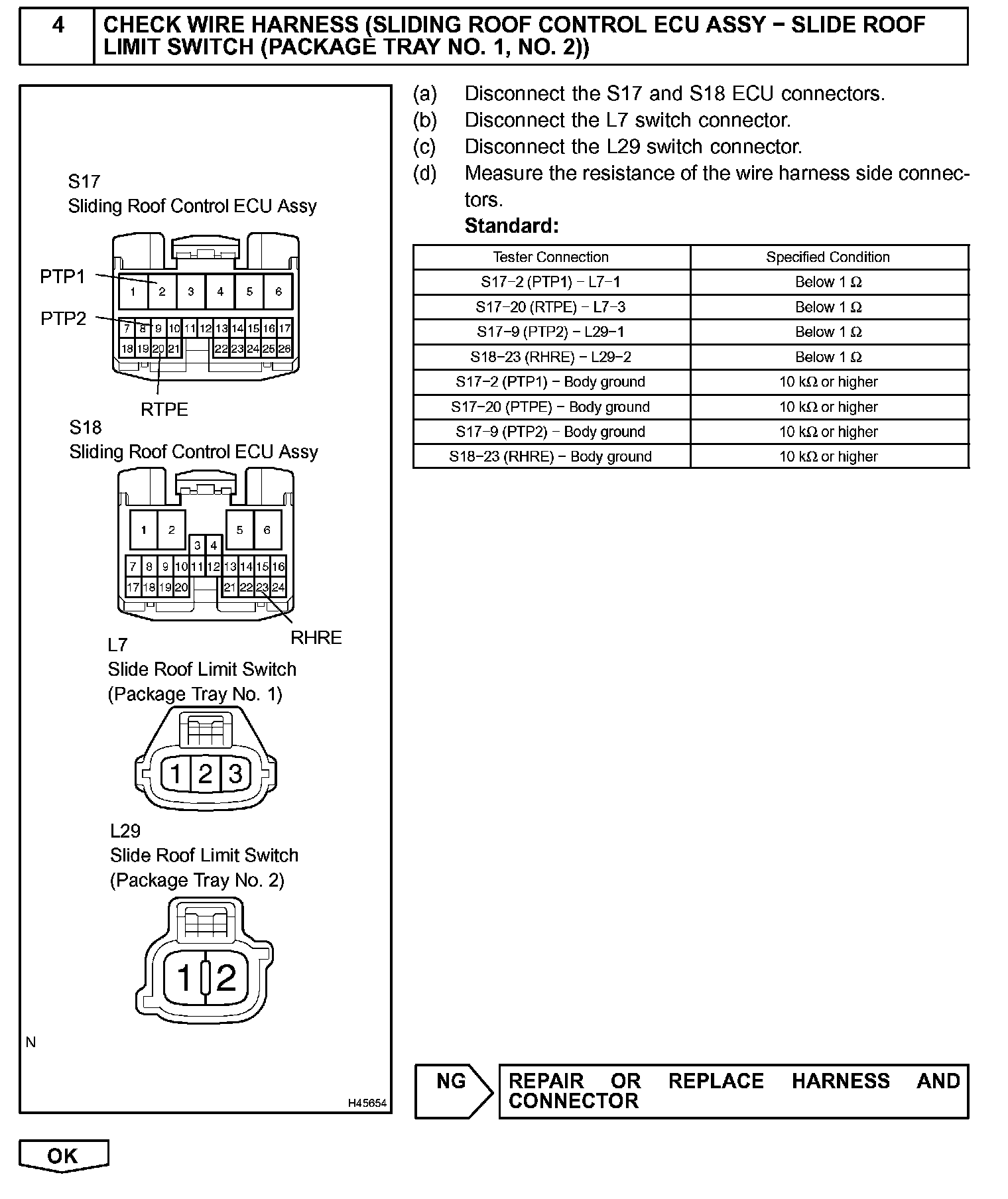

Step 4:

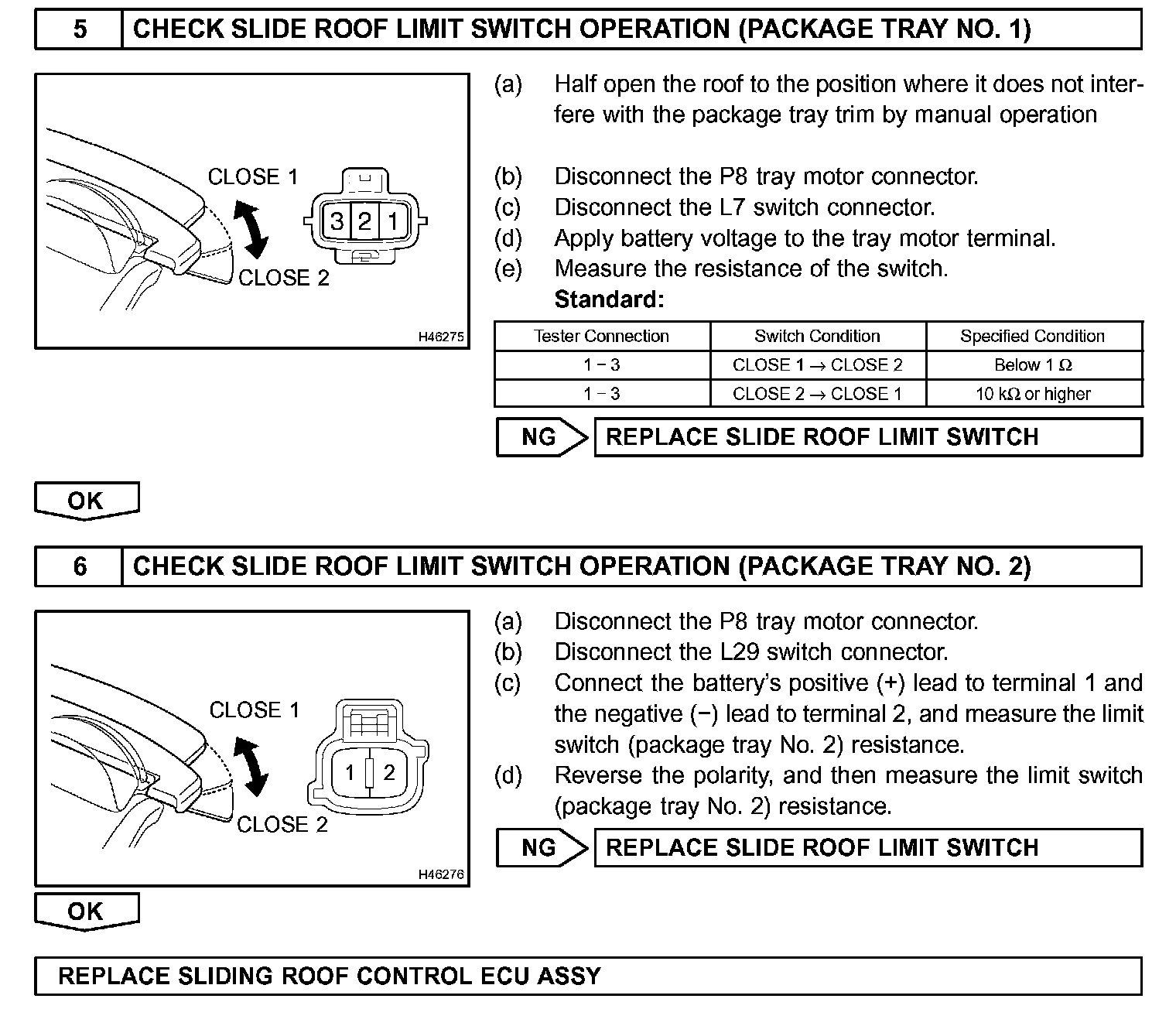

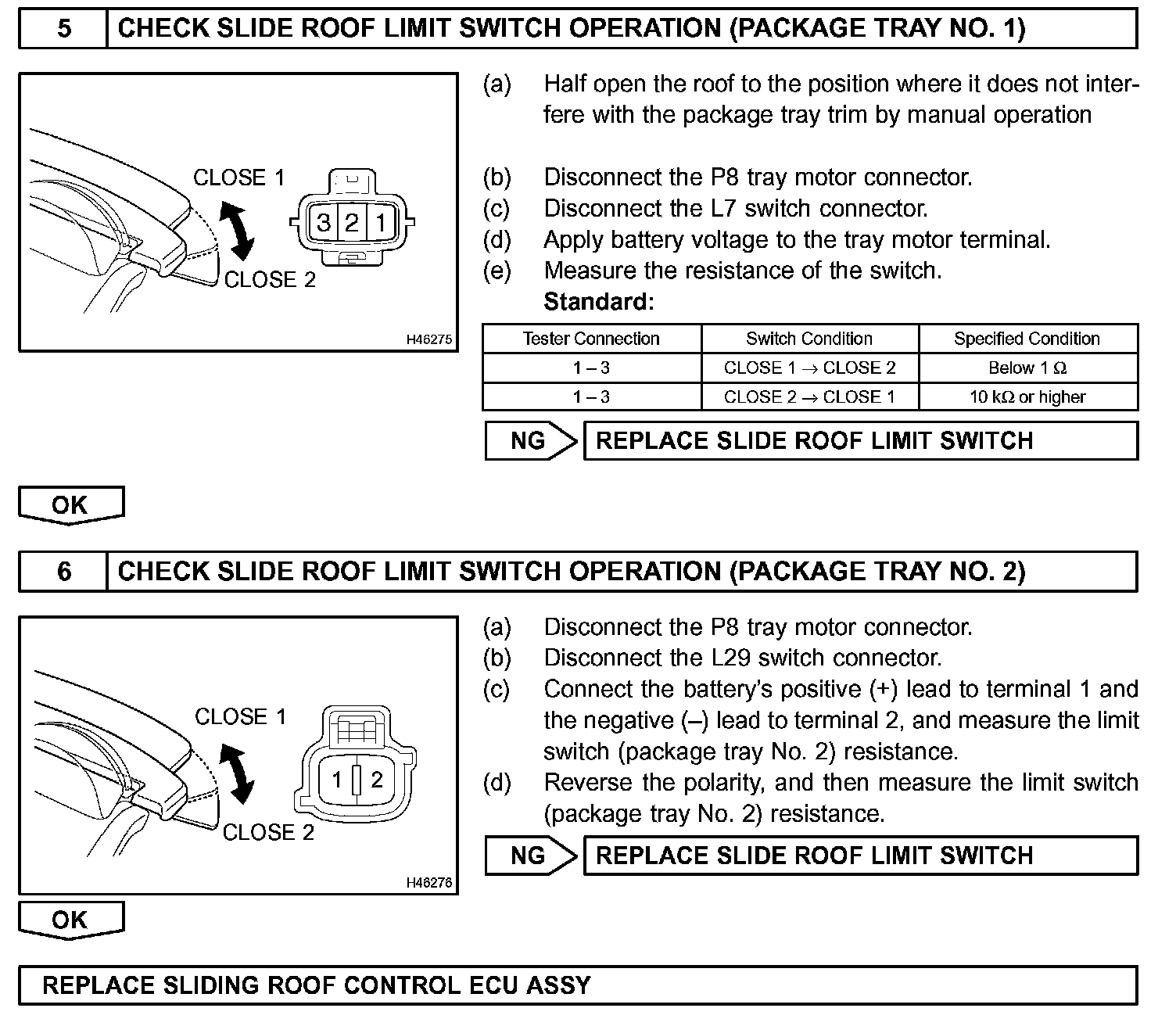

Step 5-6:

INSPECTION PROCEDURE
