DTC B2533 PACKAGE TRAY SWITCH NO. 2 MALFUNCTION

CIRCUIT DESCRIPTION

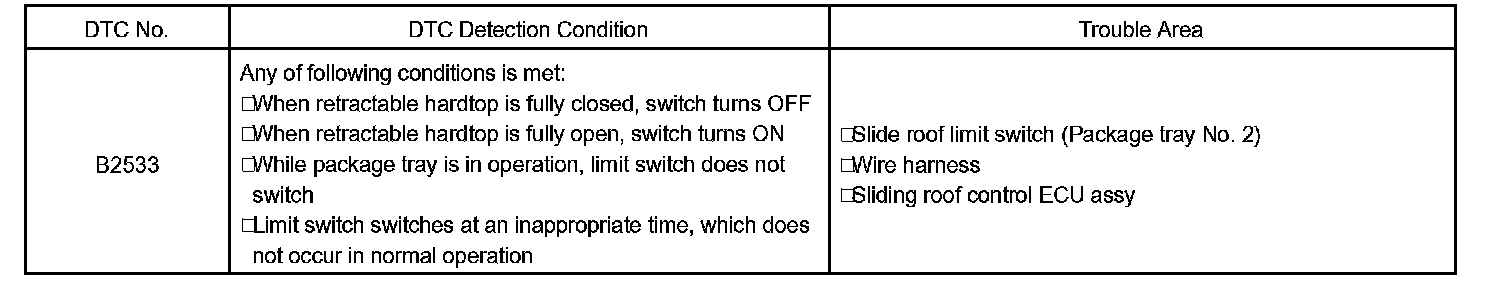

DTC Detection Condition:

The package tray switch is located at the bottom of the package tray link.
The package tray switch detects whether the package tray opening opening position (Close 1, close 2 and open position). The package tray switch is turned ON when the sliding roof is fully closed and turned OFF when it is fully open.

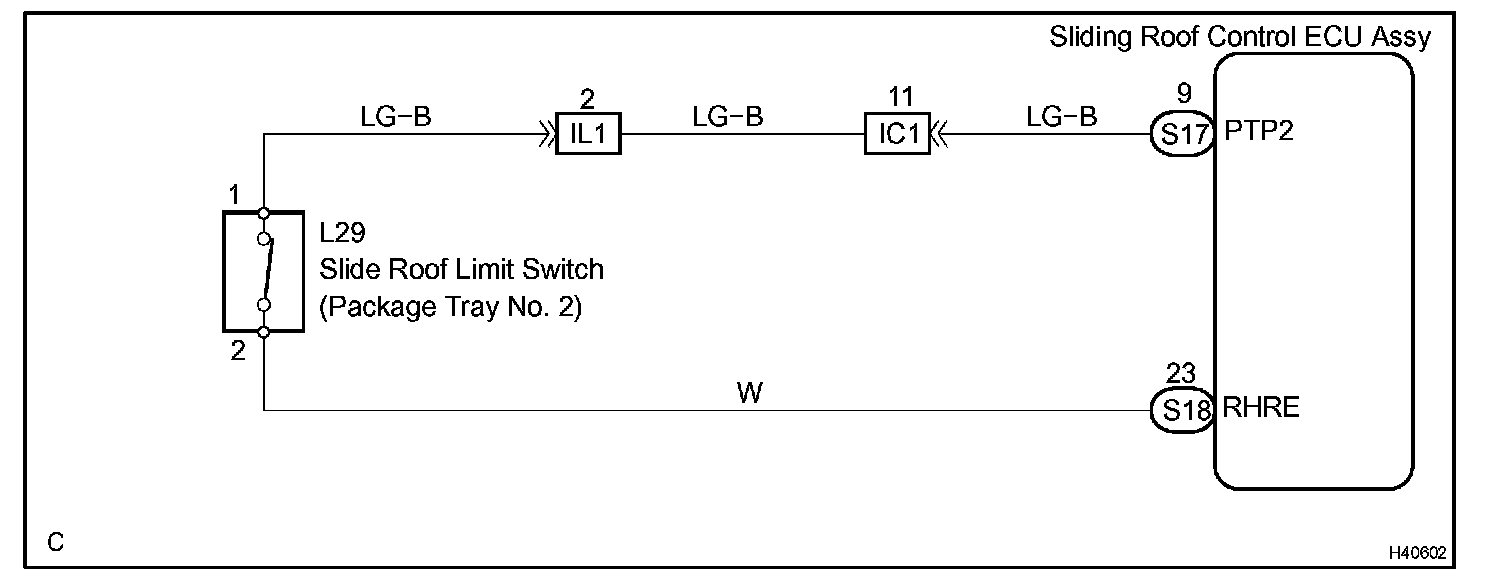

Wiring Diagram:

Step 1:

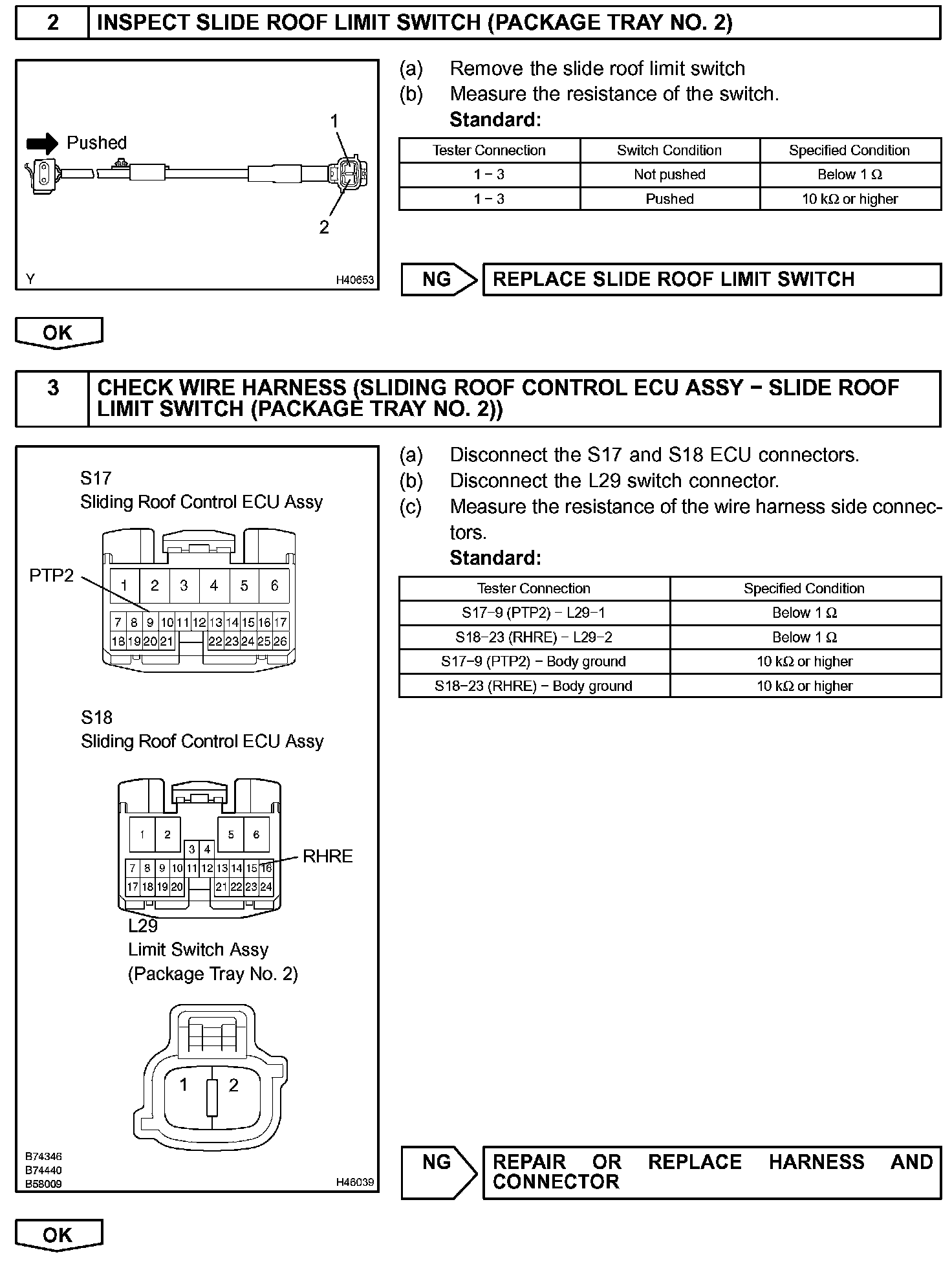

Step 2-3:

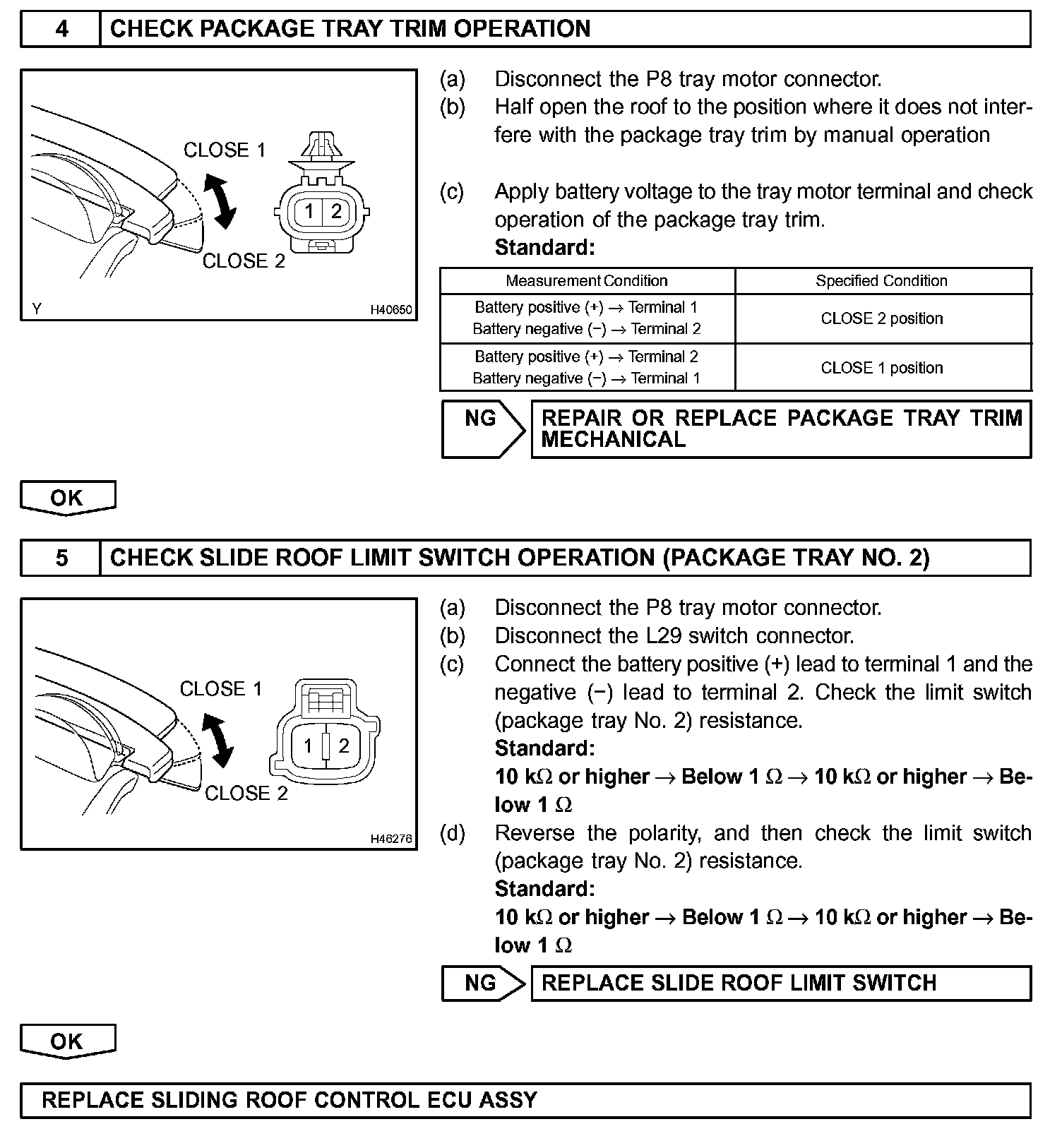

Step 4-5:

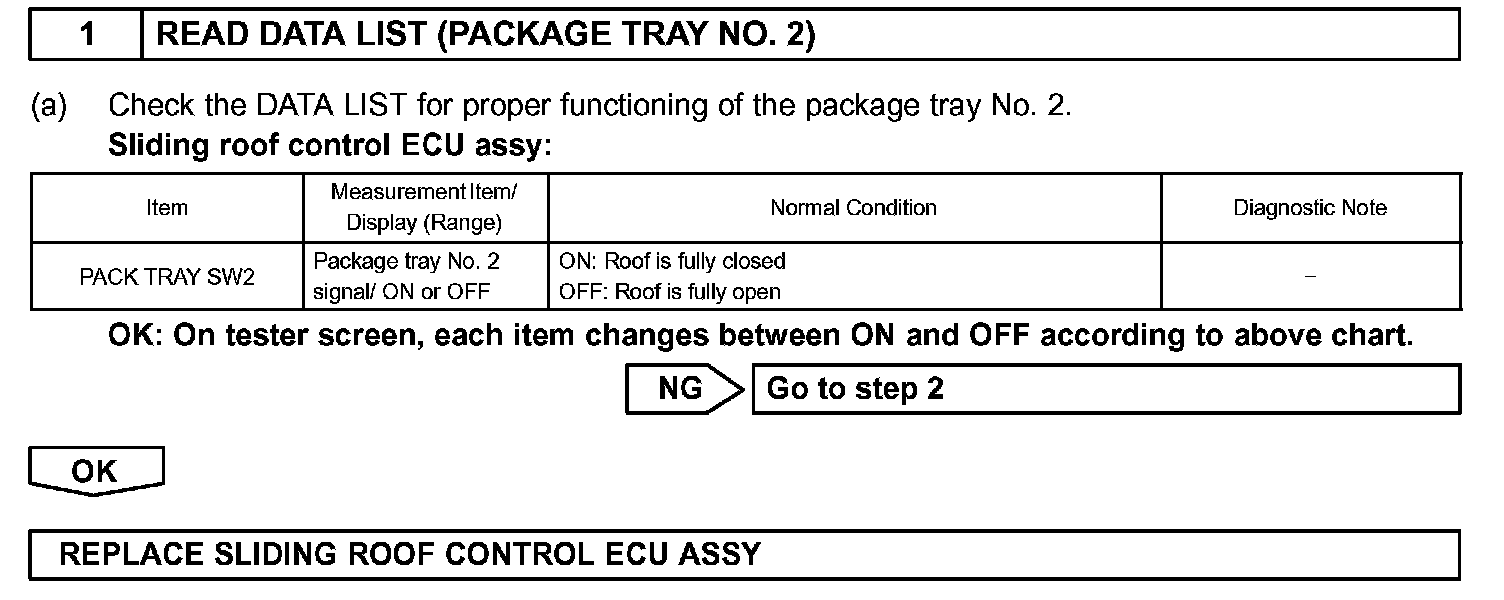

INSPECTION PROCEDURE
