B2532

DTC B2532 PACKAGE TRAY SWITCH NO. 1 MALFUNCTION

CIRCUIT DESCRIPTION

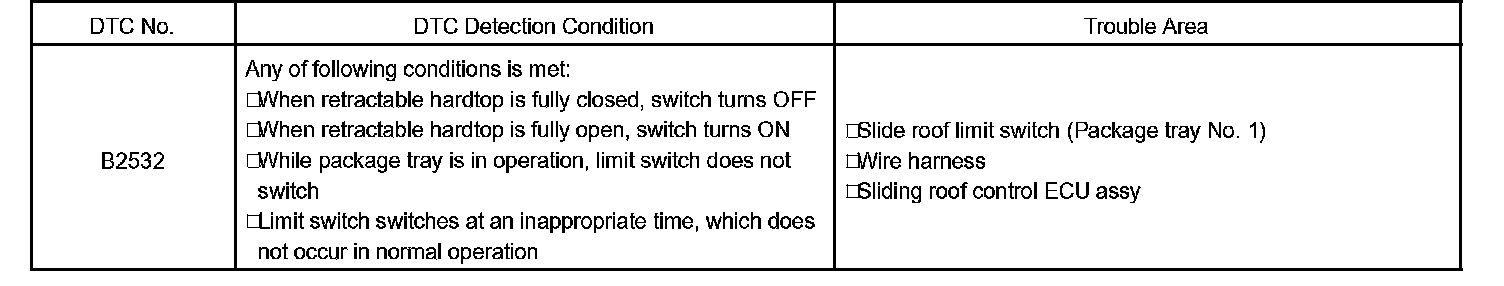

DTC Detection Condition:

The package tray switch is located at the bottom of the package tray link.
The package tray switch detects whether the package tray opening opening position (raised position). The package tray switch is turned ON when the sliding roof is fully closed (Package tray close 1) and turned OFF when it is fully open (Package tray close 2).

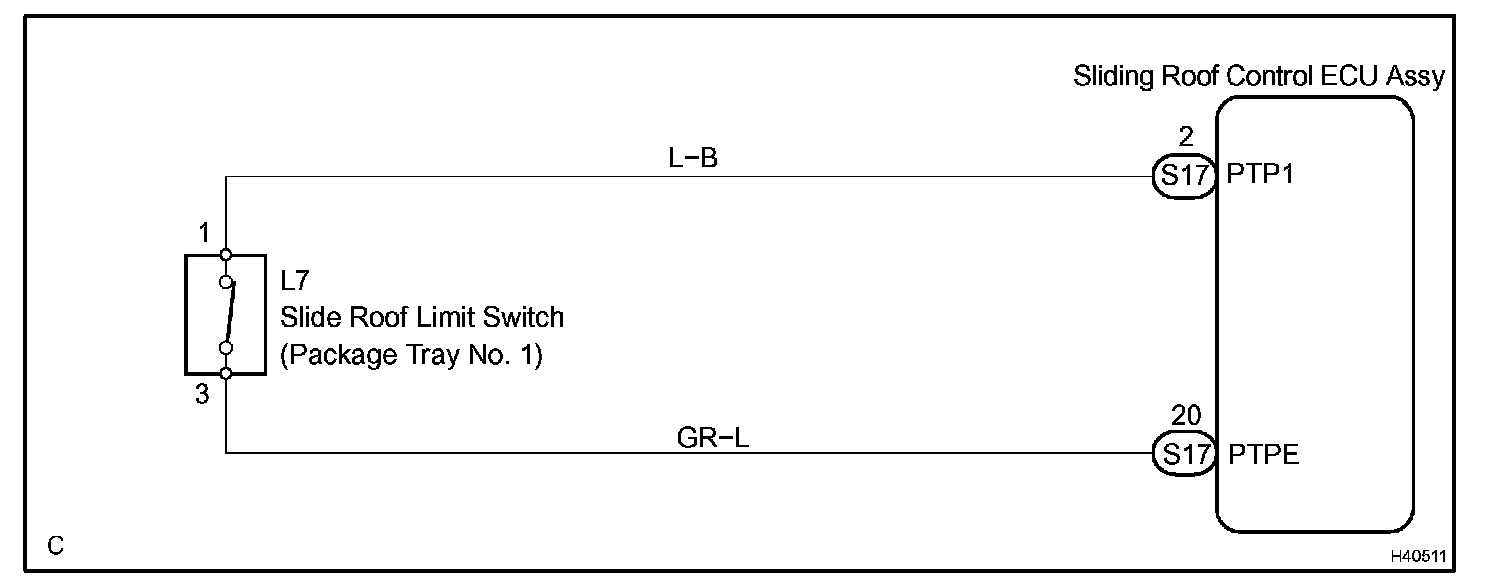

Wiring Diagram:

Step 1:

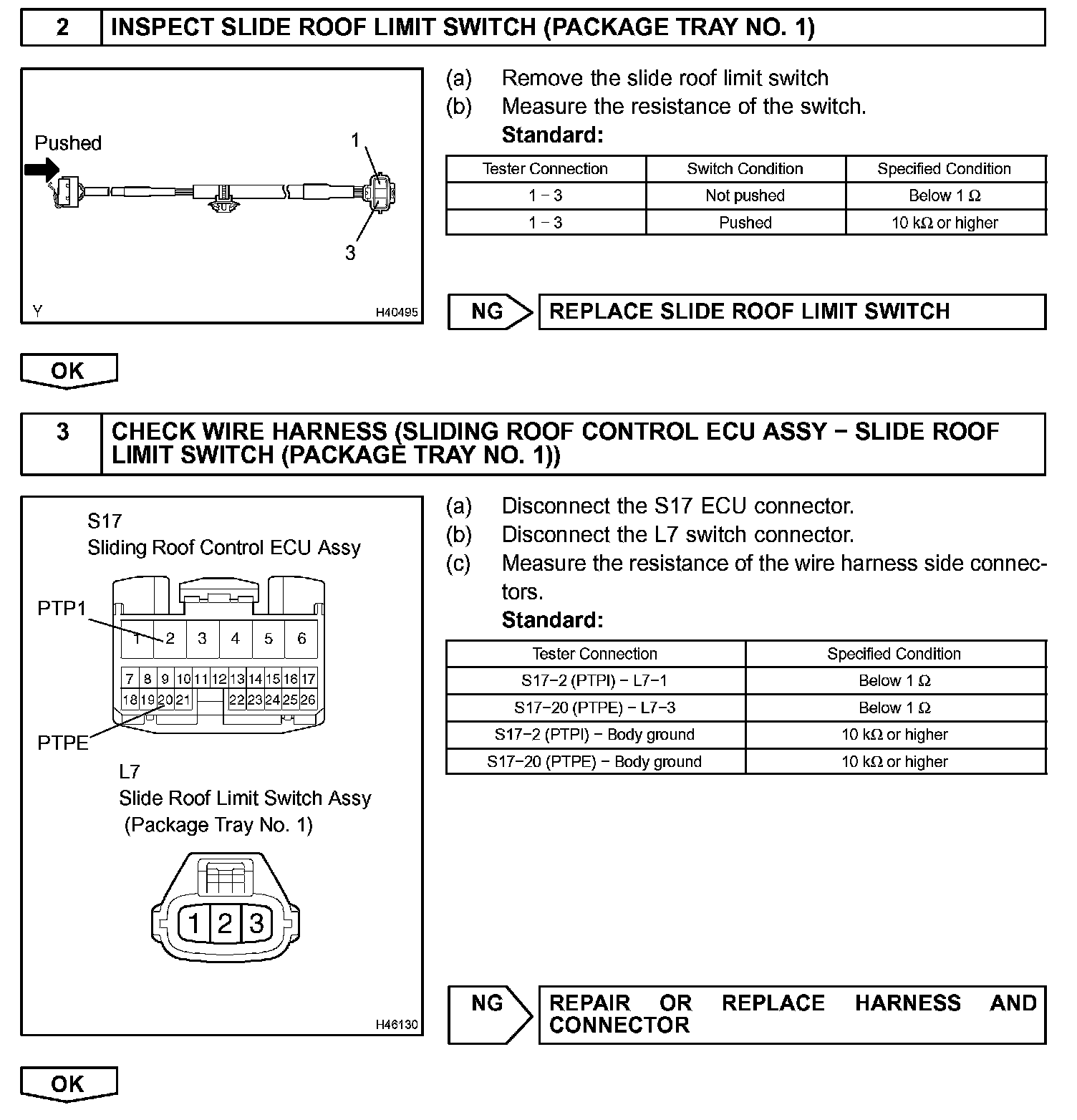

Step 2-3:

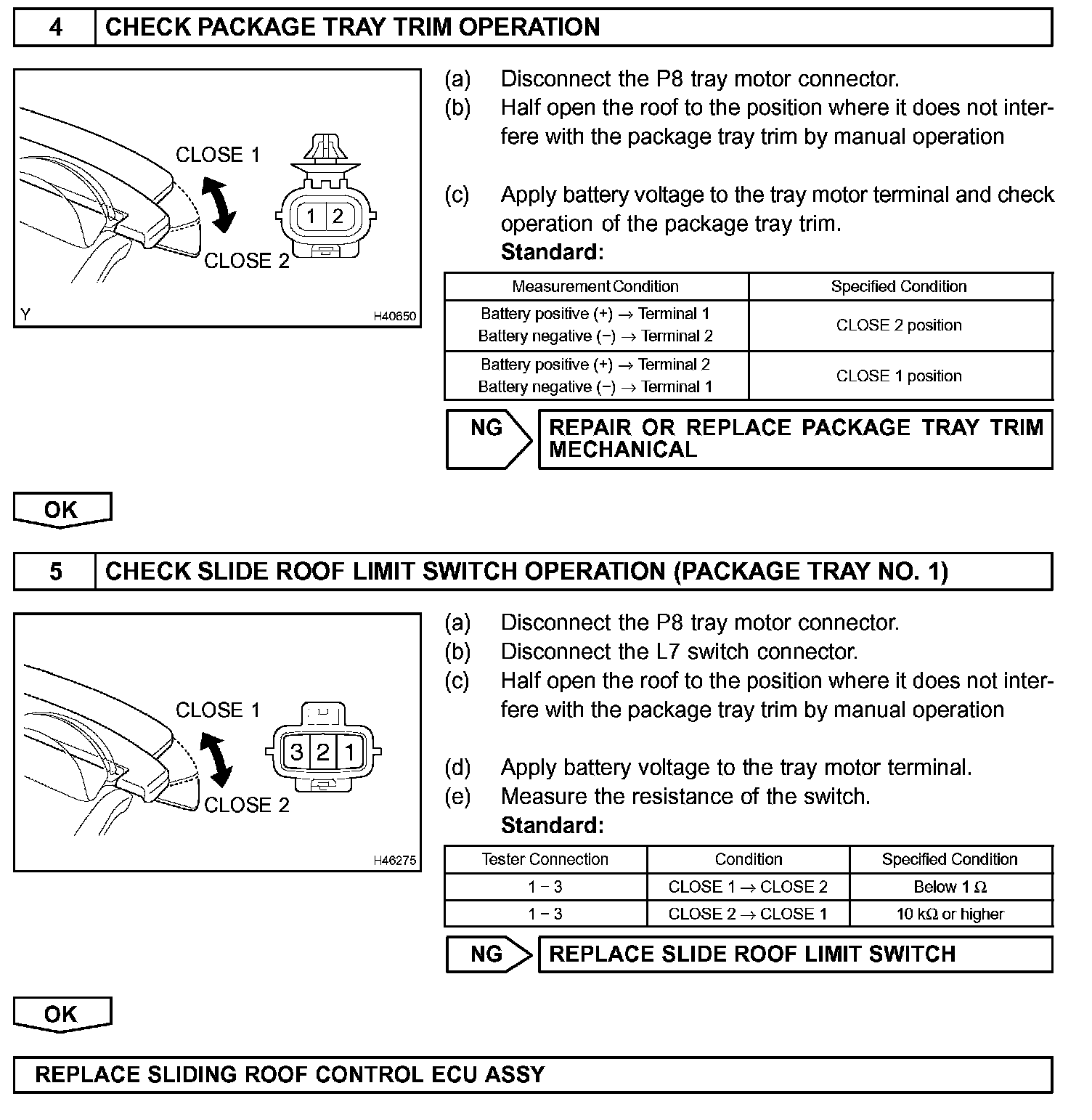

Step 4-5:

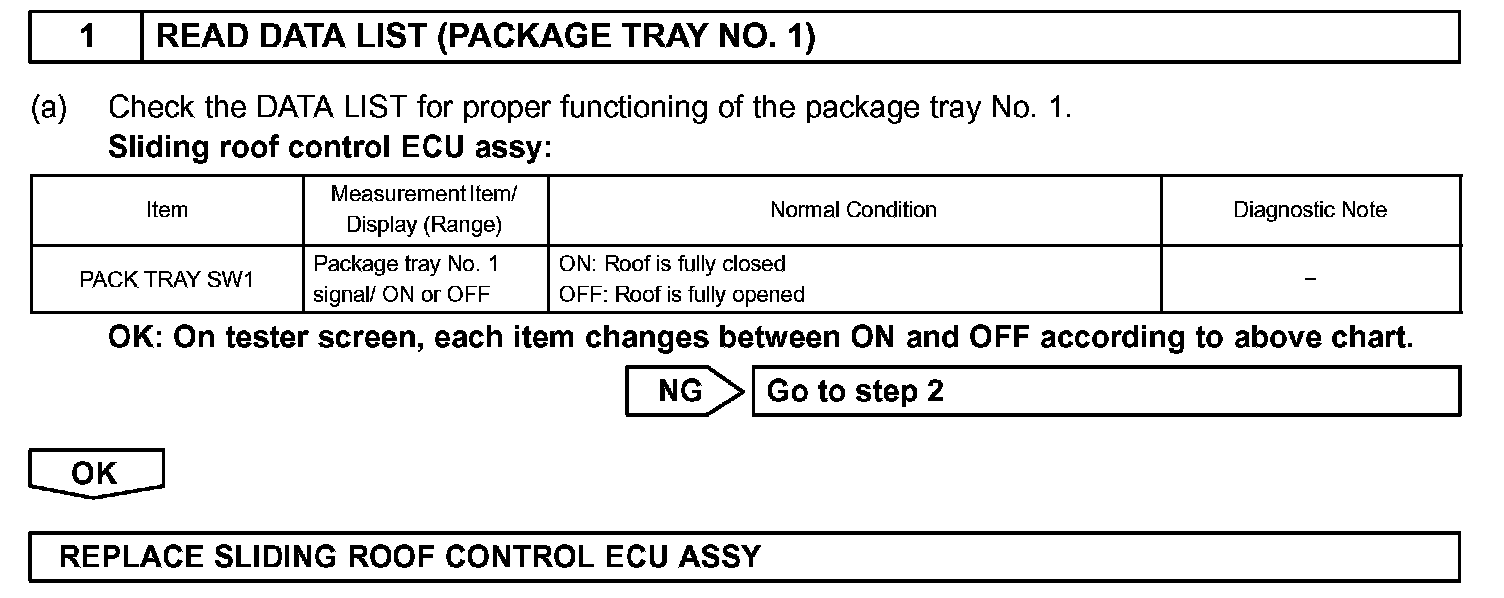

INSPECTION PROCEDURE
