B2528

DTC B2528 LUGGAGE DOOR CLOSE SWITCH MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detection Condition:

The luggage door closer switch is located at the bottom of the luggage link.
The luggage door closer switch detects if the luggage door is in the proximity to the fully close position. The luggage door closer switch is turned ON when the luggage door is fully closed and turned OFF when it is fully open.

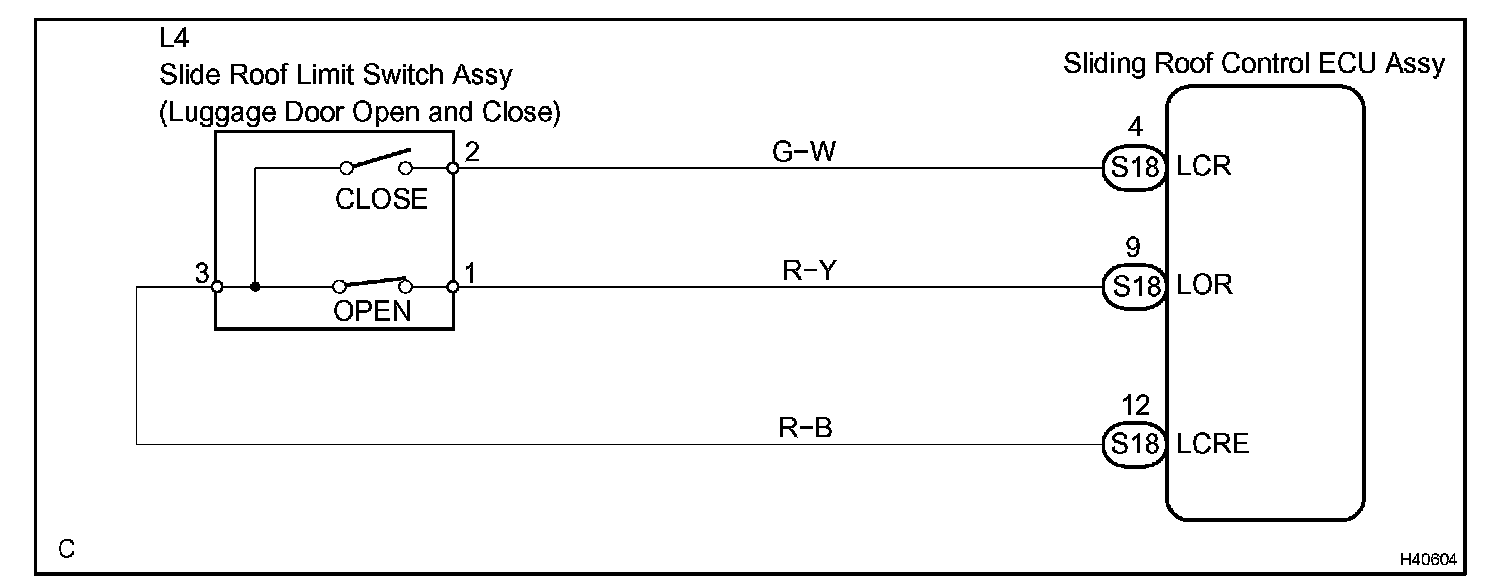

Wiring Diagram:

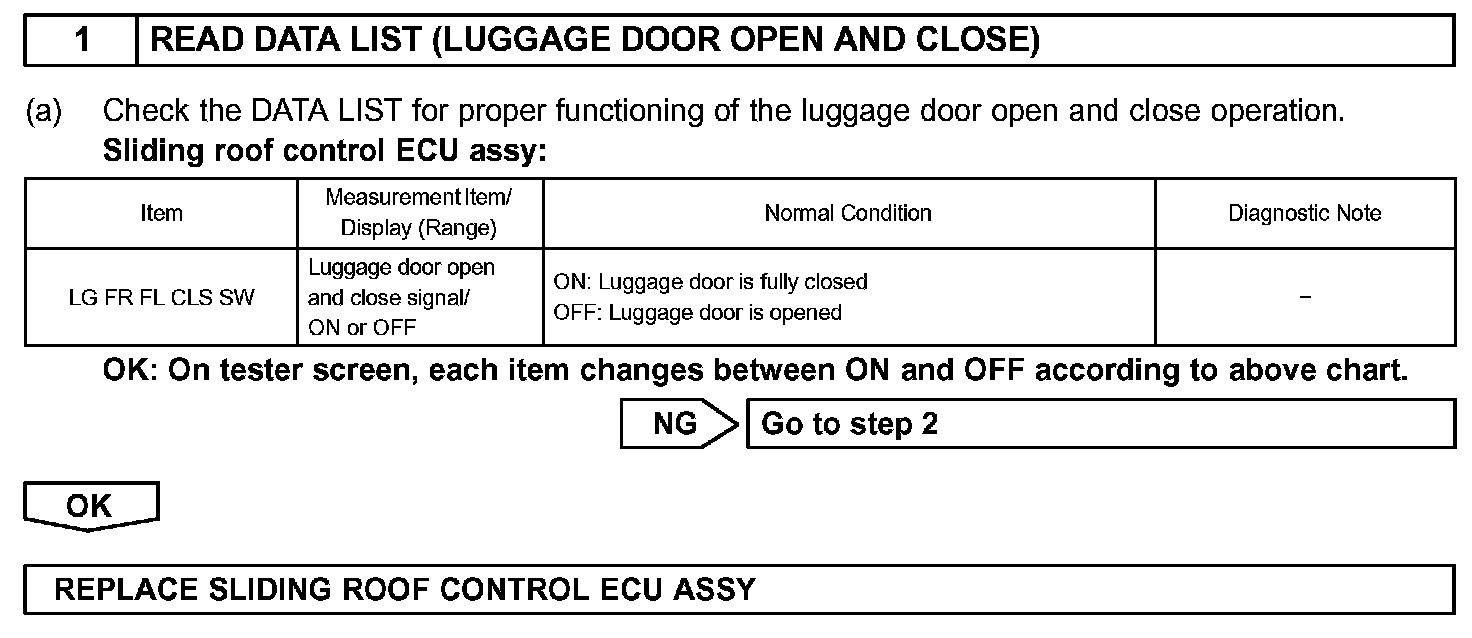

Step 1:

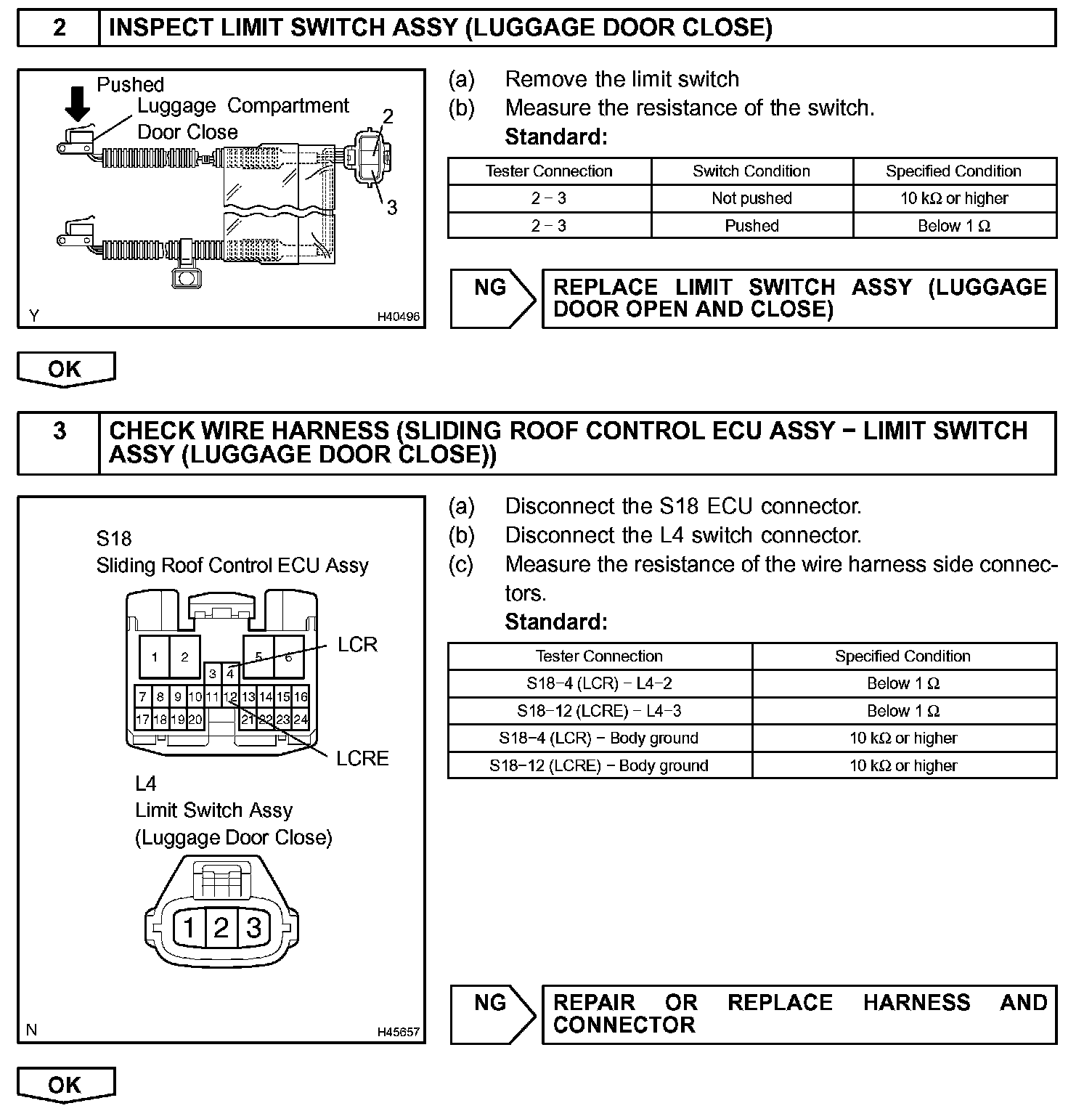

Step 2-3:

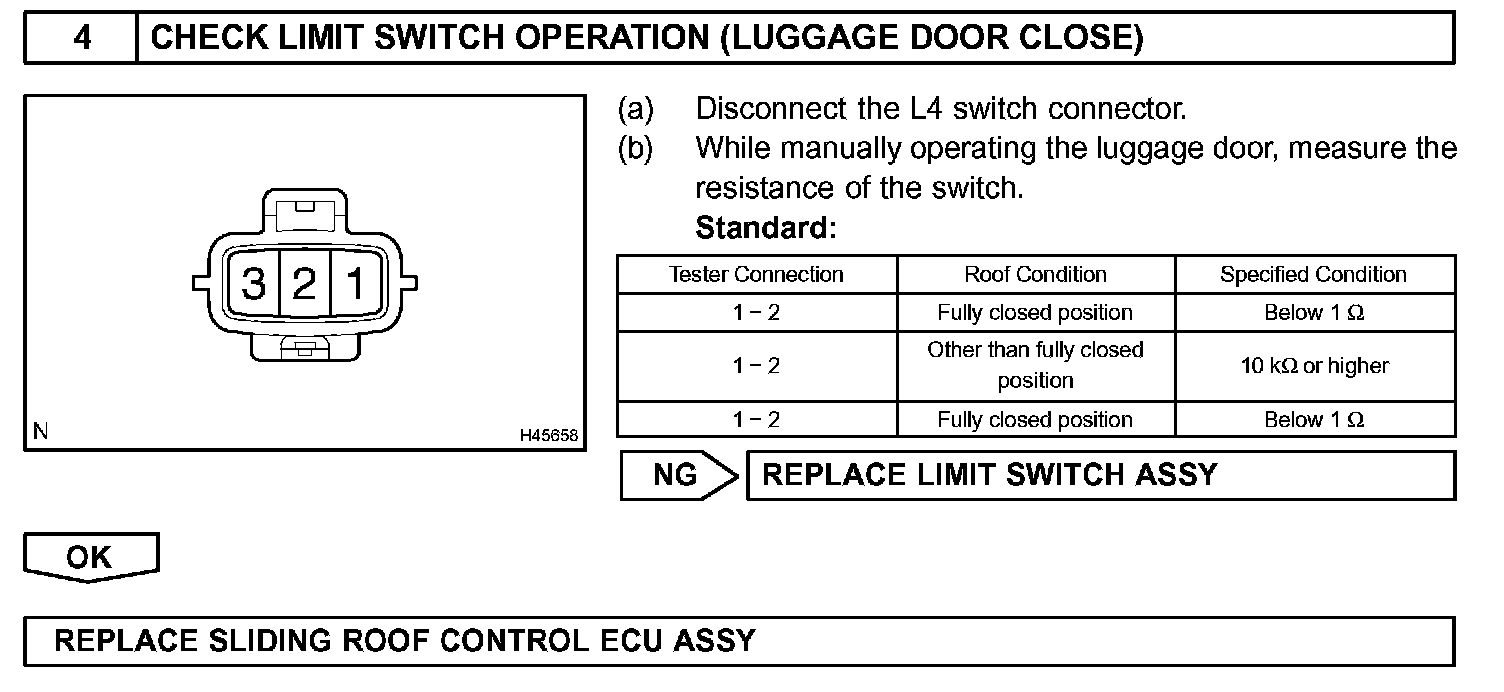

Step 4:

INSPECTION PROCEDURE
