B2523

DTC B2523 ROOF POSITION SWITCH NO. 1 MALFUNCTION

CIRCUIT DESCRIPTION

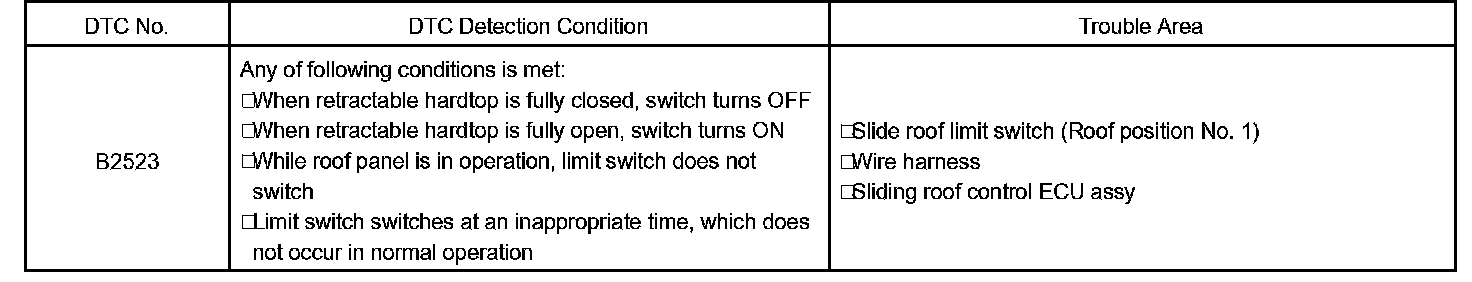

DTC Detection Condition:

The roof position switch is located at the bottom of the roof link. The roof position switch detects if the roof panel position (Position 1).
The roof position switch is turned ON when the roof is fully closed and turned OFF when it is fully open.

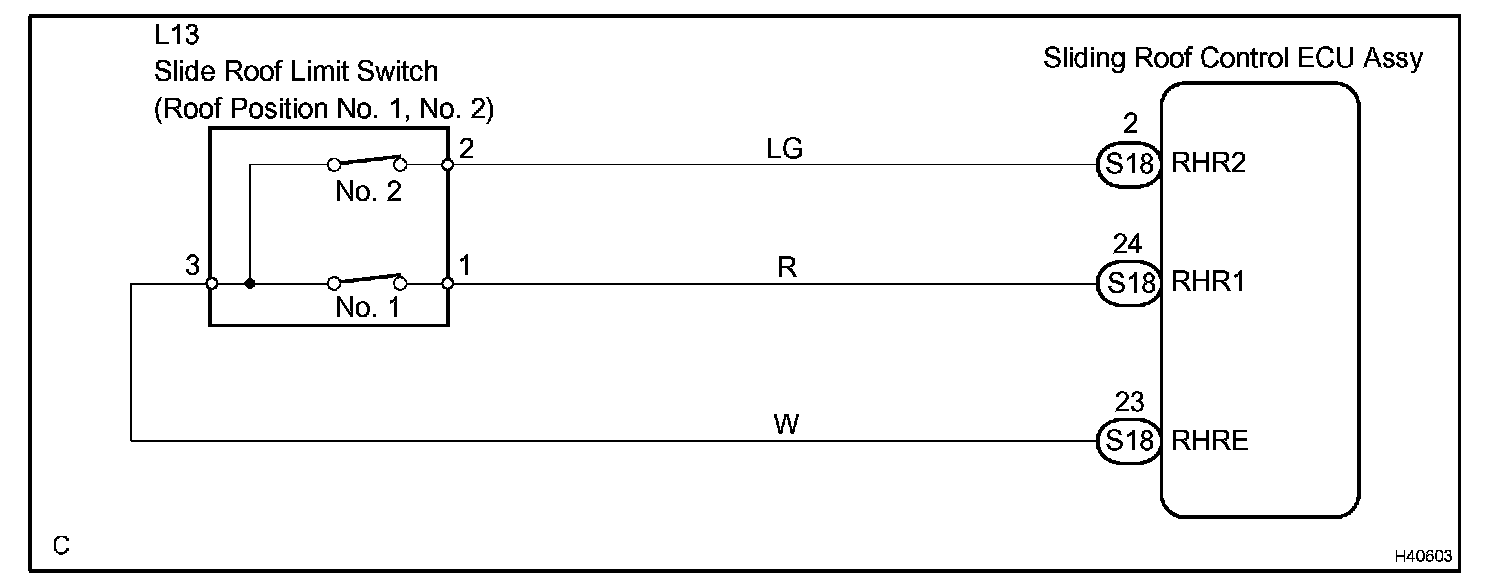

Wiring Diagram:

Step 1:

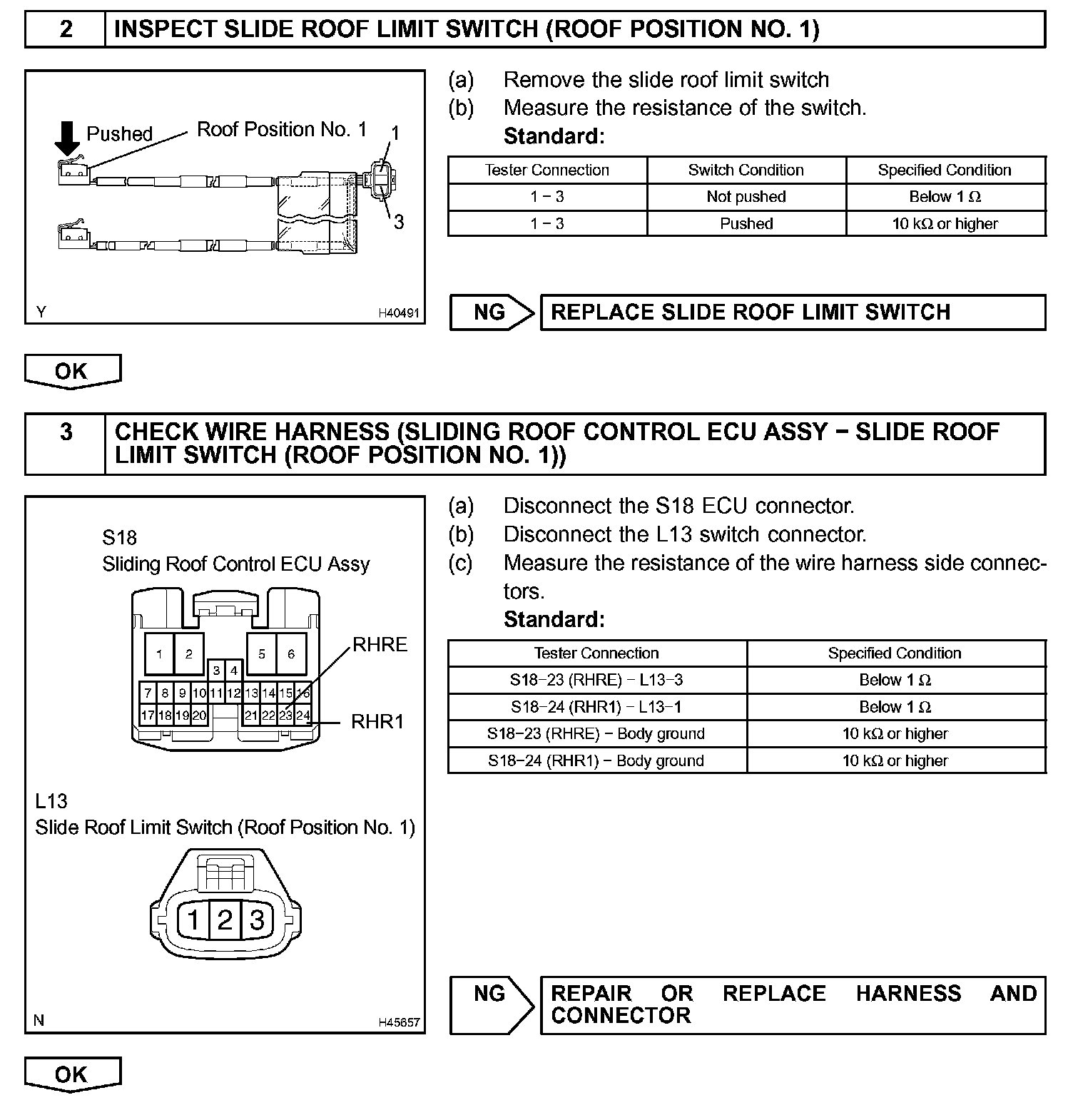

Step 2-3:

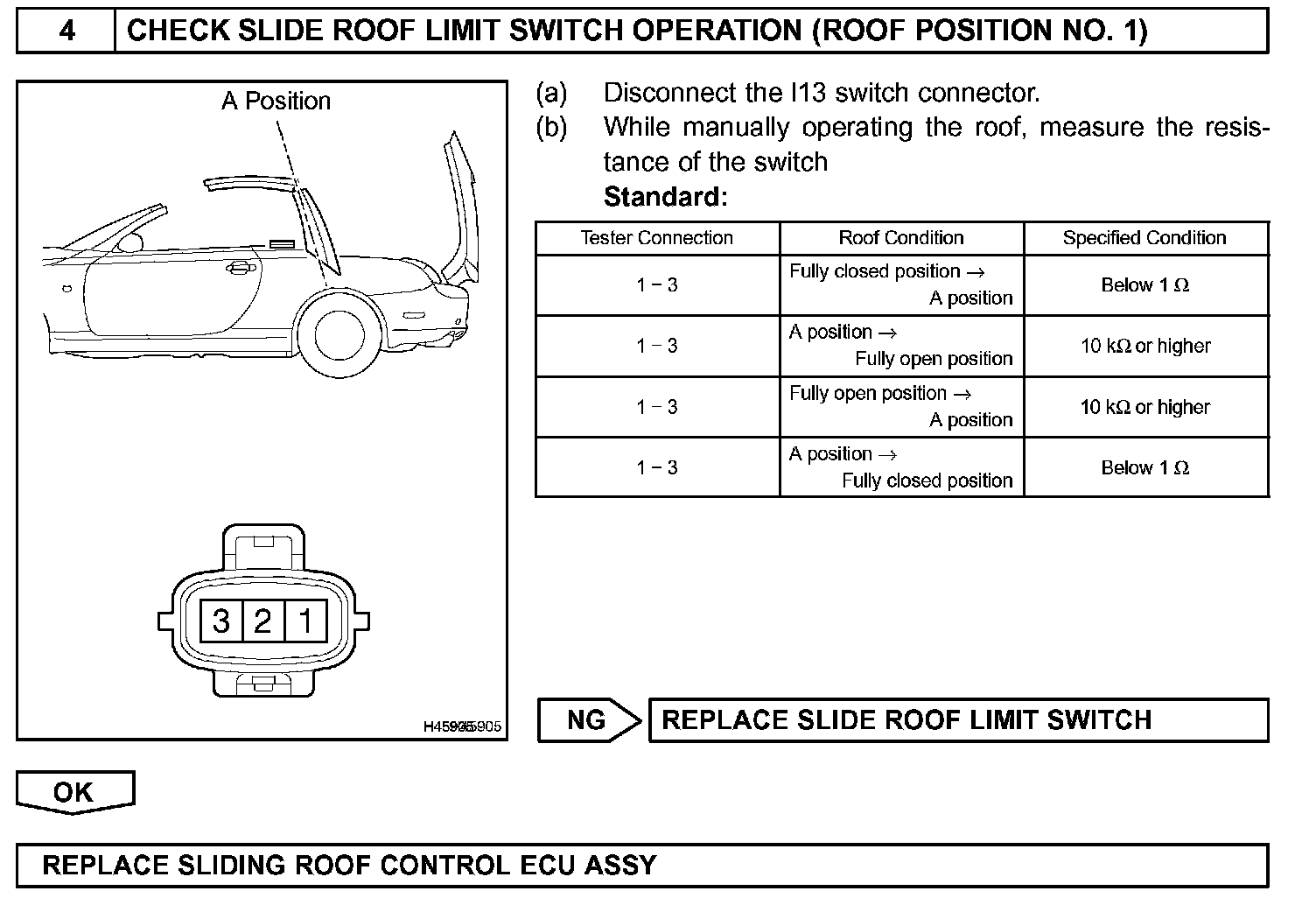

Step 4:

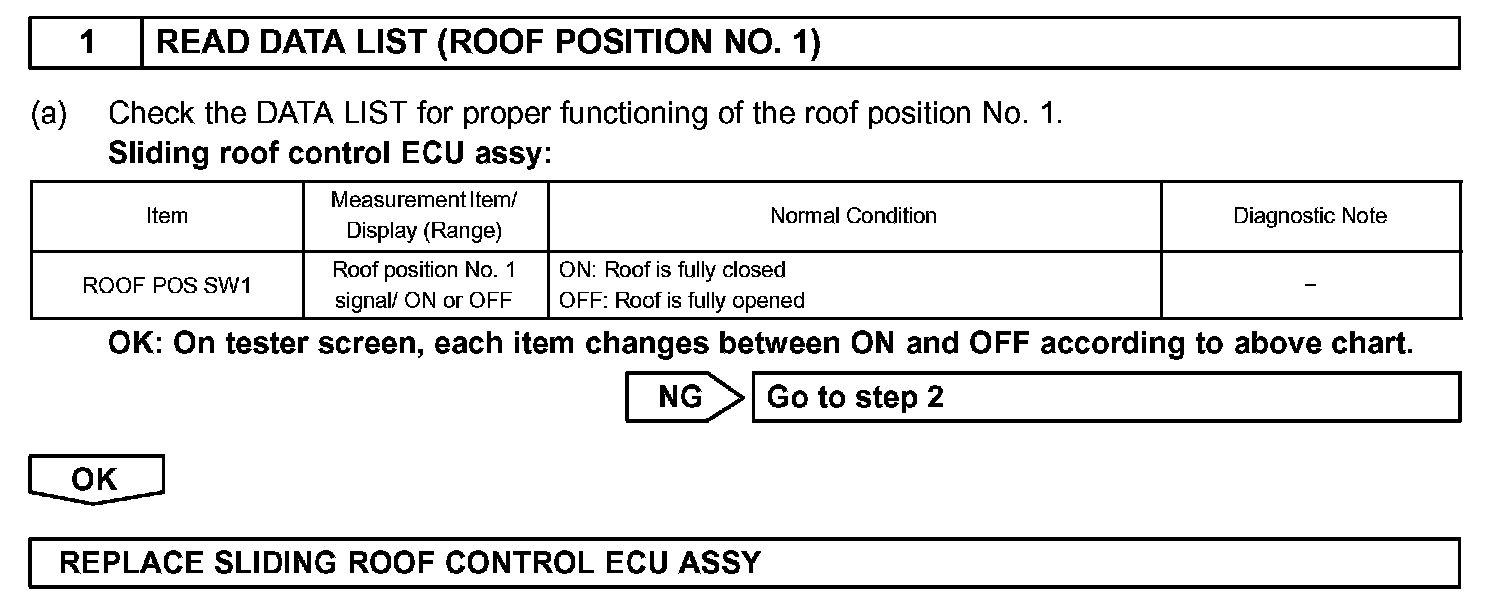

INSPECTION PROCEDURE
