B2513

DTC B2513 OPEN IN LUGGAGE CLOSER MOTOR RH CIRCUIT

CIRCUIT DESCRIPTION

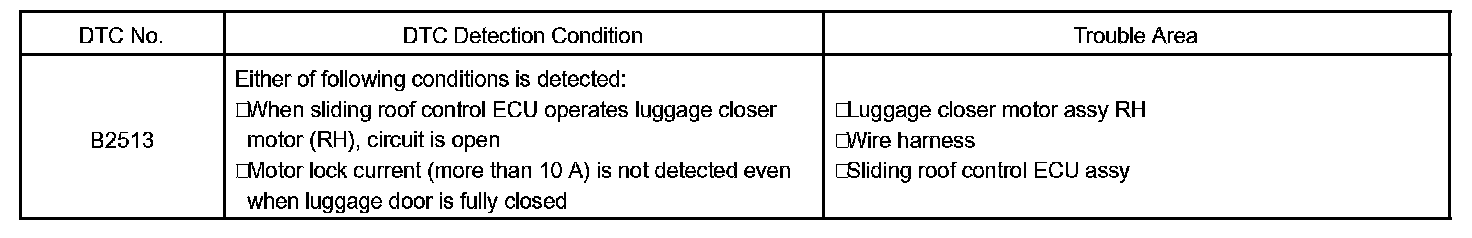

DTC Detection Condition:

By operating the luggage closer motor, the luggage lock function can be unlocked, and also the preparatory operation (neutral operation) is performed for locking the luggage door.

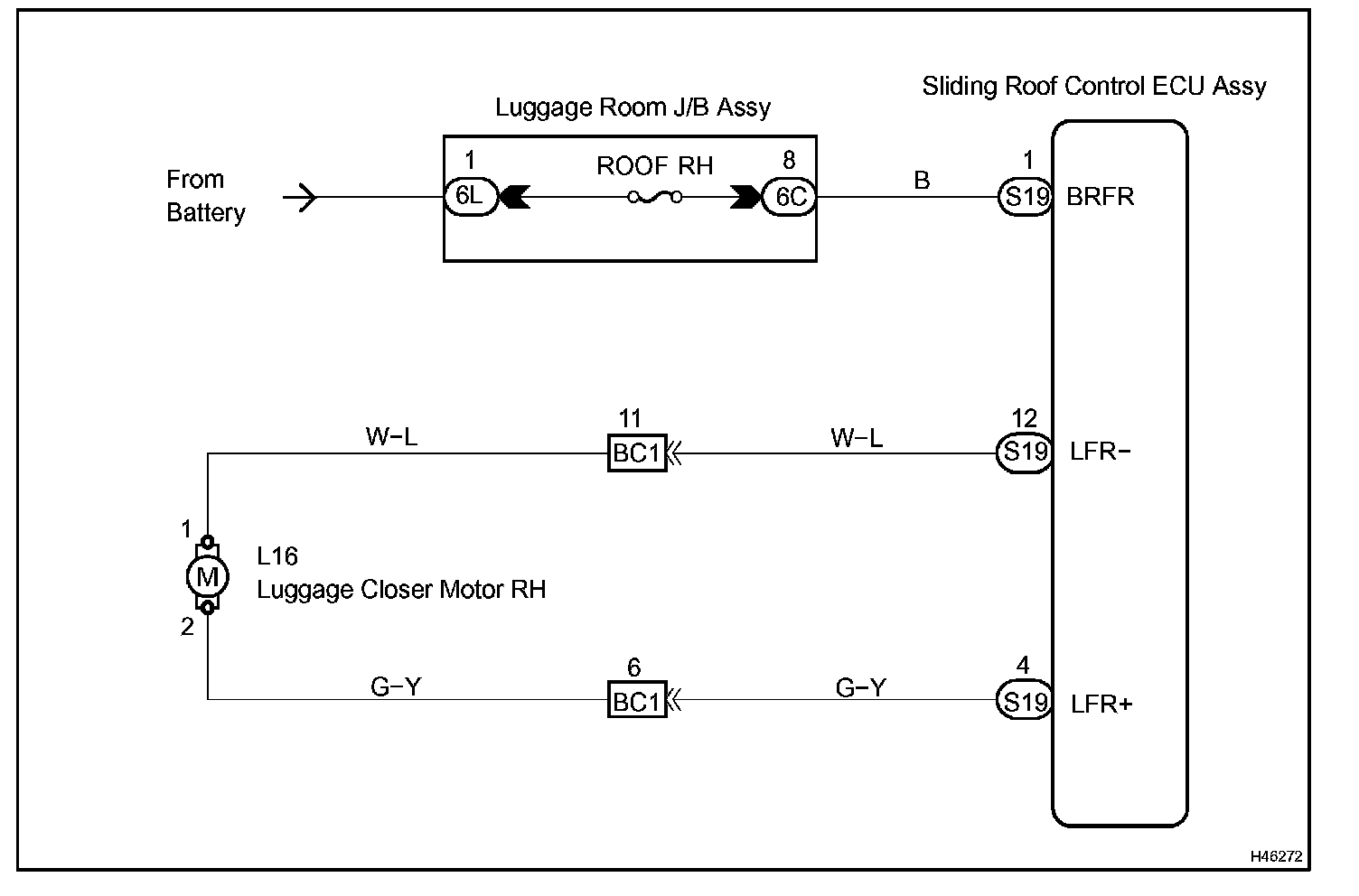

Wiring Diagram:

Step 1-2:

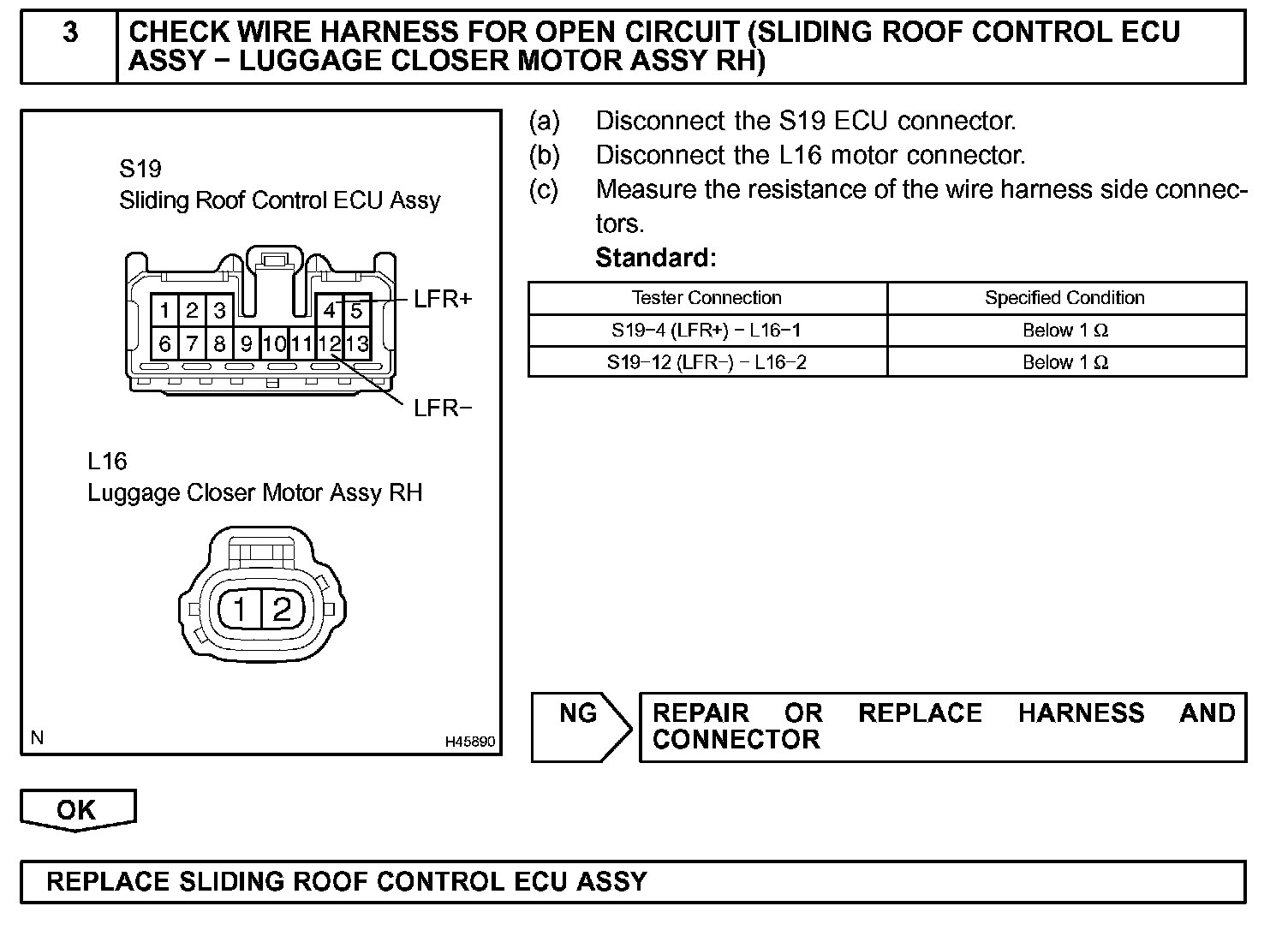

Step 3:

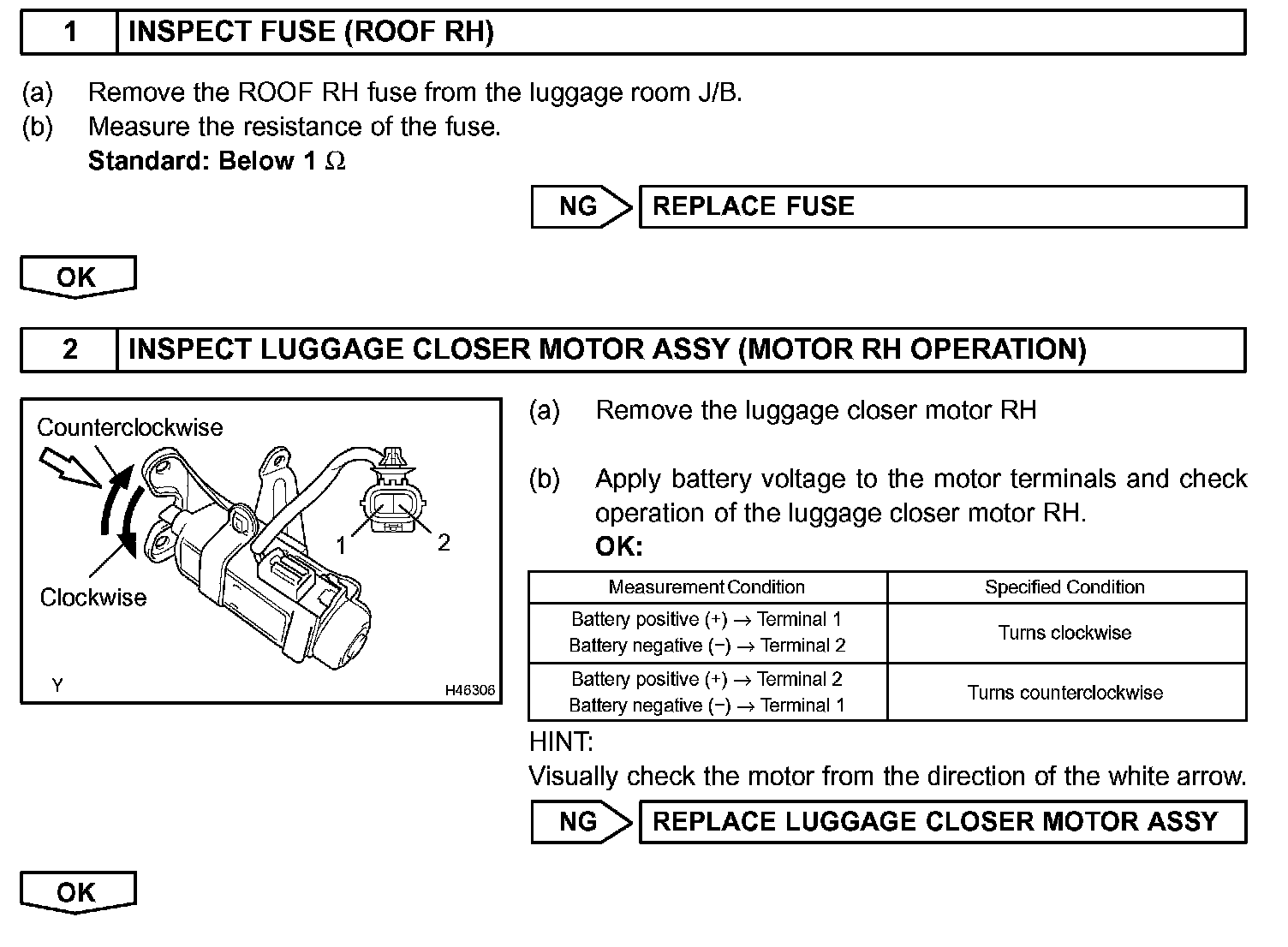

INSPECTION PROCEDURE

HINT: Continuously repeating the roof open/close operation may stop the motor operation due to a function of the positive temperature coefficient thermistor. However, this is not a malfunction.
