B2510

DTC B2510 SHORT IN PULSE WIDTH MODULATION MOTOR LH CIRCUIT

CIRCUIT DESCRIPTION

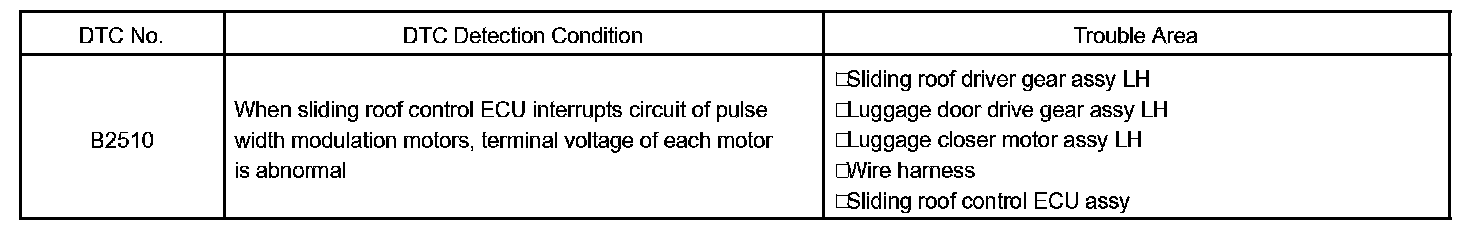

DTC Detection Condition:

The pulse width modulation motor circuit includes the roof drive motor, luggage door drive motor and luggage closer motor.
The sliding roof control ECU drives these motors using this same circuit.

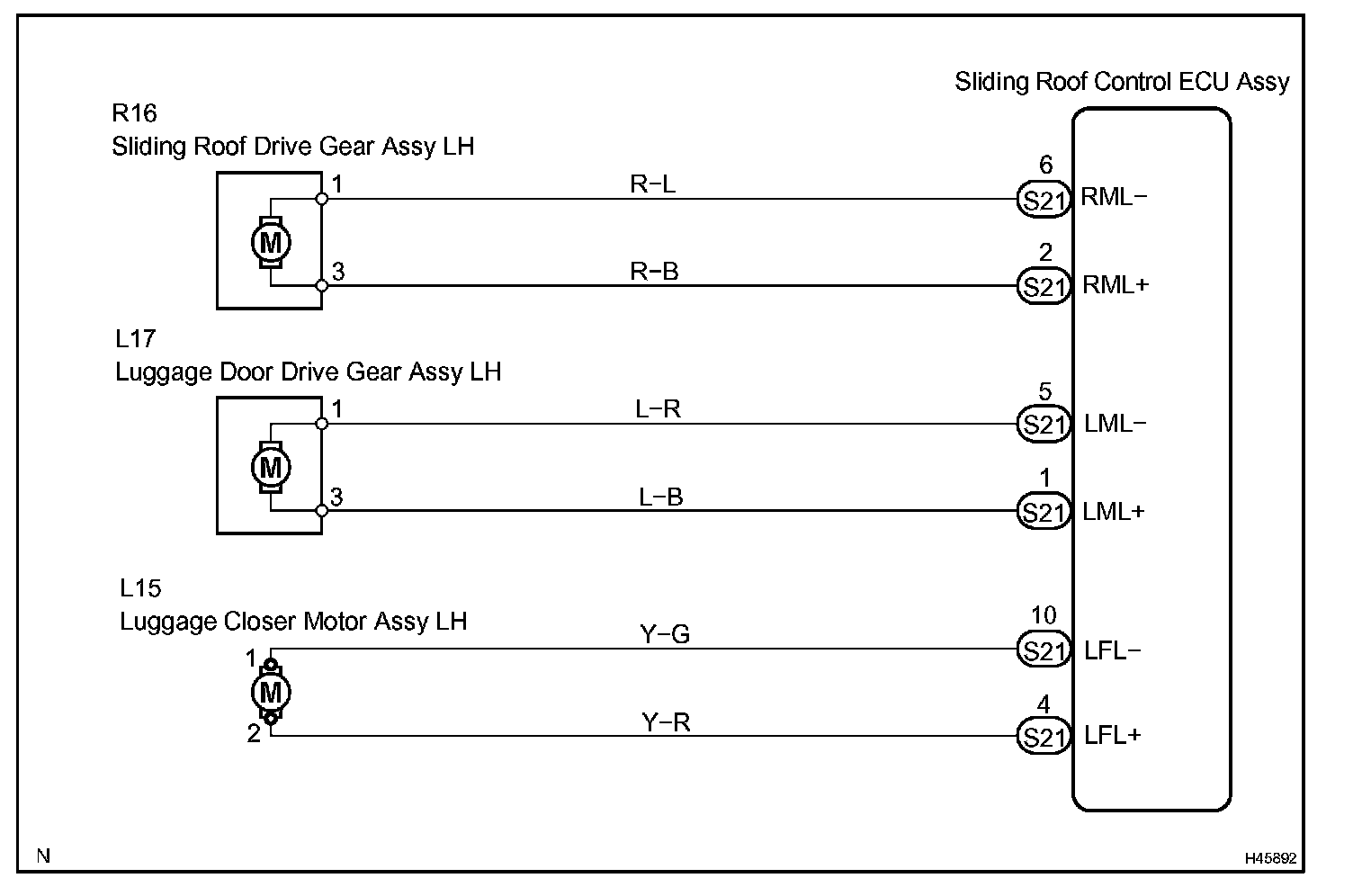

Wiring Diagram:

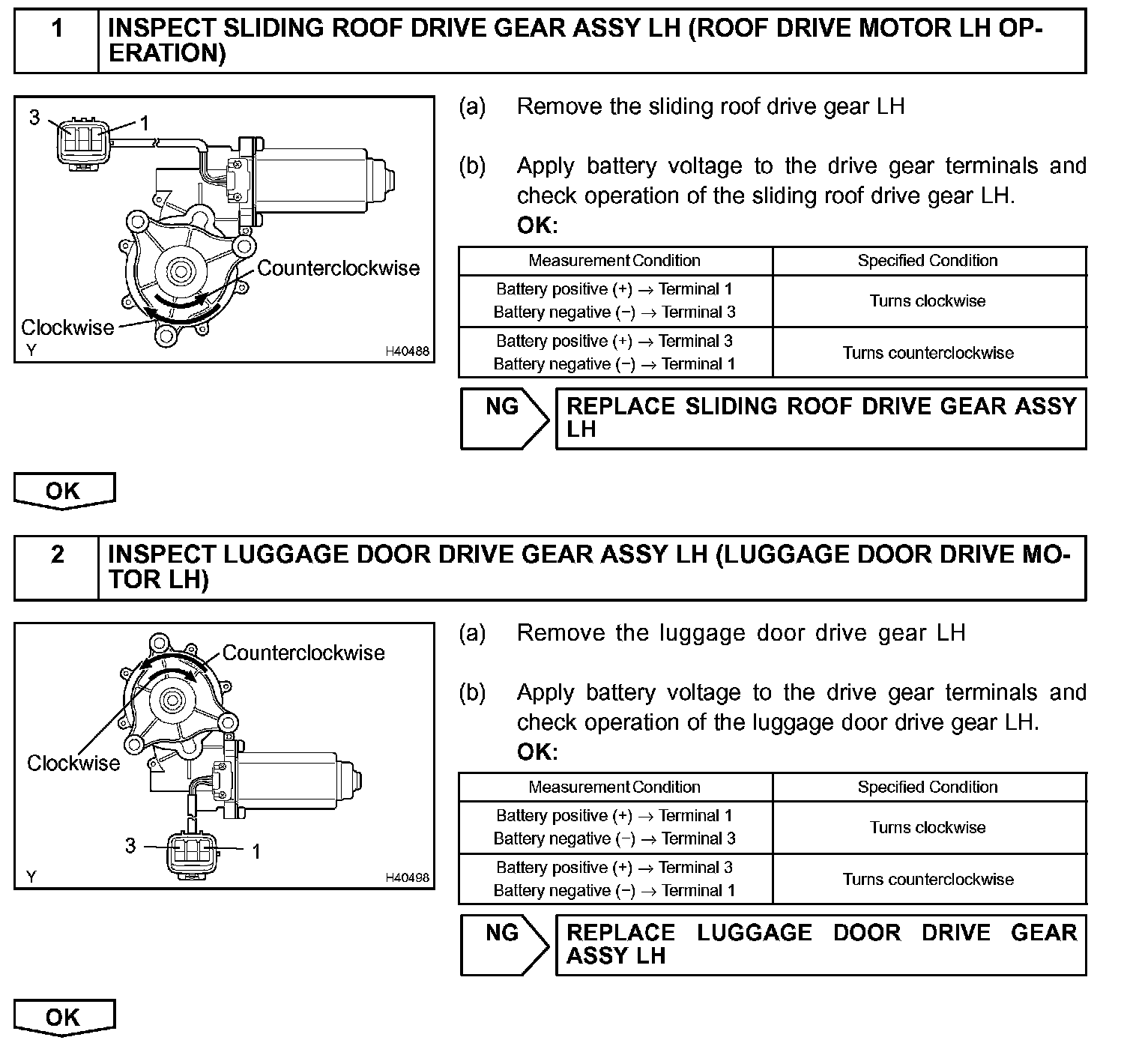

Step 1-2:

Step 3-4:

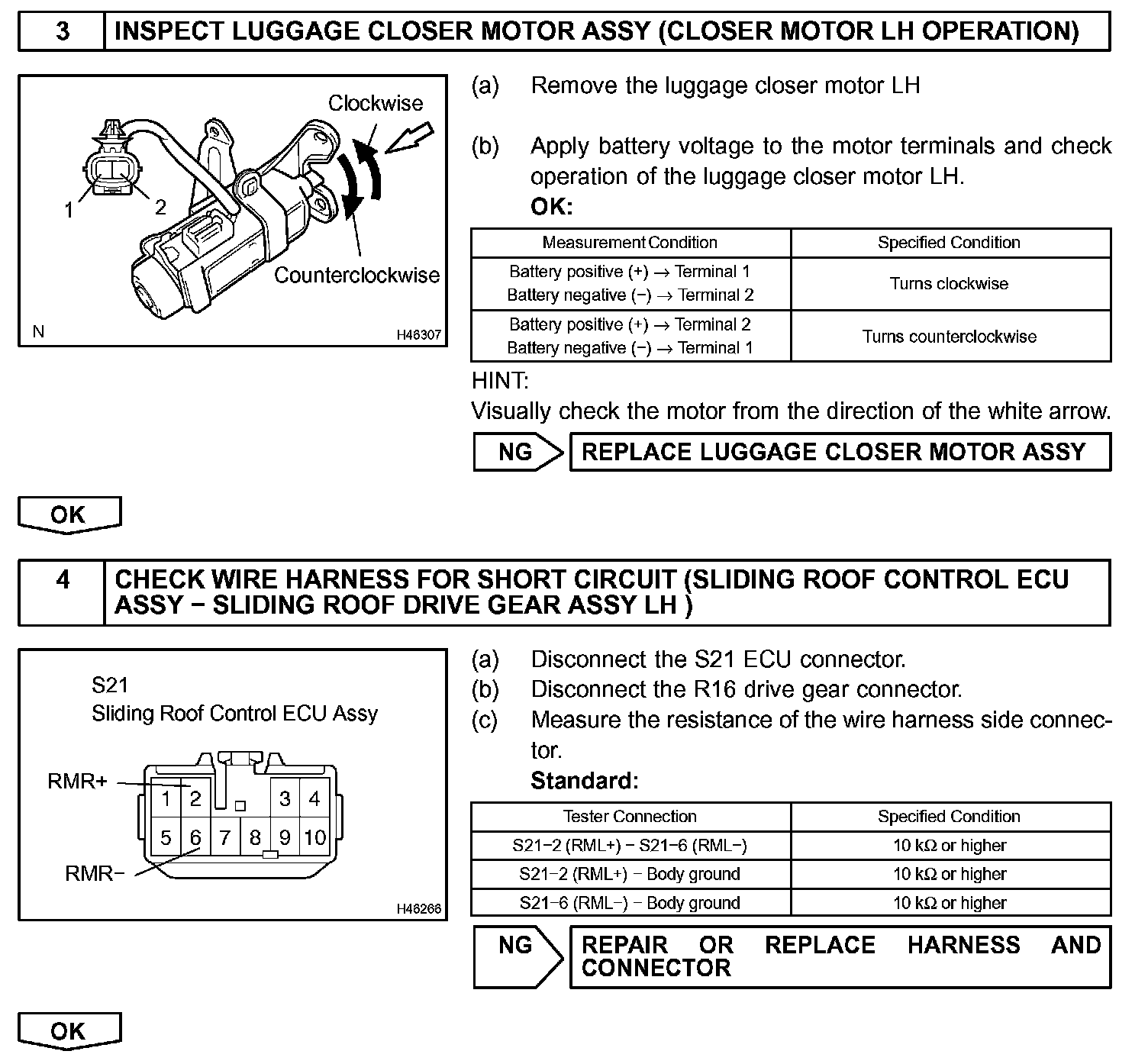

Step 5-6:

INSPECTION PROCEDURE
