B1431

DTC B1431/31 AIR MIX DAMPER POSITION SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

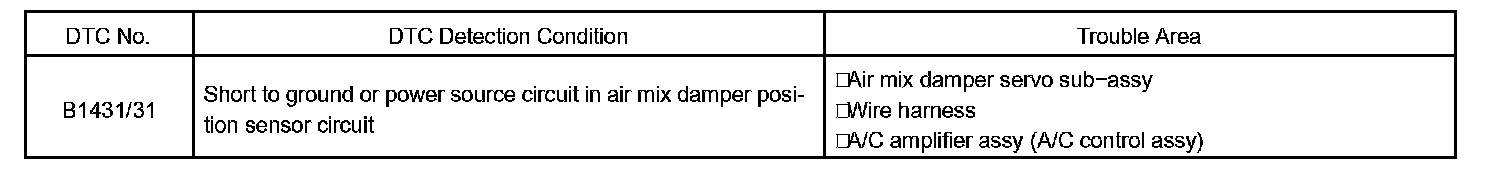

DTC Detection Condition:

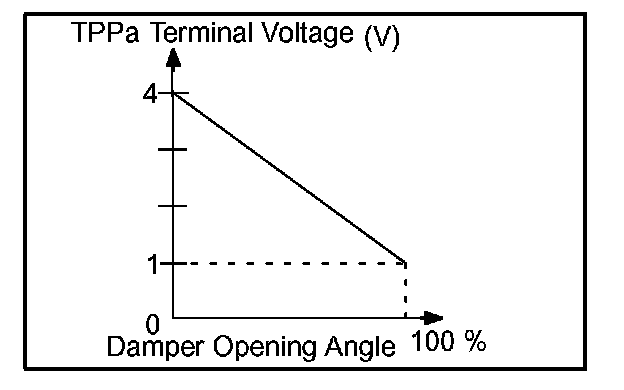

This sensor detects the position of the air mix damper servo and sends appropriate signals to the A/C amplifier. The position sensor is built into the air mix damper servo.

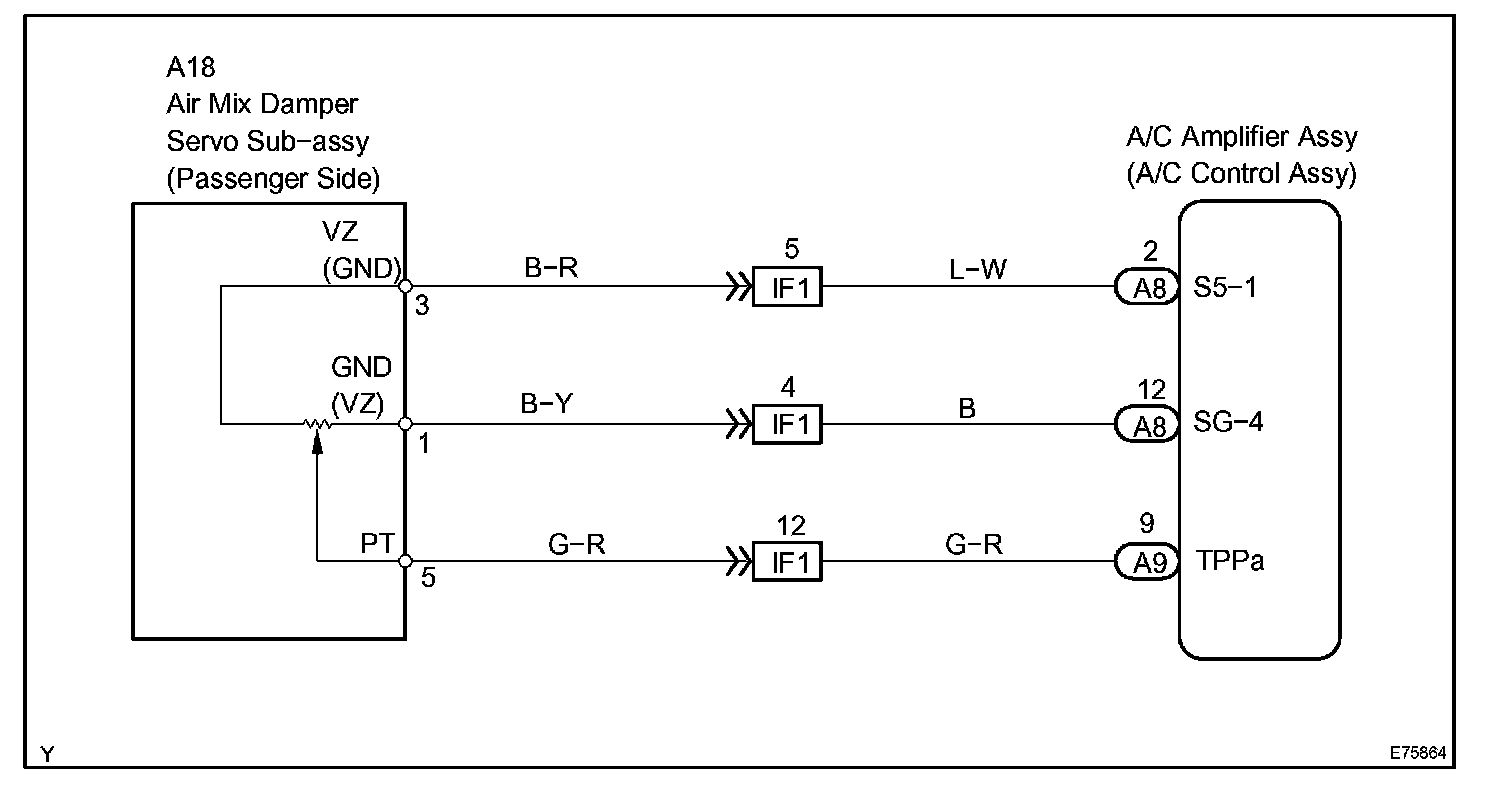

Wiring Diagram:

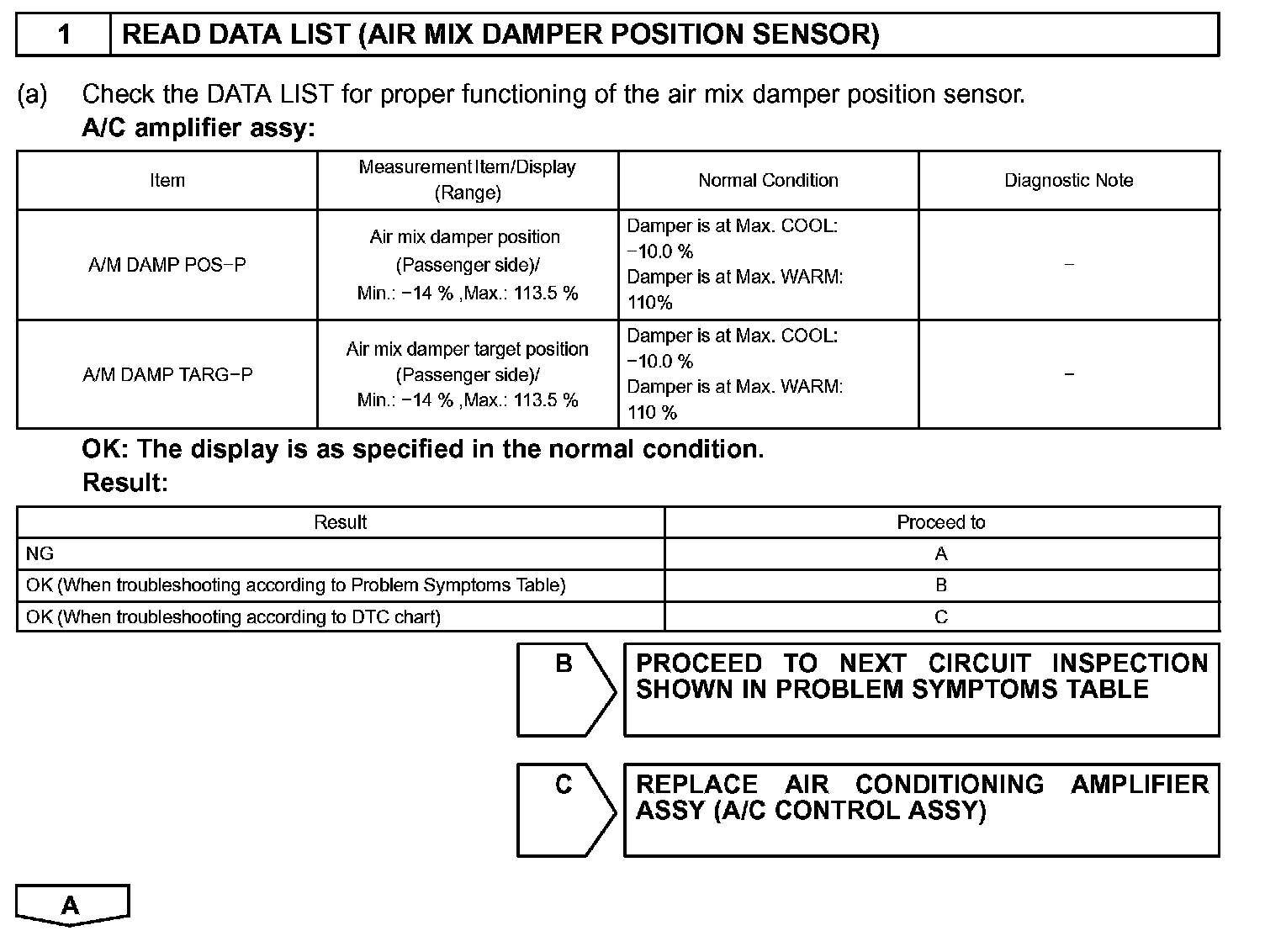

Step 1:

Step 2:

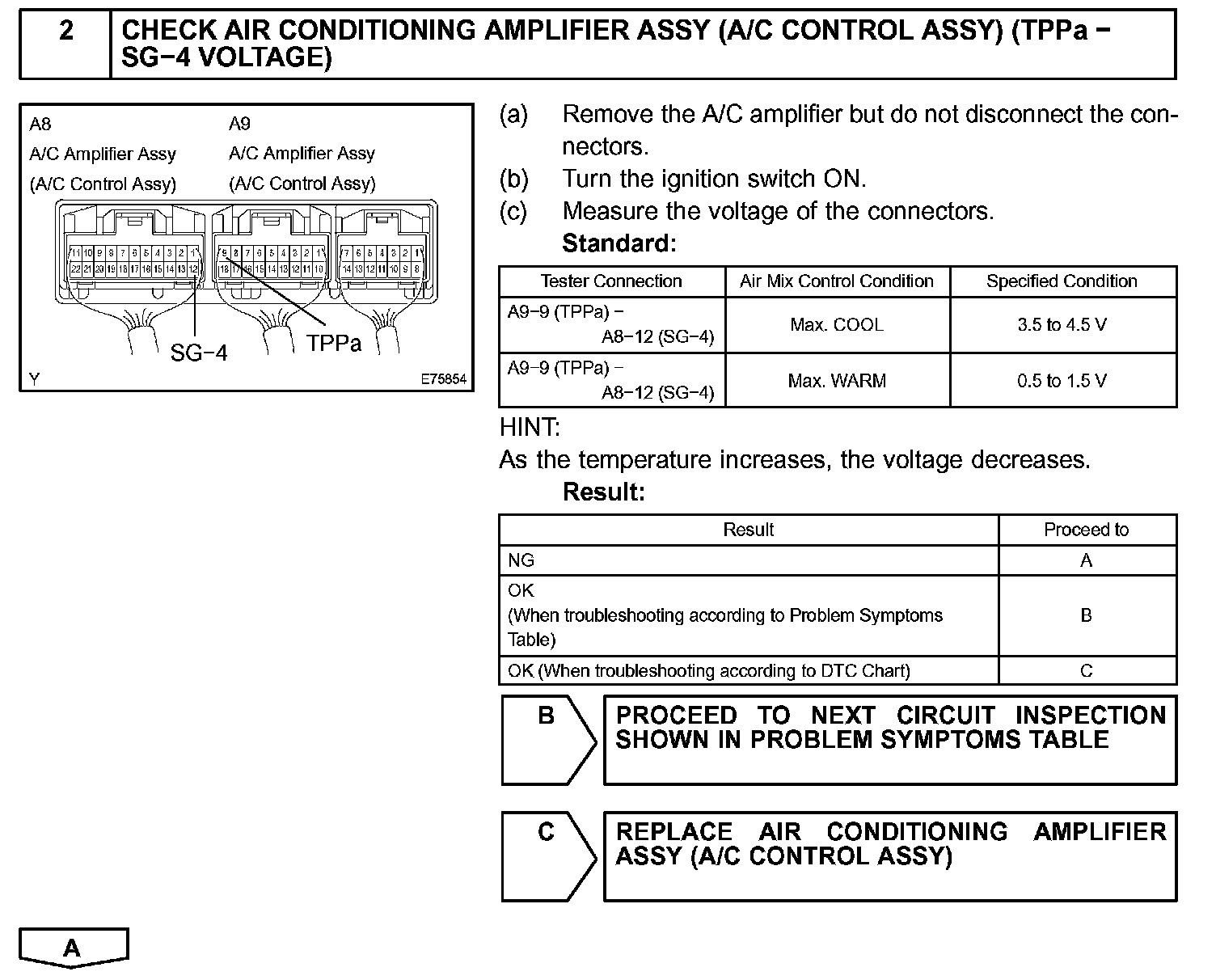

Step 3:

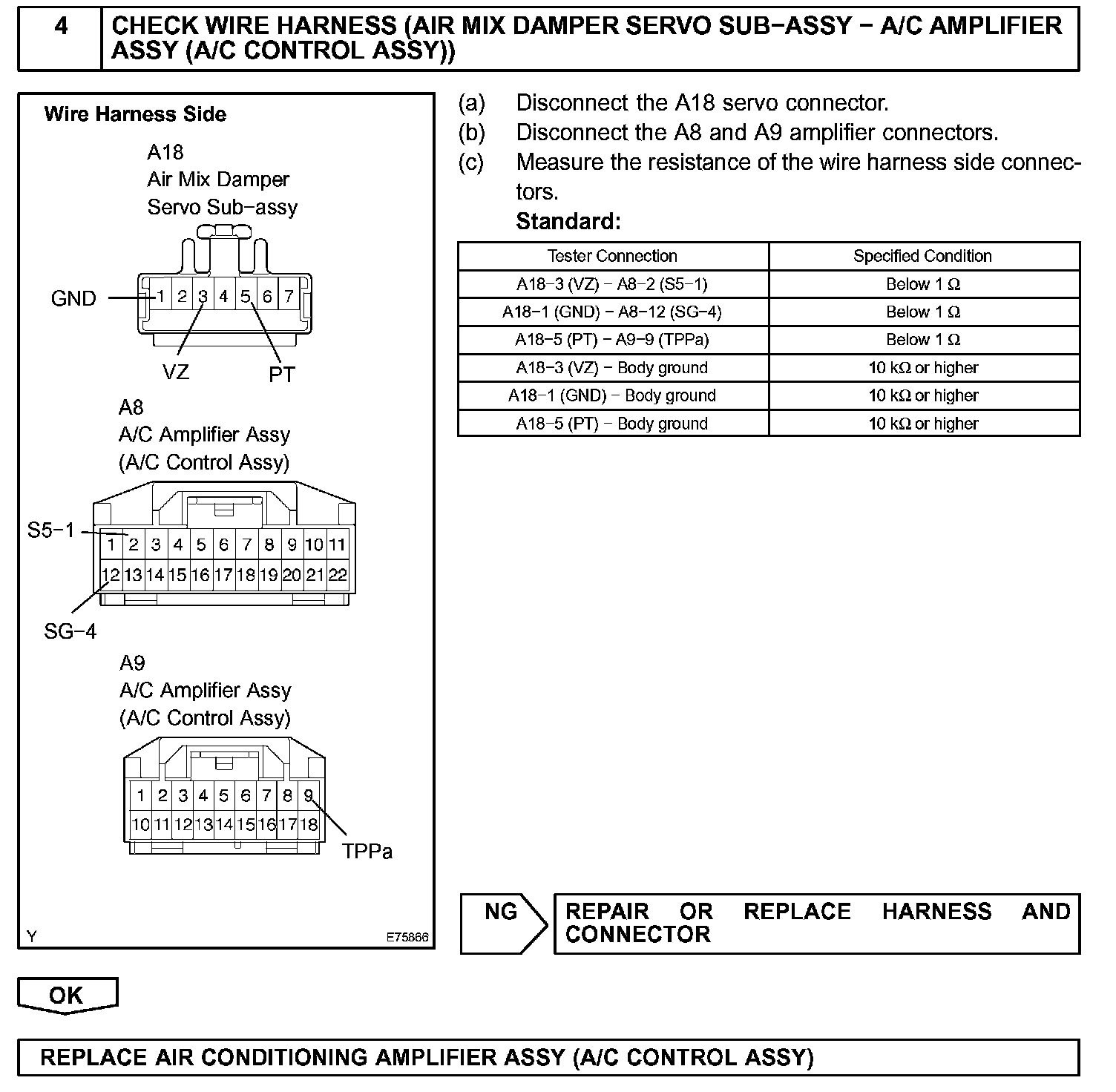

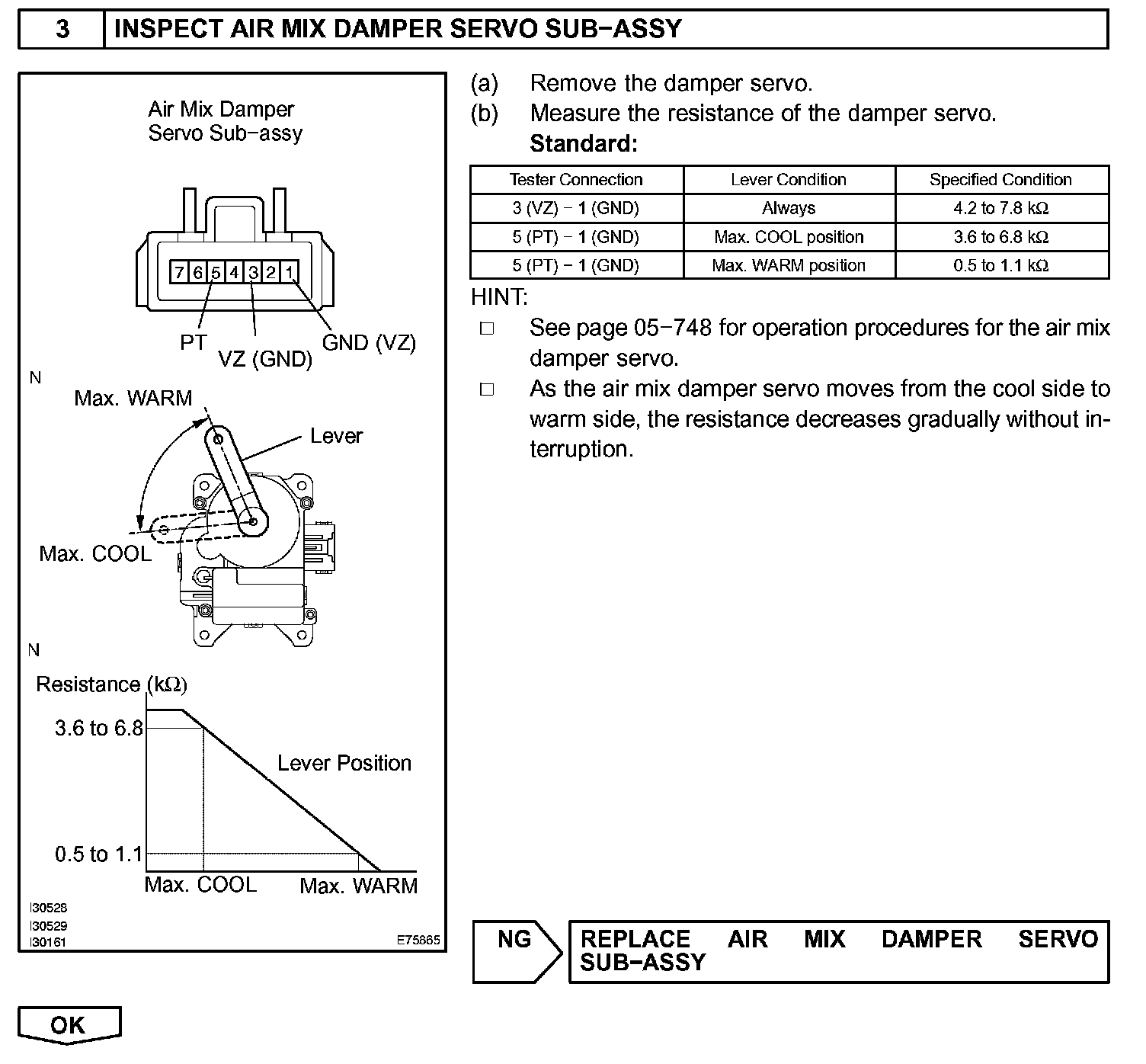

Step 4:

INSPECTION PROCEDURE
