B1418

DTC B1418/18 EMISSION GAS SENSOR CIRCUIT

CIRCUIT DESCRIPTION

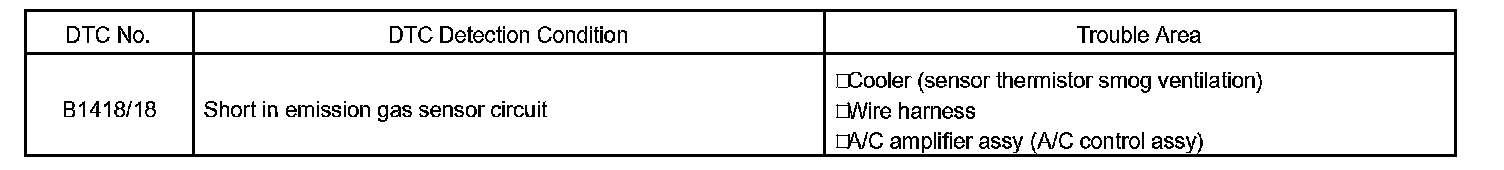

DTC Detection Condition:

This sensor detects the exhaust gas outside the vehicle and sends appropriate signals to the A/C amplifier.

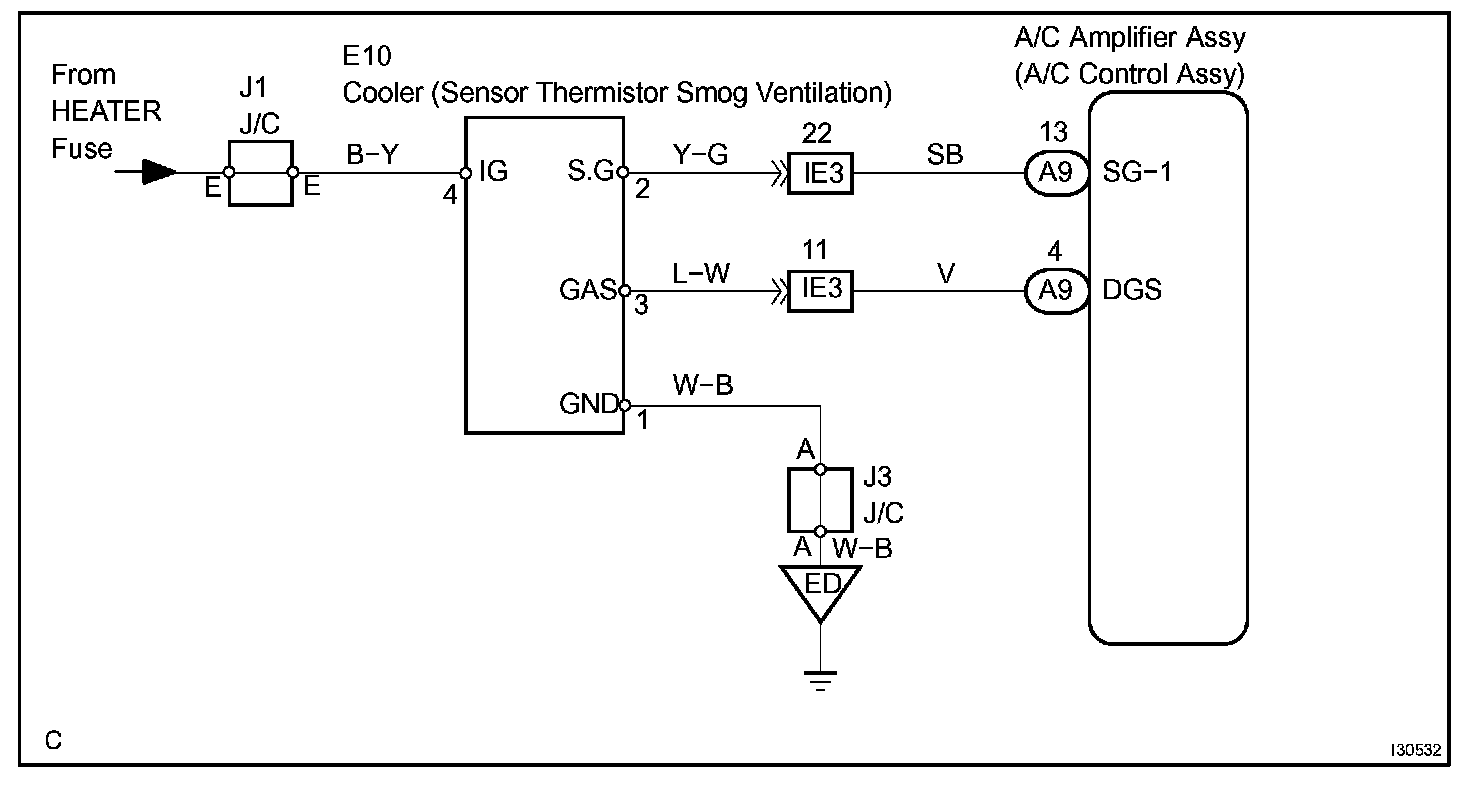

Wiring Diagram:

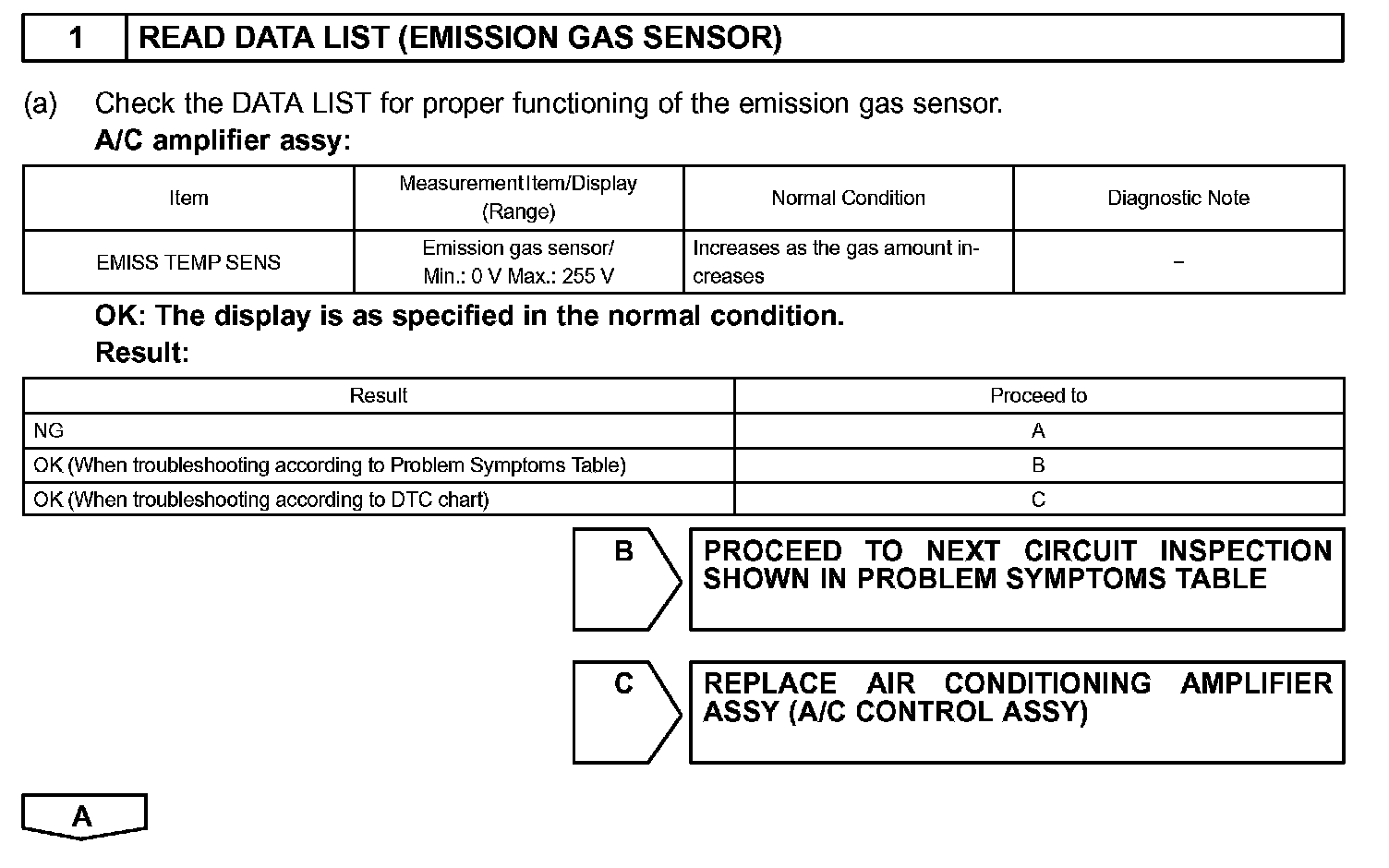

Step 1:

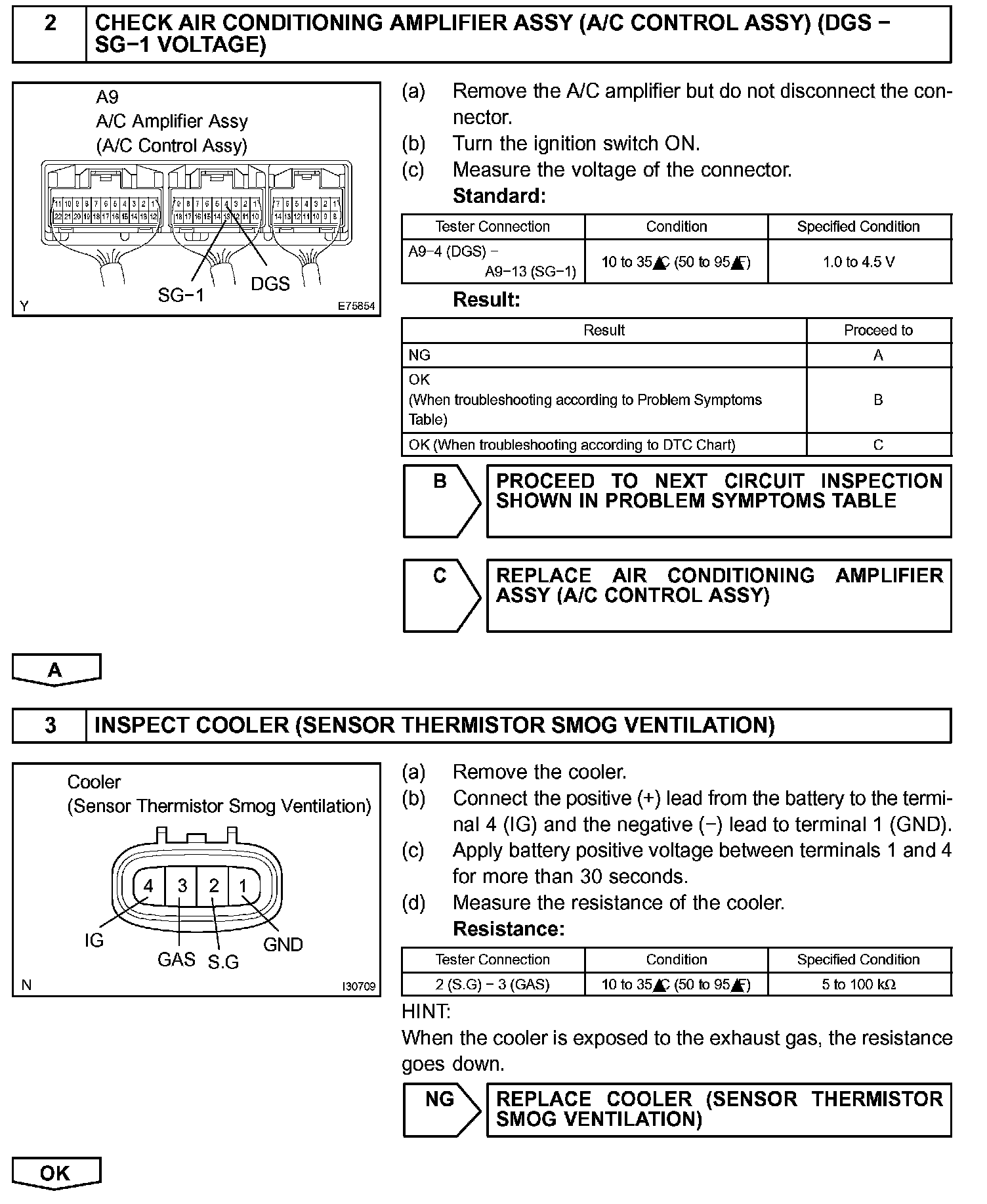

Step 2-3:

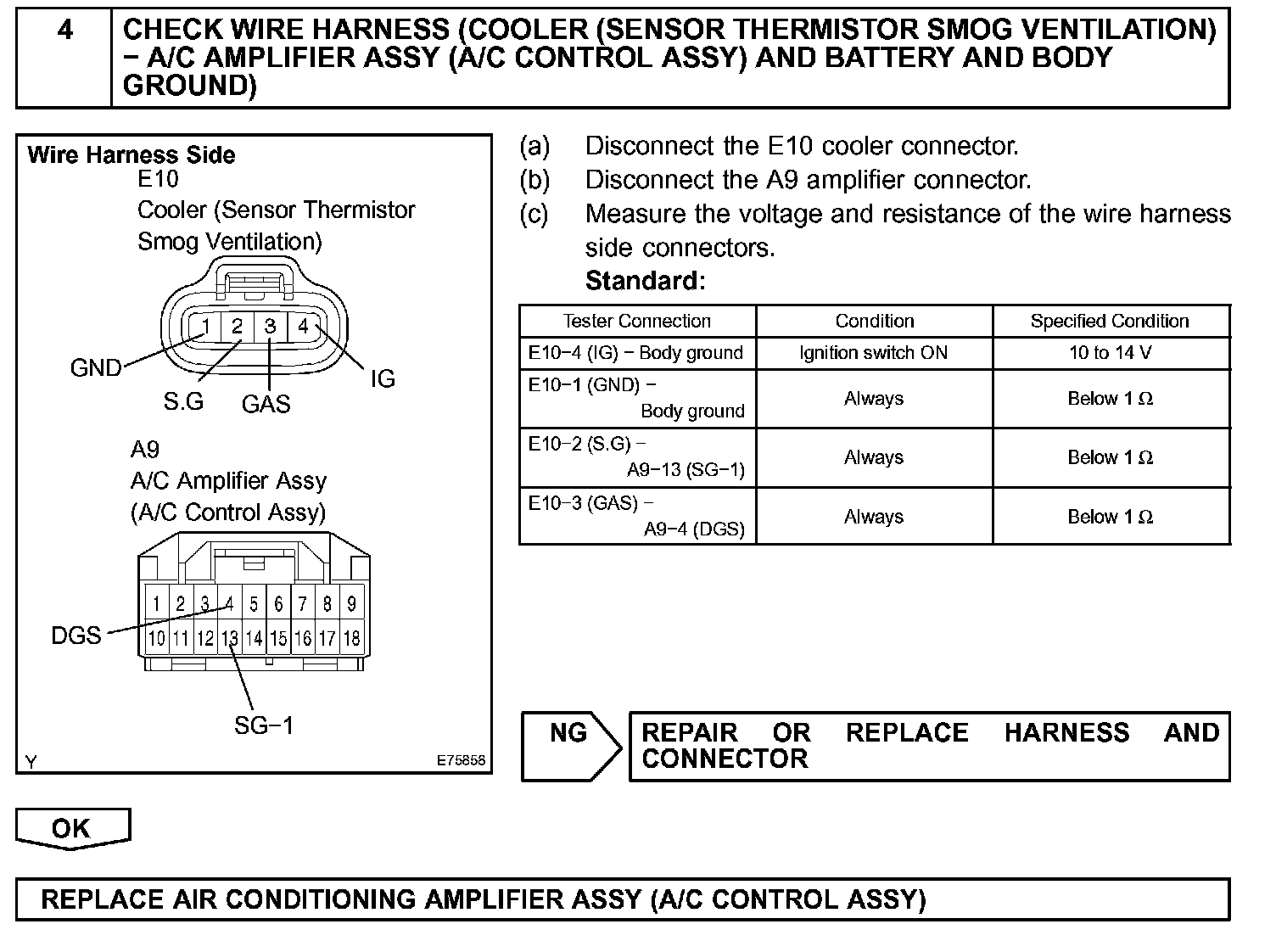

Step 4:

INSPECTION PROCEDURE
