B1412

DTC B1412/12 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

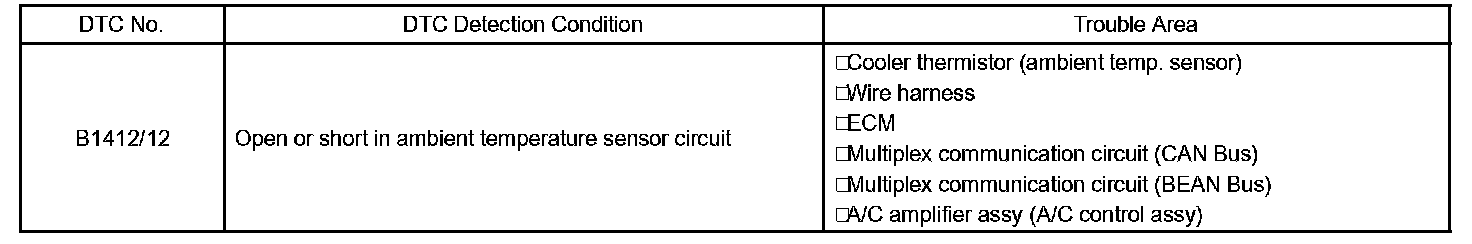

DTC Detection Condition:

This sensor detects the temperature outside the cabin and sends appropriate signals to the ECM.

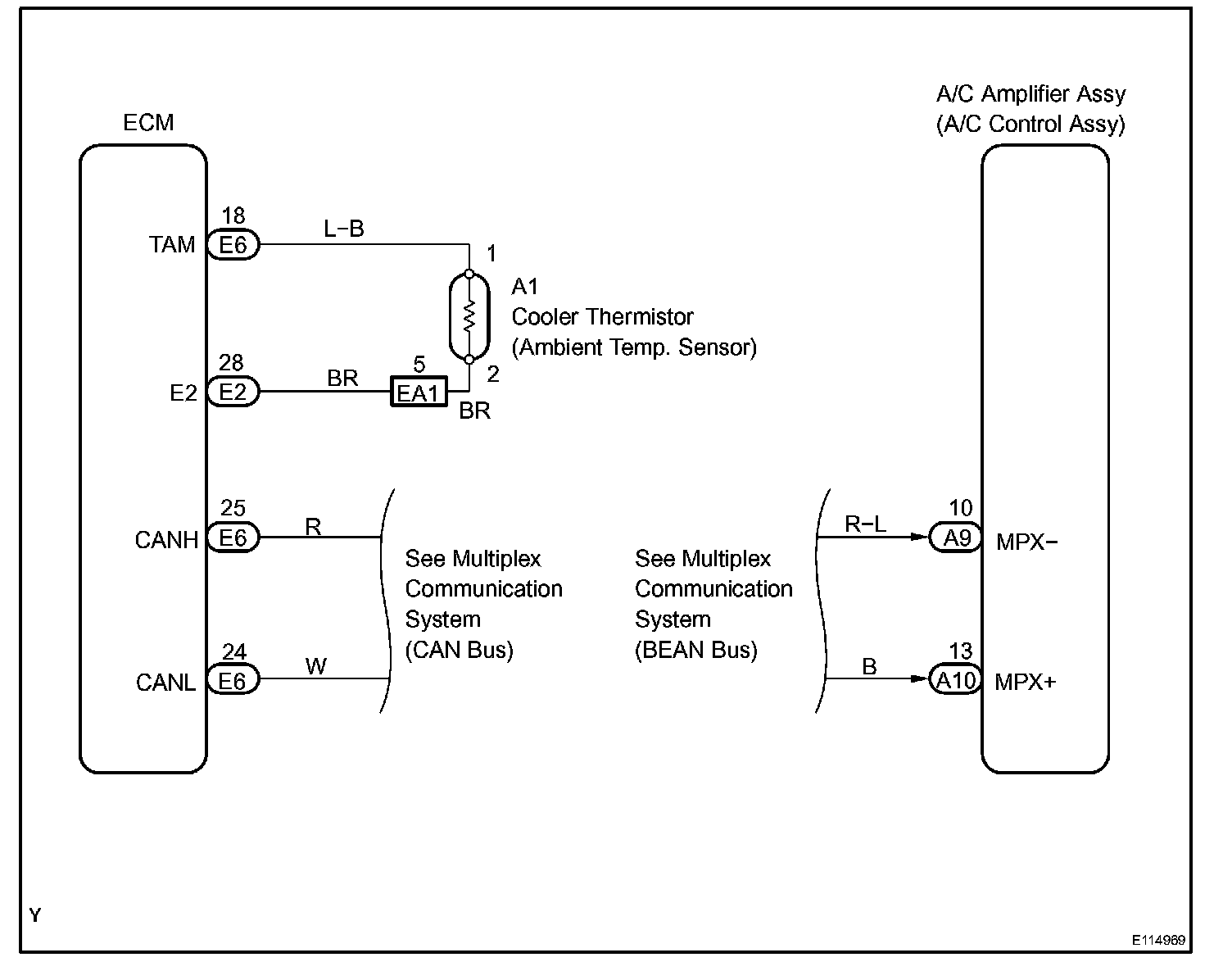

Wiring Diagram:

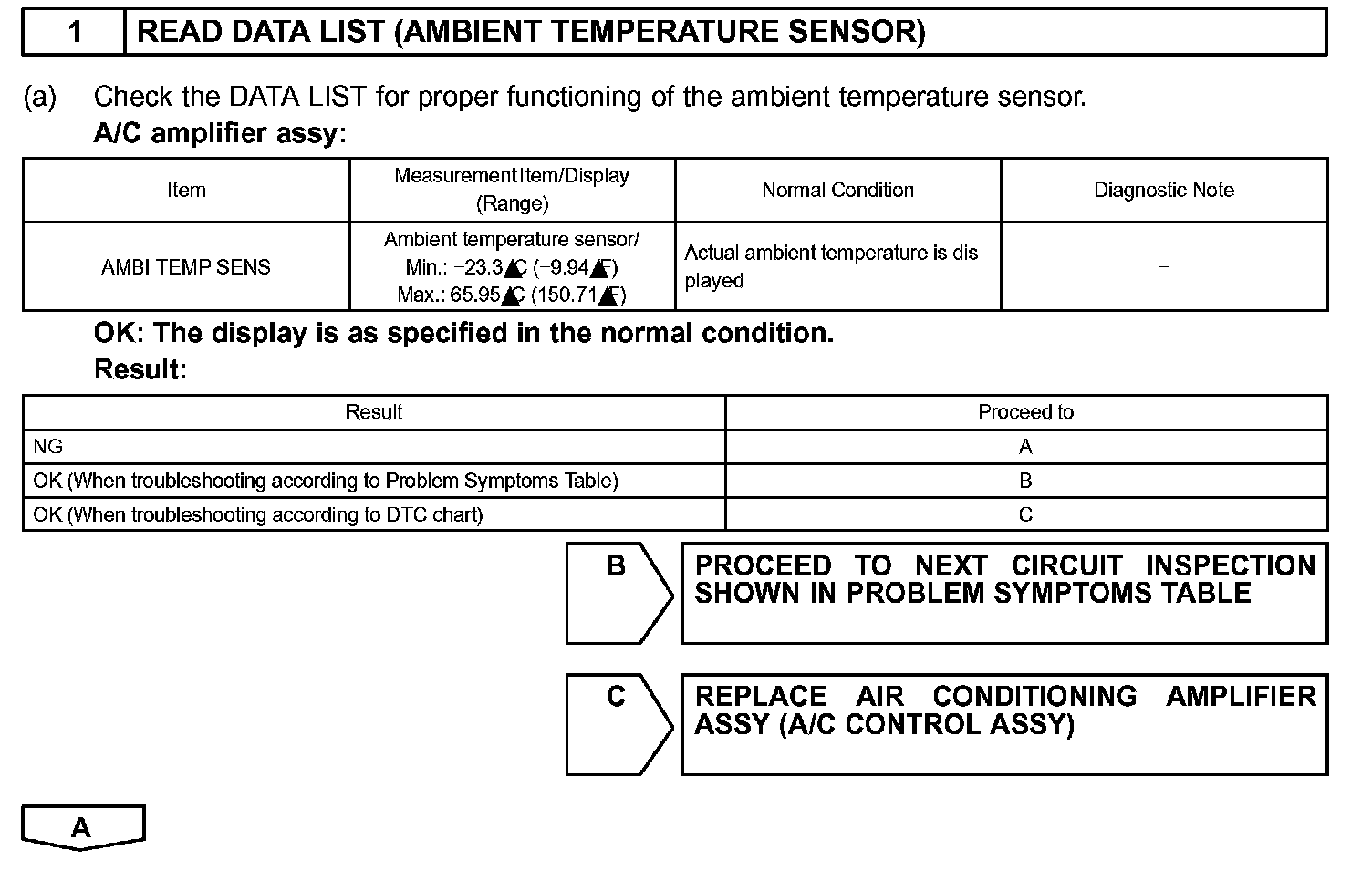

Step 1:

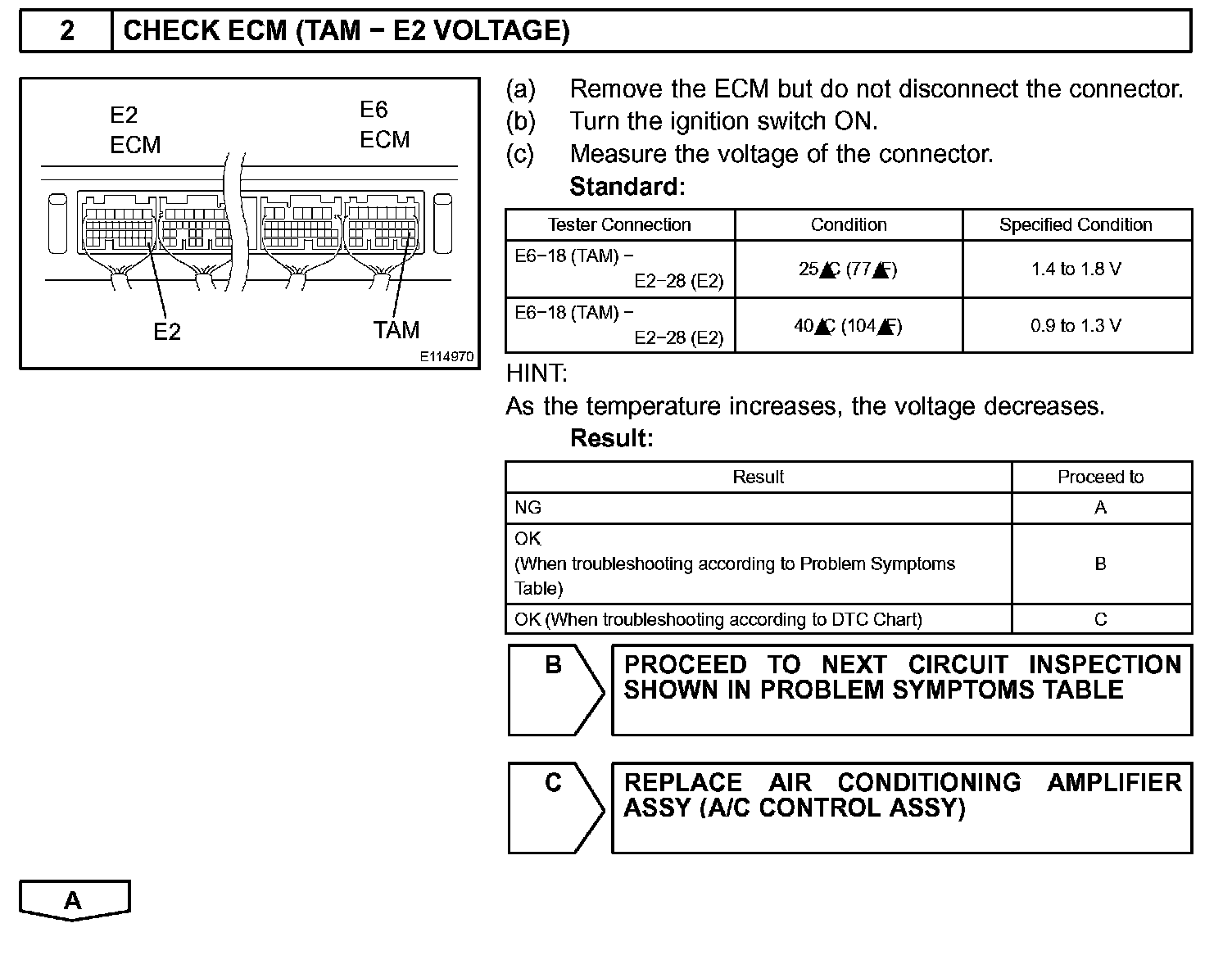

Step 2:

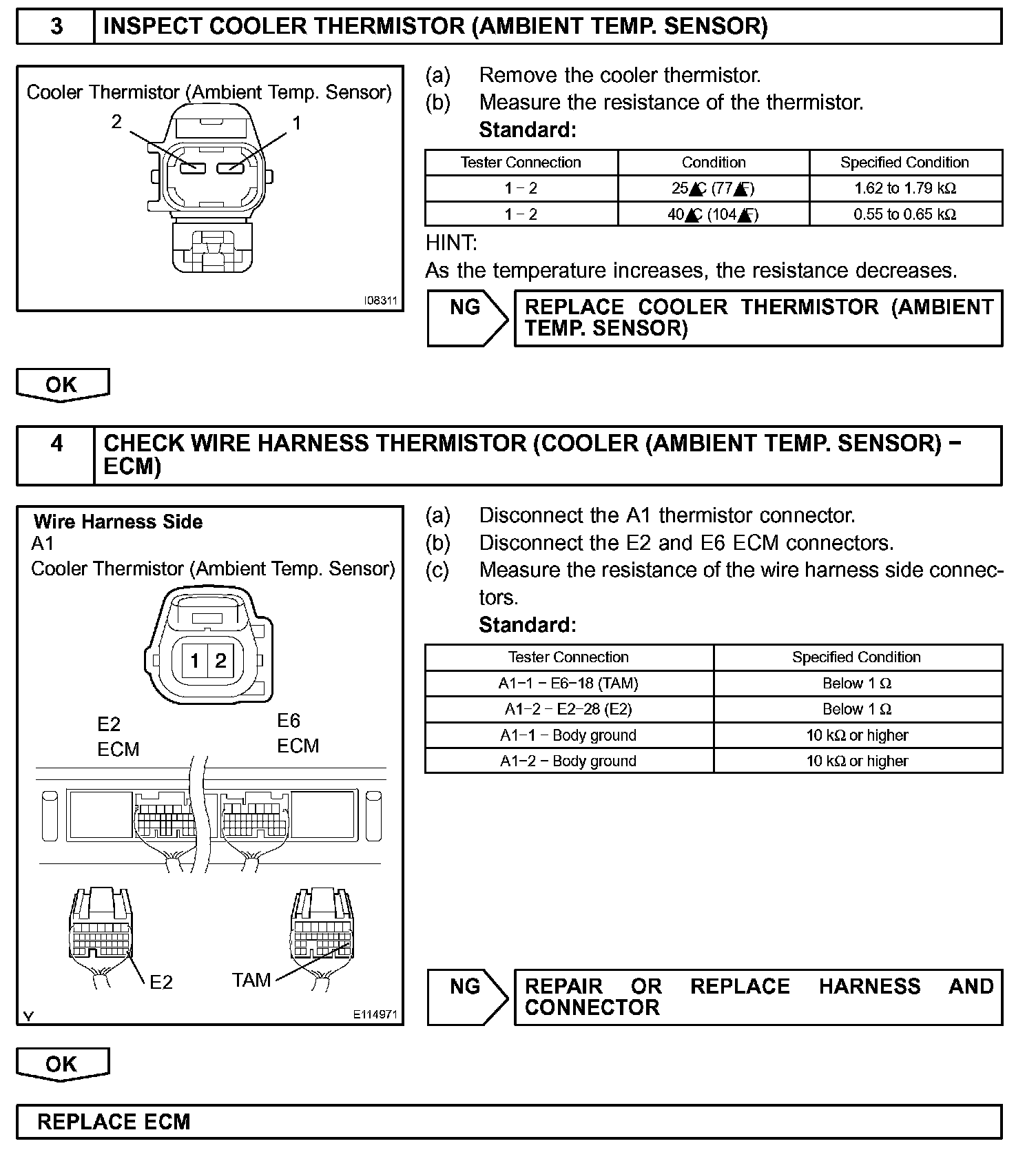

Step 3-4:

INSPECTION PROCEDURE
