B1411

DTC B1411/11 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

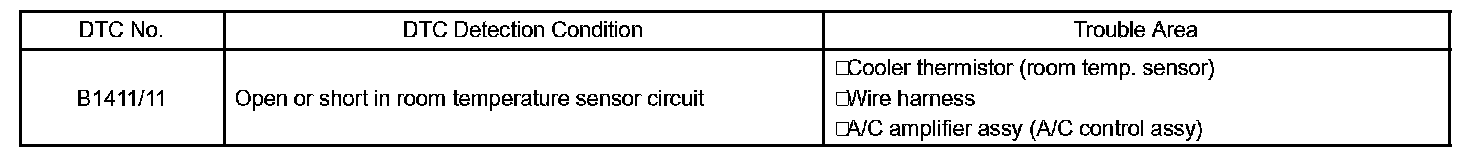

DTC Detection Condition:

This cooler thermistor detects the temperature inside the cabin and sends appropriate signals to the A/C amplifier.

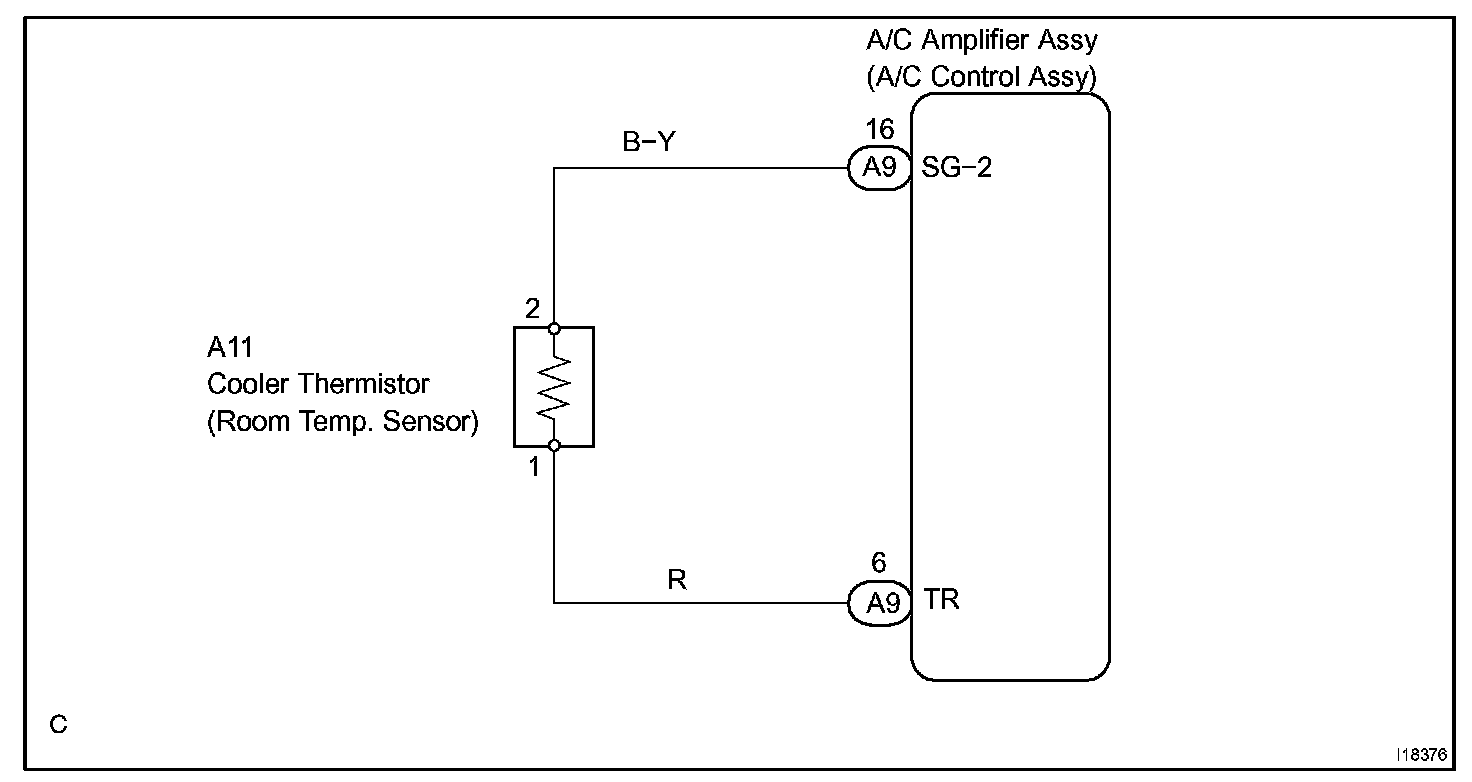

Wiring Diagram:

Step 1:

Step 2-3:

Step 4:

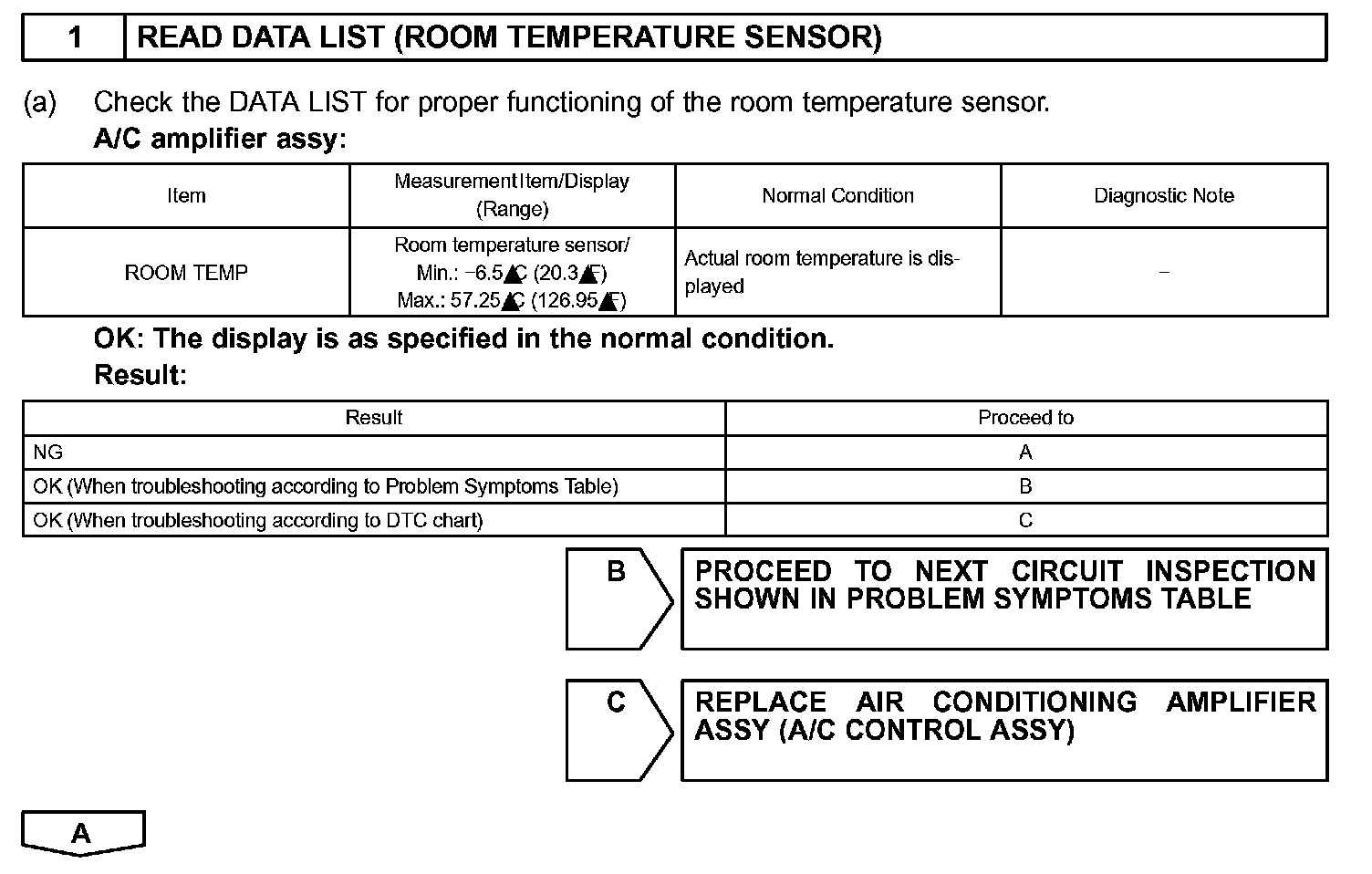

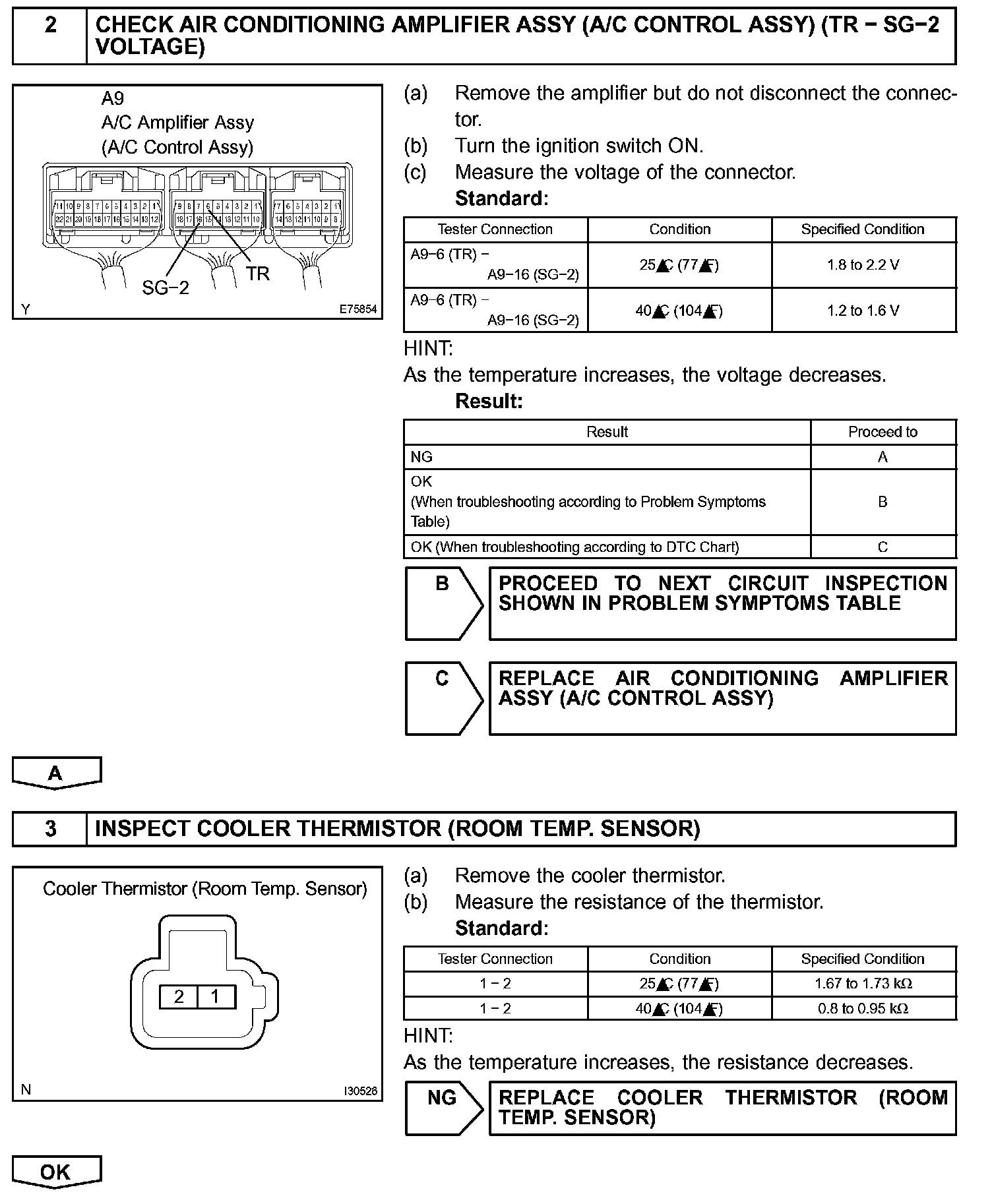

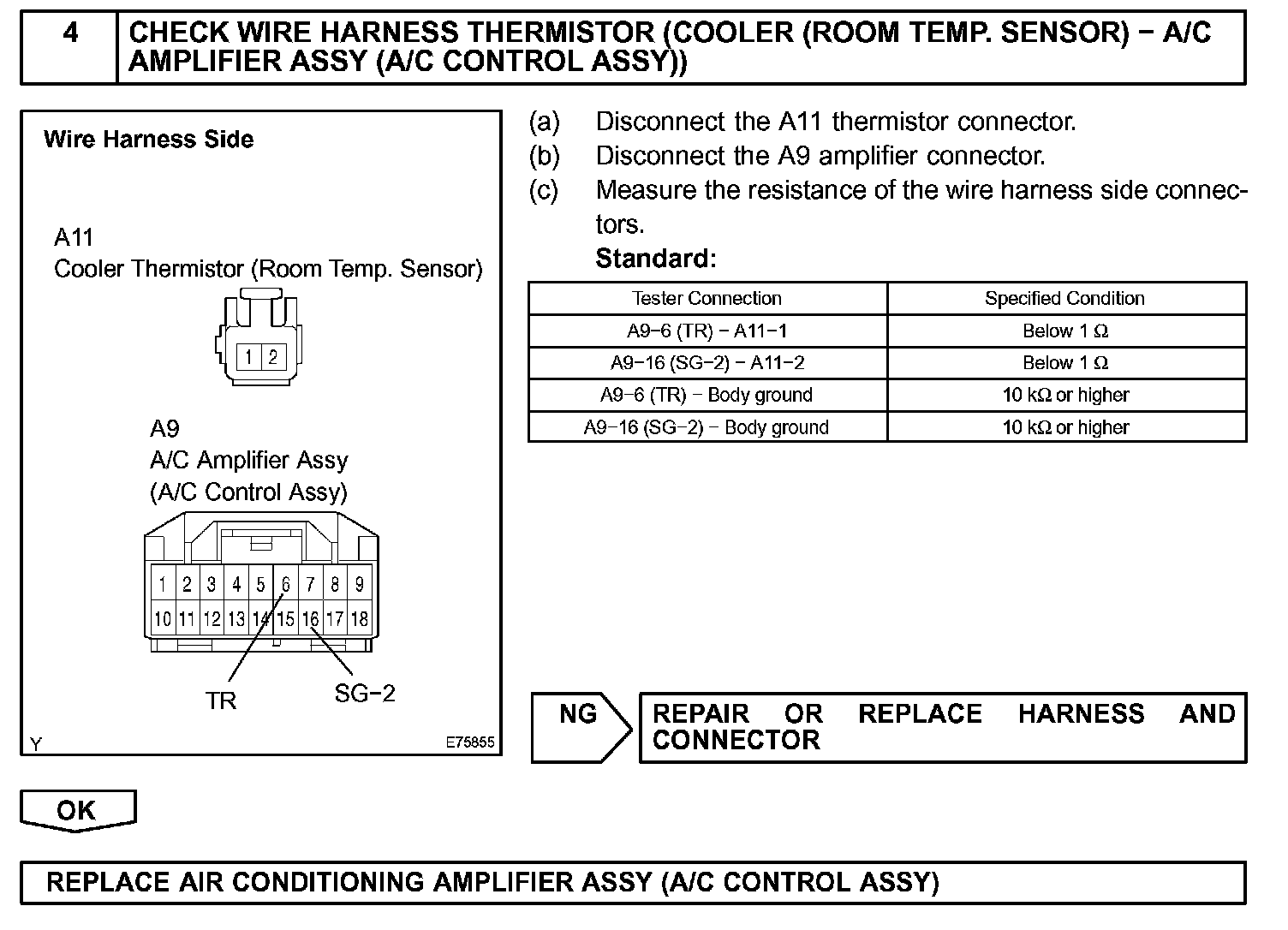

INSPECTION PROCEDURE
