B1289

DTC B1289 PASSENGER SEAT ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

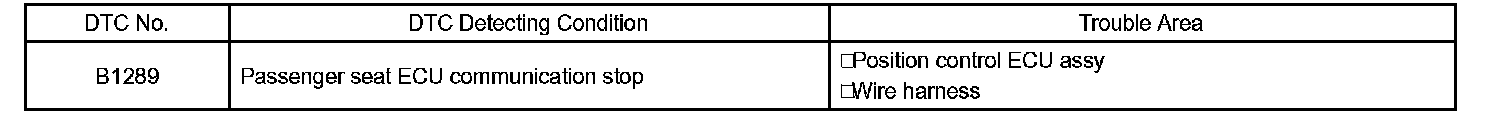

DTC Detecting Condition:

This DTC is detected when communication between the position control ECU (passenger seat ECU) and network gateway ECU stops for more 10 seconds.

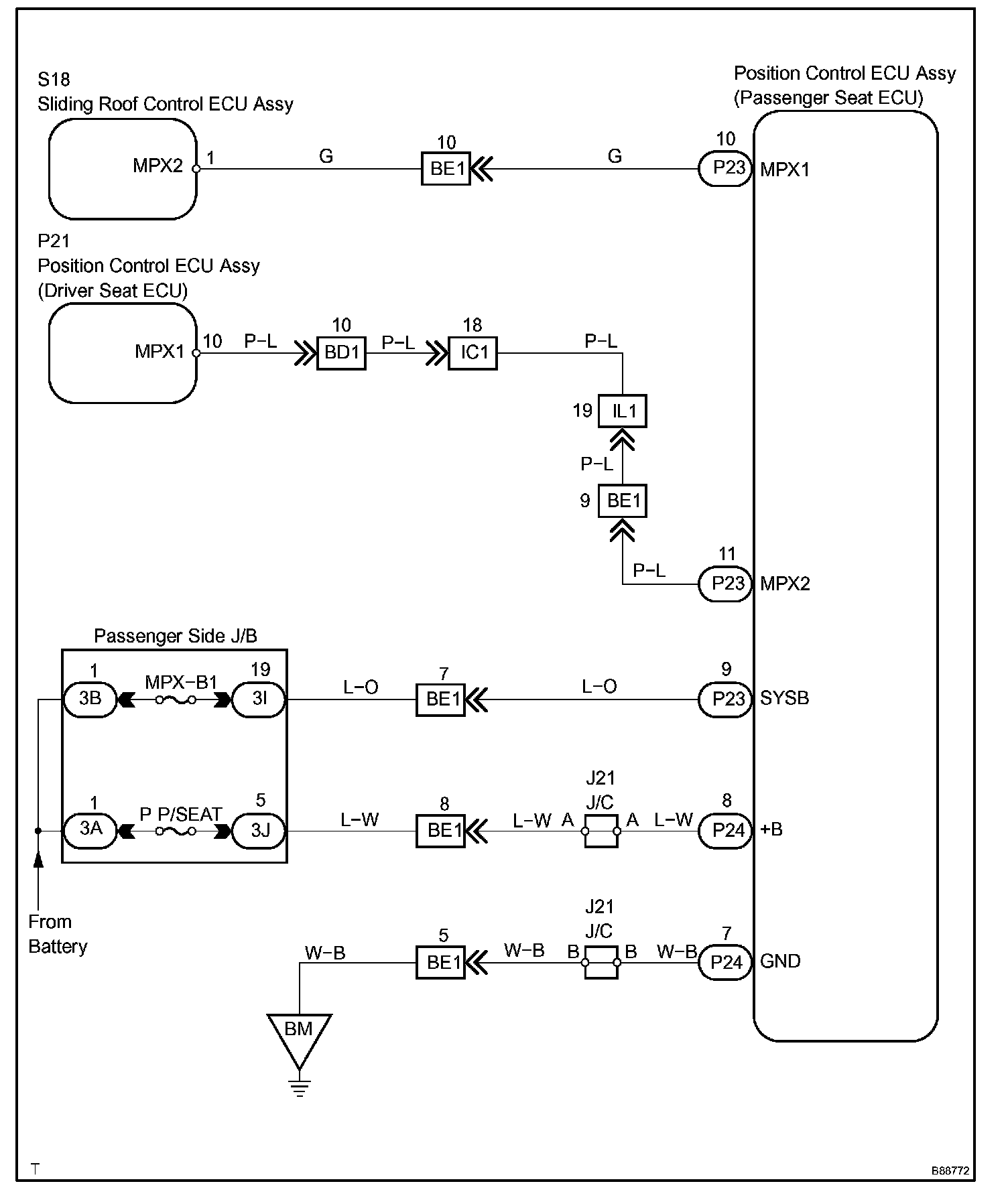

Wiring Diagram:

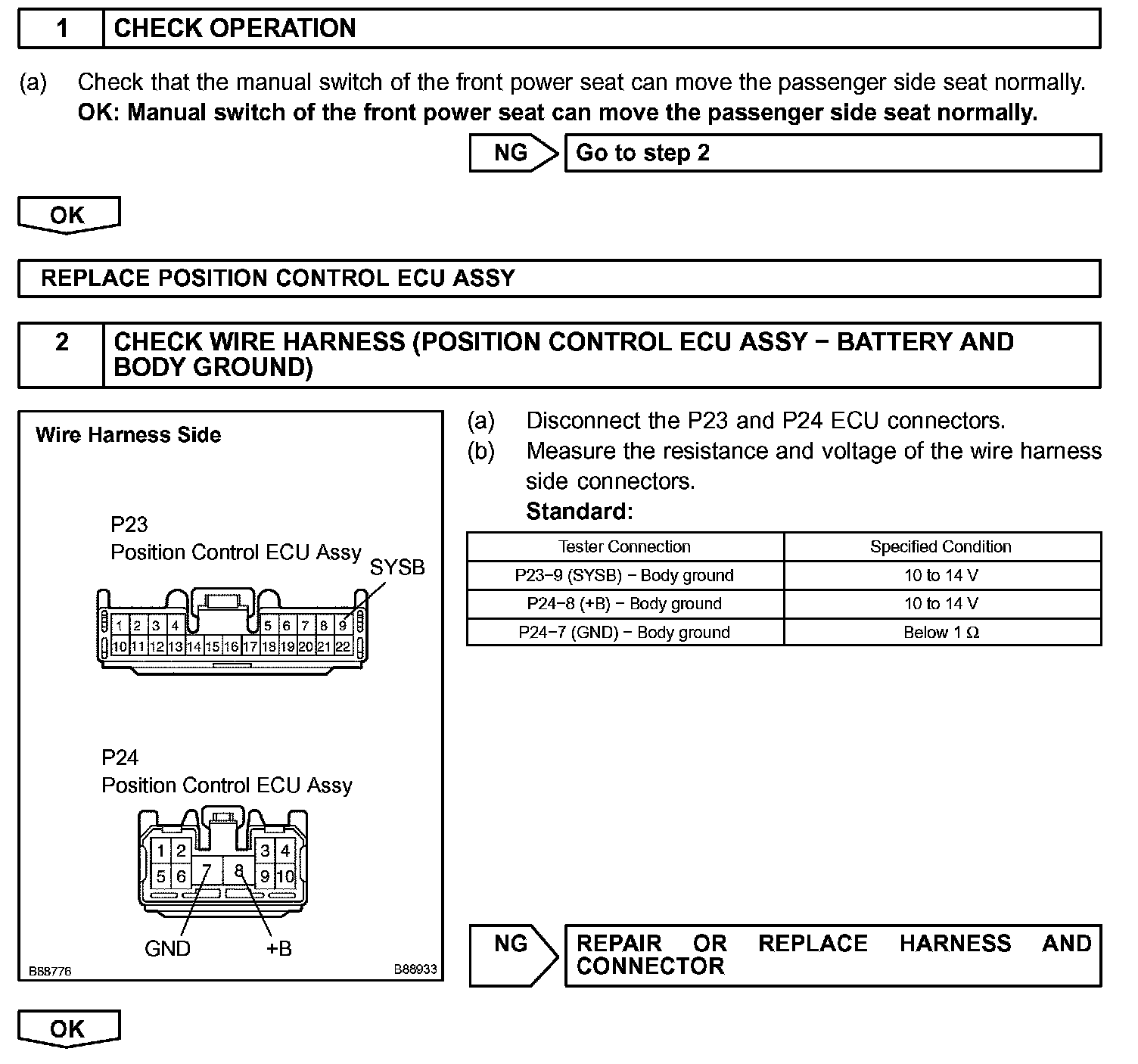

Step 1-2:

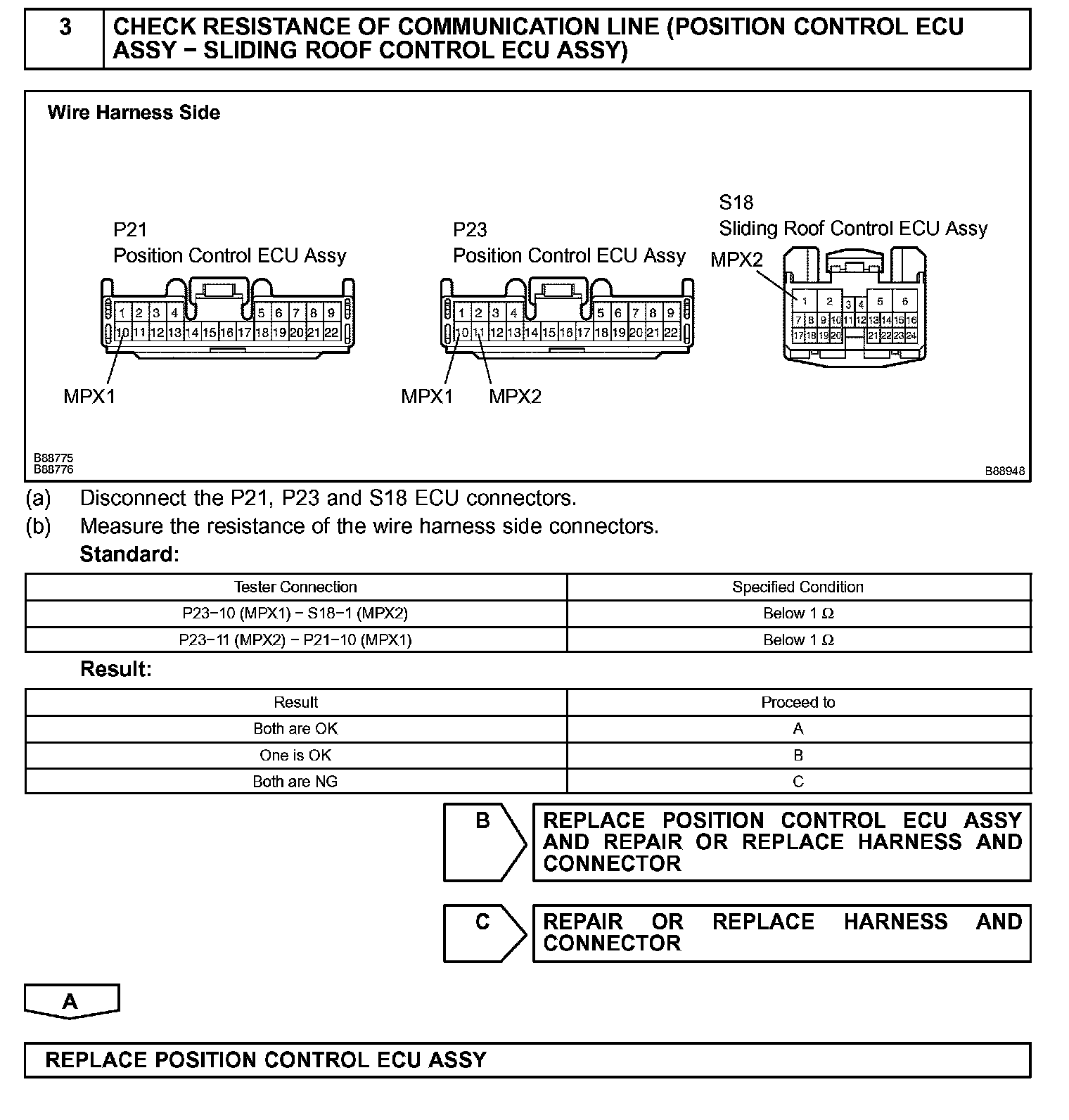

Step 3:

INSPECTION PROCEDURE
