B1283

DTC B1283 DRIVER SIDE JUNCTION BLOCK ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

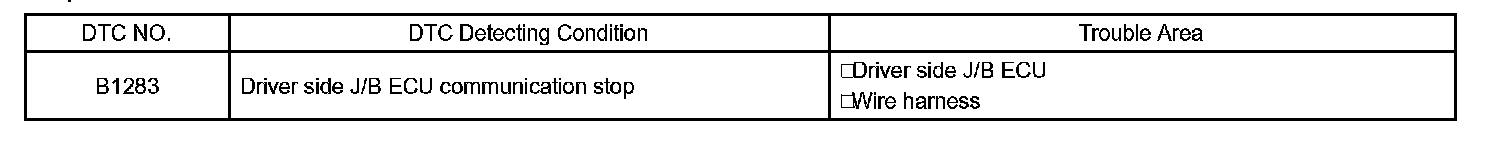

DTC Detecting Condition:

This DTC is detected when communication between the driver side J/B ECU and the network gateway ECU stops for more than 10 seconds.

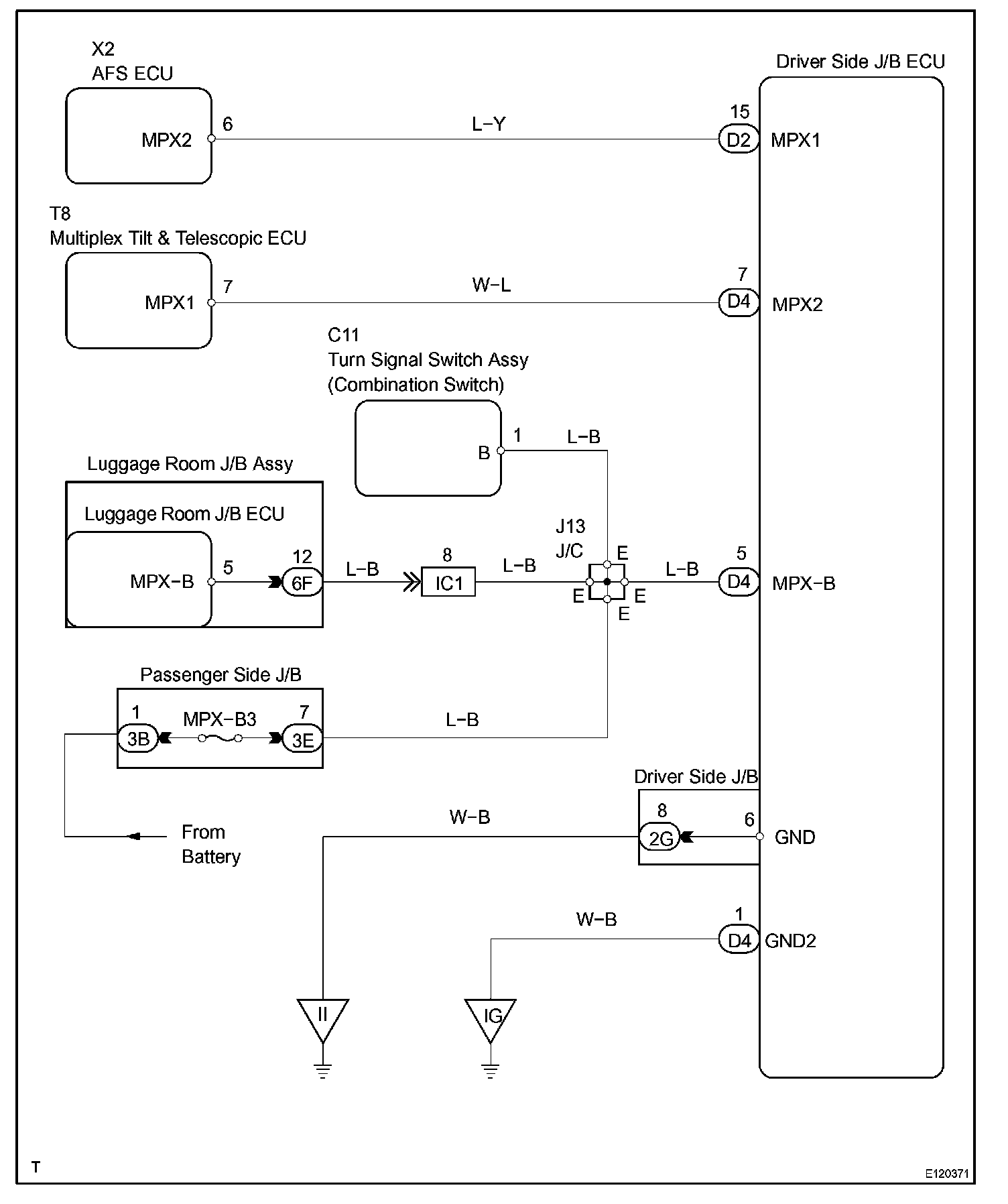

Wiring Diagram:

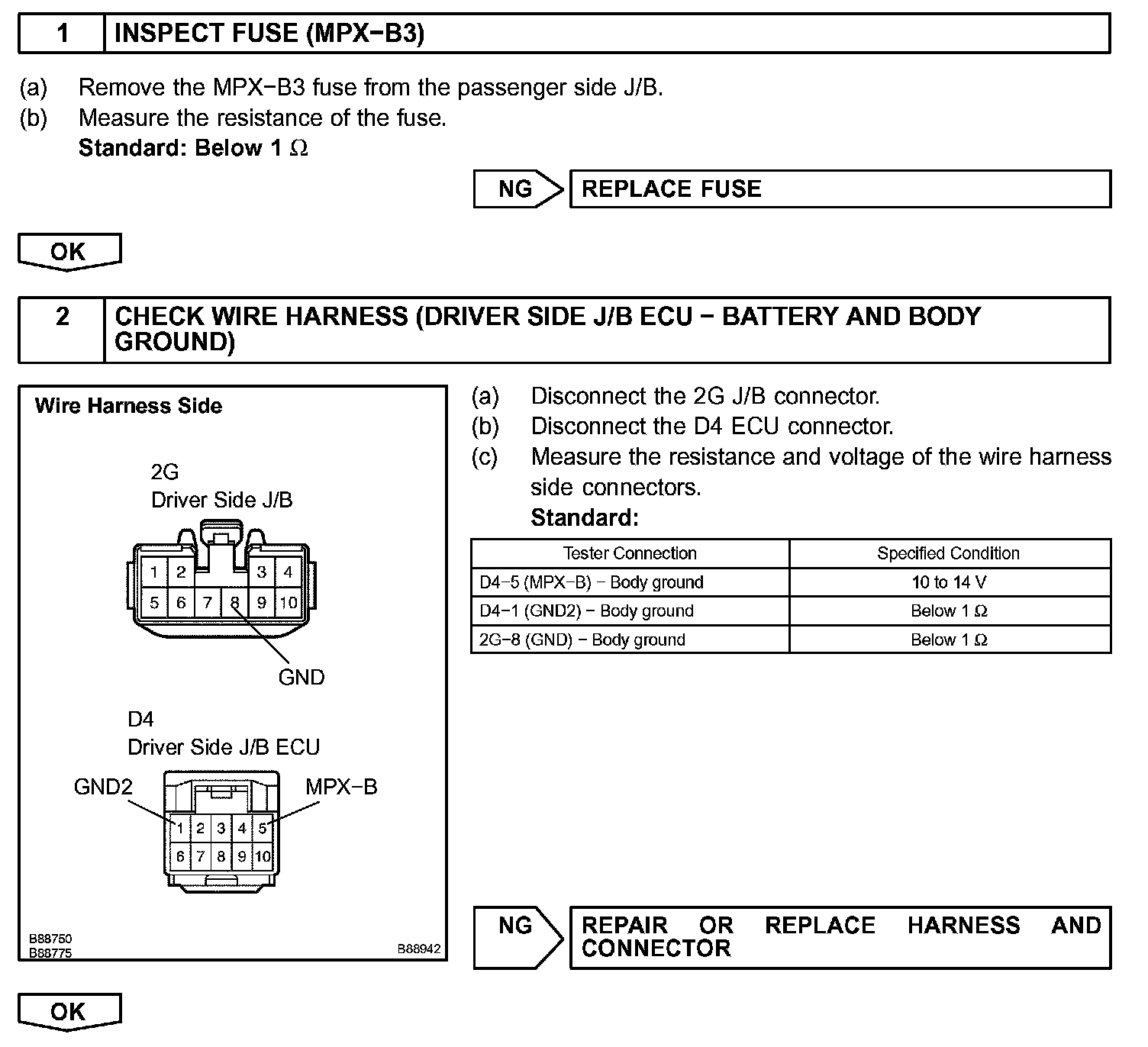

Step 1-2:

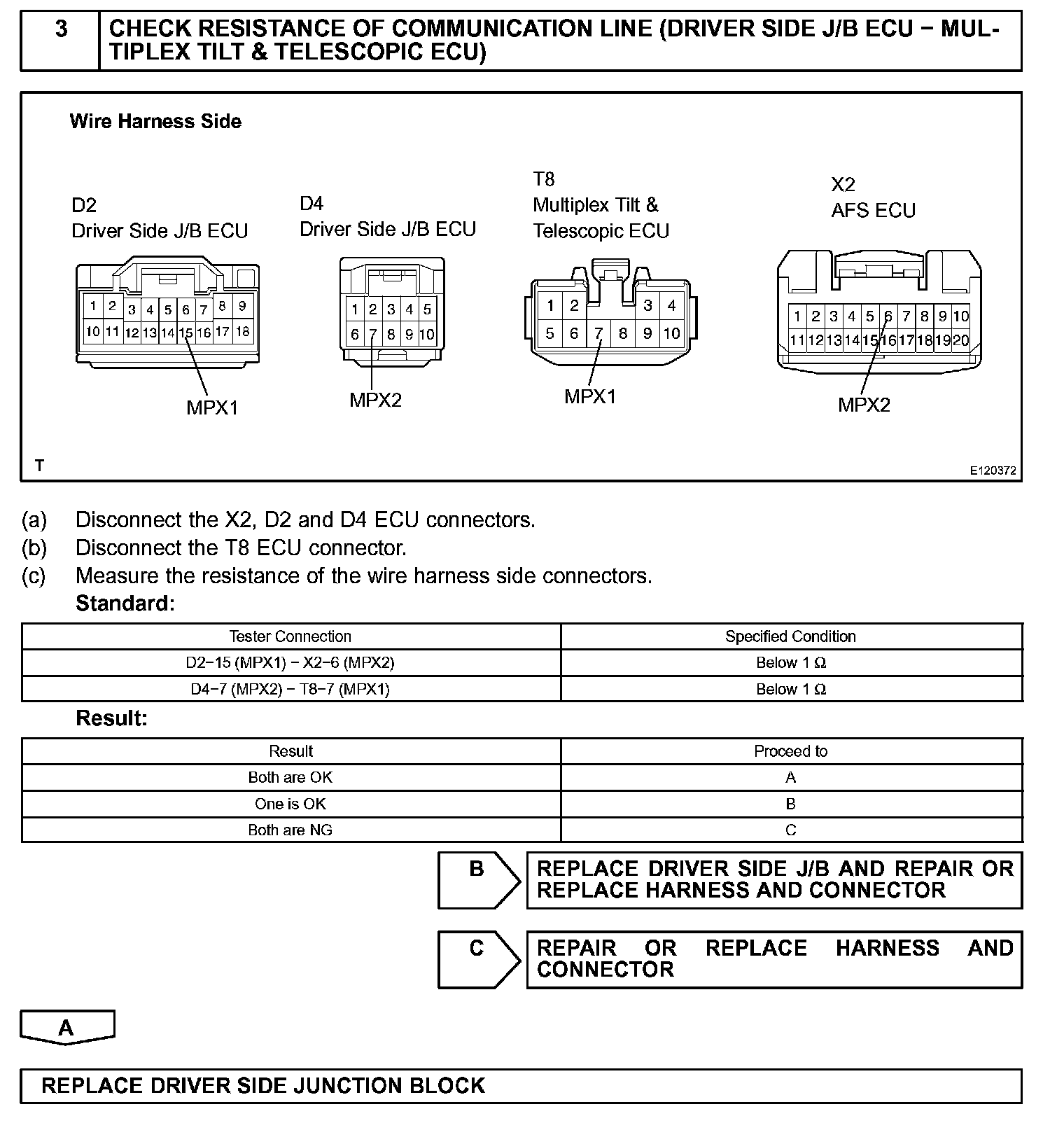

Step 3:

INSPECTION PROCEDURE
