B1273

DTC B1273 SLIDING ROOF ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

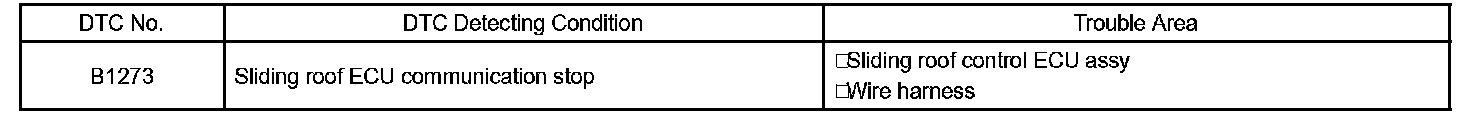

DTC Detecting Condition:

This DTC is detected when communication between the sliding roof control ECU and network gateway ECU stops more than 10 seconds.

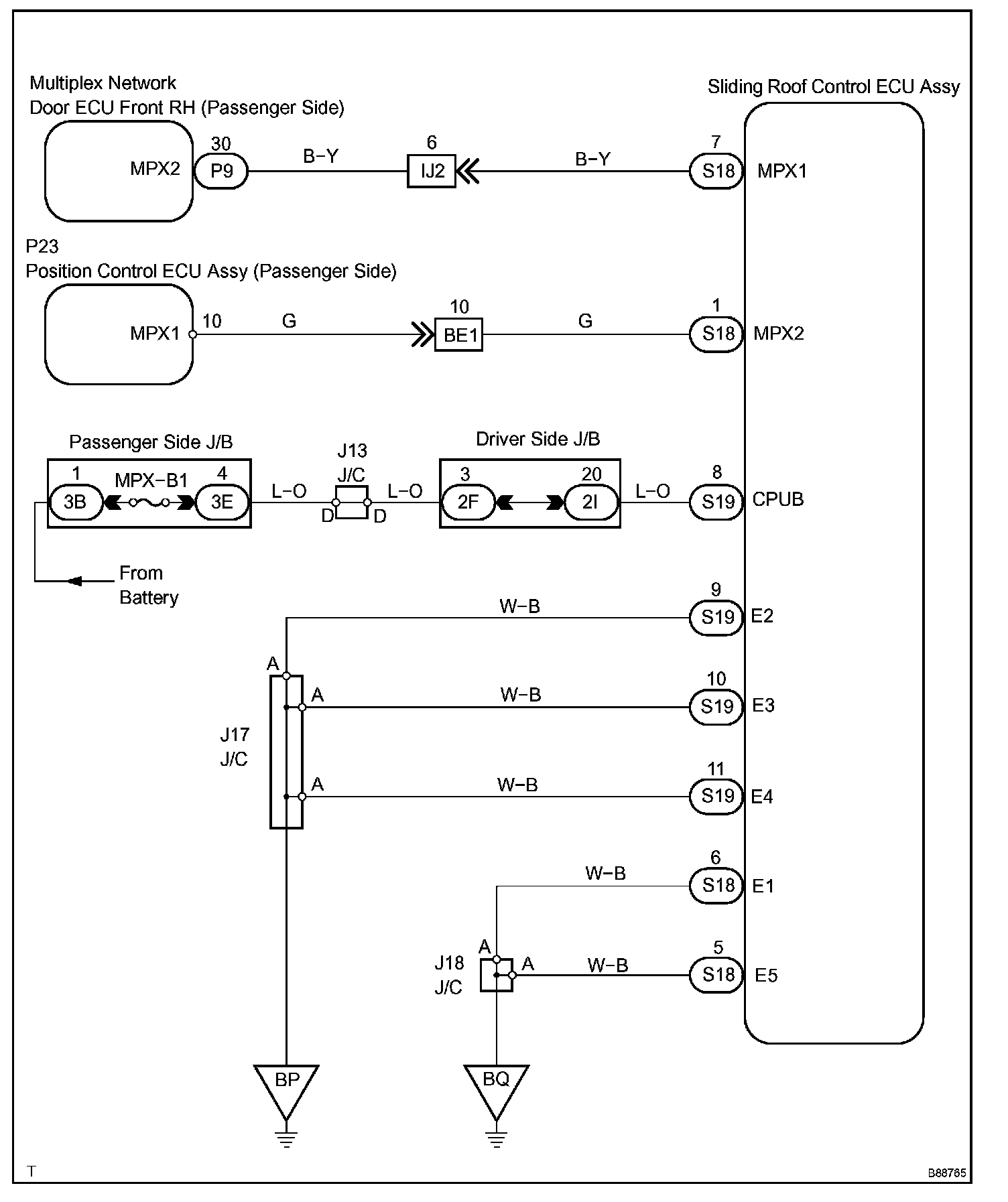

Wiring Diagram:

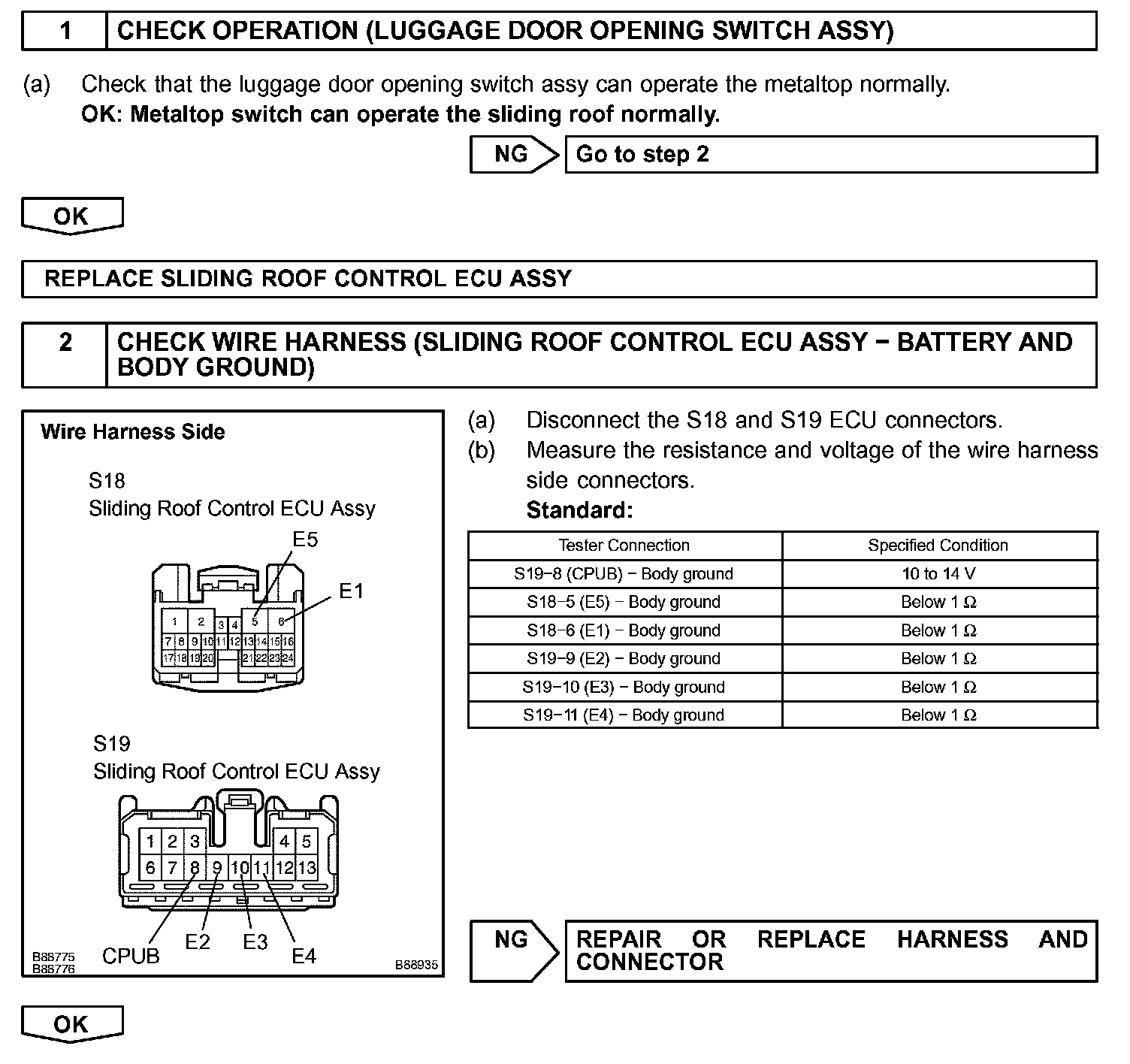

Step 1-2:

Step 3:

INSPECTION PROCEDURE
