B1268

DTC B1268 BACK-UP COMMUNICATION BUS MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is output when B+ or GND short occurs on back-up communication bus.

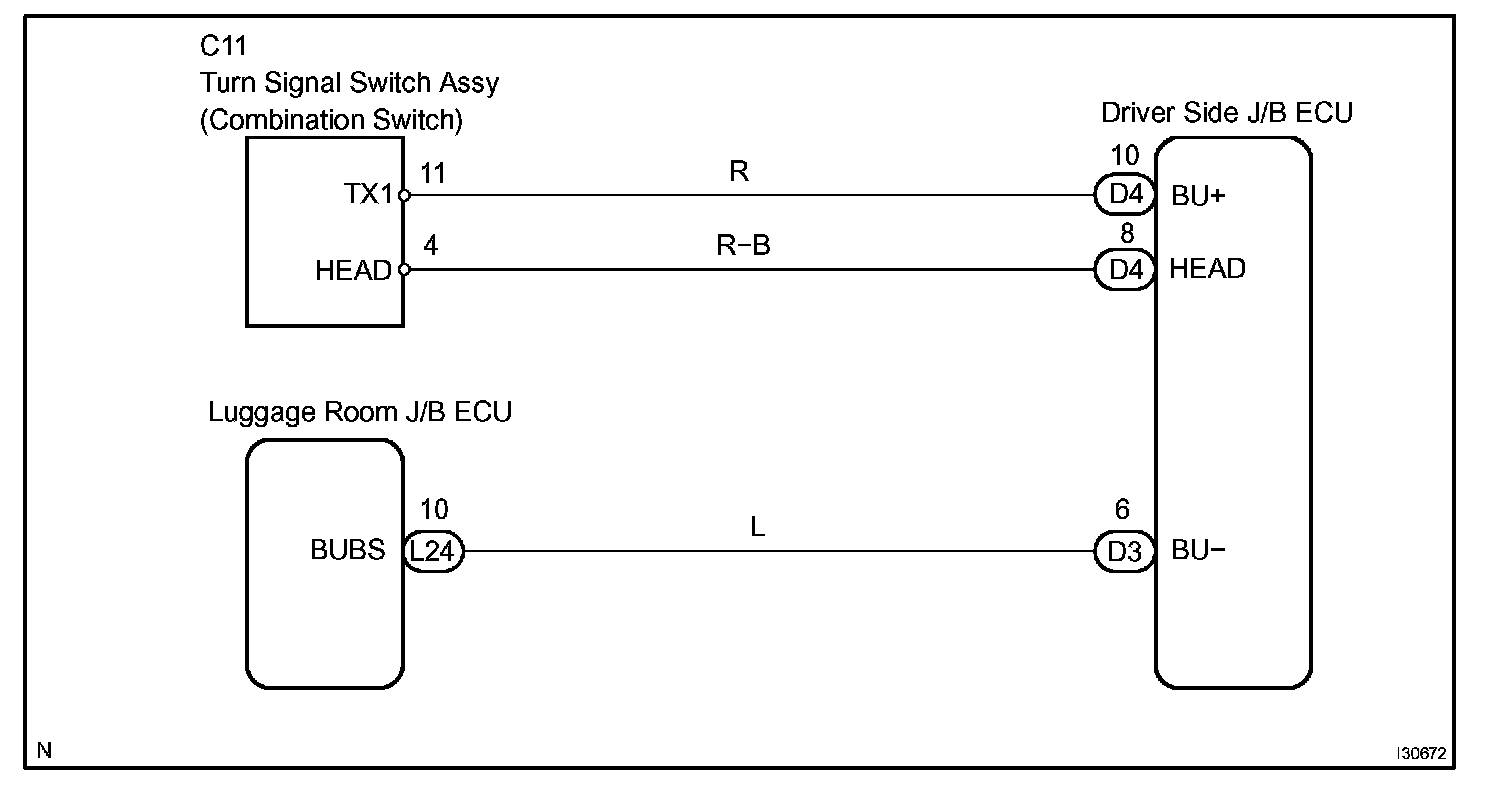

Wiring Diagram:

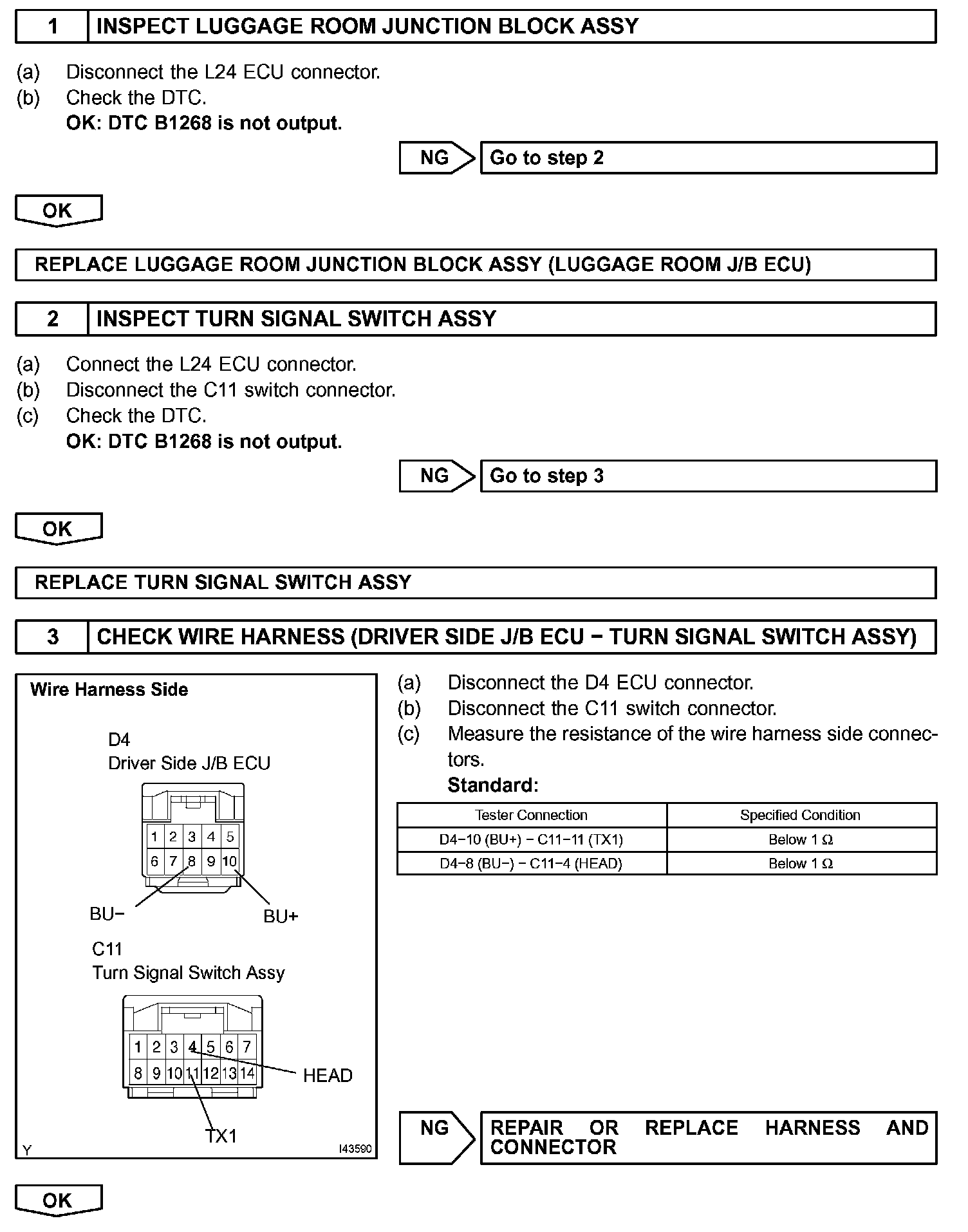

Step 1-3:

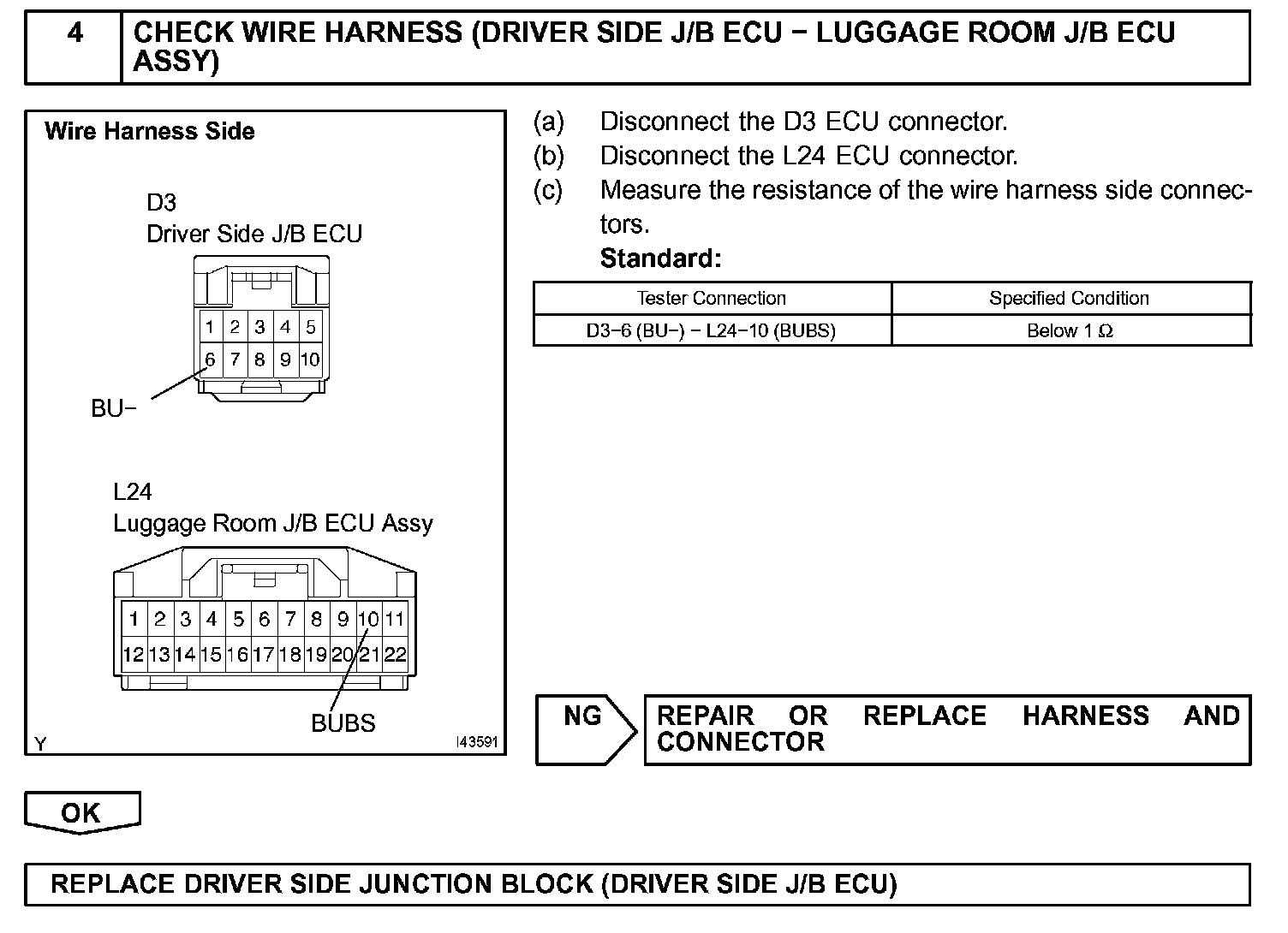

Step 4:

INSPECTION PROCEDURE
