B1248

DTC B1248 AVC-LAN COMMUNICATION IMPOSSIBLE

CIRCUIT DESCRIPTION

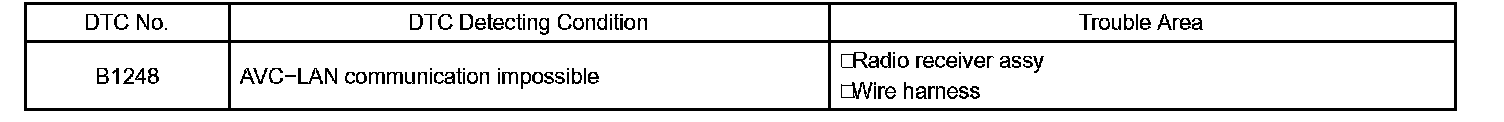

DTC Detecting Condition:

This DTC is detected when communication is impossible between the radio receiver assy and network gateway ECU.

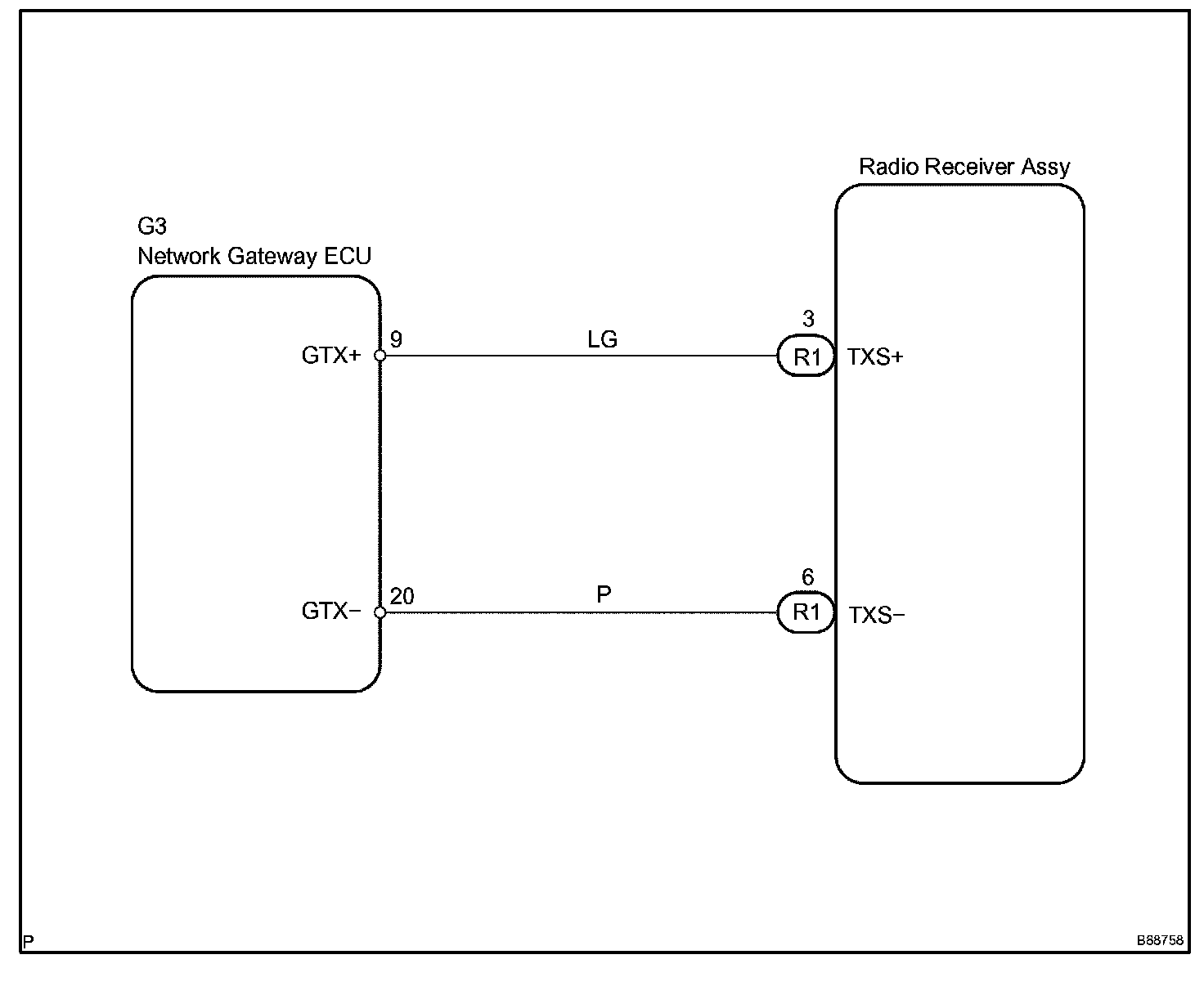

Wiring Diagram:

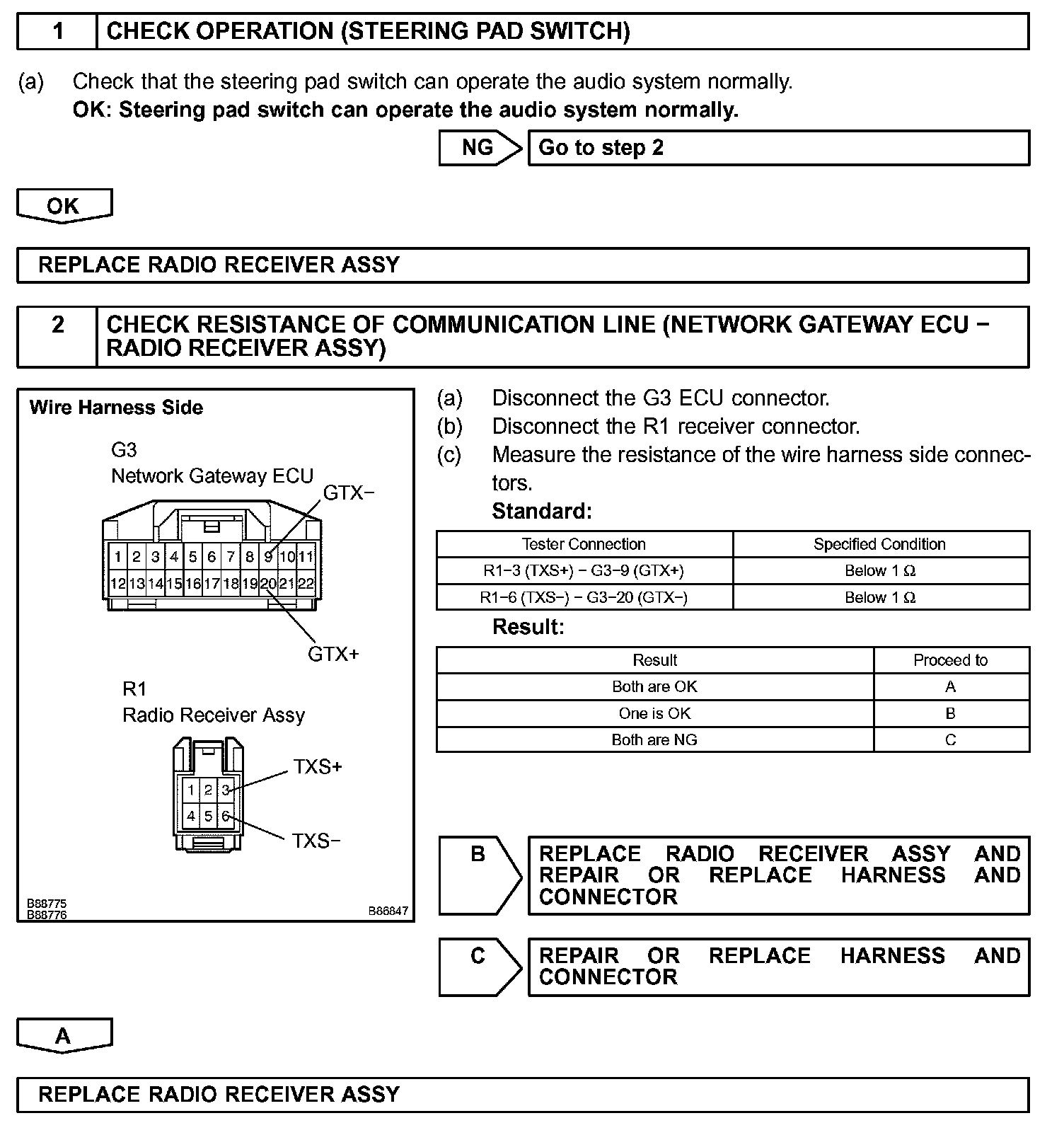

Step 1-2:

INSPECTION PROCEDURE
