B1244

DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

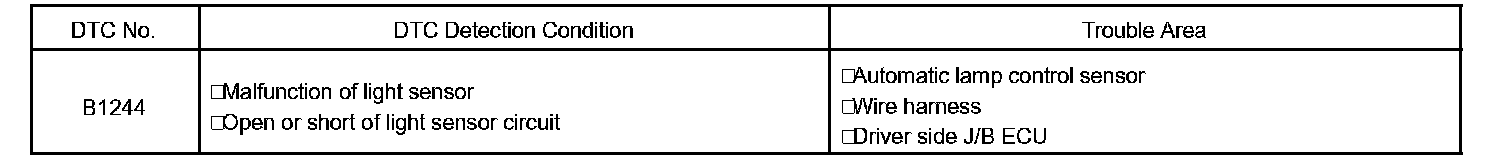

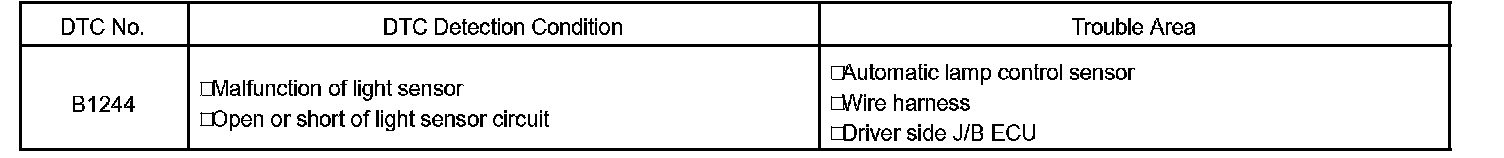

DTC Detection Condition:

This DTC is output when a failure of the lamp control sensor circuit is detected.

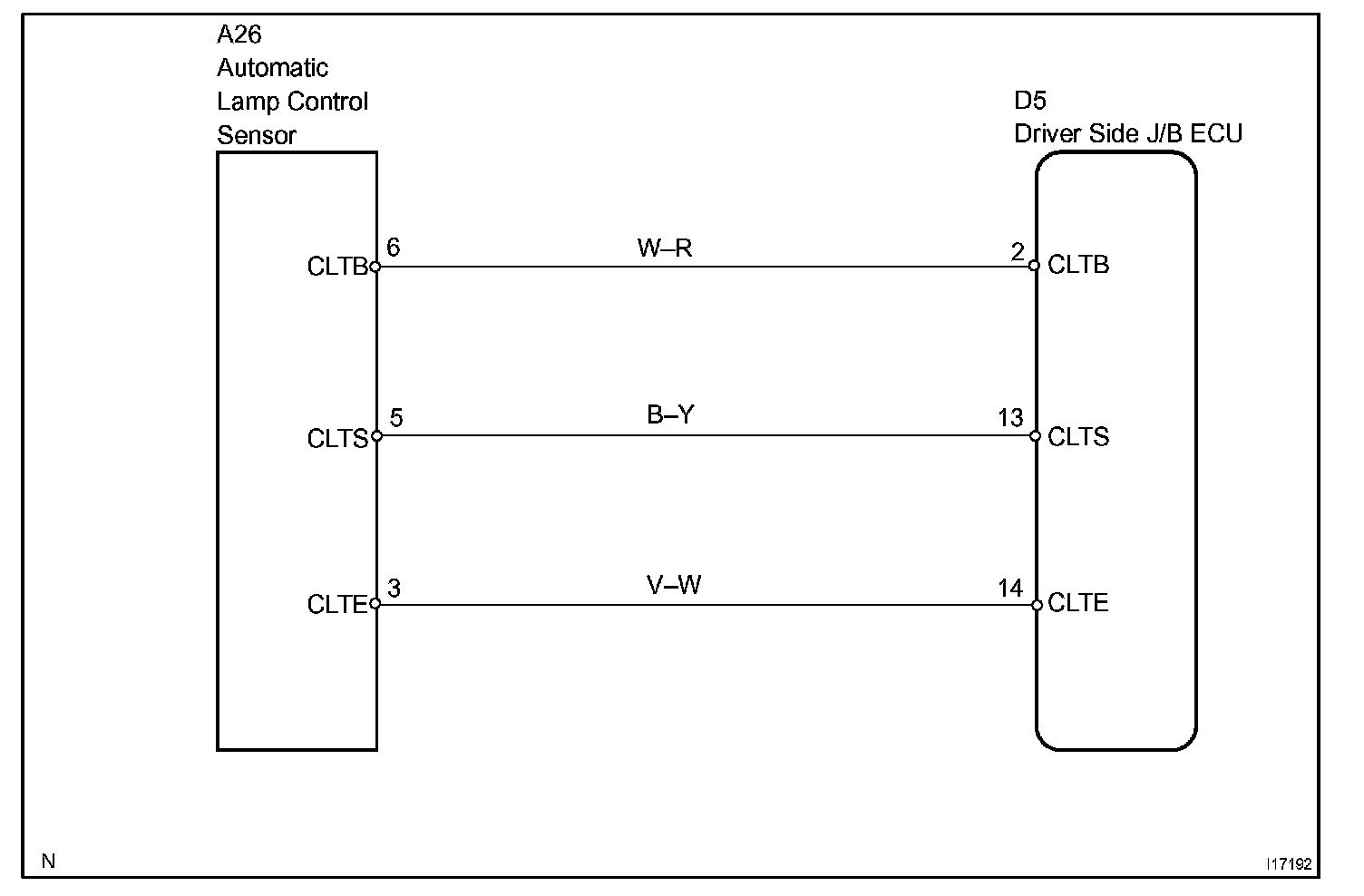

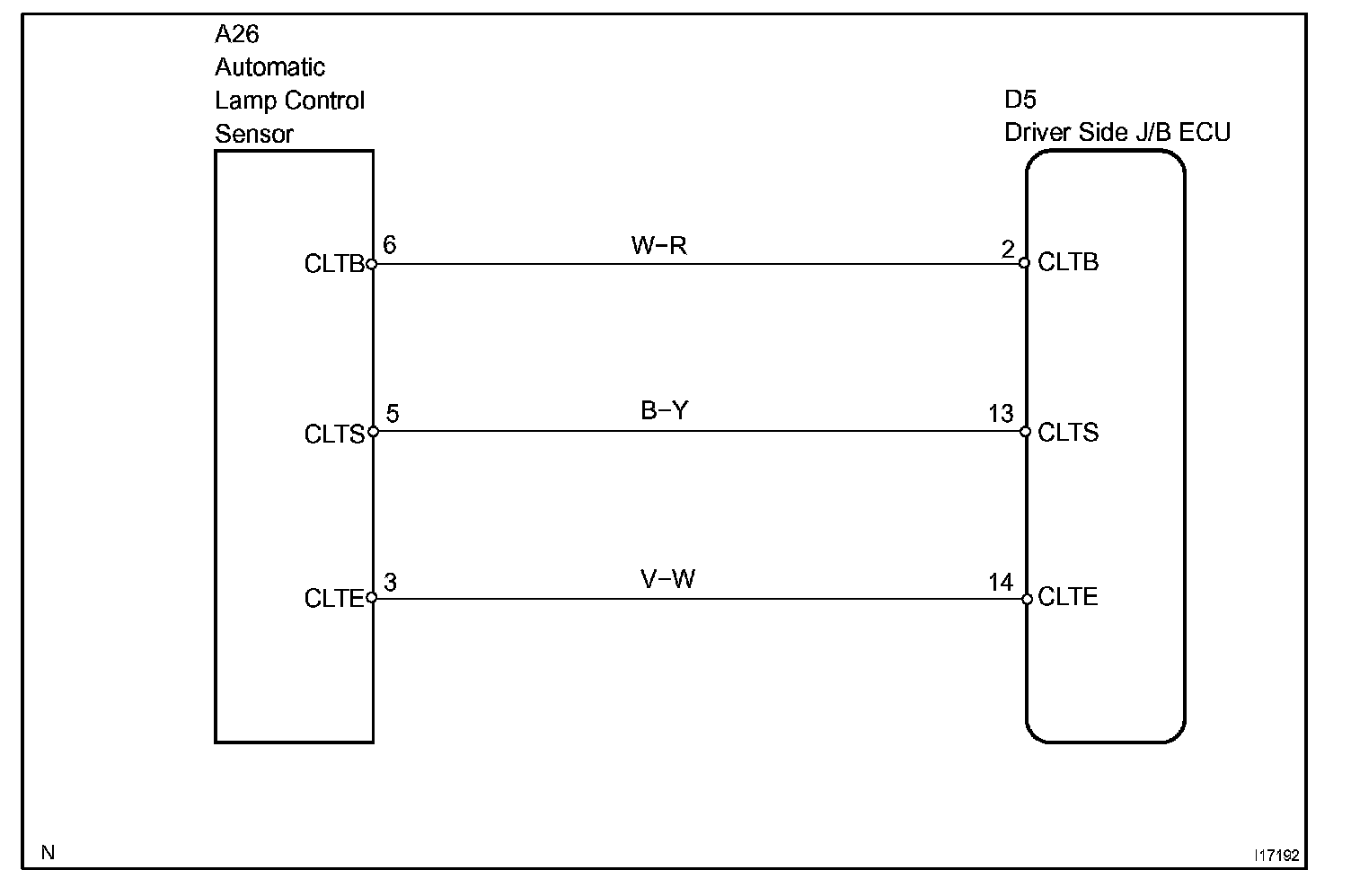

Wiring Diagram:

Step 1-2:

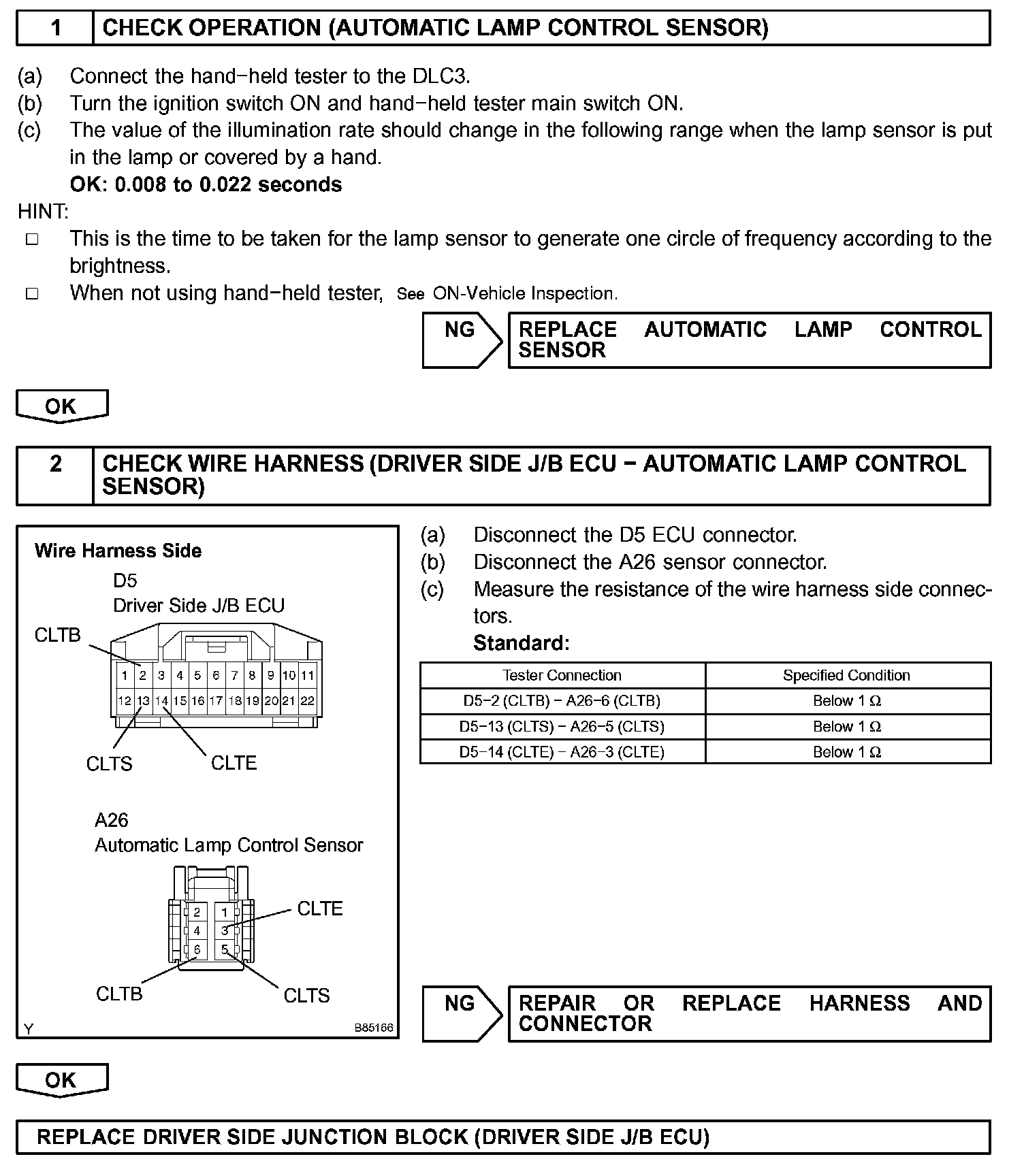

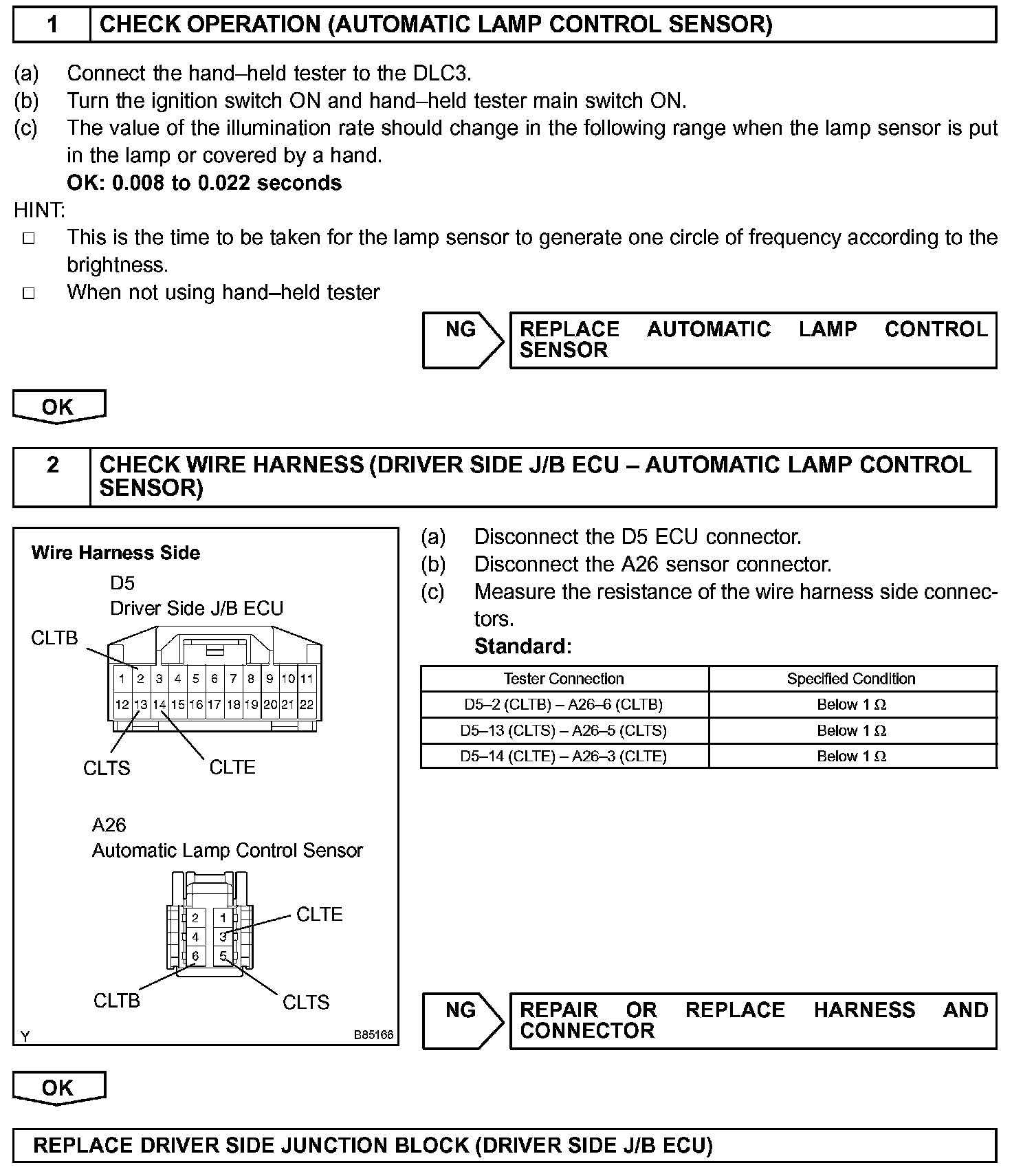

INSPECTION PROCEDURE
