B1205

DTC B1205 AFS ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

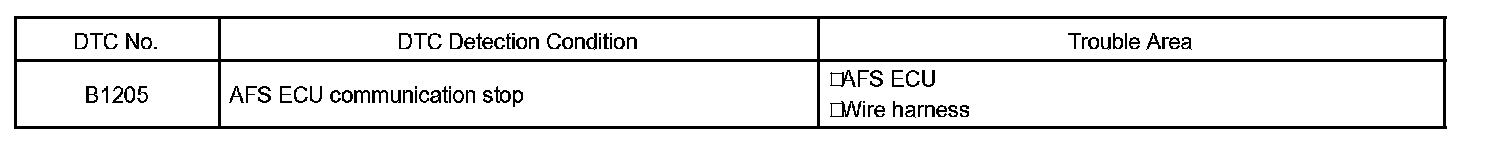

DTC Detection Condition:

This DTC is detected when communication between the AFS ECU and network gateway ECU stops for more than 10 seconds.

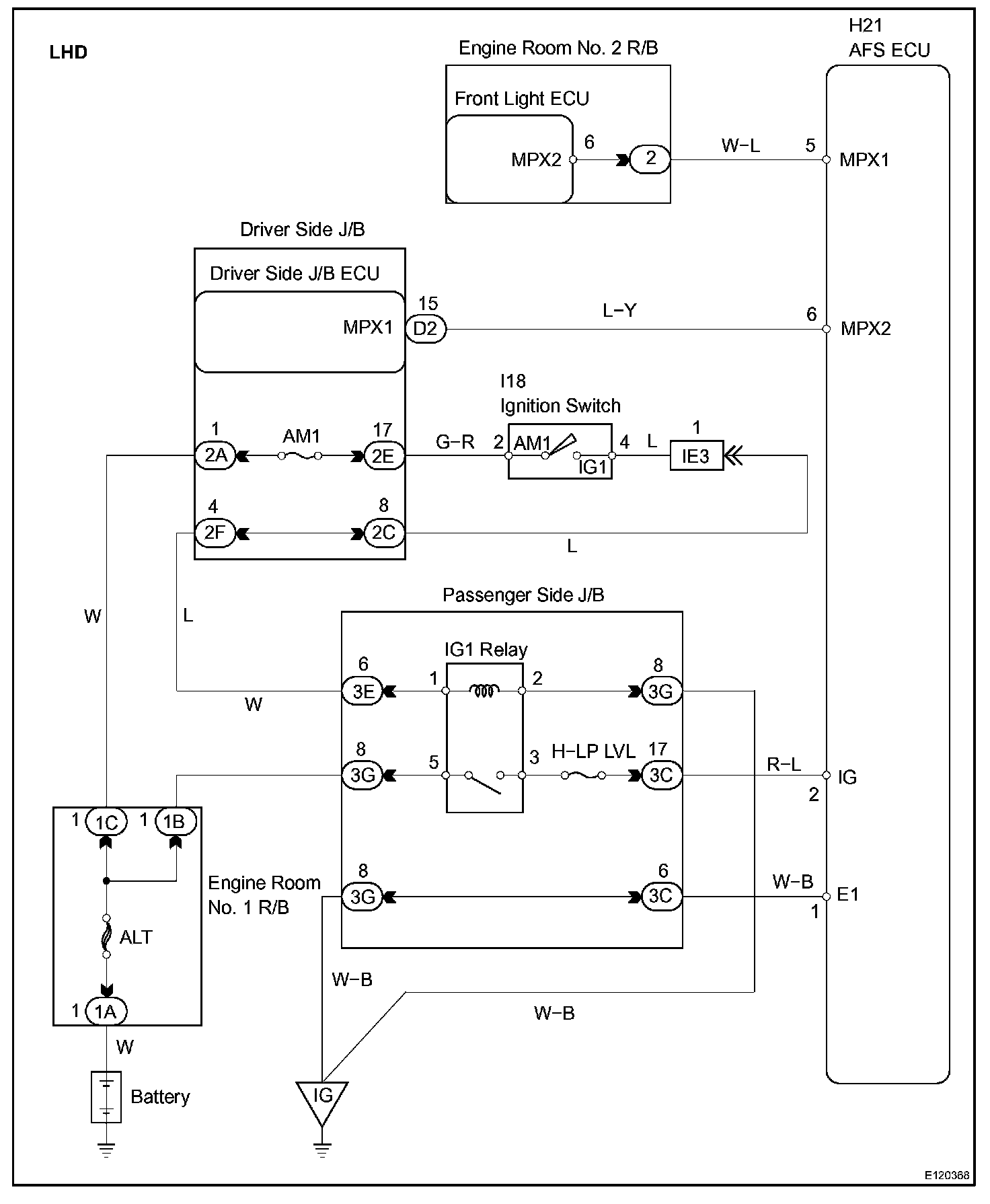

Wiring Diagram:

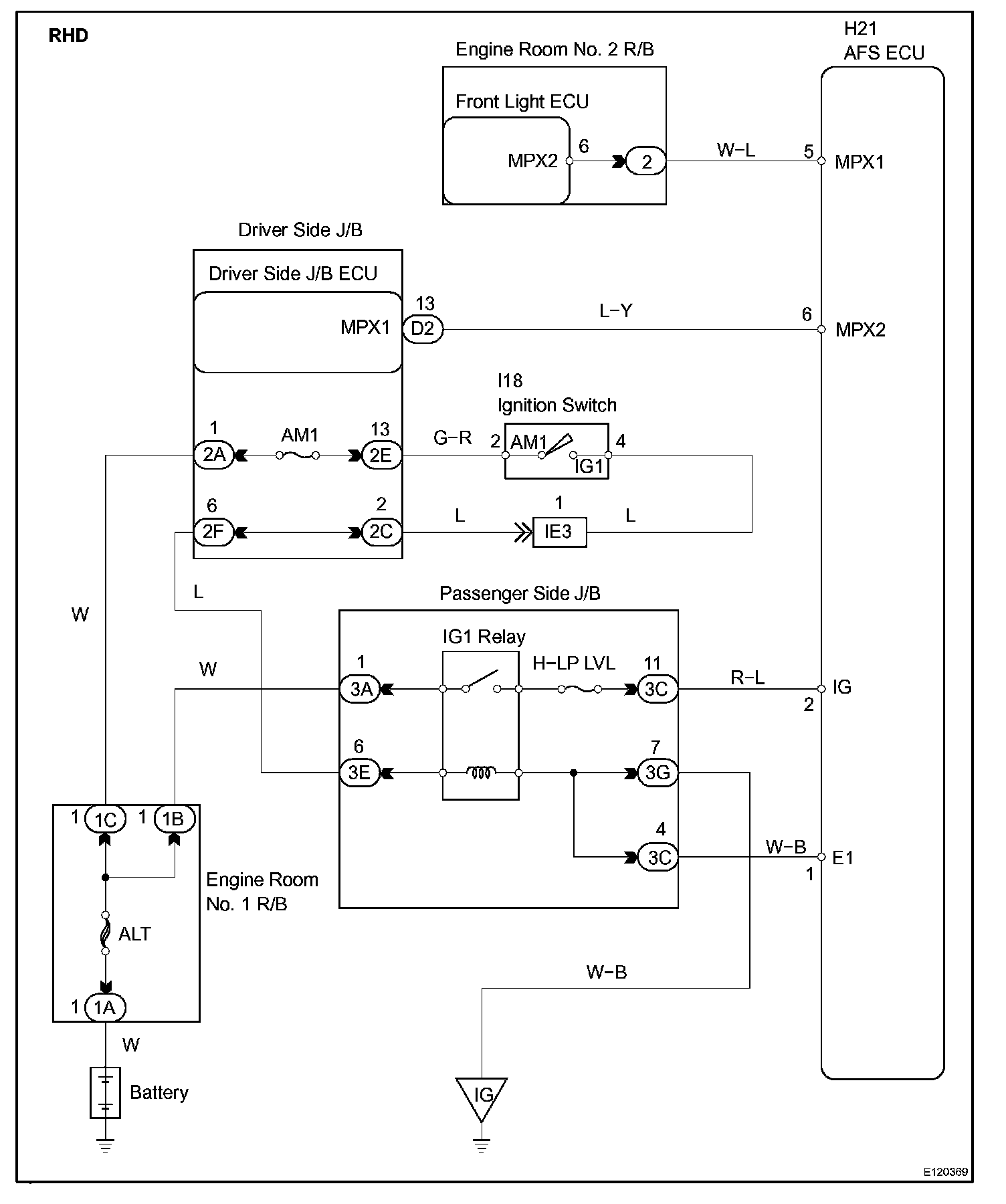

Wiring Diagram:

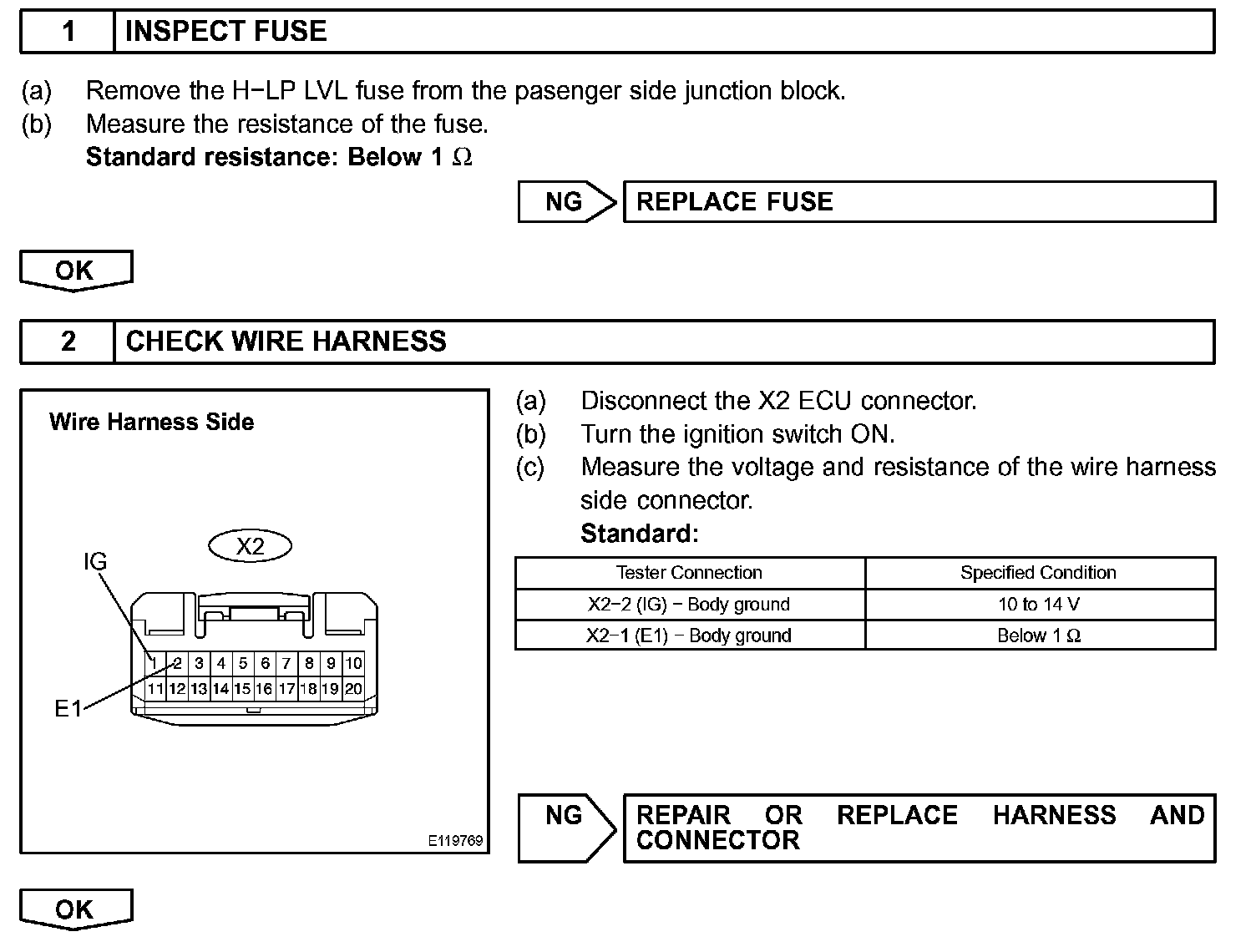

Step 1-2:

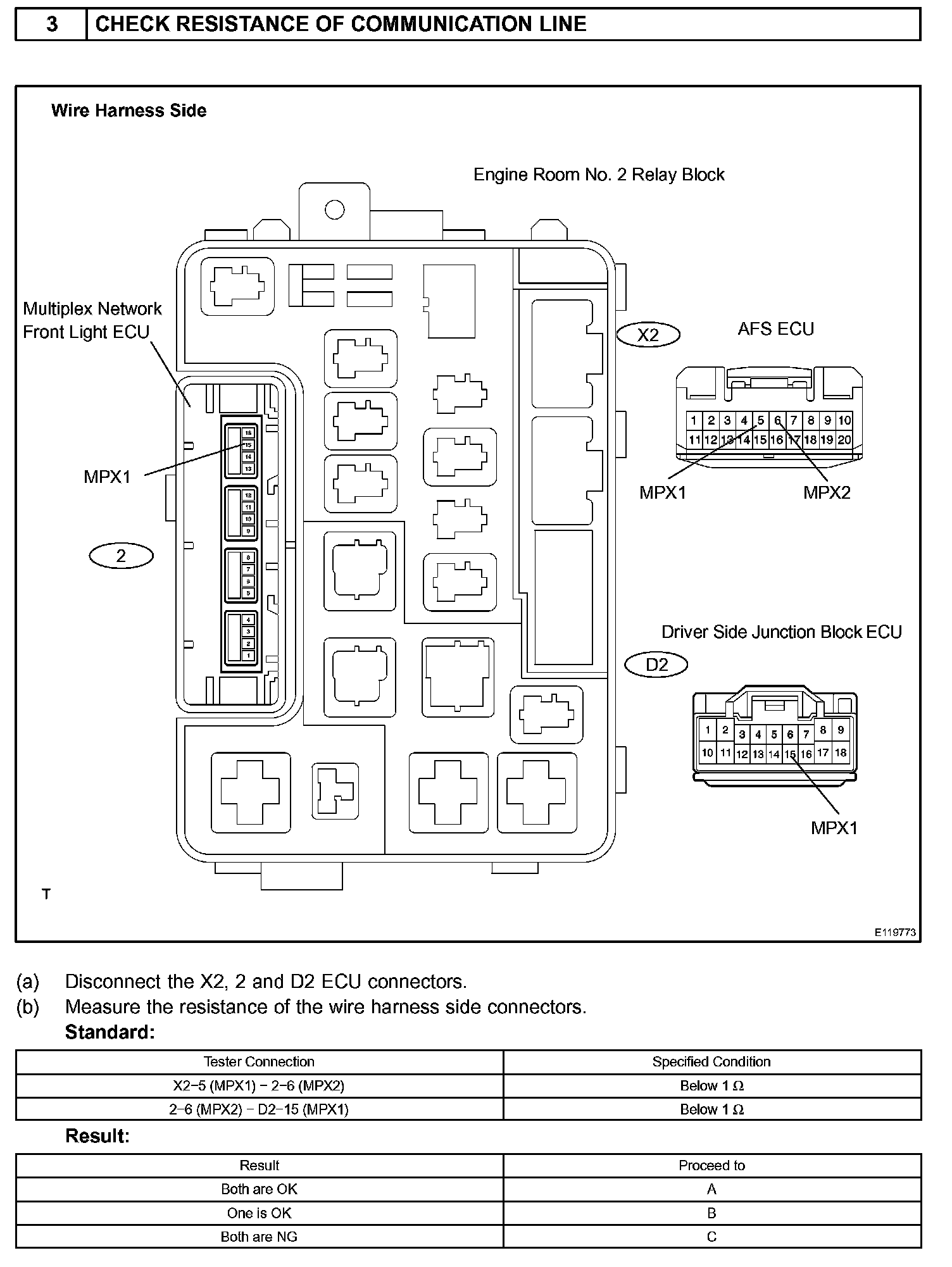

Step 3:

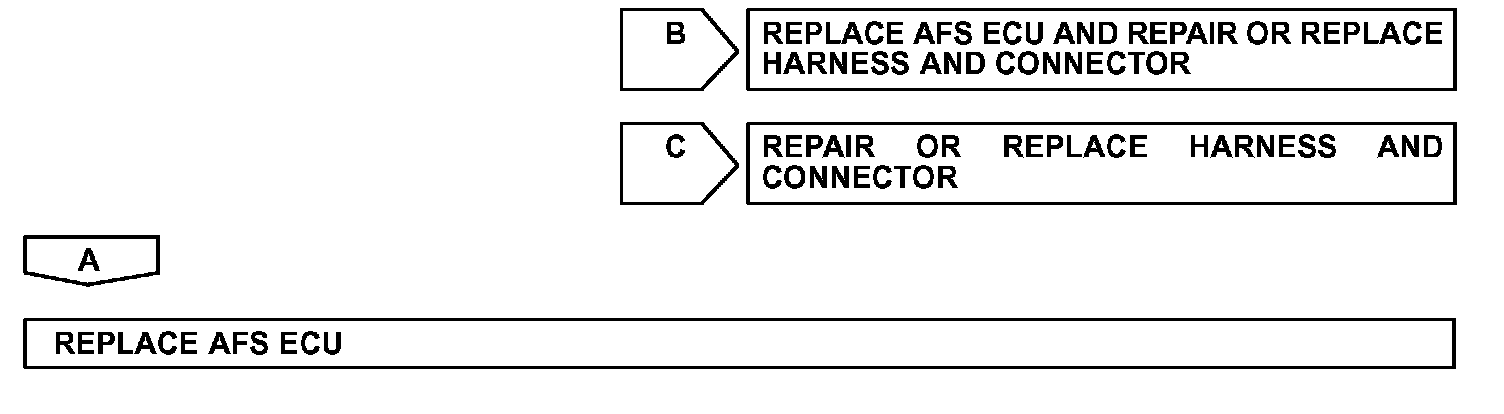

Step 3(Continued):

INSPECTION PROCEDURE
