Wiper and Washer Switch Circuit
WIPER AND WASHER SWITCH CIRCUITCIRCUIT DESCRIPTION
This circuit provides power to operate the combination switch. The signals by manual operation are sent to the passenger side J/B ECU.

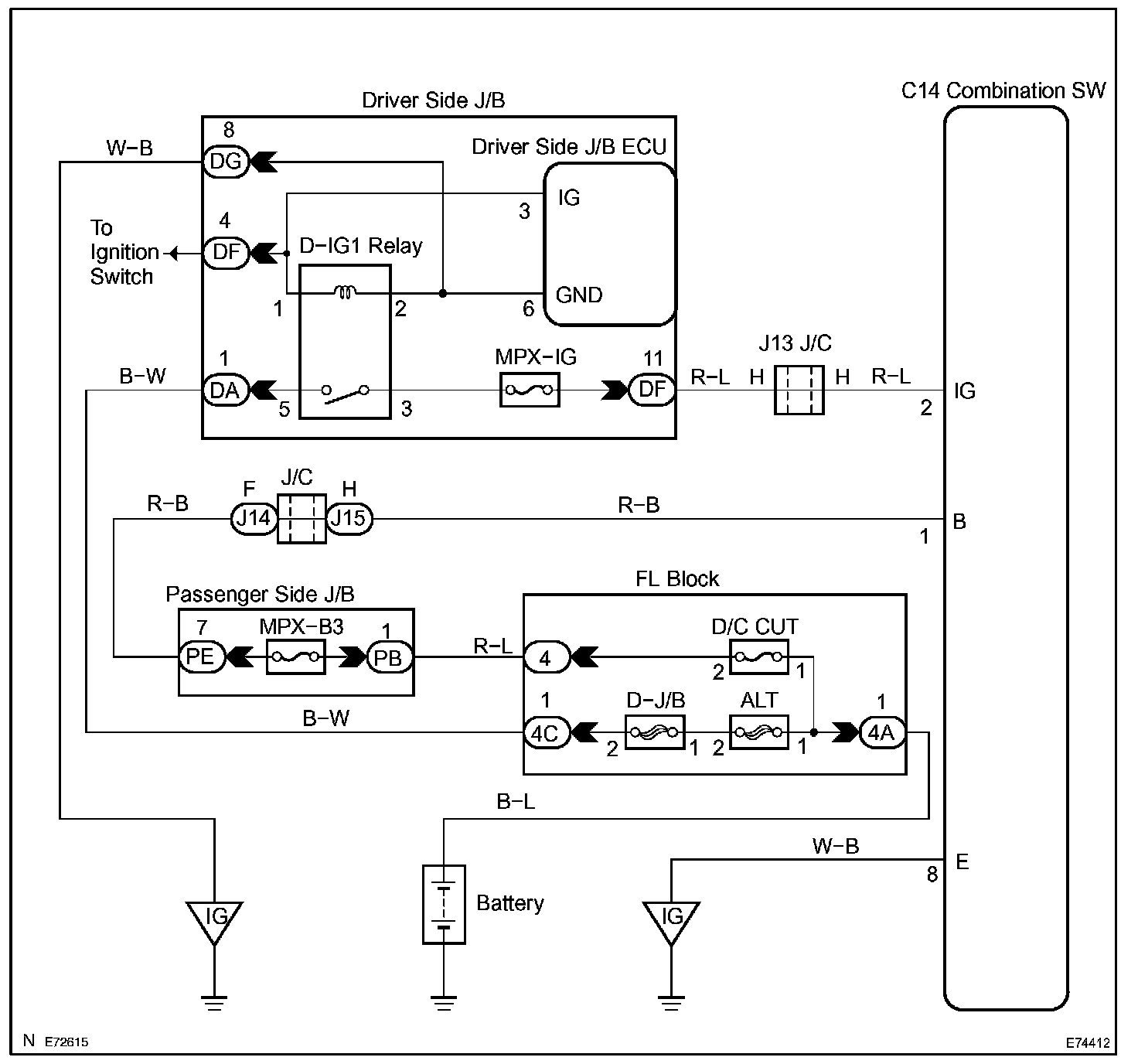

Wiring Diagram:
INSPECTION PROCEDURE
HINT: Before the procedure, check that DTCs are not output of multiplex communication system

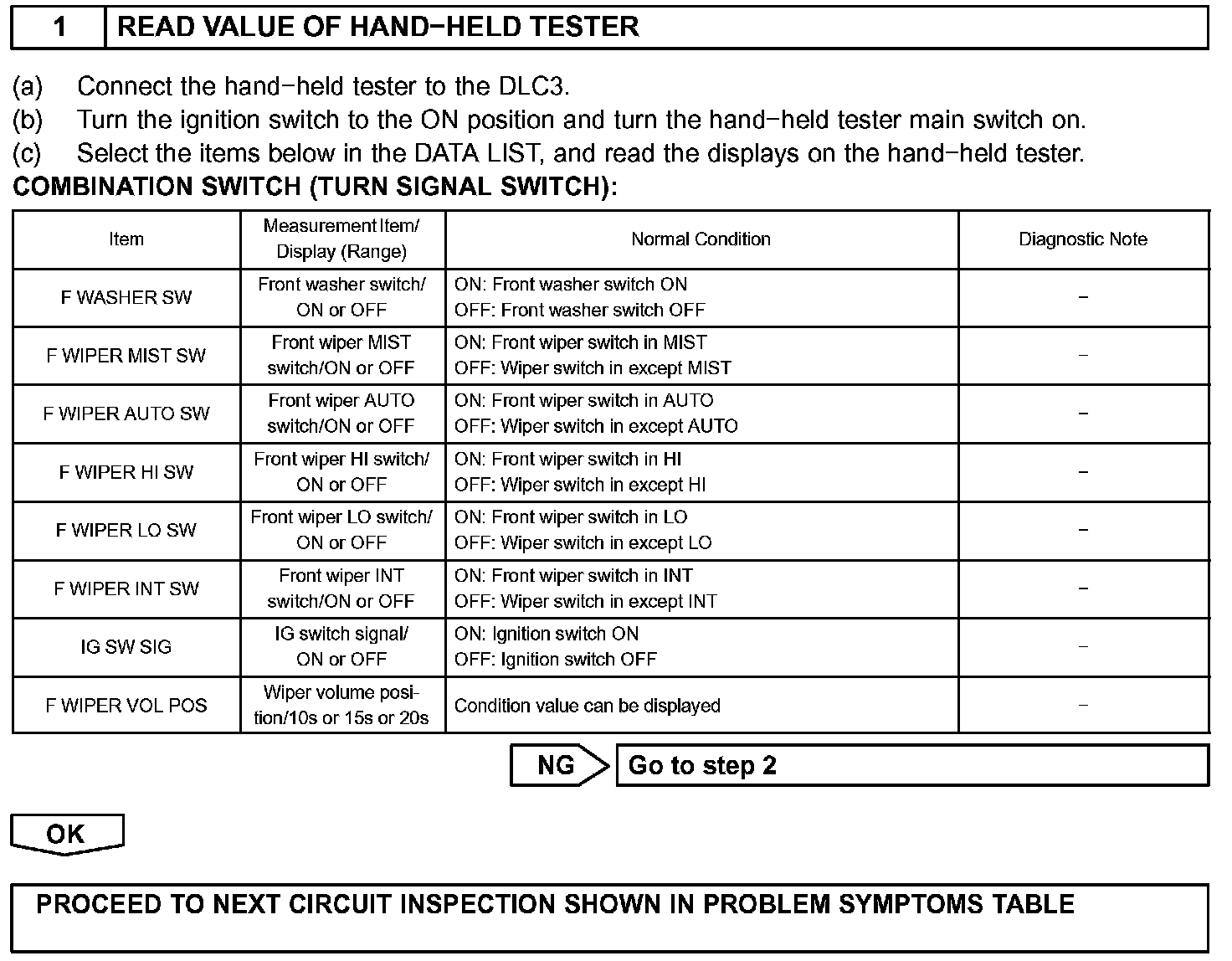

Step 1:

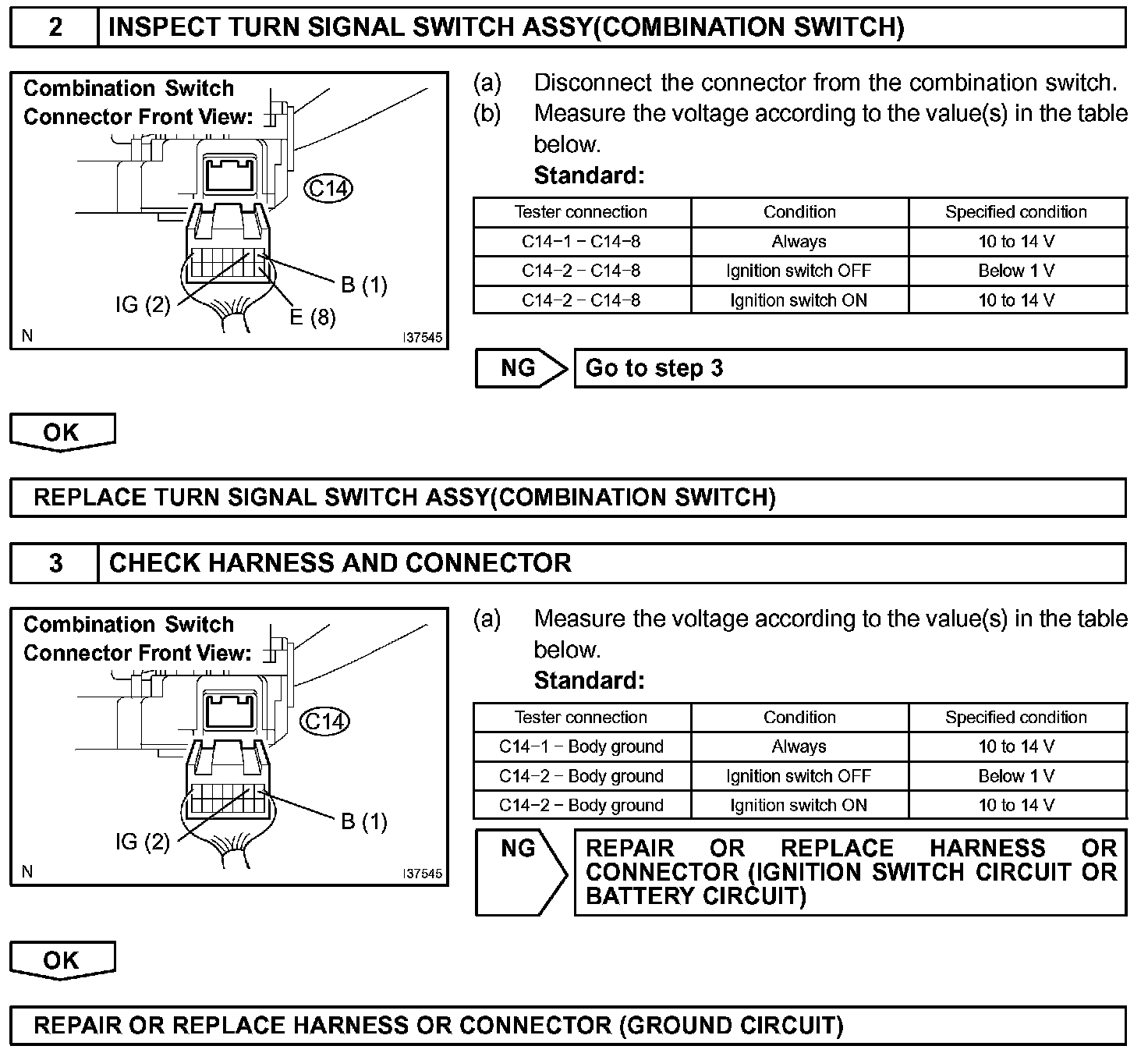

Step 2-3:
