Wiper Motor Power Source Circuit

WIPER MOTOR POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to the front wiper motor and operates the passenger side junction block ECU.

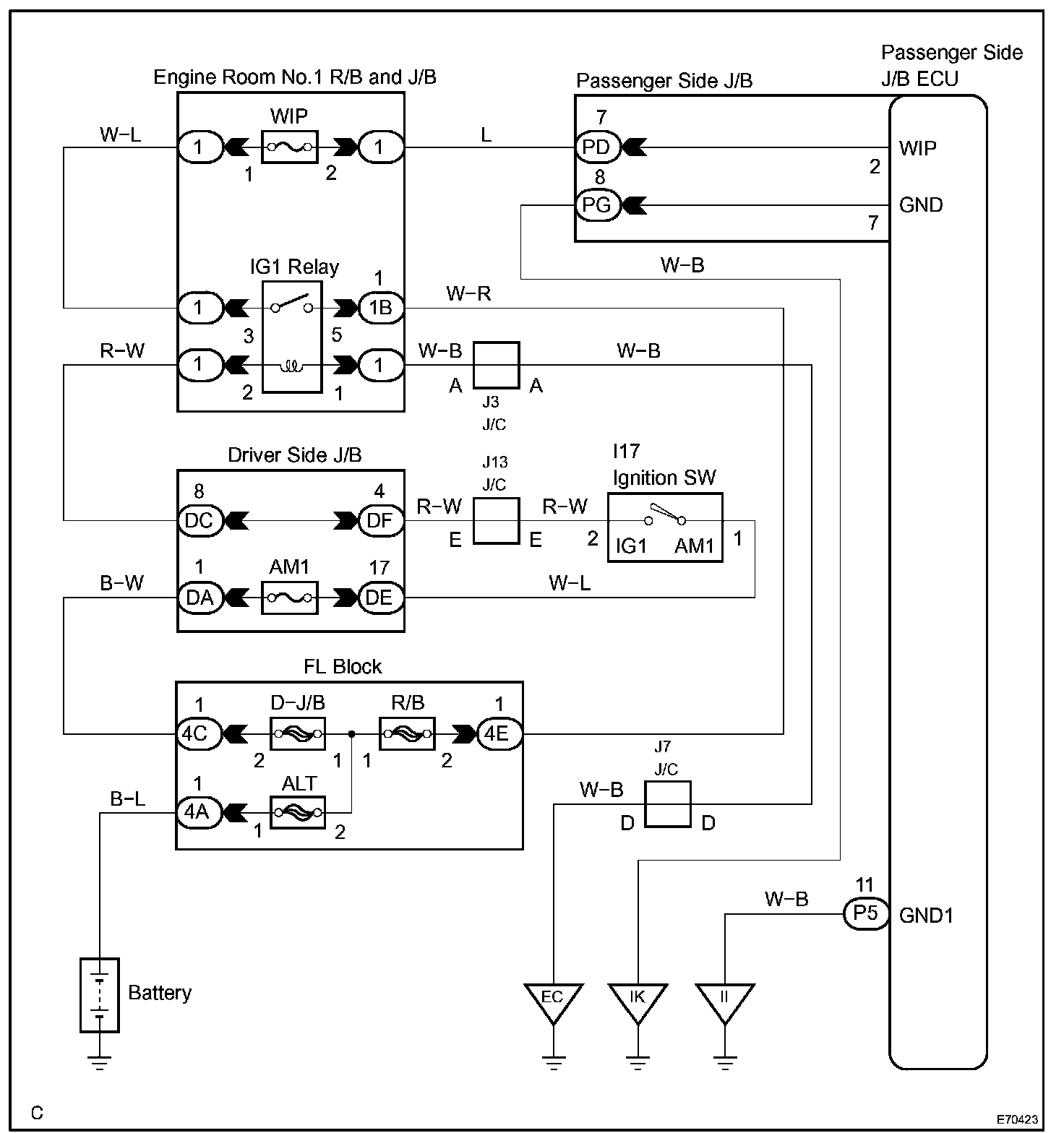

Wiring Diagram:





INSPECTION PROCEDURE

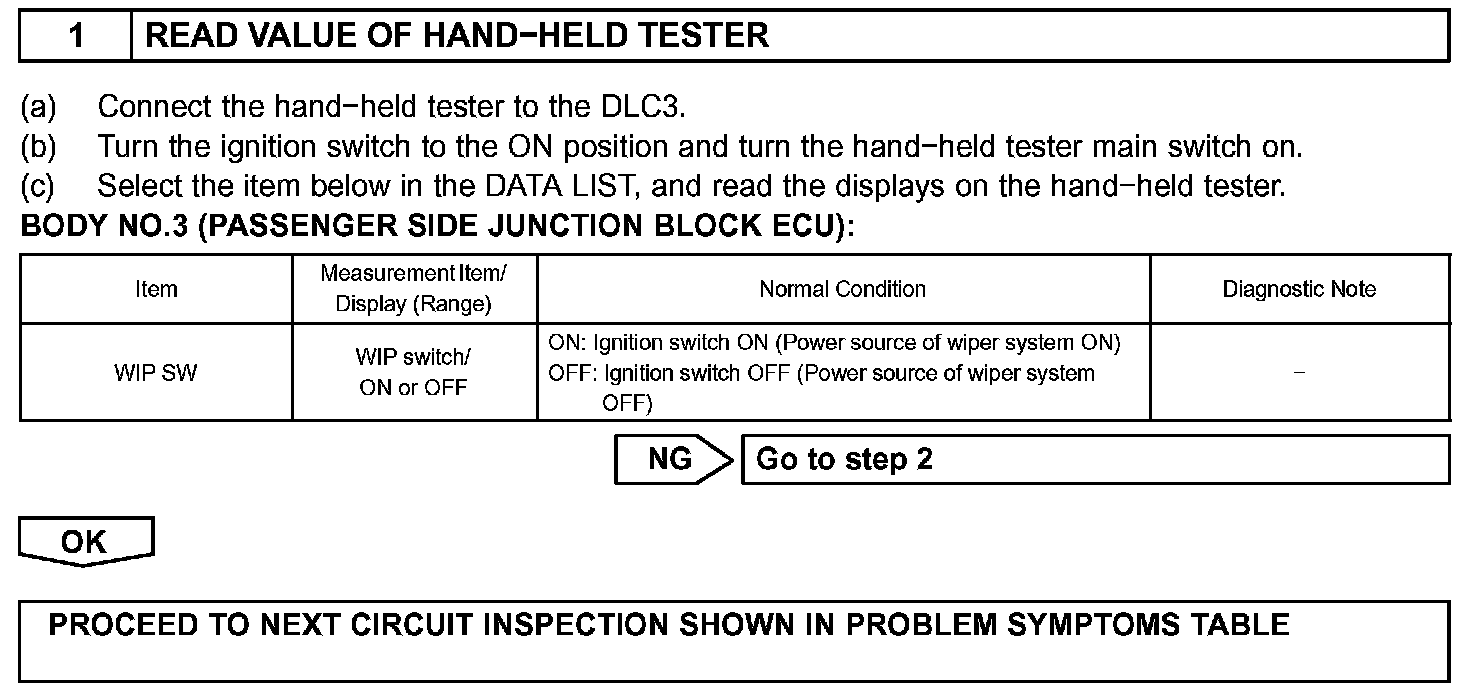

Step 1:

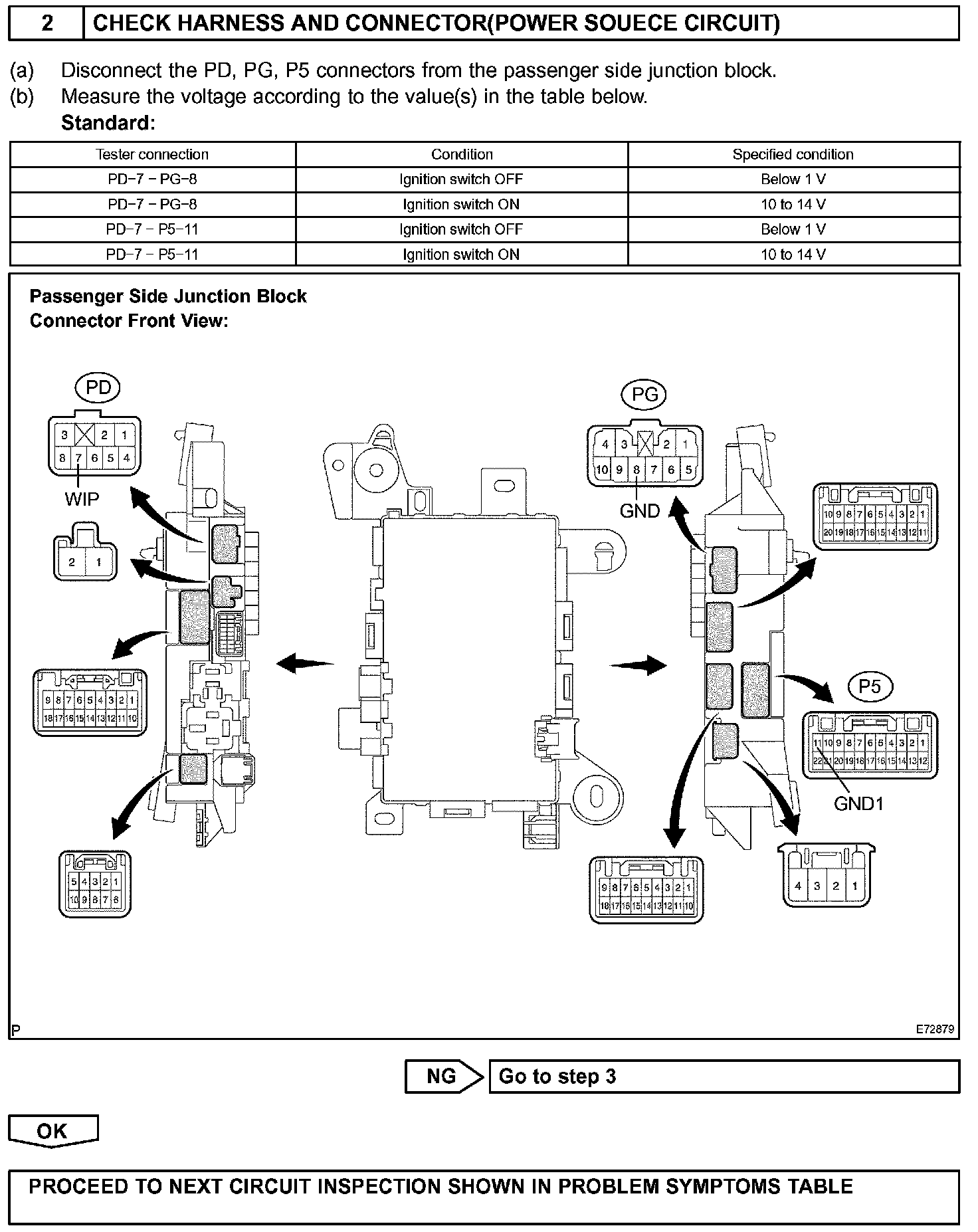

Step 2:

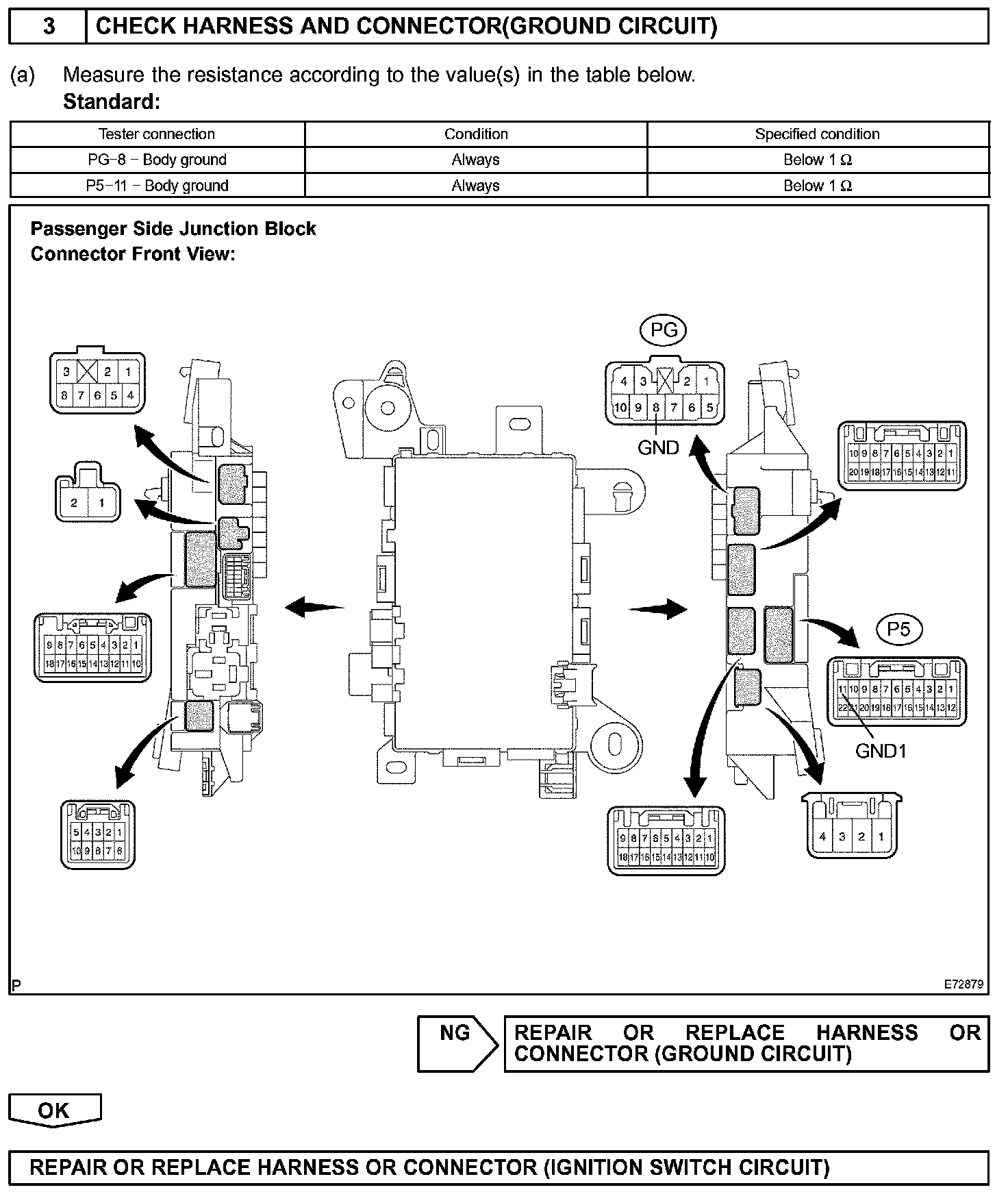

Step 3:
