Headlight Cleaner Switch Circuit

HEADLIGHT CLEANER SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the conditions of the headlamp cleaner switch. Headlamp cleaner control relay receives the following signals:
- Headlamp cleaner switch signal
- Headlamp operating signal
- Daytime running light operating signal
- Front washer motor operating signal

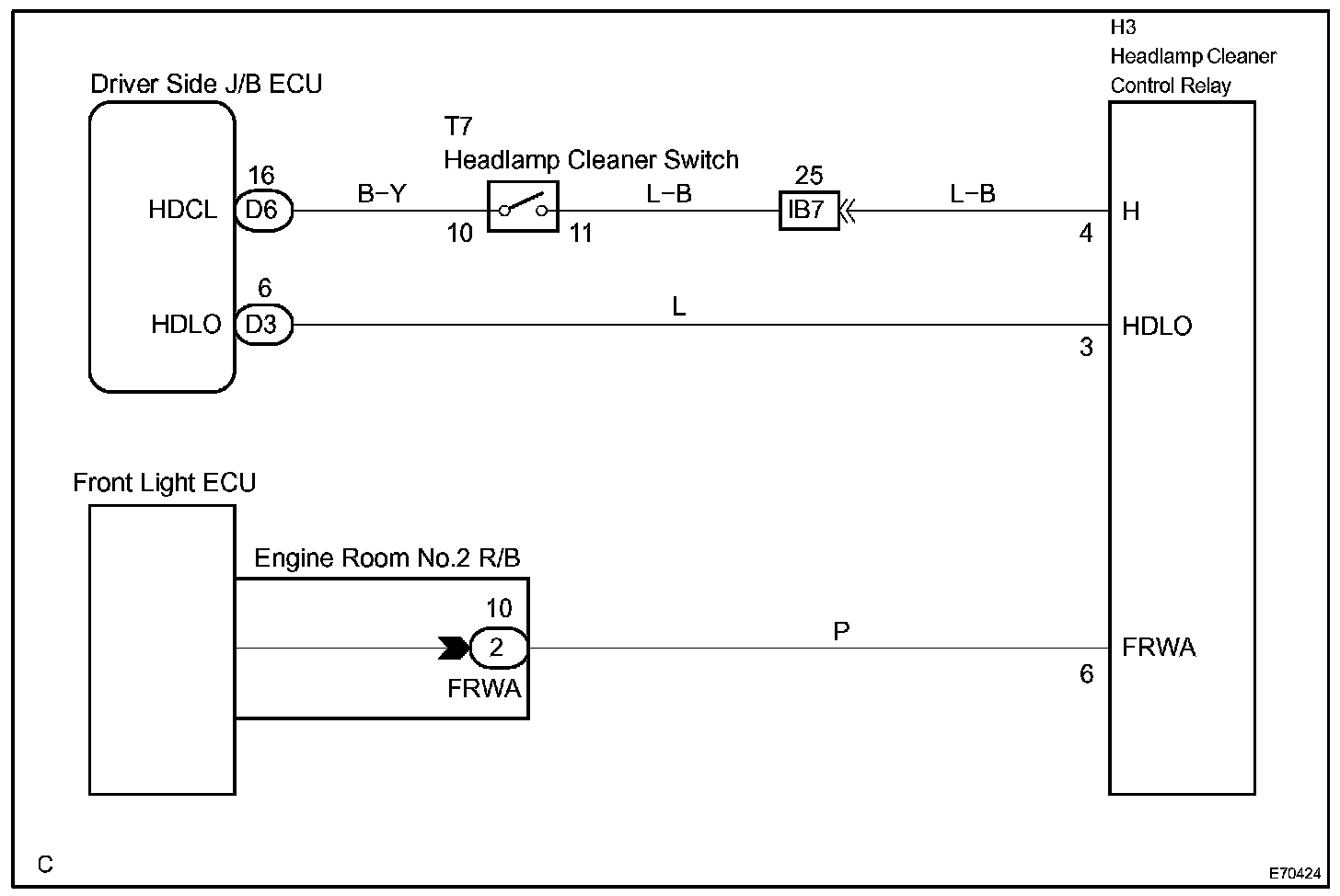

Wiring Diagram:

INSPECTION PROCEDURE

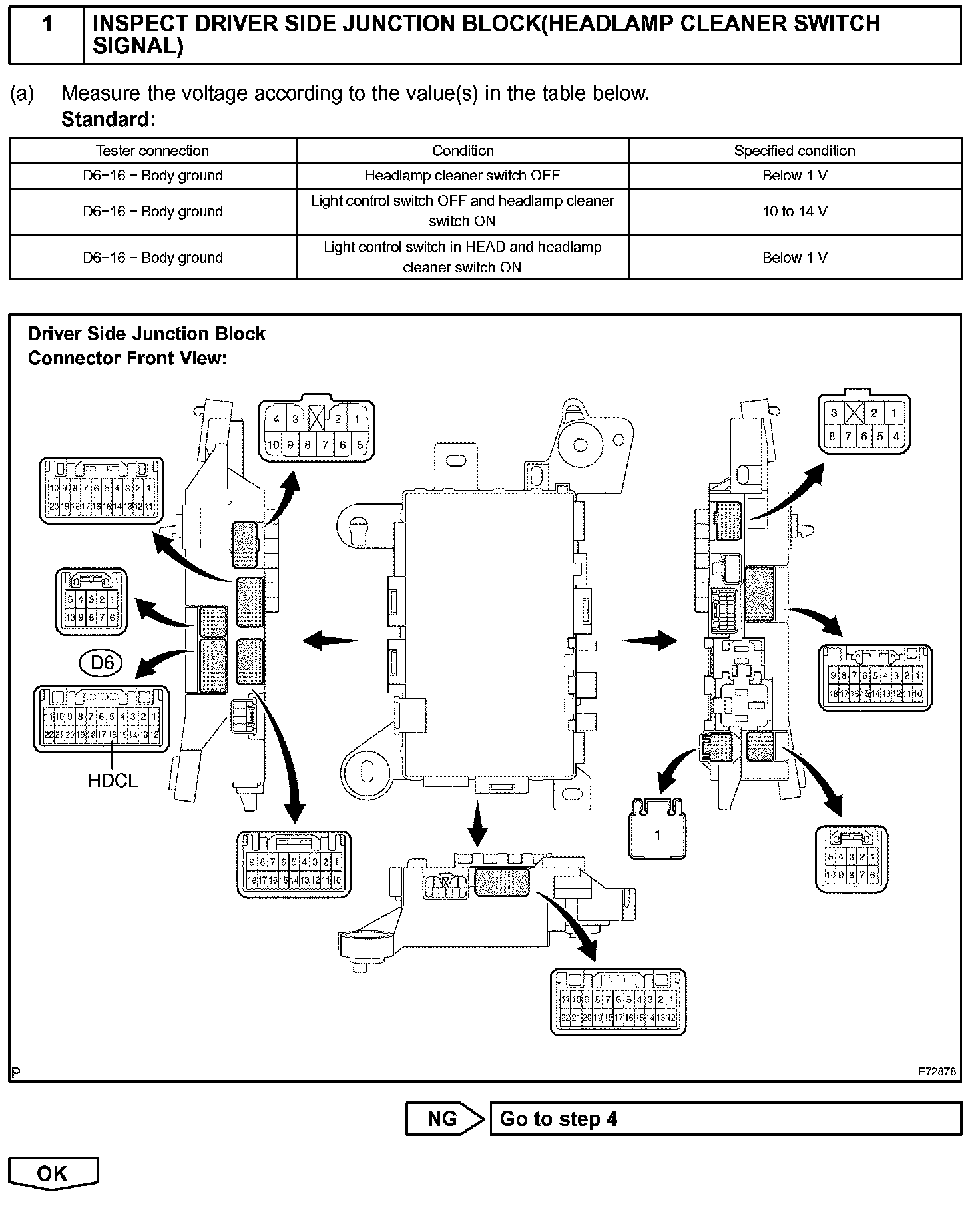

Step 1:

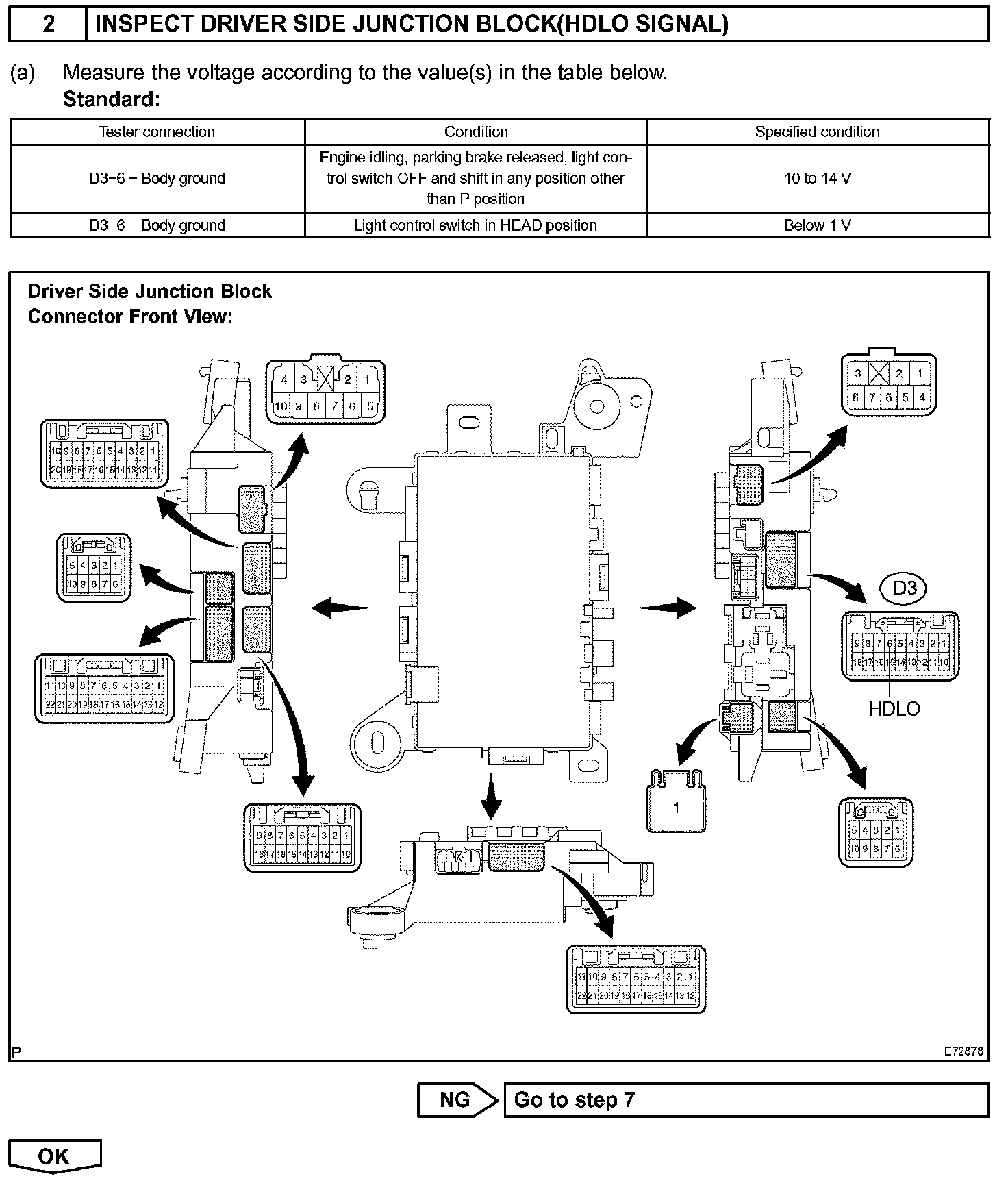

Step 2:

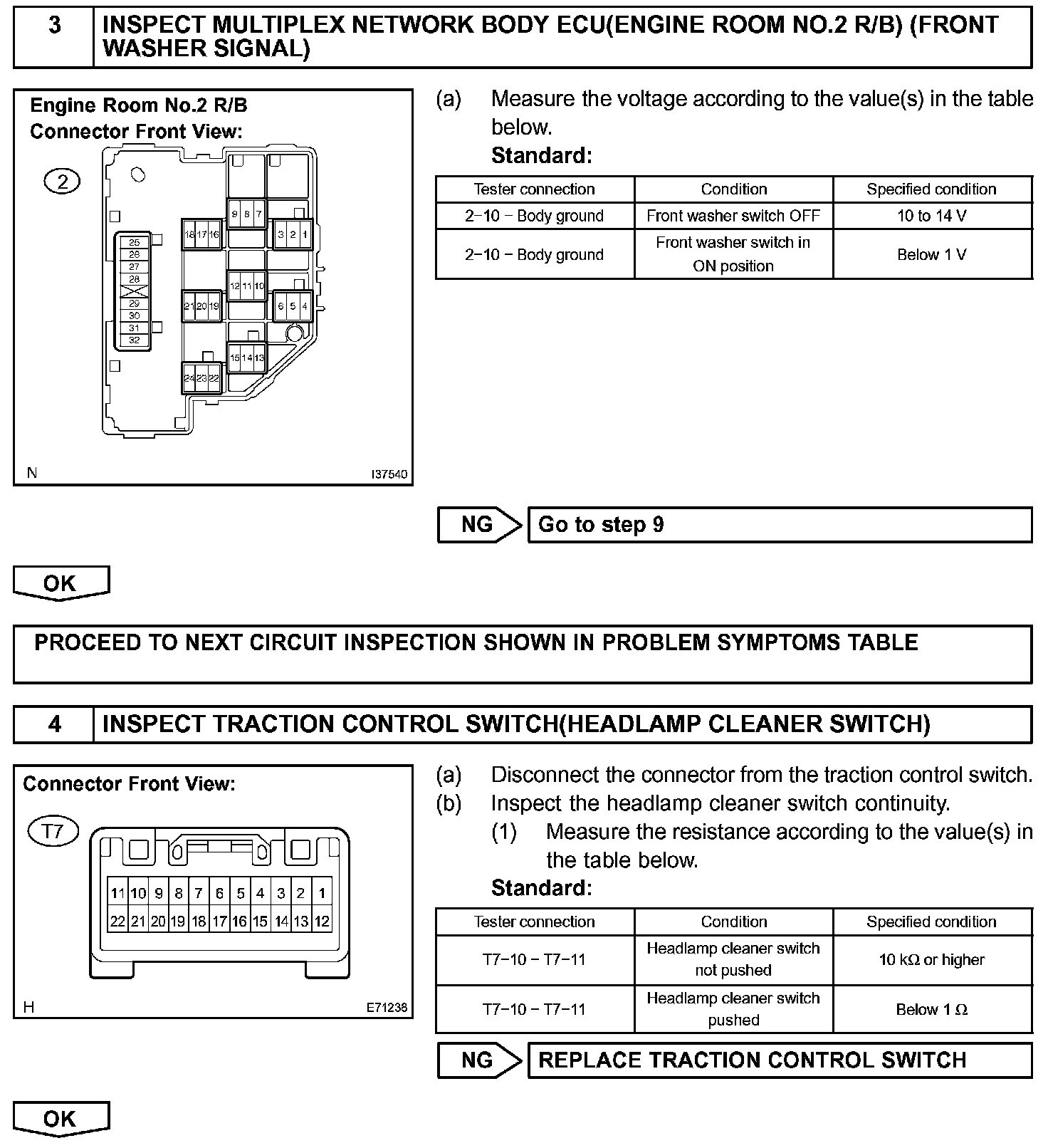

Step 3-4:

Step 5:

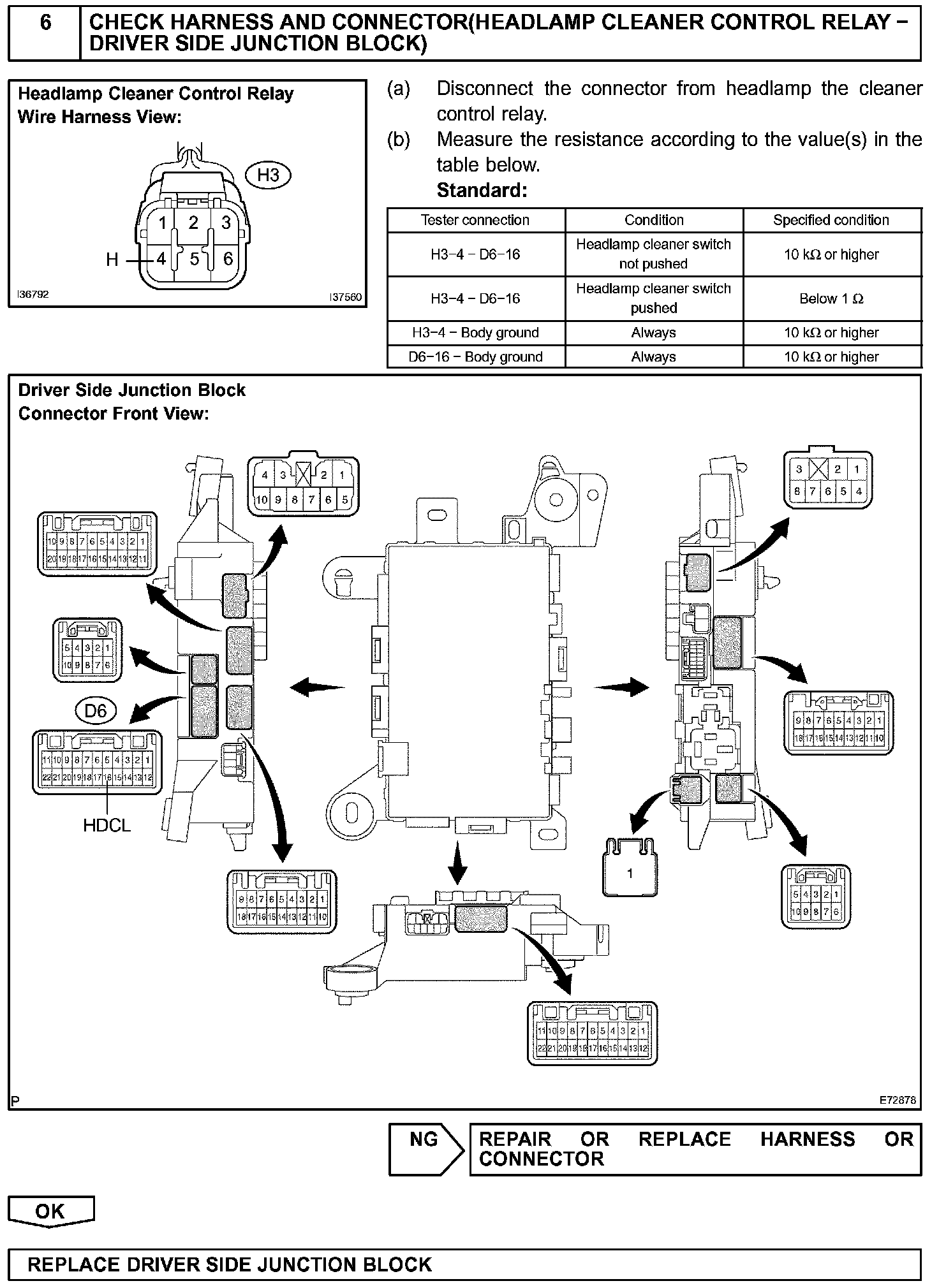

Step 6:

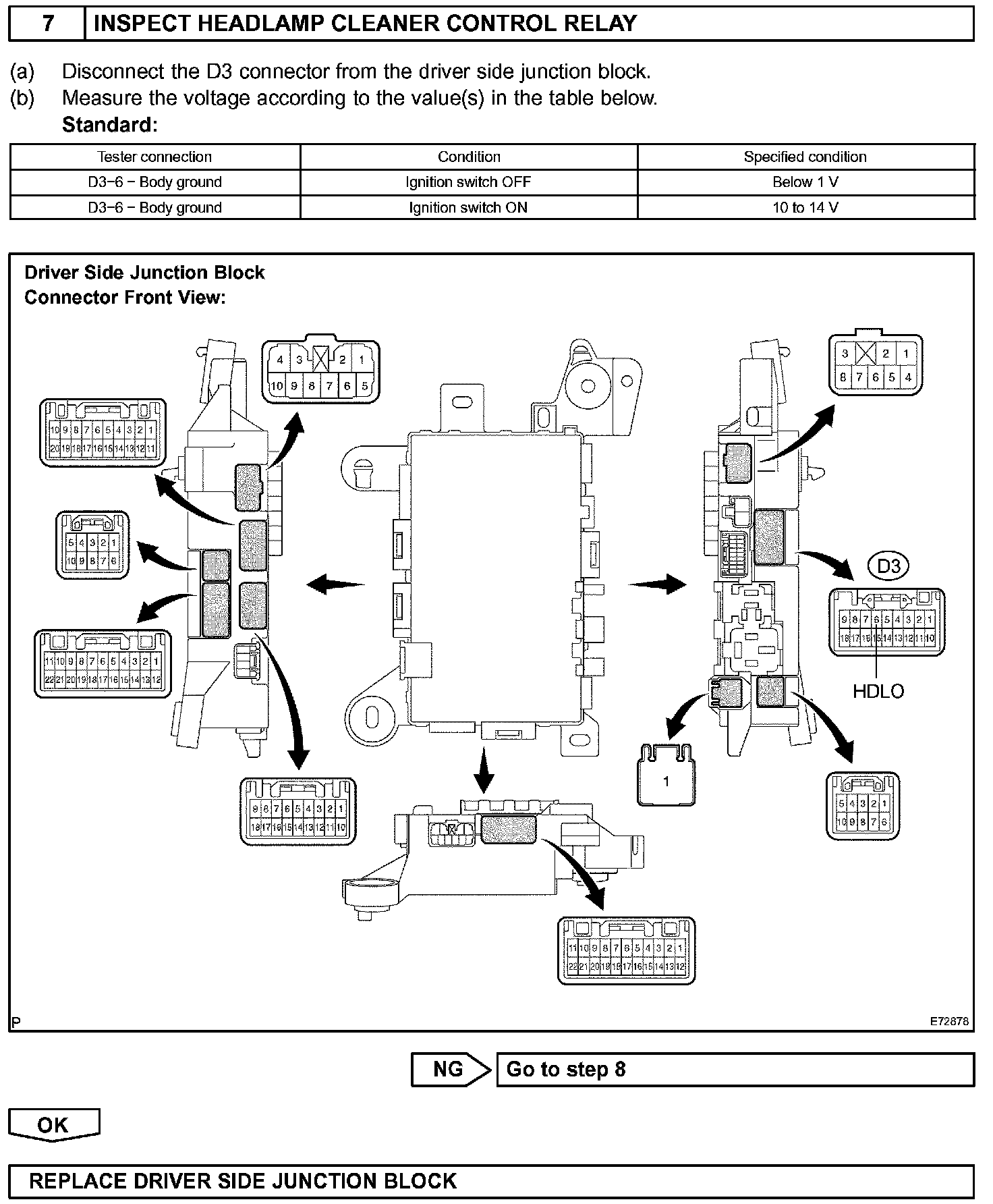

Step 7:

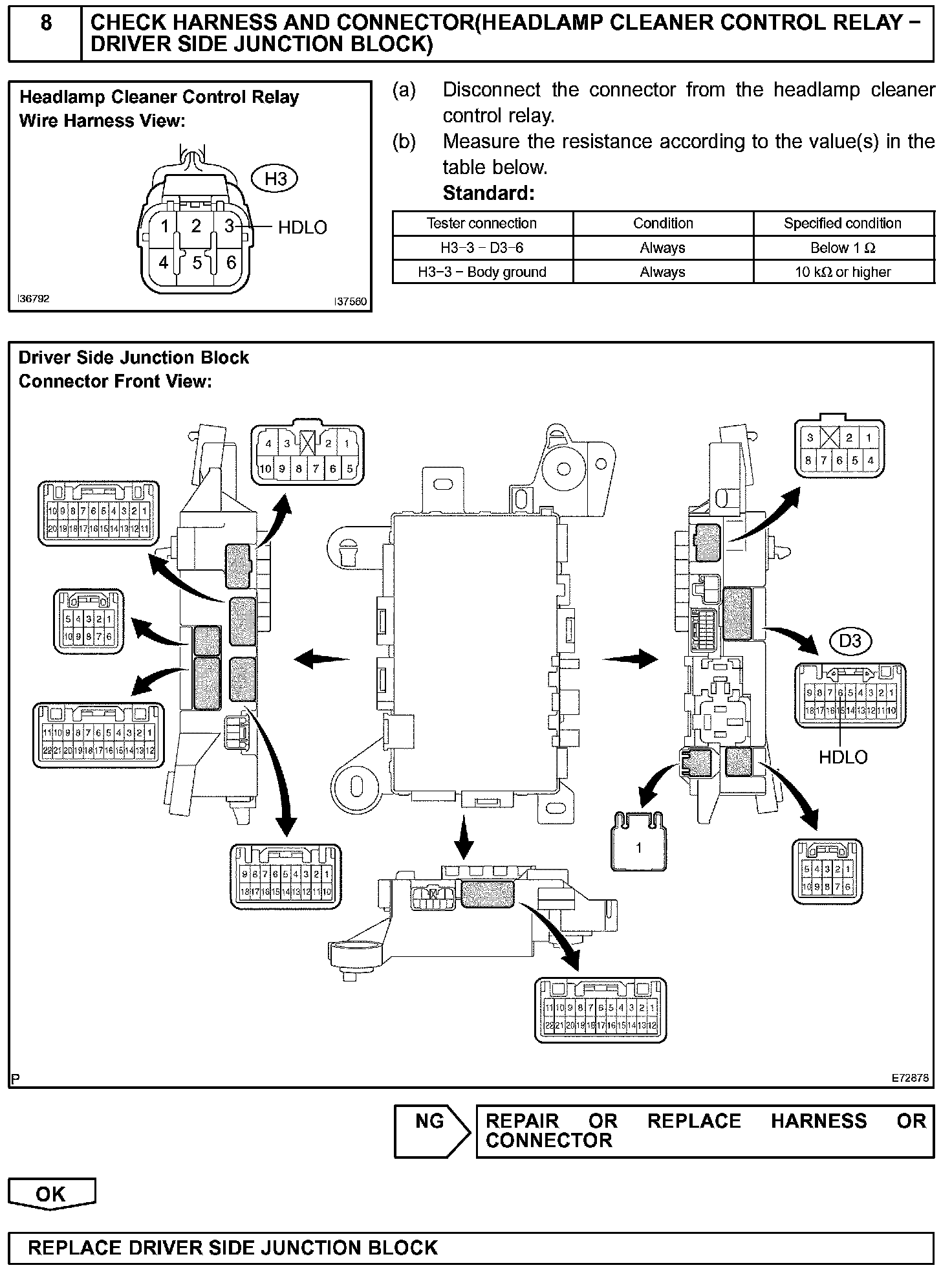

Step 8:

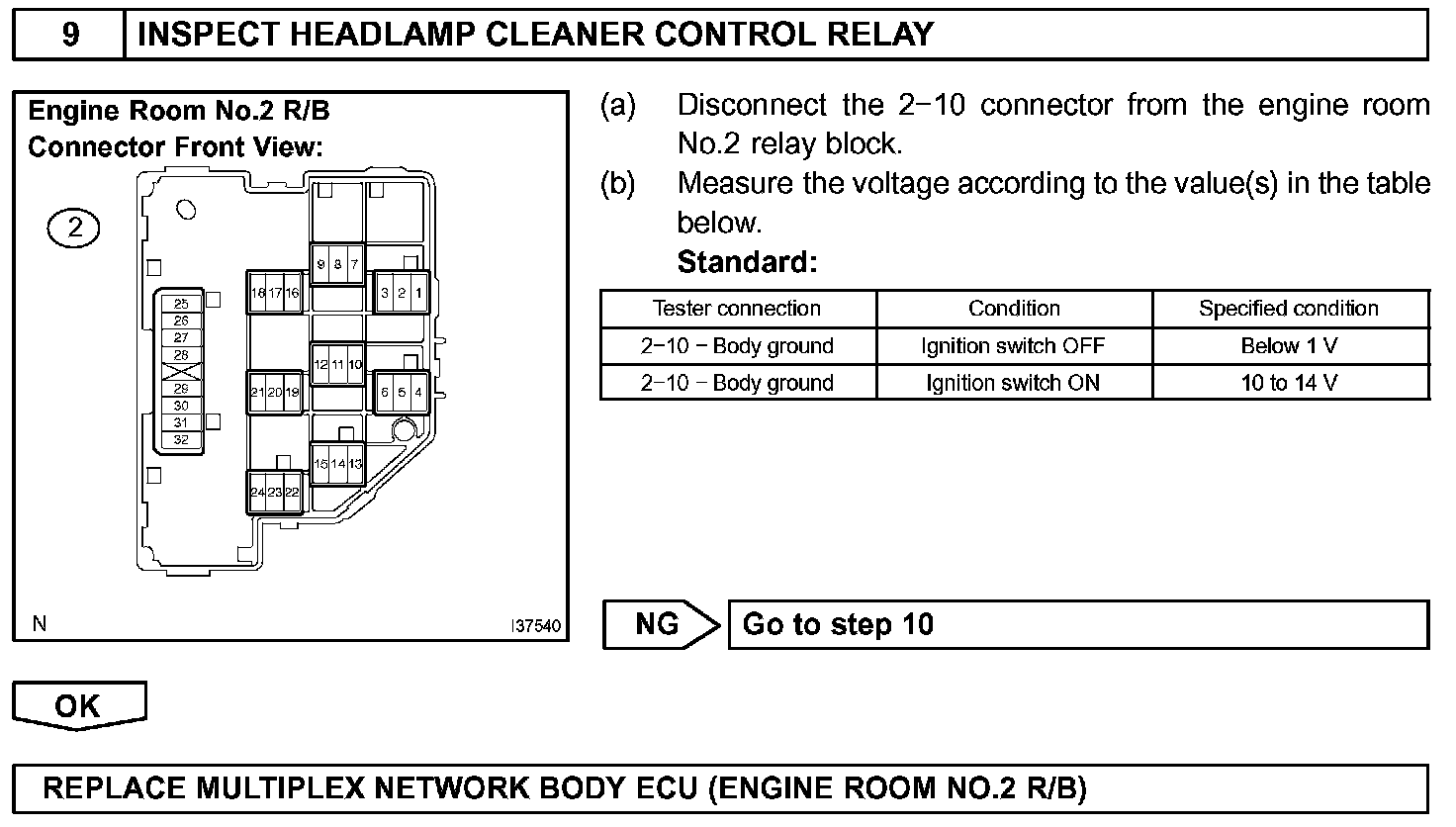

Step 9:

Step 10:
