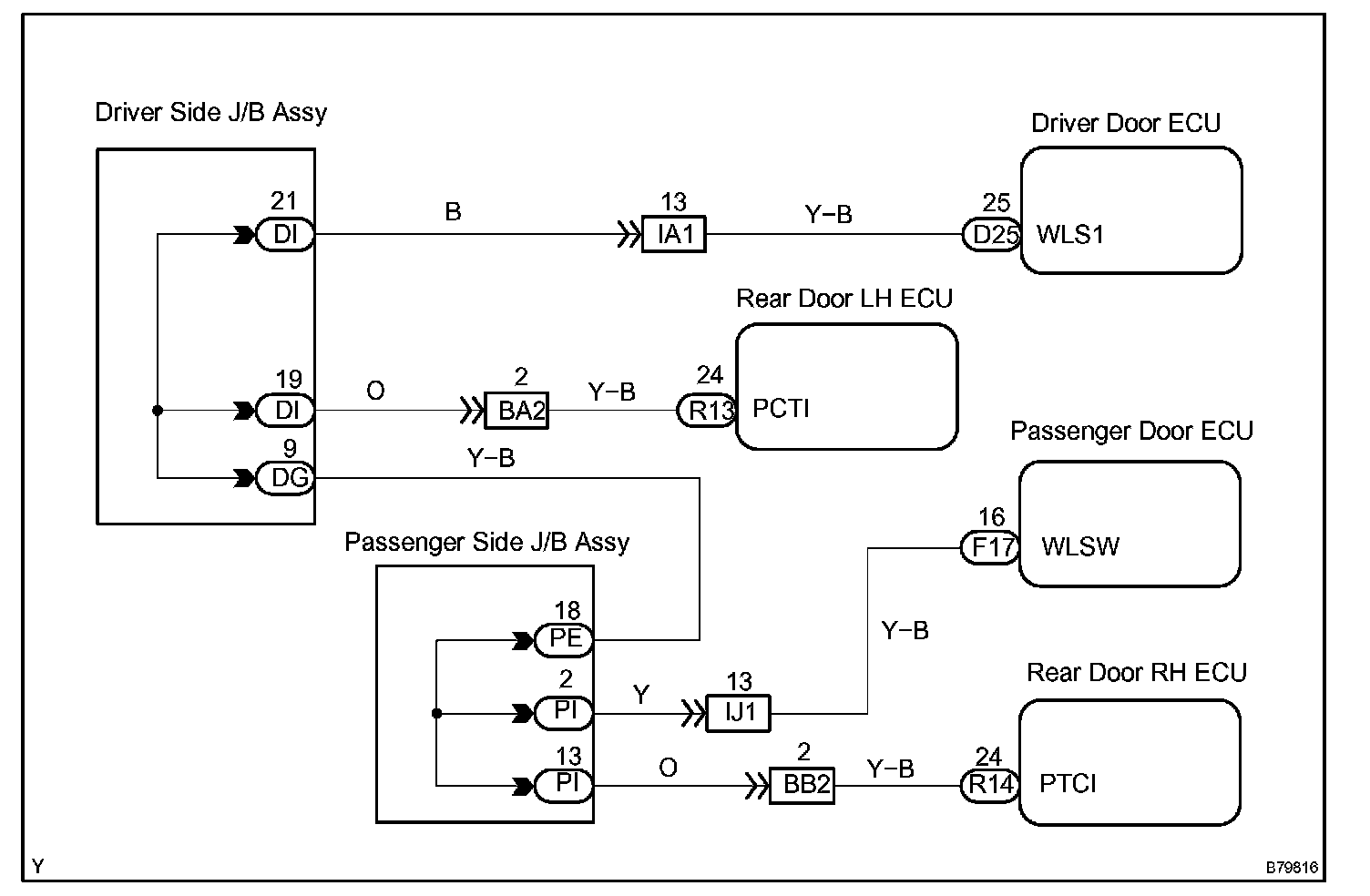

Window Lock Signal Circuit

WINDOW LOCK SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

When the window lock switch on the power window regulator master switch assembly is in the LOCK position, the passenger door power window regulator and rear LH and RH power window switches cannot operate their respective power windows.
