Rear Door RH ECU Power Source Circuit

REAR DOOR RH ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the rear right door ECU.

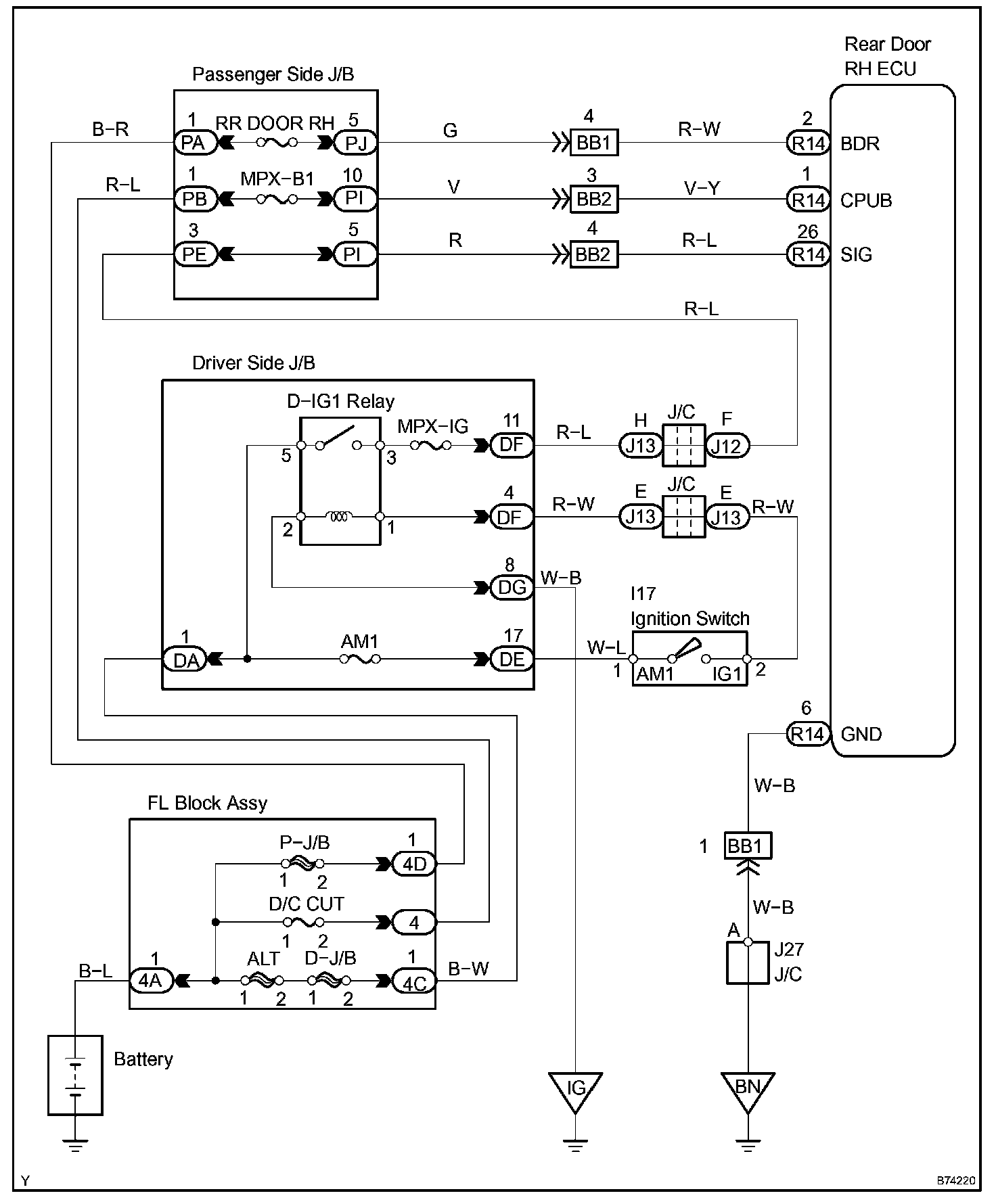

Wiring Diagram:





INSPECTION PROCEDURE

Step 1-3:
