Rear Door LH ECU Power Source Circuit

REAR DOOR LH ECU POWER SOURCE

CIRCUIT DESCRIPTION

This circuit supplies power to operate the rear left door ECU.

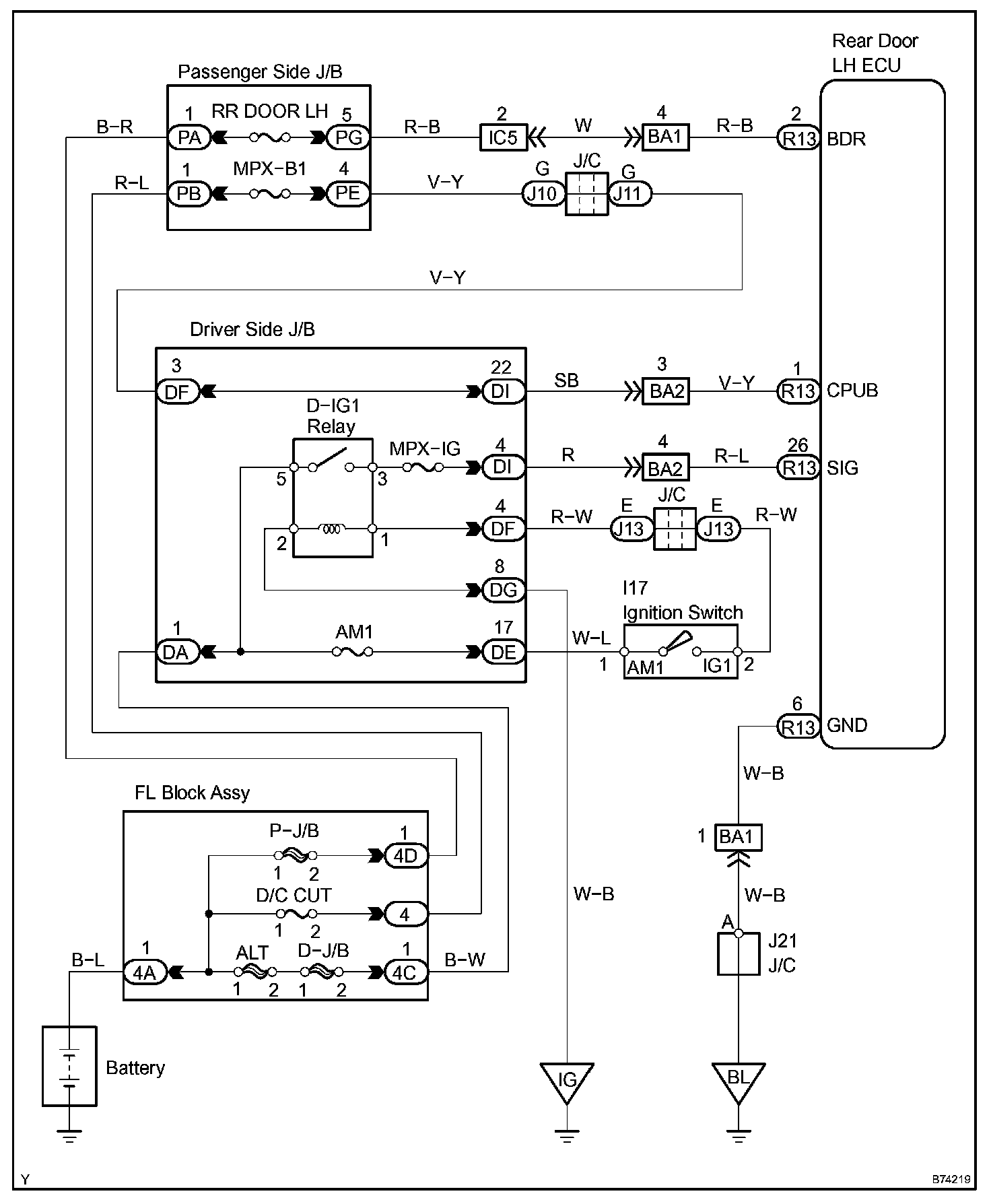

Wiring Diagram:





INSPECTION PROCEDURE

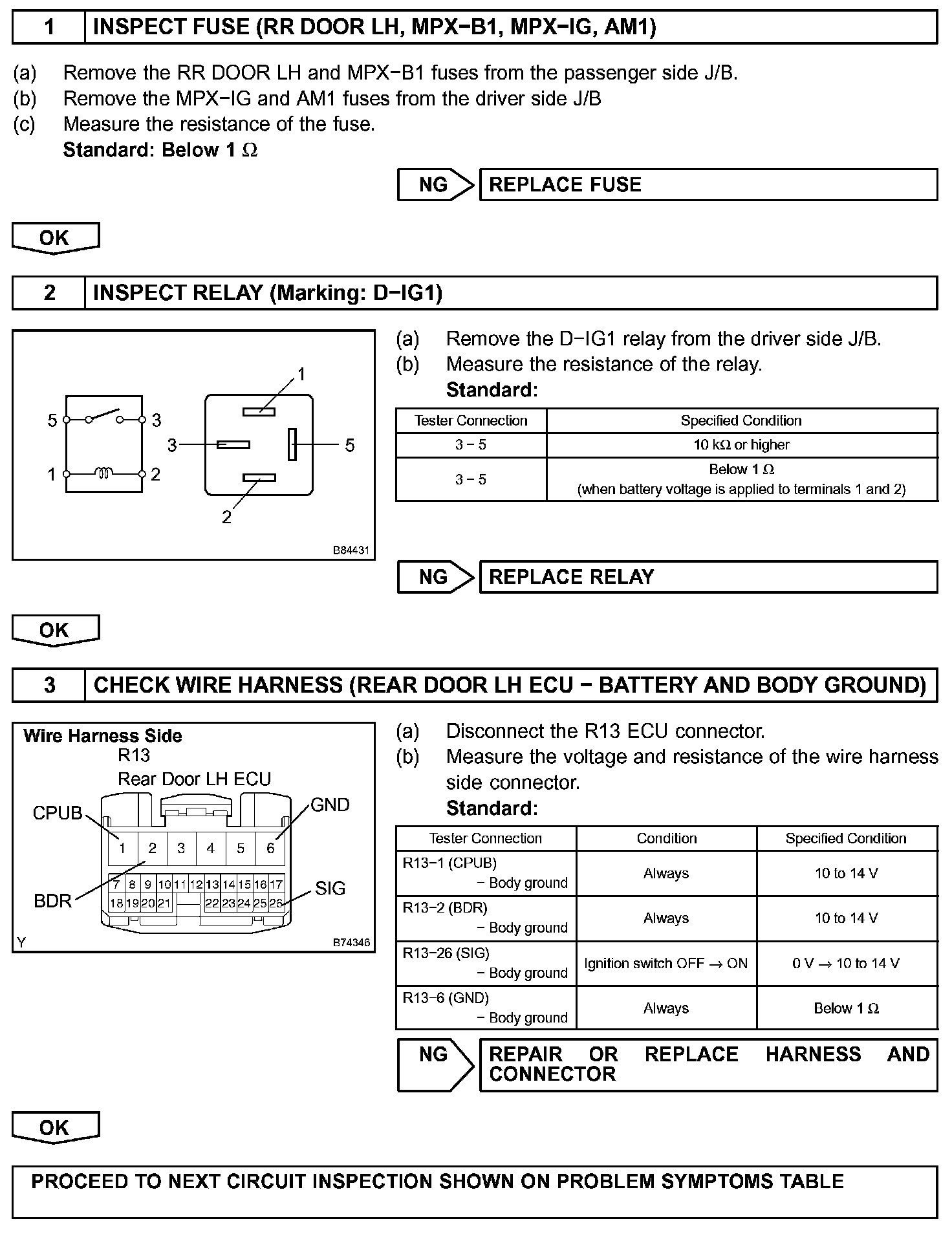

Step 1-3:
